Verkada CD42-E Outdoor Dome Camera, 5MP, 2.8mm Fixed Lens, 15m IR Range, Up to 365 Days

Description

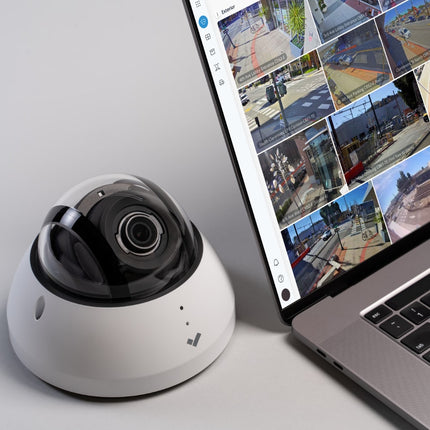

Verkada CD42-E Outdoor Dome Camera, 5MP, 2.8mm Fixed Lens, 15m IR Range Fixed Lens, 256GB to 2TB of Storage, Maximum 365 Days

The Verkada CD42-E Outdoor Dome Camera is an intelligent, high-resolution option for outdoor surveillance. With 5 MP image resolution and up to 365 days of maximum storage, this dome camera also features a 2.8mm fixed lens and a 15m IR range. Rated IP67 and IK10 for durability.

Verkada Dome Security Cameras

Built for durability, high-performance, and scale, Verkada’s Dome Series delivers enterprise-grade security in a wide range of models for indoor or outdoor use. The latest Dome cameras is ideal for low-light environments – and state-of-the-art computer vision processors for advanced, AI-powered analytics.

Why Hybrid Cloud Video Security?

  • Simple to Install

    PoE cameras are online and fully operational in minutes.

  • No NVRs or DVRs

    Store up to 365 days of standard quality footage locally.

  • Easy to Scale

    Cameras operate at 20-50kbps in a resting state.

  • Remote Management

    Modern platform enables secure access on any device, anywhere.

  • Cloud-Managed Solution

    Manage cameras with Command, a web-based platform.

  • Always Evolving

    Unlock features and maintain security through automatic updates.

Quickly Surface Meaningful Events with AI

Verkada cameras utilize the latest in AI and edge-based processing to help organizations uncover events and create alerts in real time.
Learn more about AI-powered search

Unlock Operational Insights with Occupancy Trends

Occupancy Trends provides real-time and historical data of foot and vehicle traffic across organizations. Optimize staffing, inventory, energy use, and inform staffing hours or marketing strategies based on granular occupancy insights.
Learn more about Occupancy Trends

Stream Footage Securely

Enterprise Controlled Encryption adds multiple layers of security and gives organizations control over who accesses their data.
Learn more about data protection at Verkada

Product Specifications

Camera features

  • Image Sensor
    1 / 2.8″ Progressive CMOS
  • Sensor Resolution1
    5MP (2688 x 1944)
  • Lens Type
    Fixed
  • Focal Length
    2.8mm
  • Aperture
    F1.6
  • Iris
    Fixed
  • Field of View (after LDC2)
    Horizontal: 97° (78°)
    Vertical: 71° (63°)
    Diagonal: 128° (91°)
  • Sensor Movement
    Tilt: 60°
    Pan: 355°
    Rotation: 180°
  • Shutter Speed
    1 / 30 sec. to 1 / 10,000 sec.
  • Day/Night
    IR-cut filter for day and night function
  • IR Cut Filter
    Yes
  • IR Range
    15m / 49ft
  • Minimum Illumination
    0.009 lux @ F1.9 (Color)
    0 lux with IR Illuminators on
  • Onboard Storage
    Capacity: From 256GB to 2TB
    Card: MicroSD, SDXC
  • CPU
    Ambarella CV25S88

Standard video settings

  • Compression
    H.265, H.264
  • Frame Rate4
    24fps
  • Live Streaming Settings
    High quality (HQ): Up to 3,000 Kbps (default)
    Standard quality (SQ): Up to 600 Kbps
  • Historical Video Settings
    Adaptive quality1

Standard audio settings

  • Audio
    Supported
  • Audio Capacity
    One-way audio
  • Interface
    Built-in microphone
  • Effective Range
    5m / 15ft

Power and network

  • Power Input3
    With IR: IEEE 802.3af Type 1 PoE
    Without IR: IEEE 802.3af Type 1 PoE
    Extended temperature range: IEEE 802.3at Type 2 PoE+
  • Power Consumption3
    With IR: 37-57V, 0.23-0.15A, 8.59W
    Without IR: 37-57V, 0.11-0.07A, 4.25W
    Extended temperature range: 37-57V, 0.46-0.3A, 16.94W
  • Connectivity
    RJ-45 cable connector for network/PoE connection; 10 / 100 Mbps
  • RTSP
    RTSP 1.0
    RFC 2326
    Max concurrent streams: 2
    Audio support: Yes

General

  • Operating Temperature
    -40°C to 50°C / -40°F to 122°F
  • Humidity
    0 to 90%
  • Certifications
    For hardware certification information, please visit verkada.com/compliance
  • LED Indicator
    System power and status indicator
  • Warranty
    10 Years
  • Included Accessories
    Setup guide, wall mount screws & anchors (4x), T10 security torx screwdriver, mounting template, cable gland wrench, desiccant pack, conduit adapter

Mechanical

  • Weight
    Camera: 847g / 29.88oz
    Mount plate: 174g / 6.14oz
  • Dimensions
    Ø: 155mm / 6.10in, H: 114.6mm / 4.51in with mount plate
    Ø: 155mm / 6.10in, H: 107.6mm / 4.24in without mount plate
  • Body
    Aluminum, plastic dome trim

Software capabilities

  • Alerts
    Camera status, motion detection, people detection, vehicle detection, Person of Interest detection, crowd detection, line-crossing detection, loitering detection
  • Streaming and storage
    Cloud backup, configurable retention days, selectable storage location, low bandwidth mode, timelapse, RTSP
  • People analytics
    People search, attribute search, face search, Occupancy Trends, motion search, trajectory analysis, selective face blurring, AI-powered search5
  • Sharing and privacy
    Live Links, live face blur, privacy regions, audit log
  • Vehicle analytics
    Vehicle search, attribute search, motion search, trajectory analysis, Occupancy Trends, AI-powered search5

1 All our cameras record in "adaptive quality", capturing both standard and high quality streams. Standard quality (SQ) video is stored up to the amount of retention specified by the customer. The amount of high quality video stored on the camera will depend on the amount of motion detected by the camera over time. To learn more, visit our website: https://docs.verkada.com/docs/adaptive-quality-recording-whitepaper.pdf
2 Lens Distortion Correction (LDC) crops the sensor field of view to deliver a rectified, undistorted output image.
3 Extended temperature range includes operating temperatures below -8.5°C / 16.7°F and assumes IR will be enabled.
4 Frame rate can be adjusted by support.
5 AI-powered search is currently supported in English only.

Downloads

CD42-E Datasheet
CD42-E Full Install Guide
Verkada Accessory List
