Verkada CM41-E Outdoor Mini Dome Camera, 5MP, 2.8mm Fixed Lens, 128GB to 2TB of Storage, 15m IR Range, Up to 365 Days

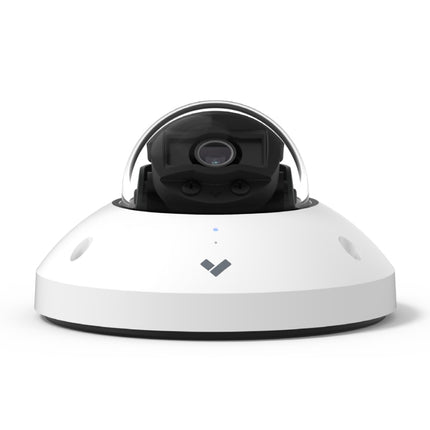

The Verkada CM41-E is a durable and discreet outdoor mini dome camera, perfect for high-traffic environments. With a 5MP image resolution and 78° horizontal FoV, this camera captures clear and wide footage. It is also IP67 and IK10 rated, with an impressive 15m IR range for reliable surveillance even in low light conditions.
Verkada Mini Dome Cameras
Designed for discreet deployments without compromising on image quality, Verkada’s Mini Series delivers enterprise-grade security with powerful performance for advanced edge-based analytics. With small form factors, Verkada mini cameras are perfect for a wide-range of environments.
Why Hybrid Cloud Video Security?
-
PoE cameras are online and fully operational in minutes.
-
Store up to 365 days of standard quality footage locally.
-
Cameras operate at 20-50kbps in a resting state.
-

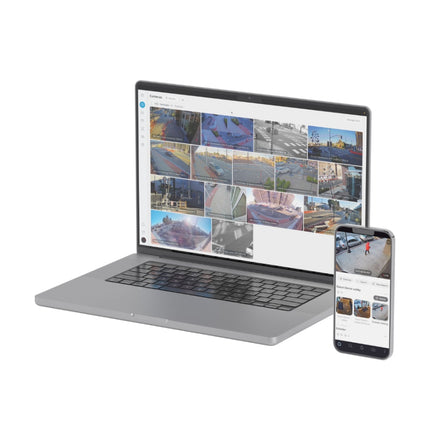

Modern platform enables secure access on any device, anywhere.
-
Manage cameras with Command, a web-based platform.
-
Unlock features and maintain security through automatic updates.
Discreet Form Factors for a Variety of Deployment Scenarios
Mini series cameras can be installed in flexible places including ATMs, shelving or countertops in retail environments, and on public transportation.
AI-Powered Intelligence at the Edge
With powerful edge-based processing, take advantage of computer vision features including motion detection and AI-powered people and vehicle identification.
Uncompromised Image Quality
Bring clarity to investigations and effortlessly detect in-scene details with high-quality image resolution.
Product Specifications
Camera features
-
Image Sensor
1 / 2.8" Progressive CMOS
-
Sensor Resolution1
5MP (2688 x 1944)
-
Lens Type
Fixed
-
Focal Length
2.8mm
-
Aperture
F1.6
-
Iris
Fixed
-
Field of View (after LDC2)
Horizontal: 97° (78°)
Vertical: 71° (63°)
Diagonal: 128° (91°)
-
Sensor Movement
Tilt: 70°
Pan: 355°
Rotation: 240°
-
Shutter Speed
1 / 30 sec. to 1 / 10,000 sec.
-
Day/Night
IR-cut filter for day and night function
-
IR Cut Filter
Yes
-
IR Range
15m / 49ft
-
Minimum Illumination
0.009 lux @ F1.9 (Color)
0 lux with IR Illuminators on
-
Onboard Storage
Capacity: From 128GB to 2TB
Card: MicroSD, SDXC
-
CPU
Ambarella S5L63
Standard video settings
-
Compression
H.265, H.264
-
Frame Rate4
24fps
-
Live Streaming Settings
High quality (HQ): Up to 3,000 Kbps (default)
Standard quality (SQ): Up to 600 Kbps
-
Historical Video Settings
Adaptive quality1
Standard audio settings
-
Audio
Supported
-
Audio Capacity
One-way audio
-
Interface
Built-in microphone
-
Effective Range
5m / 15ft
Power and network
-
Power Input3
With IR: IEEE 802.3af Type 1 PoE
Without IR: IEEE 802.3af Type 1 PoE
Extended temperature range: IEEE 802.3af Type 1 PoE
-
Power Consumption
With IR: 37-57V, 0.14-0.09A, 5.46W
Without IR: 37-57V, 0.08-0.05A, 3.22W
Extended temperature range: 37-57V, 0.27-0.17A, 10.1W
-
Connectivity
RJ-45 cable connector for network/PoE connection; 10 / 100 Mbps
-
RTSP
RTSP 1.0
RFC 2326
Max concurrent streams: 2
Audio support: Yes
General
-
Operating Temperature
-40°C to 55°C / 40°F to 131°F
-
Humidity
0 to 90%
-
Certifications
-
LED Indicator
System power and status indicator
-
Warranty
10 Years
-
Included Accessories
Setup guide, T10 security torx screwdriver, wall mount screws (3x), junction box screws (2x), mounting template, desiccant bags, cable sealing components
Mechanical
-
Weight
Camera: 401g / 14.14oz
Mount plate: 138g / 4.87oz
-
Dimensions
Ø: 121mm / 4.78in, H: 72mm / 2.83in
-
Body
Aluminum, plastic dome trim
Software capabilities
-
Alerts
Camera status, motion detection, people detection, vehicle detection, Person of Interest detection, crowd detection
-
Streaming and storage
Cloud backup, configurable retention days, selectable storage location, low bandwidth mode, timelapse, RTSP
-
People analytics
People search, attribute search, face search, motion search, trajectory analysis, selective face blurring, AI-powered search5
-
Sharing and privacy
Live link, privacy regions, audit log
-
Vehicle analytics
Vehicle search, attribute search, motion search, AI-powered search5
1 All our cameras record in "adaptive quality", capturing both standard and high quality streams. Standard quality (SQ) video is stored up to the amount of retention specified by the customer. The amount of high quality video stored on the camera will depend on the amount of motion detected by the camera over time. To learn more, visit our website: https://docs.verkada.com/docs/adaptive-quality-recording-whitepaper.pdf
2 Lens Distortion Correction (LDC) crops the sensor field of view to deliver a rectified, undistorted output image.
3 Extended temperature range includes operating temperatures below -8.5°C / 16.7°F and assumes IR will be enabled.
4 Frame rate can be adjusted by support.
5 AI-powered search is currently supported in English only.
