Description

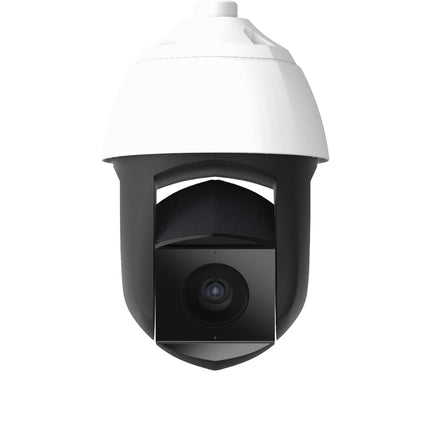

Verkada CP52 Outdoor PTZ Camera, 5MP, 5.2mm – 148.15mm Fixed Lens, 100m IR, 512GB to 3TB of Storage, Up to 180 Days
With the Verkada CP52 Outdoor PTZ Camera, you have total control at your fingertips. With a 5MP image resolution, 100m IR range, and 28x optical zoom, this IP66 and IK10 rated camera provides crystal clear footage and superior control. Plus, with 512GB to 3TB of storage, you can store up to 180 days of footage.
Verkada PTZ Series
Experience the power of automated investigations in expansive areas with Verkada's AI-enabled pan-tilt-zoom (PTZ) cameras. These advanced cameras deliver exception control and dynamic, automated coverage.
Why Hybrid Cloud Video Security?
-
PoE cameras are online and fully operational in minutes.
-
Store up to 365 days of standard quality footage locally.
-
Cameras operate at 20-50kbps in a resting state.
-
Modern platform enables secure access on any device, anywhere.
-
Manage cameras with Command, a web-based platform.
-
Unlock features and maintain security through automatic updates.
Monitor large areas with dynamic, targeted coverage
Scan large areas with exceptional detail using wide-angle 360-degree pan, 220-degree tilt, and up to 32x optical zoom.
Conduct live investigations from a single vantage point
Quickly shift the camera angle, zoom in on specific targets and investigate moving subjects without switching camera feeds.
See what you missed with Sentry Mode
Automatically pan, tilt, and zoom in on people entering the camera's field of view and capture high-resolution imagery. Trigger sentry mode to turn on by pairing your PTZ with up to three surrounding context cameras for added coverage and peace-of-mind.
Control cameras remotely and quickly switch to preset views
Remotely adjust camera viewing settings with ease via Verkada Command. Save and select preset positions for quick adjustments during critical situations.
Capture details in low-light with 100m long-range infrared (IR)
Experience unmatched clarity and detail at an impressive 100m / 328ft range, no matter the time of day.
Withstand Extreme Weather, Resist Vandals
Built with enterprise-grade components to withstand extreme conditions, the PTZ Series has vandal resistant IK10 and weather resistant IP66 ratings.
Product Specifications
Camera features
-
Image Sensor
1 / 2.8" Progressive CMOS
-
Sensor Resolution1
5MP (2688 x 1944)
-
Lens Type
Varifocal; motorized zoom
-
Focal Length
5.2mm – 148.15mm
-
Aperture
F1.3 – F4.8
-
Iris
DC Iris
-
Field of View
Horizontal: 55° - 2°
Vertical: 42° - 2°
Diagonal: 66° - 3°
-
Sensor Movement
Tilt: 220°
Pan: 360°
-
Shutter Speed
1 / 30 sec. to 1 / 10,000 sec.
-
Day/Night
IR-cut filter for day and night function
-
IR Cut Filter
Yes
-
IR Range
100m / 328ft
-
Minimum Illumination
0.8 lux @ F1.4 (Color)
0 lux @ F1.4 with IR Illuminators on
-
Onboard Storage
Capacity: From 512GB to 3TB
Card: MicroSD, SDXC
-
CPU
Ambarella CV22S66
Standard video settings
-
Compression
H.265 (historical video only), H.264
-
Frame Rate2
24fps
-
Live Streaming Settings3
Static: 1,000 Kbps (SQ), 3,000 Kbps (HQ)
Moving: 2,000 Kbps (SQ), 4,500 Kbps (HQ)
-
Historical Video Settings
Adaptive quality1
-
WDR Technology
True WDR, dual exposure
Power and network
-
Power Input4
With IR: IEEE 802.3bt Type 3 PoE++
Without IR: IEEE 802.3at Type 2 PoE+
Extended temperature range: IEEE 802.3bt Type 3 PoE++
-
Power Consumption4
With IR: 42.5 - 57V, 0.995 - 0.742A, 42.26W
Without IR: 42.5 - 57V, 0.547 - 0.408A, 23.26W
Extended temperature range: 42.5 - 57V, 1.035 - 0.772A, 44.04W
-
Connectivity
RJ-45 cable connector for network/PoE connection; 10 / 100 / 1000 Mbps
-
RTSP
RTSP 1.0
RFC 2326
Max concurrent streams: 2
Audio support: No
General
-
Operating Temperature
-40°C to 50°C / -40°F to 122°F
-
Humidity
0 to 90%
-
Certifications
-
LED Indicator
System power and status indicator
-
Warranty
5 Years
-
Included Accessories
Rubber cap, pendant cap, T30 security L-wrench
Mechanical
-
Weight
Camera: 7.07kg / 15.6lbs
Pendant cap: 0.4kg / 0.9lbs
-
Dimensions
Ø: 256mm / 10.1in, H: 406mm / 16.0in with pendant cap
Ø: 256mm / 10.1in, H: 336mm / 13.2in without pendant cap
-
Body
Aluminum, plastic
Software capabilities
-
Alerts
Camera status, motion detection, people detection, vehicle detection, Person of Interest detection, crowd detection
-
Streaming and storage
Cloud backup, configurable retention days, selectable storage location, low bandwidth mode, timelapse, RTSP, fast archive
-
People analytics
People search, attribute search, face search, Sentry Mode, motion search, trajectory analysis5, selective face blurring, AI-powered search6
-
Sharing and privacy
Live Links, audit log
-
Vehicle analytics
Vehicle search, attribute search, motion search, trajectory analysis, AI-powered search6
-
Controllers
Mouse, keyboard, Xbox Wireless Controller, joystick
1 All our cameras record in "adaptive quality", capturing both standard and high quality streams. Standard quality (SQ) video is stored up to the amount of retention specified by the customer. The amount of high quality video stored on the camera will depend on the amount of motion detected by the camera over time. To learn more, visit our website: https://docs.verkada.com/docs/adaptive-quality-recording-whitepaper.pdf
2 Frame rate can be adjusted by support.
3 The listed ranges indicate uplink bandwidth for specific target bitrates. For further details, refer to Verkada's Knowledge Base and read "Understanding Variable Bitrates for Verkada PTZ Cameras".
4 Extended temperature range includes operating temperatures below -8.5°C / 16.7°F and assumes IR will be enabled.
5 For details on the supported controllers for the CP52-E, refer to page 12 of this document.
6 AI-powered search is currently supported in English only.
