Description

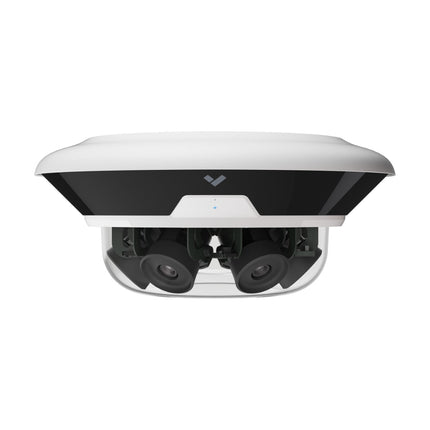

Verkada CH52-E Outdoor Multisensor Camera, 4x5MP, Zoom Lens, 30m IR, 1 - 8TB of Storage, Up to 365 Days
The Verkada CH52-E Outdoor Multisensor Camera offers 4 independent sensors in 1 camera, eliminating the need for multiple devices. With a high resolution of 20MP and a 30m IR range, it provides clear images day and night. Its durable design is IP66 and IK10 rated, making it suitable for outdoor use. With up to 365 days of storage, you'll never miss a moment.
Verkada CH52-E Multisensor
Ideal for expansive coverage and efficient installation, Verkada's AI-enabled multisensor camera packs four independent camera systems into a single device. With no shared storage or processing dependencies, each sensor delivers powerful functionality without any compromise.
Why Hybrid Cloud Video Security?
-
PoE cameras are online and fully operational in minutes.
-
Store up to 365 days of standard quality footage locally.
-
Cameras operate at 20-50kbps in a resting state.
-
Modern platform enables secure access on any device, anywhere.
-
Manage cameras with Command, a web-based platform.
-
Unlock features and maintain security through automatic updates.
Minimise Blind Spots, Maximize Detail
Comprehensively cover a wide area with four 5MP varifocal sensors. Magnify key details at a distance with 2.5x optical zoom.
Customise Coverage with Adjustable Sensors
Independently arrange each sensor for optimal coverage at your install point. Adjust the field of view for walls, corners and open areas.
Better Detection Accuracy with Powerful Processing
Four next-generation processors deliver crisp images and support advanced detection, alerting, and AI-powered analytics capabilities.
Withstand Extreme Weather, Resist Vandals
Built with enterprise-grade components to withstand extreme conditions, the multisensor has vandal resistant IK10 and weather resistant IP66 ratings.
Easy Installation, Lower Costs
Save up to 75% on install costs by eliminating the need for multiple single-sensor cameras and cable runs. Verkada’s multisensor operates on a single PoE++ port.
Product Specifications
Camera features
-
Image Sensor
4 x 1 / 2.8" Progressive CMOS
-
Sensor Resolution1
4 x 5MP (2688 x 1944)
-
Lens Type
Varifocal; Motorized zoom
-
Focal Length
3.7 - 7.7mm
-
Aperture
F1.9 - F2.9
-
Iris
N/A
-
Field of View (after LDC2)
Horizontal: 89° - 37° (82° - 35°)
Vertical: 65° - 29° (60° - 26°)
Diagonal: 99° - 46° (92° - 43°)
-
Sensor Movement
Tilt: +0° to 105° for each lens from horizon
Pan: +/- 90° for each lens
Rotation: +/- 90° for each lens
-
Shutter Speed
1 / 5 sec. to 1 / 32,000 sec.
-
Day/Night
IR-cut filter for day and night function
-
IR Cut Filter
Yes
-
IR Range
30m / 98ft; non-adjustable
-
Minimum Illumination
0.009 lux @ F1.9 (Color)
0 lux with IR Illuminators on
-
Onboard Storage
Capacity: From 1TB to 8TB
Card: MicroSD, SDXC
-
CPU
4 x Ambarella CV25S88
Standard video settings
-
Compression
H.265, H.264
-
Frame Rate5
24fps / sensor
-
Live Streaming Settings (Per Head)
High quality (HQ): Up to 3,000 Kbps (default)
Standard quality (SQ): Up to 600 Kbps
-
Historical Video Settings
Adaptive quality1
-
WDR Technology
120dB dynamic range, true WDR, dual exposure
Power and network
-
Power Input3
With IR: IEEE 802.3bt Type 3 PoE++
Without IR: IEEE 802.3at Type 2 PoE+
Extended temperature range: IEEE 802.3bt Type 3 PoE++
-
Power Consumption3
With IR: 42.5 - 57V, 0.65-0.49A, 27.69W
Without IR: 42.5 - 57V, 0.46-0.34A, 19.54W
Extended temperature range: 42.5 - 57V, 0.91 - 0.68A, 38.68W
-
Connectivity
RJ-45 cable connector for Network/PoE connection; 10 / 100 Mbps
-
RTSP
RTSP 1.0
RFC 2326
Max concurrent streams: 8 (2 per camera head)
Audio support: No
General
-
Operating Temperature
-40°C to 50°C / -40°F to 122°F
-
Humidity
0 to 90%
-
Certifications
-
LED Indicator
System power and status indicator
-
Warranty
10 Years
-
Included Accessories
IR cover, mounting template, 3 mounting
screws, 3 wall anchors, 2 desiccants, T10
security screwdriver, offset wrench
Mechanical
-
Weight
Camera: 2,900g / 102.3oz
Mount plate: 536g / 18.9oz
-
Dimensions
Ø: 275mm / 10.82in, H: 118mm / 4.65in with mount plate
Ø: 267mm / 10.51in, H: 114mm / 4.49in without mount plate
-
Body
Aluminum, plastic dome trim
Software capabilities
-
Alerts4
Camera status, motion detection, people detection, vehicle detection, Person of Interest detection, crowd detection, line-crossing detection, loitering detection
-
Streaming and storage4
Cloud backup, configurable retention days, selectable storage location, low bandwidth mode, timelapse, RTSP
-
People analytics4
People search, attribute search, face search, Occupancy Trends, motion search, trajectory analysis, selective face blurring, AI-powered search6
-
Sharing and privacy4
Live Links, live face blur, privacy regions, audit log
-
Vehicle analytics4
Vehicle search, attribute search, motion search, trajectory analysis, Occupancy Trends, AI-powered search6
1 All our cameras record in "adaptive quality", capturing both standard and high quality streams. Standard quality (SQ) video is stored up to the amount of retention specified by the customer. The amount of high quality video stored on the camera will depend on the amount of motion detected by the camera over time. To learn more, visit our website: https://docs.verkada.com/docs/adaptive-quality-recording-whitepaper.pdf
2 Lens Distortion Correction (LDC) crops the sensor field of view to deliver a rectified, undistorted output image.
3 Extended temperature range includes operating temperatures below -8.5°C / 16.7°F and assumes IR will be enabled.
4 All the listed features can be enabled independently for each camera head.
5 Frame rate can be adjusted by support.
6 AI-powered search is currently supported in English only.
Downloads
CH52-E Datasheet
CH52-E Full Install Guide
Verkada Accessory List

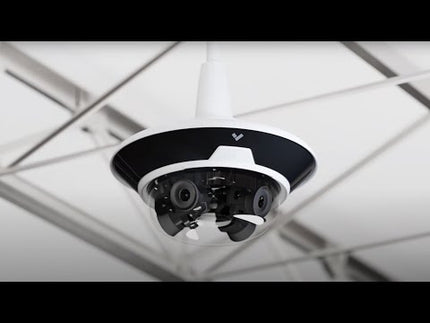

Meet the Verkada CH52-E Multisensor Camera
Verkada’s first multisensor camera, the CH52-E. With four independent 5MP image sensors, the Verkada multisensor camera offers broad coverage with incredible image quality. Now, Verkada customers benefit from the coverage of a fisheye camera and the image clarity of a dome camera.
Verkada Video Security | Installing Your Verkada Camera: Software Setup (Command Admin)
This video explains how to set up a Verkada camera in Command, including adding a device, configuring its site and location, enabling camera features, and adjusting video quality and retention settings.
