Description

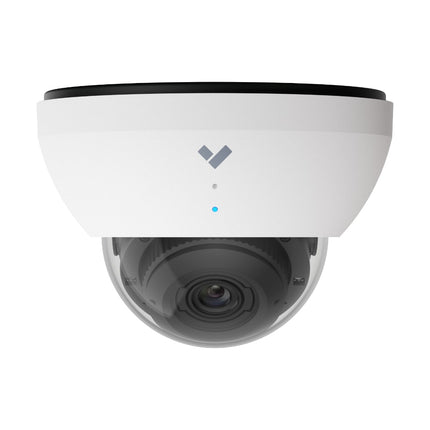

Verkada CD52 Indoor Dome Camera, 5MP, 30m IR Range, 2.8-8mm Varifocal Motorised Zoom Lens, 256GB to 2TB of Storage, Maximum 365 Days
The Verkada CD52 Indoor Dome Camera offers high-resolution, crisp image quality with its 5MP sensor. Its 2.8-8mm varifocal motorized zoom lens provides up to 3x optical zoom, allowing for clear and precise monitoring. With a 30m IR range and intelligent edge-based video analytics, this camera ensures maximum coverage and security.
Verkada Dome Security Cameras
Built for durability, high-performance, and scale, Verkada’s Dome Series delivers enterprise-grade security in a wide range of models for indoor or outdoor use. The latest Dome cameras is ideal for low-light environments – and state-of-the-art computer vision processors for advanced, AI-powered analytics.
Why Hybrid Cloud Video Security?
-
PoE cameras are online and fully operational in minutes.
-
Store up to 365 days of standard quality footage locally.
-
Cameras operate at 20-50kbps in a resting state.
-
Modern platform enables secure access on any device, anywhere.
-
Manage cameras with Command, a web-based platform.
-
Unlock features and maintain security through automatic updates.
Quickly Surface Meaningful Events with AI
Verkada cameras utilize the latest in AI and edge-based processing to help organizations uncover events and create alerts in real time.
Learn more about AI-powered search
Unlock Operational Insights with Occupancy Trends
Occupancy Trends provides real-time and historical data of foot and vehicle traffic across organizations. Optimize staffing, inventory, energy use, and inform staffing hours or marketing strategies based on granular occupancy insights.
Learn more about Occupancy Trends
Product Specifications
Camera features
-
Image Sensor
1 / 2.8″ Progressive CMOS
-
Sensor Resolution1
5MP (2688 x 1944)
-
Lens Type
Varifocal; motorized zoom
-
Focal Length
2.8 - 8mm
-
Aperture
F1.3 - F2.4
-
Iris
P-Iris
-
Field of View (after LDC2)
Horizontal: 105° - 38° (84° - 37°)
Vertical: 77° - 29° (68° - 28°)
Diagonal: 126° - 48° (97° - 45°)
-
Sensor Movement
Tilt: 60°
Pan: 355°
Rotation: 350°
-
Shutter Speed
1 / 30 sec. to 1 / 10,000 sec.
-
Day/Night
IR-cut filter for day and night function
-
IR Cut Filter
Yes
-
IR Range
30m / 98ft
-
Minimum Illumination
0.009 lux @ F1.9 (Color)
0 lux with IR Illuminators on
-
Onboard Storage
Capacity: From 256GB to 2TB
Card: MicroSD, SDXC
-
CPU
Ambarella CV25S88
Standard video settings
-
Compression
H.265, H.264
-
Frame Rate4
24fps
-
Live Streaming Settings
High quality (HQ): Up to 3,000 Kbps (default)
Standard quality (SQ): Up to 600 Kbps
-
Historical Video Settings
Adaptive quality1
Standard audio settings
-
Audio
Supported
-
Audio Capacity
One-way audio
-
Interface
Built-in microphone
-
Effective Range
5m / 15ft
Power and network
-
Power Input3
With IR: IEEE 802.3af Type 1 PoE
Without IR: IEEE 802.3af Type 1 PoE
Extended temperature range: N/A
-
Power Consumption3
With IR: 37-57V. 0.3-0.2A, 10.98W
Without IR: 37-57V, 0.13-0.08A, 4.74W
Extended temperature range: N/A
-
Connectivity
RJ-45 cable connector for network/PoE connection; 10 / 100 Mbps
-
RTSP
RTSP 1.0
RFC 2326
Max concurrent streams: 2
Audio support: Yes
General
-
Operating Temperature
-10°C to 50°C / 14°F to 122°F
-
Humidity
0 to 90%
-
Certifications
-
LED Indicator
System power and status indicator
-
Warranty
10 Years
-
Included Accessories
Setup guide, T10 security torx screwdriver, screw pack, mounting template
Mechanical
-
Weight
Camera: 776g / 29.88oz
Mount plate: 140g / 4.94oz
-
Dimensions
Ø: 146mm / 5.75in, H: 104.3mm / 4.11in with mount plate
Ø: 146mm / 5.75in, H: 99.8mm / 3.93in without mount plate
-
Body
Aluminum, plastic dome trim
Software capabilities
-
Alerts
Camera status, motion detection, people detection, vehicle detection, Person of Interest detection, crowd detection, line-crossing detection, loitering detection
-
Streaming and storage
Cloud backup, configurable retention days, selectable storage location, low bandwidth mode, timelapse, RTSP
-
People analytics
People search, attribute search, face search, Occupancy Trends, motion search, trajectory analysis, selective face blurring, AI-powered search5
-
Sharing and privacy
Live Links, live face blur, privacy regions, audit log
-
Vehicle analytics
Vehicle search, attribute search, motion search, trajectory analysis, Occupancy Trends, AI-powered search5
1 All our cameras record in "adaptive quality", capturing both standard and high quality streams. Standard quality (SQ) video is stored up to the amount of retention specified by the customer. The amount of high quality video stored on the camera will depend on the amount of motion detected by the camera over time. To learn more, visit our website: https://docs.verkada.com/docs/adaptive-quality-recording-whitepaper.pdf
2 Lens Distortion Correction (LDC) crops the sensor field of view to deliver a rectified, undistorted output image.
3 Extended temperature range includes operating temperatures below -8.5°C / 16.7°F and assumes IR will be enabled.
4 Frame rate can be adjusted by support.
5 AI-powered search is currently supported in English only.
Downloads
CD52 Datasheet
CD52 Full Install Guide
Verkada Accessory List
Verkada Video Security | Installing Your Verkada Camera: Software Setup (Command Admin)
This video explains how to set up a Verkada camera in Command, including adding a device, configuring its site and location, enabling camera features, and adjusting video quality and retention settings.
