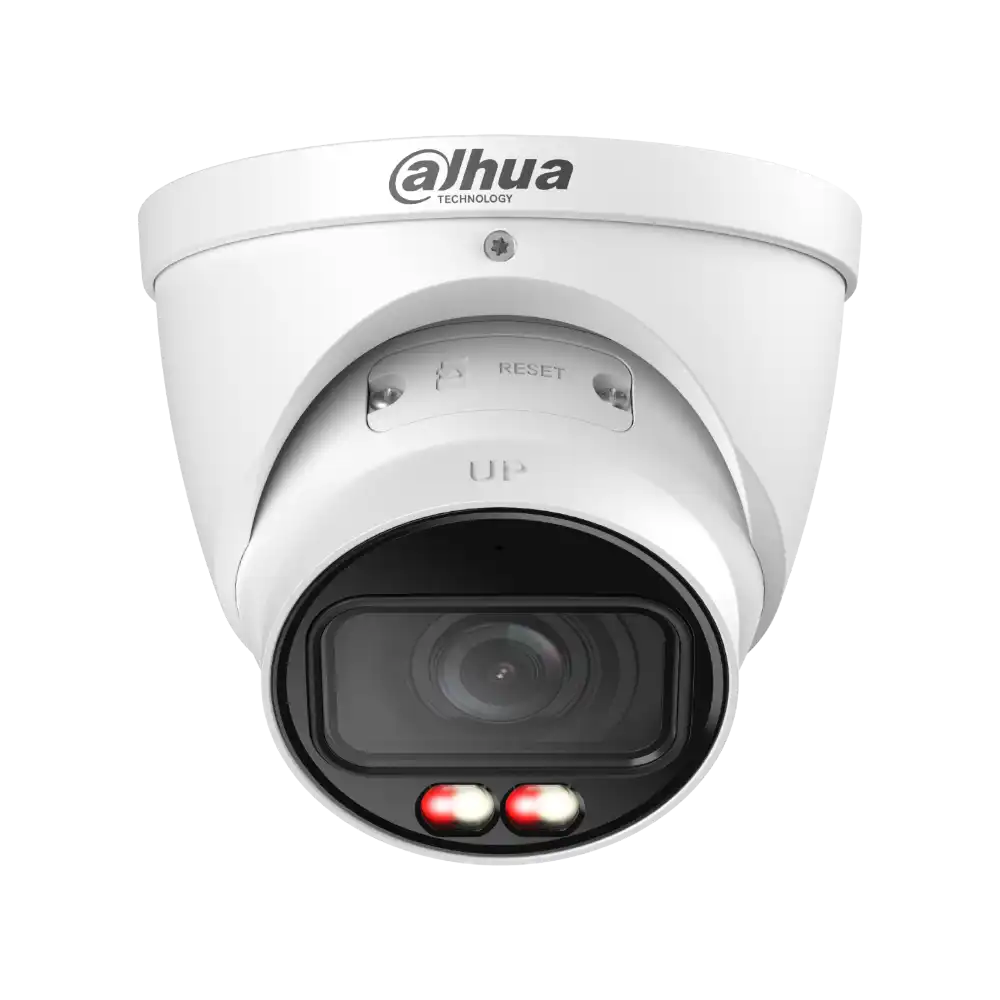

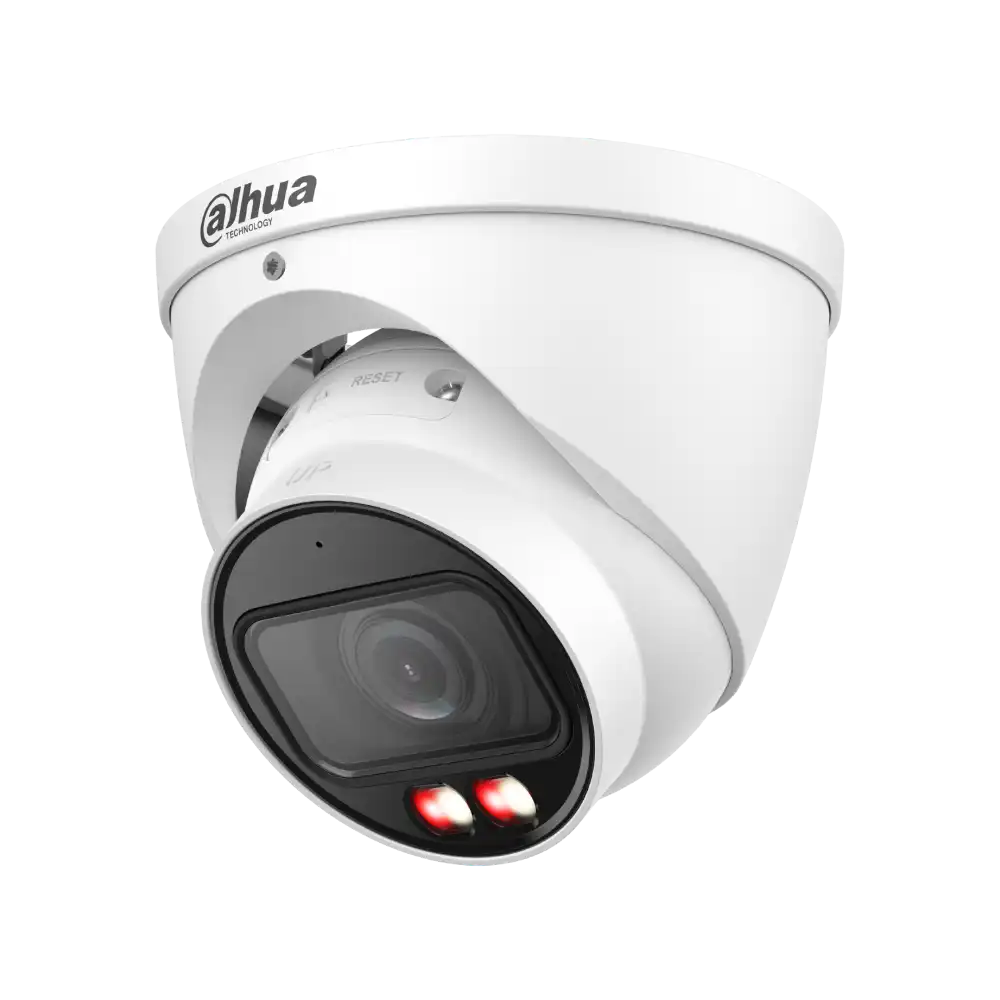

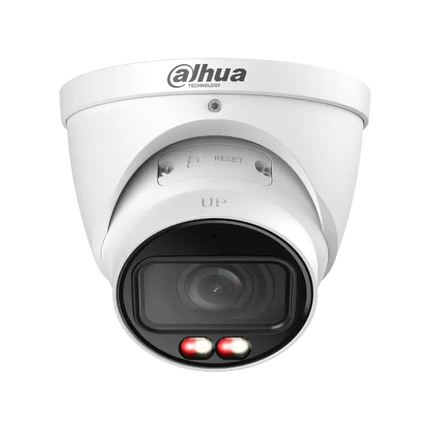

WizSense 3 · 8 MP 4K · Smart Dual Light · Motorised 2.7–13.5 mmDahua WizSense 3 · 8 MP 4K Smart Dual Light TurretDahua DH-IPC-HDW3867T-ZS-IL-ANZ — 8 MP 4K Smart Dual Light Motorised Vari-Focal Eyeball Turret WizSense 3 Network Camera (3867 Series)
The Dahua DH-IPC-HDW3867T-ZS-IL-ANZ is the 3867 series 8 MP 4K WizSense 3 Smart Dual Light motorised eyeball turret — the motorised vari-focal sibling to the fixed HDW3867EM-S-IL-ANZ. Built around a 1/1.8" CMOS sensor capturing 3840 × 2160 (true 4K) at 15 fps and 4 MP at full 25/30 fps. The motorised 2.7–13.5 mm vari-focal lens with auto-focus delivers a wide 102° field at 2.7 mm down to a tight 27° pull at 13.5 mm — re-frameable from DMSS. Smart Dual Light combines 30 m IR (stealth) and up to 50 m warm-LED full-colour illumination — auto-switches based on AI-classified event. WDR is 120 dB; the compact metal turret housing is IP67 sealed. WizSense 3 deep-learning Pro AI runs perimeter protection (tripwire, intrusion), SMD 4.0 and AcuPick attribute search. Built-in microphone, 1/1 RCA audio I/O. Built for Australian residential, retail, shopfront and architectural commercial installs where 24/7 colour identification matters and motorised optics are needed. Backed by a 3-year Australian warranty through CCTV Guru. SKU 3867 series.
Why Choose the Dahua HDW3867T-ZS-IL-ANZ Smart Dual Light Turret
Smart Dual Light — IR + Warm LED
30 m IR for stealth surveillance + up to 50 m warm-LED for 24/7 full-colour identification. Auto-switches based on AI-classified events — stealth at idle, full colour on alarm.
True 4K Detail (8 MP)
Native 3840 × 2160 at 15 fps, or 4 MP at full 25/30 fps. 4× the pixel density of 1080p.
Motorised 5× Vari-Focal
2.7–13.5 mm motorised vari-focal — install wide, then pull tight via DMSS.
WizSense 3 + AcuPick
Perimeter protection, SMD 4.0 and AcuPick attribute search on the WizSense 3 chip.
1/1.8" Pro Sensor
1/1.8" CMOS — larger sensor than typical WizSense 3 cameras, better low-light performance and colour reproduction.
Built-in Mic + Audio I/O
Built-in microphone and RCA audio I/O for two-way talk.
Important Install Note
Motorised vari-focal lens is remote-controllable via DMSS. The eyeball gimbal allows ±75° pan, ±75° tilt and 0–360° rotation. The warm LED activates automatically in low light or on AI-classified events — configure mode via DMSS. For the fixed-focal sibling, see HDW3867EM-S-IL-ANZ.
AI & Smart Detection
AcuPick Attribute Search
Search recorded video by colour, clothing, vehicle type — with a Dahua AcuPick NVR.
SMD 4.0
Motion alerts triggered only by humans and vehicles.
Perimeter Protection
Tripwire and intrusion zones with human/vehicle classification.
Smart Dual Light Auto-Switch
Automatic switching between IR and warm-LED based on AI-classified event type.
AI SSA
Scene self-adaptation for rain, fog, backlight.
Two-Way Audio
Built-in mic + RCA audio I/O.
Technical Specifications
Camera, Lens & Illumination
| Model |
DH-IPC-HDW3867T-ZS-IL-ANZ |
| Form Factor |
Eyeball turret (HDW chassis) |
| Image Sensor |
1/1.8" CMOS |
| Maximum Resolution |
3840 × 2160 (8 MP / 4K) |
| Frame Rate |
4K @ 15 fps · 4 MP @ 25/30 fps |
| WDR |
120 dB |
| Lens Type |
Motorised vari-focal with auto-focus |
| Focal Length |
2.7–13.5 mm |
| Field of View |
H: 102°–27° |
| IR Illumination |
Up to 30 m |
| Warm-LED Illumination |
Up to 50 m (full-colour) |
| Smart Dual Light |
Yes — auto-switching |
Intelligence, Audio & Network
| AI Engine |
WizSense 3 Series |
| IVS |
Tripwire · intrusion (human/vehicle) |
| SMD |
SMD 4.0 |
| AcuPick |
Yes (with Dahua AcuPick NVR) |
| Built-in Mic |
Yes |
| Audio I/O |
1 in / 1 out (RCA) |
| Alarm I/O |
1 in / 1 out |
| Network Port |
RJ-45 (10/100) |
| Interoperability |
ONVIF (Profile S, G, T) · CGI |
| Storage |
Micro SD up to 512 GB |
| Mobile Client |
DMSS |
Power, Environment & Build
| Power Supply |
12 VDC / PoE (802.3af) |
| Operating Temperature |
−40 °C to +60 °C |
| Protection |
IP67 |
| Casing |
Metal |
| Australian Warranty |
3 Years (via CCTV Guru) |
Recommended NVR Pairings
Frequently Asked Questions
What is "Smart Dual Light"?
Built-in IR + warm-LED with AI-based auto-switching — stealth IR at idle, full-colour warm-LED on alarm. Best of both worlds.
Re-frame after install?
Yes — motorised vari-focal via DMSS.
AcuPick?
Yes — pair with a Dahua AcuPick NVR.
Standard PoE?
Yes — 802.3af.
True 4K?
Yes — native 3840 × 2160 at 15 fps.
Night vision range?
30 m IR + 50 m warm-LED.
Difference vs HDW3867EM fixed?
Same Smart Dual Light platform. The HDW3867EM is fixed 2.8 mm; this one is motorised 2.7–13.5 mm.
Temperature?
−40 °C to +60 °C alpine-rated.
Mobile viewing?
Yes — DMSS app.
Downloads
Order Your Dahua HDW3867T-ZS-IL-ANZ from CCTV Guru
"Add to cart" to order, or contact our Australian team for project pricing. 3-year Australian warranty. cctvguru.com.au/pages/contact.
