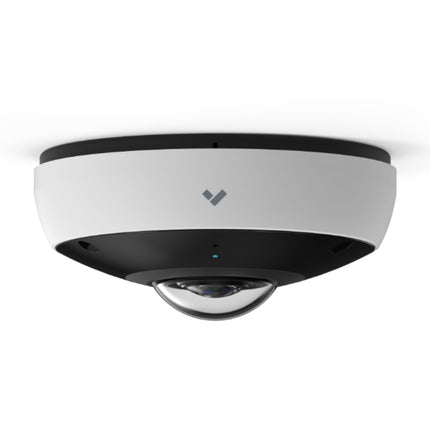

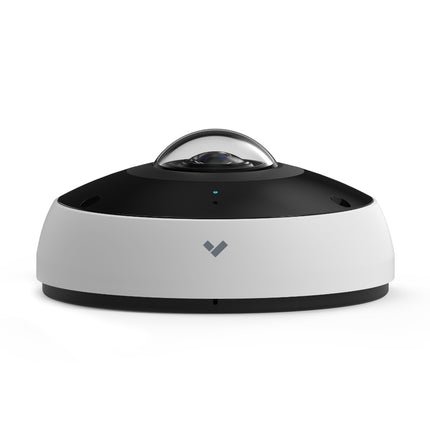

Verkada CF81-E Outdoor Fisheye Security Camera, 12MP, Fixed Lens, 20m IR Range, 512GB to 2TB of Storage, Up to 90 Days
The Verkada CF81-E Outdoor Fisheye Security Camera offers seamless, 360° coverage with its panoramic views and 12MP image resolution. With an angle of view of 180° and an IR range of 20m, it provides unparalleled surveillance in any environment. With storage options of 512GB to 2TB, it can record footage for up to 90 days.
Verkada Fisheye Series
The Fisheye Series features powerful onboard processing to deliver dynamic viewing experiences. Choose from a panoramic view of 180º, a four-way split or an immersive view with digital pan-tilt-zoom. Successfully tested for indoor and outdoor use, the Fisheye Series is suited for all security needs.
Why Hybrid Cloud Video Security?
-
PoE cameras are online and fully operational in minutes.
-
Store up to 365 days of standard quality footage locally.
-
Cameras operate at 20-50kbps in a resting state.
-
Modern platform enables secure access on any device, anywhere.
-
Manage cameras with Command, a web-based platform.
-
Unlock features and maintain security through automatic updates.
Observe More With Impeccable Image Quality
Monitor vast areas with precision and utilize features like digital pan-tilt-zoom to maximize coverage and reduce blind spots.
Increase Physical Awareness Using Floorplans
Pair Verkada Fisheye cameras with floor plans and heat maps for advanced operational insights.
Gain Valuable AI-Powered Insights in Critical Locations
With IK10 and IP66/67 ratings, the Fisheye Series is able to capture up to 12.5MP image quality and deliver powerful AI-driven insights in a variety of indoor and outdoor environments.
Product Specifications
Camera features
-
Image Sensor
1 / 2.3″ Progressive CMOS
-
Sensor Resolution1
12MP (4056 x 3040); active pixels (3008 x 3008)
-
Lens Type
Fixed
-
Focal Length
1.18mm
-
Aperture
F2.18
-
Iris
Fixed
-
Field of View (after LDC2)
Horizontal: 180°
Vertical: 180°
Diagonal: 180°
-
Sensor Movement
N/A
-
Shutter Speed
1 / 30 sec. to 1 / 16,000 sec.
-
Day/Night
IR-cut filter for day and night function
-
IR Cut Filter
Yes
-
IR Range
20m / 66ft
-
Minimum Illumination
0.009 lux @ F1.9 (Color)
0 lux with IR Illuminators on
-
Onboard Storage
Capacity: From 512GB to 2TB
Card: MicroSD, SDXC
-
CPU
Ambarella CV22S88
Standard video settings
-
Compression
H.265, H.264
-
Frame Rate4
24fps
-
Live Streaming Settings
High quality (HQ): Up to 4,500 Kbps (default)
Standard quality (SQ): Up to 600 Kbps
-
Historical Video Settings
Adaptive quality1
-
WDR Technology
120dB dynamic range, true WDR, dual exposure
Standard audio settings
-
Audio
Supported
-
Audio Capacity
One-way audio
-
Interface
Built-in microphone
-
Effective Range
5m / 15ft
Power and network
-
Power Input3
With IR: IEEE 802.3af Type 1 PoE/ IEEE 802.3at Type 2 PoE+
Extended temperature range: IEEE 802.3at Type 2 PoE+
-
Power Consumption
With IR: 42.5 - 57V, 0.413-0.31A, 17.59W
Without IR: 42.5 - 57V, 0.121-0.09A, 5.16W
Extended temperature range: 42.5 - 57V, 0.57A - 0.422A, 24.1W
-
Connectivity
RJ-45 cable connector for network/PoE connection; 10 / 100 Mbps
-
RTSP
RTSP 1.0
RFC 2326
Max concurrent streams: 2
Audio support: No
General
-
Operating Temperature
-40°C to 50°C / -40°F to 122°F
-
Humidity
0 to 90%
-
Certifications
-
LED Indicator
System power and status indicator
-
Warranty
10 Years
-
Included Accessories
Quick installation guide, screw packs, mount plate, mounting template, water-proof connectors, conduit adapter, T10 security driver, cable gland wrench
Mechanical
-
Weight
Camera: 1023.42g / 36.1oz
Mount plate: 178.59g / 6.30oz
-
Dimensions
Ø: 155mm / 6.10in, H: 71.62mm / 2.82in with mount plate
Ø: 155mm / 6.10in, H: 64.42mm / 2.54in without mount plate
-
Body
Aluminum, plastic dome trim
Software capabilities
-
Alerts
Camera status, motion detection, people detection, vehicle detection, Person of Interest detection, crowd detection
-
Streaming and storage
Cloud backup, configurable retention days, selectable storage location, low bandwidth mode, timelapse, RTSP
-
People analytics
People search, attribute search, face search, Occupancy Trends, motion search, trajectory analysis5, selective face blurring, AI-powered search6
-
Sharing and privacy
Live Links, privacy regions, audit log
-
Vehicle analytics
Vehicle search, attribute search, motion search, trajectory analysis5, AI-powered search6
1 All our cameras record in "adaptive quality", capturing both standard and high quality streams. Standard quality (SQ) video is stored up to the amount of retention specified by the customer. The amount of high quality video stored on the camera will depend on the amount of motion detected by the camera over time. To learn more, visit our website: https://docs.verkada.com/docs/adaptive-quality-recording-whitepaper.pdf
2 Lens Distortion Correction (LDC) crops the sensor field of view to deliver a rectified, undistorted output image.
3 Extended temperature range includes operating temperatures below -8.5°C / 16.7°F and assumes IR will be enabled.
4 Frame rate can be adjusted by support.
5 Trajectory analysis is supported in four-way split, panoramic, and ePTZ circle mode
6 AI-powered search is currently supported in English only.
Downloads
CF81-E Datasheet
CF81-E Full Install Guide
Verkada Accessory List
Verkada Video Security | Installing Your Verkada Camera: Software Setup (Command Admin)
This video explains how to set up a Verkada camera in Command, including adding a device, configuring its site and location, enabling camera features, and adjusting video quality and retention settings.
