Description

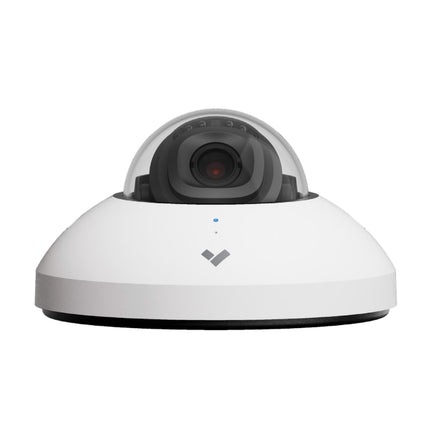

Verkada CM42 Indoor Mini Dome Camera, 5MP, 2.8mm Fixed Lens, 256GB to 2TB of Storage, 20m IR Range, Up to 365 Days
Enhance your indoor security with the Verkada CM42 Mini Dome Camera. Capture high-quality footage with its 5MP resolution and advanced AI-analytics. With a 20m IR range, this compact dome provides clear images day or night. With up to 365 days of storage, you can easily access past footage for added peace of mind.
Verkada Mini Dome Cameras
Designed for discreet deployments without compromising on image quality, Verkada’s Mini Series delivers enterprise-grade security with powerful performance for advanced edge-based analytics. With small form factors, Verkada mini cameras are perfect for a wide-range of environments.
Why Hybrid Cloud Video Security?
-
PoE cameras are online and fully operational in minutes.
-
Store up to 365 days of standard quality footage locally.
-
Cameras operate at 20-50kbps in a resting state.
-
Modern platform enables secure access on any device, anywhere.
-
Manage cameras with Command, a web-based platform.
-
Unlock features and maintain security through automatic updates.
Discreet Form Factors for a Variety of Deployment Scenarios
Mini series cameras can be installed in flexible places including ATMs, shelving or countertops in retail environments, and on public transportation.
AI-Powered Intelligence at the Edge
With powerful edge-based processing, take advantage of computer vision features including motion detection and AI-powered people and vehicle identification.
Uncompromised Image Quality
Bring clarity to investigations and effortlessly detect in-scene details with high-quality image resolution.
Product Specifications
Camera features
-
Image Sensor
1 / 2.8" Progressive CMOS
-
Sensor Resolution1
5MP (2592 x 1944)
-
Lens Type
Fixed
-
Focal Length
2.8mm
-
Aperture
F1.6
-
Iris
Fixed
-
Field of View (after LDC2)
Horizontal: 95° (79°)
Vertical: 69° (62°)
Diagonal: 130° (96°)
-
Sensor Movement
Tilt: 60°
Pan: 350°
Rotation: 180°
-
Shutter Speed
1 / 30 sec. to 1 / 10,000 sec.
-
Day/Night
IR-cut filter for day and night function
-
IR Cut Filter
Yes
-
IR Range
20m / 66ft
-
Minimum Illumination
0.009 lux @ F1.9 (Color)
0 lux with IR Illuminators on
-
Onboard Storage
Capacity: From 256GB to 2TB
Card: MicroSD, SDXC
-
CPU
Ambarella CV25S88
Standard video settings
-
Compression
H.265, H.264
-
Frame Rate4
24fps
-
Live Streaming Settings
High quality (HQ): Up to 3,000 Kbps (default)
Standard quality (SQ): Up to 600 Kbps
-
Historical Video Settings
Adaptive quality1
-
WDR Technology
104 dB dynamic range, true WDR, dual exposure
Standard audio settings
-
Audio
Supported
-
Audio Capacity
One-way audio
-
Interface
Built-in microphone
-
Effective Range
5m / 15ft
Power and network
-
Power Input3
With IR: IEEE 802.3af Type 1 PoE
Without IR: IEEE 802.3af Type 1 PoE
Extended temperature range: N/A
-
Power Consumption
With IR: 37-57V, 0.165-0.107A, 6.12W
Without IR: 37-57V, 0.086-0.056A, 3.21W
Extended temperature range: N/A
-
Connectivity
RJ-45 cable connector for network/PoE connection; 10 / 100 / 1000 Mbps
-
RTSP
RTSP 1.0
RFC 2326
Max concurrent streams: 2
Audio support: Yes
General
-
Operating Temperature
-10°C to 50°C / 14°F to 122°F
-
Humidity
0 to 90%
-
Certifications
-
LED Indicator
System power and status indicator
-
Warranty
10 Years
-
Included Accessories
Setup guide, T10 security torx screwdriver, 3x wingnuts, 3x washers, 3x TP4.0 mount screws, 3x M4 wall screws, 3x wall anchors
Mechanical
-
Weight
Camera: 290g / 10.23oz
Mount plate: 98g / 3.46oz
-
Dimensions
Ø: 124.5mm / 4.9in, H: 71.5mm / 2.8in
-
Body
Aluminum, plastic dome trim
Software capabilities
-
Alerts
Camera status, motion detection, people detection, vehicle detection, Person of Interest detection, crowd detection, line-crossing detection, loitering detection
-
Streaming and storage
Cloud backup, configurable retention days, selectable storage location, low bandwidth mode, timelapse, RTSP
-
People analytics
People search, attribute search, face search, Occupancy Trends, motion search, trajectory analysis, selective face blurring, AI-powered search5
-
Sharing and privacy
Live Links, live face blur, privacy regions, audit log
-
Vehicle analytics
Vehicle search, attribute search, motion search, trajectory analysis, Occupancy Trends, AI-powered search5
1 All our cameras record in "adaptive quality", capturing both standard and high quality streams. Standard quality (SQ) video is stored up to the amount of retention specified by the customer. The amount of high quality video stored on the camera will depend on the amount of motion detected by the camera over time. To learn more, visit our website: https://docs.verkada.com/docs/adaptive-quality-recording-whitepaper.pdf
2 Lens Distortion Correction (LDC) crops the sensor field of view to deliver a rectified, undistorted output image.
3 Extended temperature range includes operating temperatures below -8.5°C / 16.7°F and assumes IR will be enabled.
4 Frame rate can be adjusted by support.
5 AI-powered search is currently supported in English only.
