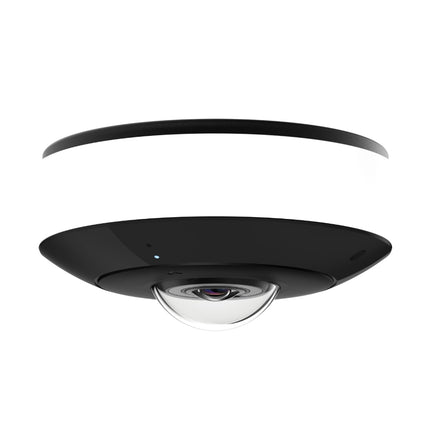

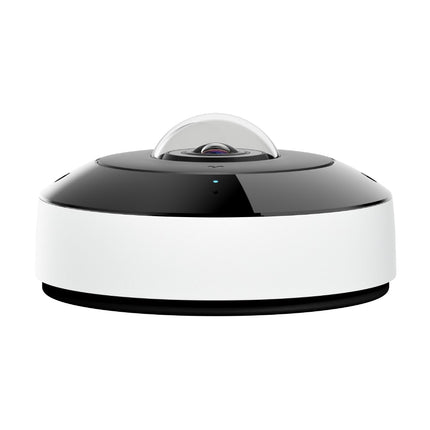

Verkada CF83-E Outdoor Fisheye Security Camera, 12.5MP, Fixed Lens, 20m IR Range, 512GB to 3TB of Storage, Up to 120 Days
The Verkada CF83-E outdoor fisheye security camera offers a panoramic view with 180° coverage, even in harsh weather. With 12.5 MP image resolution and an IR range of up to 20m, this camera provides clear day and night surveillance. Available storage options of 512GB to 3TB can provide up to 120 days of footage.
Verkada Fisheye Series
The Fisheye Series features powerful onboard processing to deliver dynamic viewing experiences. Choose from a panoramic view of 180º, a four-way split or an immersive view with digital pan-tilt-zoom. Successfully tested for indoor and outdoor use, the Fisheye Series is suited for all security needs.
Why Hybrid Cloud Video Security?
-
PoE cameras are online and fully operational in minutes.
-
Store up to 365 days of standard quality footage locally.
-
Cameras operate at 20-50kbps in a resting state.
-
Modern platform enables secure access on any device, anywhere.
-
Manage cameras with Command, a web-based platform.
-
Unlock features and maintain security through automatic updates.
Observe More With Impeccable Image Quality
Monitor vast areas with precision and utilize features like digital pan-tilt-zoom to maximize coverage and reduce blind spots.
Increase Physical Awareness Using Floorplans
Pair Verkada Fisheye cameras with floor plans and heat maps for advanced operational insights.
Gain Valuable AI-Powered Insights in Critical Locations
With IK10 and IP66/67 ratings, the Fisheye Series is able to capture up to 12.5MP image quality and deliver powerful AI-driven insights in a variety of indoor and outdoor environments.
Product Specifications
Camera features
-
Image Sensor
1 / 1.6” Progressive CMOS
-
Sensor Resolution1
12.5MP (3536 x 3536); resolution (3520 x 3520)
-
Lens Type
Fixed
-
Focal Length
1.7mm
-
Aperture
F2.0
-
Iris
Fixed
-
Field of View
Horizontal: 180°
Vertical: 180°
Diagonal: 180°
-
Sensor Movement
N/A
-
Shutter Speed
1 / 120 sec. to 1 / 32000 sec.
-
Day/Night
IR-cut filter for day and night function
-
IR Cut Filter
Yes
-
IR Range
20m / 66ft
-
Minimum Illumination
0.009 lux @ F1.9 (Color)
0 lux with IR Illuminators on
-
Onboard Storage
Capacity: From 512GB to 3TB
Card: MicroSD, SDXC
-
CPU
Ambarella CV72S66
Standard video settings
-
Compression
H.265, H.264
-
Frame Rate3
24fps
-
Live Streaming Settings
High quality (HQ): Up to 4,500 Kbps (default)
Standard quality (SQ): Up to 600 Kbps
-
Historical Video Settings
Adaptive quality1
-
WDR Technology
120dB dynamic range, true WDR, dual exposure
Standard audio settings
-
Audio
Supported
-
Audio Capacity
One-way audio
-
Interface
Built-in microphone
Power and network
-
Power Input2
With IR: IEEE 802.3at Type 2 PoE+
Extended temperature range: IEEE 802.3at Type 2 PoE+
-
Power Consumption
With IR: 42.5 - 57V, 0.46-0.34A, 19.5W
Without IR: 42.5 - 57V, 0.22-0.17A, 9.5W
Extended temperature range: 42.5 - 57V, 0.59A - 0.44A, 24.8W
-
Connectivity
RJ-45 cable connector for network/PoE connection; 10 / 100 / 1000 Mbps
-
RTSP
RTSP 1.0
RFC 2326
Max concurrent streams: 2
Audio support: No
General
-
Operating Temperature
-40°C to 50°C / -40°F to 122°F
-
Humidity
0 to 90%
-
Certifications
-
LED Indicator
System power, status indicator, and debug indicator
-
Warranty
10 Years
-
Included Accessories
Screw packs, mount plate with leveler, cable sealing rubber for 6.5-7.5mm, conduit adapter, T10 security driver
Mechanical
-
Weight
Camera: 1368g / 48.2oz
Mount plate: 196g / 6.9oz
-
Dimensions
Ø: 155mm / 6.10in, H: 76.2mm / 3.0in with mount plate
Ø: 155mm / 6.10in, H: 69.2mm / 2.72in without mount plate
-
Body
Aluminum, plastic dome trim
Software capabilities
-
Alerts
Camera status, motion detection, people detection, vehicle detection, Person of Interest detection, crowd detection, AI-powered alerts
-
Streaming and storage
Cloud backup, configurable retention days, selectable storage location, low bandwidth mode, timelapse, RTSP
-
People analytics
People search, attribute search, face search, motion search, trajectory analysis4, selective face blurring, AI-powered search5
-
Sharing and privacy
Live links, privacy regions, audit log
-
Vehicle analytics
Vehicle search, attribute search, motion search, trajectory analysis4, AI-powered search5
1 All our cameras record in "adaptive quality", capturing both standard and high quality streams. Standard quality (SQ) video is stored up to the amount of retention specified by the customer. The amount of high quality video stored on the camera will depend on the amount of motion detected by the camera over time. To learn more, visit our website: https://docs.verkada.com/docs/adaptive-quality-recording-whitepaper.pdf
2 Extended temperature range includes operating temperatures below -8.5°C / 16.7°F and assumes IR will be enabled.
3 Frame rate can be adjusted by support.
4 Trajectory analysis is supported in four-way split, panoramic, and ePTZ circle mode
5 AI-powered search is currently supported in English only.
