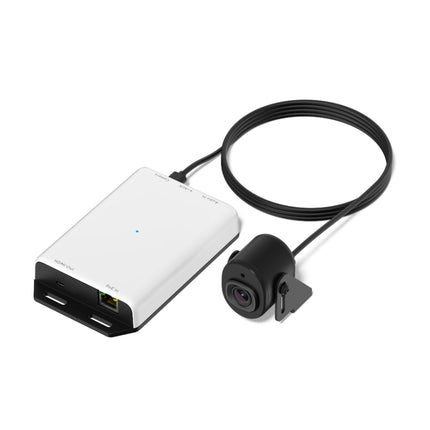

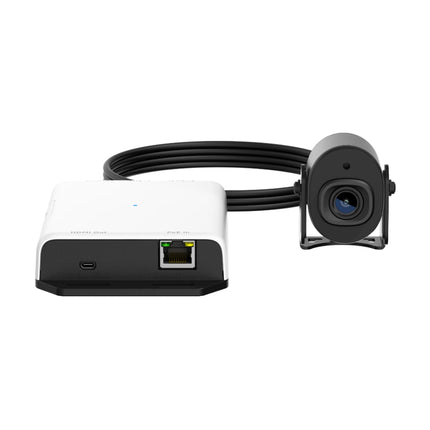

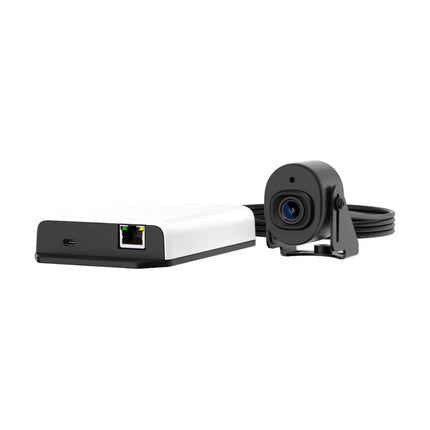

Verkada CM42-S Indoor Mini Split Camera for ATM or Retails, 5MP, 3.18mm Fixed Lens, Up to 90 Days
Introducing the Verkada CM42-S Indoor Mini Split Camera, designed for discreet use in ATMs and retail stores. With a compact form factor and lengthy cable, this 5MP camera provides high-resolution images and a 49 ft IR range. Plus, the USB-C connecting cable allows for easy installation and setup.
How it Works
Hybrid Cloud Split Camera
Verkada’s CM42-S provides crisp 5MP resolution in a discreet form factor. Its separate body contains storage and processing for advanced edge-based analytics.
Flexible Installation
The CM42-S’s split body, long cable, and small form factor allows it to be easily installed in tight spaces, like ATMs, shelves, or retail countertops.
Comprehensive Monitoring
The CM42-S includes an HDMI output and microphone port–allowing customers to stream to a public viewing monitor in retail environments and supplement video coverage with audio for holistic monitoring.
AI-Powered Analytics
Use the latest advancements in AI and computer vision to quickly identify persons of interest. Create AI-powered alerts using freeform text for suspicious individuals or for specific vehicles that appear in the camera’s field of view.
Why Hybrid Cloud Video Security?
-
PoE cameras are online and fully operational in minutes.
-
Store up to 365 days of standard quality footage locally.
-
Cameras operate at 20-50kbps in a resting state.
-
Modern platform enables secure access on any device, anywhere.
-
Manage cameras with Command, a web-based platform.
-
Unlock features and maintain security through automatic updates.
Product Specifications
Camera features
-
Image Sensor
1 / 2.8" Progressive CMOS
-
Sensor Resolution1
5MP (2592 x 1944)
-
Lens Type
Fixed
-
Focal Length
3.18mm
-
Aperture
F1.6
-
Iris
Fixed
-
Field of View (after LDC2)
Horizontal: 99° (80°)
Vertical: 71° (63°)
Diagonal: 107° (92°)
-
Sensor Movement
Tilt: N/A
Pan: N/A
Rotation: N/A
-
Shutter Speed
1 / 30 sec. to 1 / 10,000 sec.
-
Day/Night
IR-cut filter for day and night function
-
IR Cut Filter
Yes
-
IR Range
15 m / 49ft
-
Minimum Illumination
0.009 lux @ F1.9 (Color)
0 lux with IR Illuminators on
-
Onboard Storage
Capacity: 256GB, 768GB
Card: MicroSD, SDXC
-
CPU
Ambarella CV25S88
-

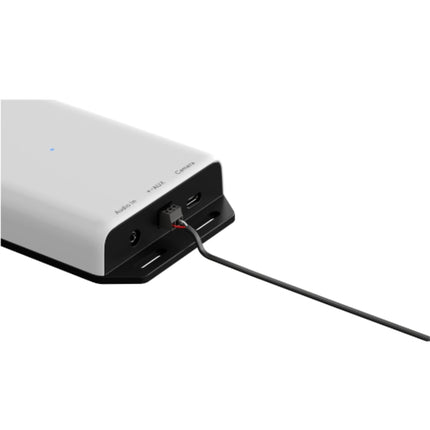

Inputs/Outputs
3.5mm audio input
Micro-HDMI output
+/- AUX6 with 12V / 4W power output
USB-C sensor input7
Standard video settings
-
Compression
H.265, H.264
-
Frame Rate4
24fps
-
Live Streaming Settings
High quality (HQ): Up to 3,000 Kbps (default)
Standard quality (SQ): Up to 600 Kbps
-
Historical Video Settings
Adaptive quality1
-
WDR Technology
104 dB dynamic range, true WDR, dual exposure.
Standard audio settings
-
Audio
Supported
-
Audio Capacity
One-way audio
-
Interface
3.5mm audio input
Power and network
-
Power Input3
With IR: IEEE 802.3af Type 1 PoE
Without IR: IEEE 802.3af Type 1 PoE
Extended temperature range: N/A
-
Power Consumption
With IR: 37-57V, 0.13-0.20A, 7.25W
Without IR: 37-57V, 0.08-0.12A, 4.30W
Extended temperature range: N/A
-
Connectivity
RJ-45 cable connector for network/PoE connection; 10 / 100 / 1000 Mbps
-
RTSP
RTSP 1.0
RFC 2326
Max concurrent streams: 2
Audio support: Yes
General
-
Operating Temperature
-10°C to 50°C / 14°F to 122°F
-
Humidity
0 to 90%
-
Certifications
-
LED Indicator
System power and status indicator
-
Warranty
10 Years
-
Included Accessories
T10 security torx screwdriver, 1x 1/4"-20 screw, 4x wall screws, 4x wall anchors, 1x 2m USB-C cable (USB3.1 (or higher) speed rated), double-sided tape for wall mounting main unit and sensor unit mount bracket
Mechanical
-
Weight
Camera Sensor Unit: 110.2g / 3.9oz
Camera Main Unit: 242.8g / 8.6oz
USB-C Cable: 79.9g / 2.8oz
-
Dimensions
Camera Sensor Unit: H: 47.4mm / 1.9in, W: 36.4mm / 1.4in, L: 40.2mm / 1.6in
Camera Main Unit: H: 25.5mm / 1.0 in, W: 89mm / 3.5in, L: 152mm / 6.0in
-
Body
Aluminum, plastic
Software capabilities
-
Alerts
Camera status, motion detection, people detection, vehicle detection, Person of Interest detection, crowd detection, AI-powered alerts
-
Streaming and storage
Cloud backup, configurable retention days, selectable storage location, low bandwidth mode, timelapse, RTSP
-
People analytics
People search, attribute search, face search, Occupancy Trends, motion search, trajectory analysis, selective face blurring, AI-powered search5
-
Sharing and privacy
Live links, privacy regions, audit log
-
Vehicle analytics
Vehicle search, attribute search, motion search, AI-powered search5
1 All our cameras record in "adaptive quality", capturing both standard and high quality streams. Standard quality (SQ) video is stored up to the amount of retention specified by the customer. The amount of high quality video stored on the camera will depend on the amount of motion detected by the camera over time. To learn more, visit our website: https://docs.verkada.com/docs/adaptive-quality-recording-whitepaper.pdf
2 Lens Distortion Correction (LDC) crops the sensor field of view to deliver a rectified, undistorted output image.
3 Extended temperature range includes operating temperatures below -8.5°C / 16.7°F and assumes IR will be enabled.
4 Frame rate can be adjusted by support.
5 AI-powered search is currently supported in English only.
6 Not currently supported
7 USB-C 3.1 (or higher) cable required
