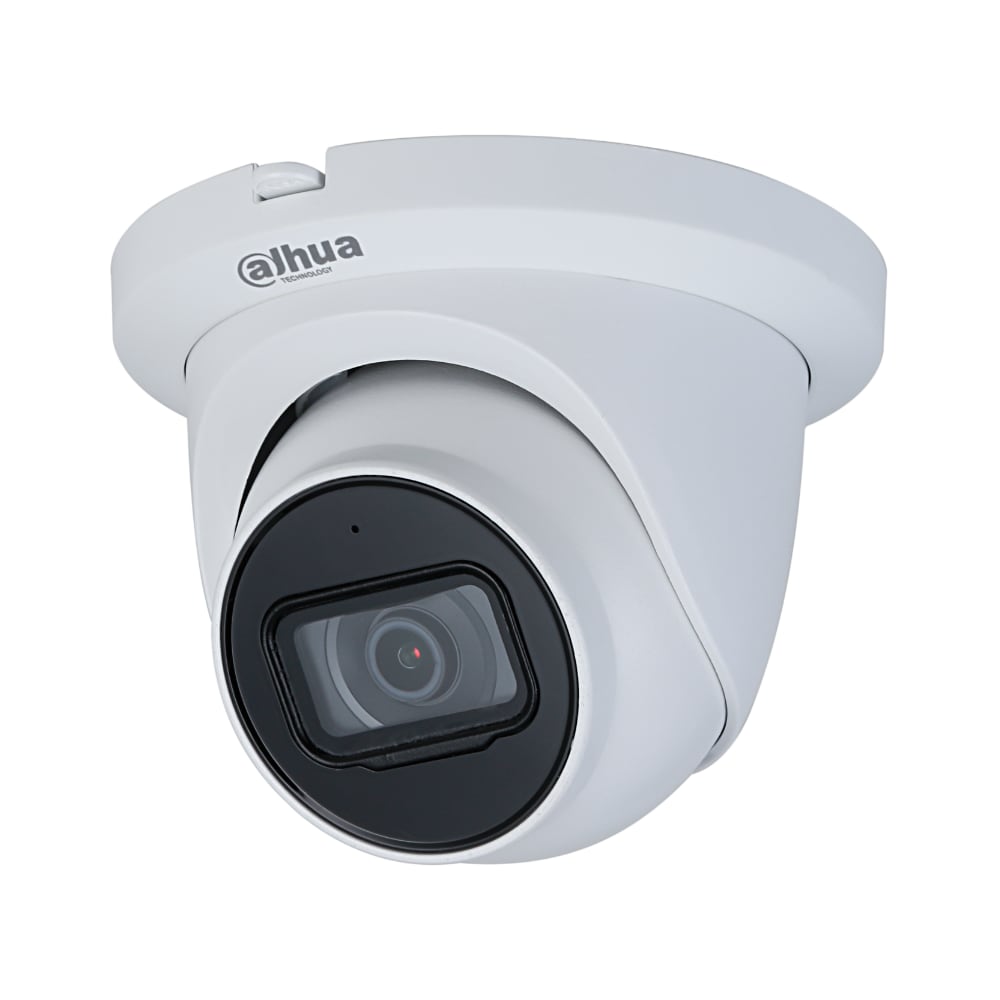

WizMind 5 · 5 MP · Fixed 2.8 mm · 50 m IRDahua WizMind 5 · 5 MP Pro AI TurretDahua DH-IPC-HDW5541TM-ASE-0280-S3 — 5 MP Pro AI Fixed-Focal IR Eyeball Turret WizMind 5 Network Camera (5541 Series, 2.8 mm)
The Dahua DH-IPC-HDW5541TM-ASE-0280-S3 is the 5541 series (S3 refresh) 5 MP WizMind 5 Pro AI fixed-focal eyeball turret — the eyeball form factor sibling to the HDBW5541RP-ASE-0280B vandal dome. Built around a 1/2.7" CMOS sensor capturing 2592 × 1944 at 20 fps and 1080p at full 50/60 fps. The 2.8 mm fixed F1.6 lens delivers a wide 113° field of view; built-in IR reaches up to 50 m; WDR is 120 dB; the compact metal turret housing is IP67 sealed. WizMind 5 deep-learning Pro AI runs the full feature suite — face recognition with on-camera database, perimeter protection, people counting, heat map and SMD Plus. Built-in microphone, 1/1 RCA audio I/O, 1/1 alarm wet-contact, and ePoE for 800 m PoE runs on Cat6. Built for project-grade Australian installs where a discreet eyeball form factor with Pro AI is required — retail, shopping centres, schools, council facilities, hospitals and architectural commercial. Backed by a 5-year Australian warranty through CCTV Guru. SKU 5541 series.
Why Choose the Dahua HDW5541TM-ASE WizMind 5 Pro AI Turret
WizMind 5 Full Pro AI
Face recognition with on-camera database, perimeter protection, people counting, heat map and SMD Plus — the flagship Pro AI feature set.
True 5 MP Detail
Native 2592 × 1944 at 20 fps — nearly 2.5× the pixel density of 1080p.
Wide 113° FOV
2.8 mm fixed lens covers a wide 113° field — large areas from a single camera.
ePoE — 800 m PoE
Extends PoE to 800 m on Cat6.
50 m Long-Range IR
Built-in IR array reaches up to 50 m.
Discreet Eyeball Form Factor
Compact metal turret mounts cleanly to eaves, soffits, awnings and undercover ceilings.
Important Install Note
Fixed-focal (2.8 mm) — frame at install time. The eyeball gimbal allows ±75° pan, ±75° tilt, 0–360° rotation. To use ePoE's 800 m range, pair with a Dahua ePoE switch or NVR.
AI & Smart Detection
Face Recognition (Database)
On-camera face database with up to 10,000 entries.
Perimeter Protection (IVS)
Tripwire and intrusion zones with human/vehicle classification.
People Counting + Heat Map
Entry/exit counts and dwell-time heat maps.
SMD Plus
Motion alerts triggered only by humans and vehicles.
Built-in Mic
Built-in microphone + 1/1 RCA audio I/O for external mic/speaker.
Abnormality Detection
SD card, network, IP conflict, tampering events.
Technical Specifications
Camera, Lens & Illumination
| Model |
DH-IPC-HDW5541TM-ASE-0280-S3 |
| Form Factor |
Eyeball turret (HDW chassis) |
| Image Sensor |
1/2.7" CMOS |
| Maximum Resolution |
2592 × 1944 (5 MP) |
| Frame Rate |
5 MP @ 20 fps · 1080p @ 50/60 fps |
| WDR |
120 dB |
| Day / Night |
Auto (ICR) / Colour / B&W |
| Lens Type |
Fixed-focal 2.8 mm F1.6 |
| Field of View |
H: ~113° |
| IR Illumination |
Up to 50 m |
Pro AI, Audio & Network
| AI Engine |
WizMind 5 Series (Pro AI) |
| Face Recognition |
Yes · on-camera database (up to 10,000) |
| IVS |
Tripwire · intrusion (human/vehicle) |
| SMD |
SMD Plus |
| People Counting |
Yes |
| Heat Map |
Yes |
| Built-in Mic |
Yes |
| Audio I/O |
1 in / 1 out (RCA) |
| Alarm I/O |
1 in / 1 out |
| Network Port |
RJ-45 (10/100) · ePoE |
| Interoperability |
ONVIF (Profile S, G, T) · CGI |
| Storage |
Micro SD up to 256 GB |
| Mobile Client |
DMSS |
Power, Environment & Build
| Power Supply |
12 VDC / PoE (802.3af) / ePoE |
| ePoE Distance |
Up to 800 m on Cat6 |
| Operating Temperature |
−30 °C to +60 °C |
| Protection |
IP67 |
| Casing |
Metal |
| Australian Warranty |
5 Years (via CCTV Guru) |
Recommended NVR Pairings
Frequently Asked Questions
WizMind 5?
Dahua's flagship Pro AI tier — face recognition, people counting, heat map.
Face recognition?
On-camera face database up to 10,000 entries.
Standard PoE?
Yes — 802.3af. ePoE only activates with Dahua ePoE source.
Difference vs HDBW5541RP-ASE dome?
Same WizMind 5 platform and sensor. This is the eyeball turret; the HDBW is the IK10 vandal dome.
Audio?
Built-in mic + RCA audio I/O.
Third-party NVRs?
Yes — ONVIF Profile S, G, T.
Temperature?
−30 °C to +60 °C.
Mobile viewing?
Yes — DMSS app.
Downloads
Order Your Dahua HDW5541TM-ASE from CCTV Guru
"Add to cart" to order, or contact our Australian team for project pricing. 5-year Australian warranty. cctvguru.com.au/pages/contact.
