Dahua Panoramic Cameras

X-Spans Panoramic PTZ · 8+4 MP · 25× Zoom · TiOC · Xinghan AI Dahua Panoramic TiOC PTZ Dahua DH-SDT4E425-8P-GB-APV1 — 8+4 MP 25× X-Spans Panoramic TiOC PTZ Camera with Xinghan AI & Active Deterrence The Dahua DH-SDT4E425-8P-GB-APV1 is an X-Spans series multi-sensor panoramic PTZ — two cameras inside one IP66, surge-protected housing. The overview channel is an 8 MP 1/2.7" CMOS with a 2.8 mm F1.4 lens spliced across a true 180° horizontal field of view, capturing the entire scene at all times. The detail channel is a 4 MP 1/2.8" CMOS PTZ with 5 – 125 mm F1.6 – F3.6 motorised optics, 25× optical zoom and 16× digital zoom — capable of detecting a target at 2500 m and identifying it at 250 m. Starlight low-light sensors push usable colour down to 0.005 lux. Dual-light arrays give the panoramic head 30 m IR + 30 m white, and the PTZ head 100 m IR + 50 m warm-light reach. This camera is built for Australian sites where you would otherwise install two cameras — large carparks, school grounds, freight yards, transport hubs, depots, mining laydowns and council reserves — and want one head that maintains constant 180° awareness while a second head slews onto whatever the AI flags. Smart Tracking links the two channels so the PTZ automatically zooms onto any target the overview detects, then keeps tracking after the target leaves the panoramic FOV using Dahua's X-Spans relay tracking. Edge AI runs the new Xinghan Large-Scale AI Models with WizSense perimeter protection, SMD 4.0 and AcuPick. Active deterrence stacks red/blue light warning with 11 built-in alarms (plus 10 custom uploads) and a built-in speaker. Power is PoE+ (802.3at) or 12 VDC 3 A. Backed by a 3-year Australian warranty through CCTV Guru. Optical Zoom 25× + 16× Digital Dual Sensor 8 MP + 4 MP Starlight Smart Dual Light+ IR 100 m · Warm 50 m AI Engine Xinghan + AcuPick Active Deterrence TiOC Strobe + Siren Power PoE+ 802.3at / 12 VDC 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support Why Choose the Dahua SDT4E425-8P-GB-APV1 Buying a panoramic PTZ replaces two traditional cameras with one head. Below are the six reasons this specific X-Spans build is the one Australian integrators ask for when they want the dual-camera concept to actually work in the field. 180° Awareness, Always-On The 8 MP overview channel is permanently recording a true 180° splice — so when the PTZ is steered onto a target, you don't lose situational awareness of the rest of the scene. 25× Optical Zoom · 250 m Identify Range The detail PTZ runs 5–125 mm motorised optics. DORI identify distance is 250 m at the tele end — long enough to read clothing and recognise faces across an entire carpark. Smart Tracking Without Operator WizTracking, relay tracking and linkage tracking work together so the PTZ automatically slews, zooms and follows whatever the overview channel's AI classifies as a person or vehicle. TiOC Active Deterrence on a PTZ The full TiOC stack — red/blue strobe, 11-sound alarm library and built-in speaker — mounted on a 25× PTZ that can challenge an intruder anywhere in its hemisphere. Xinghan AI on the Edge Xinghan Large-Scale AI Models bring transformer-architecture AI to the edge — joint inference between small and large models lets a single camera classify, track and respond on-device. Built for Harsh Australian Outdoor IP66 sealed, TVS 6000 V lightning + surge + voltage-transient protection, and rated –40 °C to +65 °C. From Alpine highway sites through to the Pilbara. Important Install Note — PoE+ Required Draws max 25 W. Requires 802.3at PoE+, not 802.3af. For runs approaching 100 m Ethernet limit use a local 12 VDC 3 A supply or a quality 802.3at midspan injector. Technical Specifications Overview Channel (Panoramic) Image Sensor 1/2.7" CMOS Max Resolution 4096 (H) × 1860 (V) — 8 MP Lens 2.8 mm fixed · F1.4 Field of View H: 180° · V: 86° Min. Illumination 0.005 lux @ F1.4 (colour) · 0 lux (illuminator on) IR / White Light 30 m / 30 m DORI Distance Detect 56 m · Observe 22.4 m · Recognise 11.2 m · Identify 5.6 m Detail Channel (25× PTZ) Image Sensor 1/2.8" CMOS Max Resolution 2560 × 1440 — 4 MP Lens 5–125 mm motorised vari-focal · F1.6–F3.6 Optical Zoom / Digital Zoom 25× / 16× Field of View H: 51.9°–3.0° · V: 39.7°–2.2° Min. Illumination 0.005 lux @ F1.6 (colour) · 0 lux (illuminator on) IR / Warm Light 100 m / 50 m WDR 120 dB true WDR DORI — Tele (125 mm) Detect 2500 m · Observe 1000 m · Recognise 500 m · Identify 250 m Image Stabilisation EIS PTZ & Smart Tracking Pan Range 0°–360° endless Tilt Range –15° to +90° (auto flip 180°) Manual Speed Pan 0.1°/s–180°/s · Tilt 0.1°/s–90°/s Presets / Tours / Patterns / Scans 300 / 8 (32 presets each) / 5 / 5 Power-off Memory Yes Smart Tracking WizTracking · Relay tracking (X-Spans) · Linkage tracking Intelligence, Video & Active Deterrence AI Platform Xinghan Large-Scale AI Models · WizSense IVS Tripwire · intrusion · crossing-fence · loitering · abandoned/missing · parking · people gathering · linkage tracking SMD SMD 4.0 AcuPick Yes (overview channel) Active Deterrence — Light Red/blue light warning · 5–30 s flash · high/medium/low frequency Active Deterrence — Sound 11 built-in + 10 custom uploads · 0–100% volume Video Compression Smart H.265+ · H.265 · H.264 · MJPEG Streaming 3 streams per channel Privacy Masking Up to 24 areas (8 per view) Audio, Alarm & Network Audio Input / Output 1 in / 1 out · built-in speaker (mutually exclusive with line-out) Alarm I/O 2 in / 1 out Network Port RJ-45 (100/1000 Base-T) Interoperability ONVIF (Profile S, G, T) · CGI · SDK · P2P Storage Micro SD up to 512 GB · FTP / SFTP · NAS Mobile Client DMSS · DSS Pro Power, Environment & Build Power Supply 12 VDC 3 A · PoE+ (IEEE 802.3at) Power Consumption Basic 14 W · Max 25 W Operating Temperature –40 °C to +65 °C Protection IP66 · TVS 6000 V lightning · surge · voltage transient Dimensions 194.2 × 160 × 311 mm Net Weight 3.1 kg Certifications CE · RCM (AU) Australian Warranty 3 Years (via CCTV Guru) Frequently Asked Questions How many NVR channels does this camera use? Two — the overview and detail channels each present as separate IP streams. Is this a TiOC camera? Yes — the APV1 suffix is the TiOC active-deterrence indicator on X-Spans cameras (equivalent to "PV" on bullets/turrets). Does it support AcuPick? Yes — on the overview channel, when paired with a Dahua 5-Series AcuPick NVR. What power does it need? PoE+ (IEEE 802.3at), not 802.3af, or 12 VDC at 3 A. Max draw 25 W. How far can the PTZ see at night? 100 m IR and 50 m warm-light on the PTZ channel. DORI identify at 125 mm tele is 250 m. What's the warranty in Australia? 3 years, supplied through CCTV Guru as an authorised Australian Dahua reseller. Downloads DH-SDT4E425-8P-GB-APV1 Datasheet Dahua PTZ Camera Quick Start Guide Order Your Dahua SDT4E425-8P-GB-APV1 from CCTV Guru "Add to cart" to order online, or contact our Australian team for project pricing, multi-PTZ configuration advice, NVR sizing and PoE+ switch compatibility checks. We are authorised Australian Dahua resellers, hold stock locally, and back every X-Spans camera with a 3-year Australian warranty. cctvguru.com.au/pages/contact.

Read more less

WizMind 5 · 2×4 MP · 180° Full-Colour · F1.0 Lens WizMind 5 180° Dahua DH-IPC-PDW5849-A180-E2-ASTE — 8 MP (2× 4 MP) 180° Panoramic Duo Splicing Full-Colour Eyeball Turret WizMind 5 (5849 Series) The Dahua DH-IPC-PDW5849-A180-E2-ASTE is a flagship 180° panoramic duo-splicing turret built on Dahua’s WizMind 5 platform. Twin 1/1.8" Starlight+ sensors capture two synchronised 4 MP streams that are seamlessly stitched on-camera into a single ultra-wide 8 MP image — one camera, one cable, one licence, one 180° panorama. Paired F1.0 super-aperture lenses and 4× warm white LEDs deliver true full-colour imagery to 40 m at night, while EPTZ active tracking, dual microphones, a built-in speaker, 512 GB microSD, ePoE, IP67 and −30°C to +60°C tolerance make it perfect for Australian carpark entries, building forecourts, school perimeters, council parks, warehouse loading docks, residential driveways and retail entrances where a single fisheye distorts faces and a standard bullet leaves blind spots. Sold and warranted by CCTV Guru with a 5-Year AU Warranty on the WizMind 5 platform. 5-Year AU Warranty Fast AU-Wide Shipping AU Tech Support Why Choose the Dahua PDW5849-A180 Panoramic Turret 180° Seamless Stitched View On-camera duo splicing joins two 4 MP streams into one 180° 8 MP panorama — no fisheye warp, no dewarping licence, one NVR channel. F1.0 Super-Aperture Full-Colour Dahua’s widest production aperture pulls in nearly 3× the light of an F1.6 lens, keeping skin tones and number plates natural in dusk and shadow. Warm White LED to 40 m 4× warm white LEDs deliver true full-colour imaging out to 40 m — a deterrent that doubles as architectural lighting at driveways and forecourts. Twin 4 MP Starlight+ Sensors Two 1/1.8" progressive CMOS sensors with 120 dB true WDR handle high-contrast Australian sun, headlights and shaded eaves without blowing highlights. EPTZ Active Tracking Electronic PTZ digitally follows people and vehicles across the full 180° field while keeping the wide overview recording — no moving parts to wear out. IP67 + Two-Way Audio Sealed IP67 metal eyeball with dual microphones and a built-in speaker for live voice deterrent and intercom-style call-outs via DMSS. Important Install Note For seamless 180° stitching, mount the PDW5849-A180 horizontally at 3–5 m on a wall, soffit or pole edge so both lenses share the same scene plane — ceiling-down installs break the panoramic geometry and are not recommended. The 4× warm white LEDs are bright enough to illuminate a driveway, so face them away from nearby bedroom windows or schedule the LEDs off during sleep hours via the camera’s illumination profile. Budget approximately 13 W of PoE per camera (802.3af is sufficient) and use a surge-rated PoE switch or in-line surge protector on coastal AU sites where lightning and salt air shorten unprotected runs. AI & Smart Detection Face Detection + Snap WizMind 5 face engine captures, ranks and stores best-shot face crops with attributes (age range, glasses, mask) for fast post-event search. People Counting Built-in people counting with entry/exit lines and queue/region modes — ideal for retail forecourts, school gates and council park entrances. Perimeter Protection Tripwire and intrusion rules with human/vehicle classification cut false alerts from possums, foliage and shadows compared with motion-only triggers. EPTZ Auto-Tracking Digitally zooms and follows a target across the panoramic frame while continuing to record the full 180° overview in parallel. SMD Plus Smart Motion Detection Plus filters recordings to human and vehicle events — fewer false alarms, smaller archives, faster playback review. Privacy Masking Up to four configurable masking zones blank out neighbouring windows or footpaths to meet Australian Privacy Principle obligations. Technical Specifications Camera, Lens & Illumination Model DH-IPC-PDW5849-A180-E2-ASTE Form Factor Panoramic Eyeball Turret (Duo Splicing) Image Sensor 2× 1/1.8" Progressive CMOS (Starlight+) Max Resolution 8 MP Stitched (2× 4 MP, 2688 × 1520 each) Frame Rate 25/30 fps WDR 120 dB True WDR Day/Night Full-Colour 24/7 Lens Type Fixed Dual (F1.0 super-aperture) Focal Length 3.2 mm each Field of View 180° Panoramic (Stitched) Illumination 4× Warm White LED up to 40 m Intelligence, Audio & Network AI Engine WizMind 5 (Pro AI) Face Detection Yes (with snap & attributes) People Counting Yes IVS Tripwire, Intrusion (perimeter protection) EPTZ Auto-Tracking SMD SMD Plus Mic / Speaker Dual Mic + Built-in Speaker Audio I/O 1/1 Alarm I/O 2/1 Network RJ-45 100 Mbps, ePoE ONVIF Profile S/G/T Storage microSD up to 512 GB App DMSS (iOS & Android) Power, Environment & Build Power PoE (802.3af) / 12 V DC, ~13 W Operating Temp −30°C to +60°C Protection IP67 Casing Metal Eyeball Body Warranty 5-Year AU Warranty (CCTV Guru) Recommended NVR Pairings Dahua DHI-NVR5208-8P-AI/ANZ 8-channel 8-PoE WizSense Pro AI NVR — ideal for a single PDW5849-A180 plus six supporting cameras with full AI metadata. View NVR → Dahua DHI-NVR5216-16P-AI/ANZ 16-channel 16-PoE Pro AI NVR for medium sites — pair multiple 180° panoramas across forecourt, loading dock and entry. View NVR → Dahua DHI-NVR4216-16P-AI/ANZ 16-channel 4K Smart AI NVR — budget-friendly WizSense option that still records the full 8 MP panoramic stream cleanly. View NVR → Dahua DHI-NVR5432-AI/ANZ 32-channel 1.5U WizSense AI NVR (no built-in PoE) for school, council or estate rollouts using an external PoE switch. View NVR → Frequently Asked Questions Is the 180° image really seamless? Yes — Dahua’s duo-splicing engine merges both 4 MP feeds on-camera into a single 8 MP panorama with the stitch line minimised. Mount horizontally at 3–5 m for the cleanest result. Are the warm white LEDs always on? No. You can run them always-on for full-colour 24/7, auto by ambient lux, schedule, or trigger-only on event — all configurable in the camera’s illumination profile. Can colour mode work without the LEDs? Yes — the F1.0 super-aperture and Starlight+ sensors deliver useable colour at very low lux without supplemental light. The LEDs are there for true full-colour 24/7 and as a visible deterrent. How does this differ from a fisheye camera? A fisheye uses one sensor and a hemispheric lens that needs dewarping — faces and plates at the edge stretch. The PDW5849-A180 uses two rectilinear lenses stitched into a flat 180° view, so subjects stay in correct proportion across the whole frame. What is the best mounting height? 3–5 m horizontally is optimum. Below 3 m the stitch line becomes more visible on close subjects; above 5 m faces and plates start losing pixel density. Does it count as one stream or two on the NVR? One channel, one licence — the camera outputs a single stitched 8 MP stream over a single RJ-45 cable. How much storage do I need for 8 MP? Roughly 8–14 GB per day per camera at 8 MP H.265+ depending on scene activity. A 512 GB microSD covers ~40–60 days of continuous recording; pair with an NVR HDD for longer retention. What is the two-way audio range? The built-in speaker is intended for short-range deterrent and intercom-style call-outs (typically up to ~5–8 m clearly). For larger forecourts, integrate with an external PA via the audio I/O. What warranty applies in Australia? This WizMind 5 camera is covered by a 5-Year AU Warranty via CCTV Guru, with local tech support and AU-wide RMA handling. Downloads Datasheet (PDF) Quick Start Guide Installation Guide Order Your Dahua PDW5849-A180 from CCTV Guru Need help sizing the panorama for your carpark, school perimeter or driveway — or pairing the PDW5849-A180 with the right WizSense NVR and HDD? Contact the CCTV Guru team for AU-based pre-sales advice, tech support and a 5-Year AU Warranty on every WizMind 5 camera.

Read more less

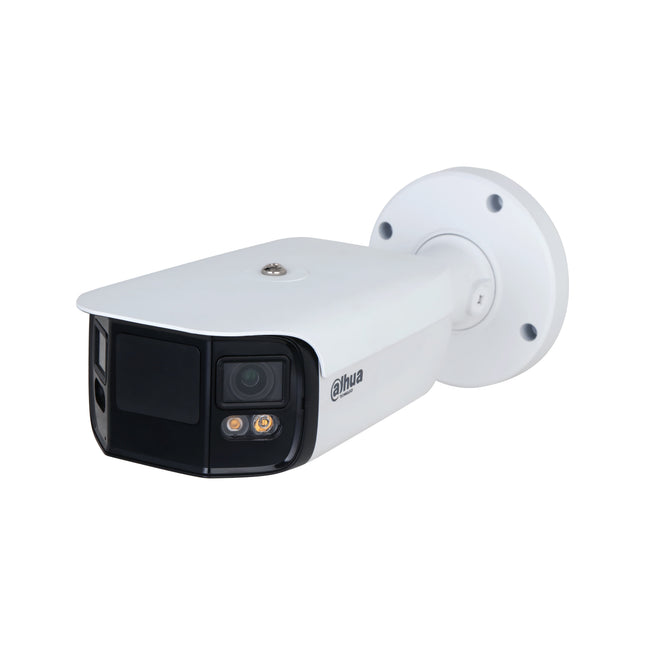

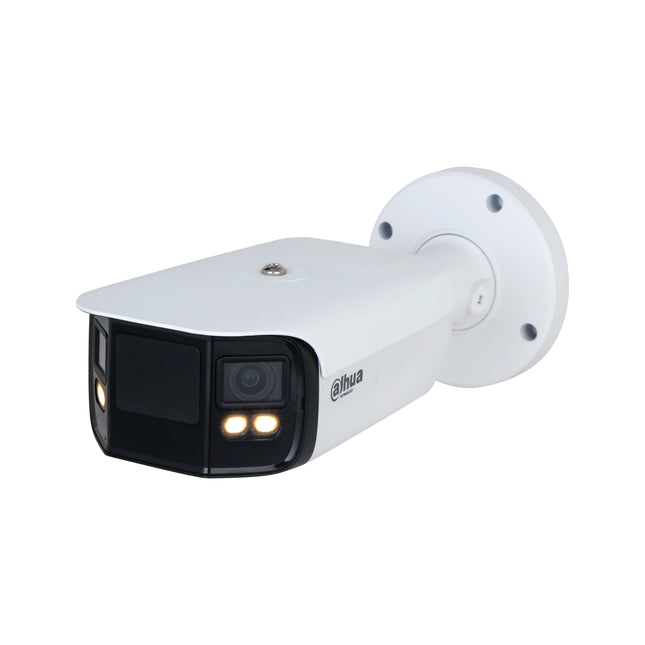

Dahua WizMind · 2 × 4MP · 180° Panoramic · PoE+See a Wide Scene with One Dual-Sensor Panoramic Camera The DH-IPC-PFW5849-A180-E2-ASTE is a full-colour panoramic bullet camera that combines two 4MP sensors into one wide 4096 × 1800 image. Its approximately 180° horizontal field of view is useful for broad shopfronts, forecourts, car parks and open areas where a conventional camera may leave important activity outside the frame. Available to order from supplier stock. Dispatch timing is confirmed after ordering. Supplier availability can change; contact CCTV Guru before ordering if you have a fixed installation date. Important system requirements: this is a fixed panoramic camera, not a motorised PTZ. It uses visible warm-light LEDs rather than infrared illumination. Power it from a suitable 802.3at PoE+ source, compatible ePoE equipment or an adequately rated 12 V DC supply. Key Features 180° panoramic context Two 1/1.8-inch sensors and 3.6 mm F1.0 lenses produce a stitched panoramic view. Monitor movement across a wide frontage without panning away from the rest of the scene. Colour detail with warm illumination Four warm LEDs provide illumination up to 40 m. The large-aperture lenses support low-light colour imaging, while the actual result depends on scene lighting, mounting and exposure. WizMind analytics Configure human/vehicle perimeter rules, people counting, queue management or heat maps to suit the application. Analytics require careful placement, calibration and compatible management software. Balanced highlights and shadows 140 dB WDR helps with difficult contrast. At full resolution, choose up to 25 fps with WDR off or 20 fps with WDR on, according to your scene priorities. Audio and alarm integration The built-in microphone and speaker support two-way audio. Separate audio and alarm inputs/outputs provide options for a professionally designed security installation. Local and network recording Record with a compatible network system or optional microSD card up to 512 GB. H.265 and smart coding options help manage storage and network requirements. Choosing a Panoramic Camera This model prioritises coverage and scene context. Its 4096 × 1800 output is a wide panoramic format rather than standard 3840 × 2160 video. Check that your recorder can accept, display and record this format, and that it supports the analytics you intend to use. A close-up identification point may still need a separate camera; a wide field of view does not guarantee readable faces or number plates everywhere in the image. Installation and Recommended Add-ons Plan a mounting location with a clear, unobstructed view across the full scene. Avoid placing nearby walls or bright lights in the field of view. Check the PoE+ port and total power budget. The maximum PoE draw listed by Dahua is 13.8 W; use the specified 802.3at power standard. Connect an appropriate 8ware Cat6 patch lead; protect the outdoor cable route and all connectors. Confirm the cable type and distance for the installation. Initialise the camera, set a strong password and correct time, and configure the stream format on the recorder. Configure and test analytics, night lighting and audio on site. Fit an optional WD Purple SC QD101 surveillance microSD card if local recording is required. Dahua lists DH-PFA5300R for an optional junction-box installation and DH-PFA157 for compatible pole mounting. Select the arrangement shown in the installation drawings; mounting accessories, memory card and cabling are sold separately. Technical Specifications Model / finish DH-IPC-PFW5849-A180-E2-ASTE / White Camera type Fixed-focal panoramic bullet; dual-sensor image splicing Image sensors Dual 1/1.8-inch CMOS sensors, 2 × 4 MP Maximum output 4096 × 1800 panoramic image (Dahua 8MP class) Frame rate with WDR off Up to 25 fps at 4096 × 1800 Frame rate with WDR on Up to 20 fps at 4096 × 1800 Lens / aperture 3.6 mm fixed focal length / F1.0 Field of view 180° ±10° horizontal / 48° vertical Close-focus distance 3.6 m Minimum illumination 0.0005 lux colour / 0.0002 lux B/W at F1.0, 30 IRE; 0 lux with illumination Illumination 4 warm-light LEDs; up to 40 m; no built-in IR illuminator listed WDR / processing 140 dB WDR; 3D noise reduction; BLC; HLC; defog Compression H.265 / H.264; Smart H.265+ / H.264+; AI H.265 / H.264 Stream capability 3 streams, subject to total encoding capacity Perimeter analytics Intrusion, tripwire and fast moving with human/vehicle classification Additional analytics Loitering, people gathering, parking, smart abandoned/missing object detection People counting Entry/exit/pass counts; in-area counting and queue management, up to 4 rules each Heat map Supported Audio Built-in microphone and speaker; two-way audio; 1 RCA input / 1 RCA output Alarm I/O 1 input / 1 output Storage microSD up to 512 GB; NAS; FTP / SFTP; compatible network recording Network interface 1 × RJ45 10/100 Mbps Interoperability ONVIF Profiles S, G and T; CGI; Milestone Software DMSS, Smart PSS and DSS Power input 12 V DC ±30%; IEEE 802.3at PoE+; compatible ePoE Maximum power 13.8 W PoE / 12.3 W at 12 V DC Protection / housing IP67; metal and plastic Operating conditions −40°C to +60°C; ≤95% RH Dimensions (L × W × H) 301.2 × 128.2 × 120.1 mm Net weight 1.42 kg Warranty 5-year Australian warranty Official Dahua Videos Watch Dahua’s 180° full-colour WizMind overview, followed by its Duo Splicing series demonstration. The second video shows the eyeball/turret sibling; this listing is the PFW5849 bullet model. Refer to the specifications above for the exact hardware and supported functions. Dahua UK & Ireland: 180 Degree Full Colour WizMind Camera Dahua Technology: Full-Color Duo Splicing series demonstration Frequently Asked Questions Is this a PTZ camera? No. It is a fixed-lens panoramic bullet camera. Its manually adjustable mounting bracket is not a motorised pan/tilt mechanism. Is the image standard 3840 × 2160 4K? No. Two 4MP sensors are stitched into a wide 4096 × 1800 panoramic image. Dahua markets this as an 8MP-class output, with a different aspect ratio from conventional 16:9 4K. Does it have infrared night vision? The listed built-in illuminators are four warm LEDs, rated up to 40 m. This model uses visible warm light for colour scenes; it is not an IR-illuminated camera. What PoE power does it need? Use an IEEE 802.3at PoE+ source with adequate per-port and total power budget. Dahua also lists compatible ePoE or 12 V DC input. Do not assume an 802.3af-only recorder port is suitable. Can I record to a memory card? Yes. The camera supports microSD storage up to 512 GB. The optional WD Purple SC QD101 128 GB and 256 GB cards are within this limit; recording time depends on bitrate, scene activity and recording schedule. Will it record at 25 fps with WDR enabled? At full 4096 × 1800 resolution, the datasheet specifies up to 25 fps with WDR off and up to 20 fps with WDR on. Confirm the balance between frame rate and highlight/shadow detail during setup. Downloads Official Dahua documents hosted by CCTV Guru. Web operation manuals cover multiple models; use the version matching the installed interface and refer to the model datasheet for supported functions. DH-IPC-PFW5849-A180-E2-ASTE Datasheet (PDF)DH-IPC-PFW5849-A180-E2-ASTE Quick Start Guide (PDF)DH-IPC-PFW5849-A180-E2-ASTE Installation Guide (PDF)DH-IPC-PFW5849-A180-E2-ASTE Dimensions (PDF)DH-IPC-PFW5849-A180-E2-ASTE Installation Method (PDF)DH-IPC-PFW5849-A180-E2-ASTE Web 3.0 Operation Manual (PDF)DH-IPC-PFW5849-A180-E2-ASTE Web 5.0 Operation Manual (PDF)

Read more less

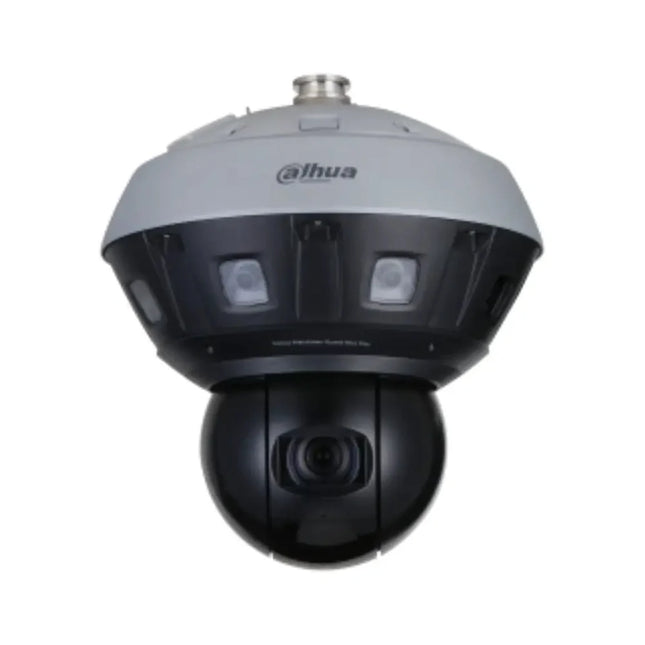

Dahua · IP Security Cameras16MP 180° Panoramic + 4MP 40x PTZ Camera DH-PSDW81642M-A180-D440-S3 — Keep a wide overview while following detail with a separate zoom camera. This multi-sensor WizMind system combines a 16MP 180° panoramic image with a 4MP 40x PTZ channel, making it a project-focused option for large outdoor areas. Key features Overview and detail Separate panoramic and PTZ channels reduce the trade-off between wide coverage and close-up viewing. 40x optical zoom The PTZ channel can inspect a narrower area within a properly planned scene. Smart linkage Configured event rules can connect panoramic detection with PTZ tracking. Long-range PTZ IR The 400 m IR rating applies to the PTZ channel, not the panoramic sensors. Applications & installation Plan the panorama around the scene and configure smart linkage to direct the PTZ toward relevant activity. Suitable applications include large facilities, transport areas and open commercial sites. This is a heavy 36 V DC-powered system requiring engineered mounting and power planning, not a standard PoE camera. Technical Specifications Model DH-PSDW81642M-A180-D440-S3 Panoramic sensor system Four 4MP sensors Panoramic output 5520 × 2700 at 25/30 fps Panoramic view 180° horizontal PTZ output 4MP, 2560 × 1440 at 25/30 fps PTZ optical zoom 40x, 5.5–220 mm PTZ night vision IR up to 400 m; panoramic channel has no integrated IR Movement 360° pan, −11° to 90° tilt Functions Smart tracking linkage, AR panorama, supported crowd/vehicle analysis and PTZ metadata Storage microSD up to 512 GB Interfaces Gigabit Ethernet, 2 audio inputs/outputs, 7 alarm inputs and 3 outputs Power 36 V DC, maximum 99 W Protection IP66 Net weight 14.4 kg Warranty 60 months — subject to warranty terms Compatible options & add-ons Optional items are sold separately. Select the components needed for your installation; mounting parts may need to be used together. WD Purple surveillance microSD — choose 128 GB or 256 GB Frequently asked questions Will a standard PoE switch power it? No. This model requires the specified 36 V DC power system. Confirm the supplied adapter and installation requirements before mounting. Is the whole 180° scene illuminated to 400 m? No. The IR range is for the PTZ channel. The panoramic channel needs suitable ambient lighting. Which bracket should I order? Dahua lists specialist PFB710W-SG, PFB7320W and PFA153-SG options. Ask us to check the complete mounting arrangement rather than substituting a similar-looking standard bracket. Downloads DH-PSDW81642M-A180-D440-S3 Datasheet (PDF)DH-PSDW81642M-A180-D440-S3 — Dahua Quick Start Guide (PDF) Manufacturer documentation: the datasheet identifies the product or stated product family; general guides cover the applicable equipment type. Confirm model-specific instructions before installation.

Read more less

DAHUA · IP SECURITY CAMERASDahua DH-IPC-PDW31259-A180-AS-PV-ANZ-S2 2 × 6MP TiOC Duo 180° Panoramic Camera Watch a broad frontage in one panoramic view. The Dahua DH-IPC-PDW31259-A180-AS-PV-ANZ-S2 uses dual imaging channels to create a 180° scene, combining TiOC active deterrence, two-way talk and Smart Dual Light for driveways, car parks and wide building elevations. Image configuration 2 × 6MP panoramic dual-lens system Output 5000 × 2500 Lens Dual 2.8 mm fixed lenses Viewing angle 180° horizontal, 78° vertical Designed for your installation A single panoramic image reduces the need to switch between separate narrow camera views. Human and vehicle event filtering, electronic PTZ viewing and compatible AcuPick search help focus on activity that matters; a wide view still needs careful placement for close identification detail. Illumination Up to 30 m IR and 30 m warm light Deterrence TiOC audible and visual warnings Audio Dual microphones and dual speakers, two-way talk Detection SMD 4.0, intelligent perimeter rules Technical Specifications Model DH-IPC-PDW31259-A180-AS-PV-ANZ-S2 Image configuration 2 × 6MP panoramic dual-lens system Output 5000 × 2500 Lens Dual 2.8 mm fixed lenses Viewing angle 180° horizontal, 78° vertical Illumination Up to 30 m IR and 30 m warm light Deterrence TiOC audible and visual warnings Audio Dual microphones and dual speakers, two-way talk Detection SMD 4.0, intelligent perimeter rules Search and view AcuPick and electronic PTZ with compatible system Storage microSD up to 512 GB, sold separately Power 12 VDC or IEEE 802.3at PoE+ Maximum PoE draw 16.1 W Weather protection IP67 Setup and compatibility Allow for PoE+ power and weatherproof all external connections. The official video below demonstrates TiOC Duo technology on an earlier generation, not this exact S2 model. Panoramic coverage is not a claim that faces or number plates can be identified across the entire width at all distances. Official product family video Dahua ANZ TiOC Duo technology overview — earlier-generation demonstration Downloads DH-IPC-PDW31259-A180-AS-PV-ANZ-S2 Datasheet (PDF) Frequently asked questions Can DH-IPC-PDW31259-A180-AS-PV-ANZ-S2 record to a microSD card? Yes. microSD up to 512 GB, sold separately. The card is separate; configure recording and retention for the installation. What should I check before installation? Allow for PoE+ power and weatherproof all external connections. The official video below demonstrates TiOC Duo technology on an earlier generation, not this exact S2 model. Panoramic coverage is not a claim that faces or number plates can be identified across the entire width at all distances. Where can I download the DH-IPC-PDW31259-A180-AS-PV-ANZ-S2 datasheet? The manufacturer PDF is hosted on CCTV Guru’s Shopify file library and linked in Downloads on this product page.

Read more less

WizMind 8 · 20 MP (4× 5 MP) · 360° No-Splice · IK10 VandalDahua WizMind 8 · 360° Panoramic Vandal DomeDahua DH-IPC-PDBW82041-B360-S2 — 20 MP (4× 5 MP) Multi-Sensor 360° Panoramic Vandal Dome WizMind 8 Network Camera The Dahua DH-IPC-PDBW82041-B360-S2 is a flagship WizMind 8 Pro AI multi-sensor panoramic vandal dome — four 5 MP sensors combine into a seamless 360° no-splice panoramic view with a total of 20 MP across the four channels. Each 1/2.8" CMOS sensor captures 2592 × 1944 at 25/30 fps with H.265 + H.264 triple-stream encoding. Twin 2.8 mm fixed lenses per sensor; built-in IR reaches up to 20 m; WDR is 120 dB; the IK10 vandal-rated metal dome housing is IP67 sealed across −30 °C to +60 °C. The Dahua hardware-stitching engine produces a single seamless 360° image — no visible seams. WizMind 8 Pro AI runs the full feature set including face recognition with on-camera database, perimeter protection, people counting, heat map, queue management, vehicle metadata and SMD Plus. ePoE supports 800 m PoE runs on Cat6. Built for project-grade Australian deployments where complete 360° situational awareness from a single ceiling mount matters — intersections, transport platforms, courtyards, atriums, retail floors and government facilities. Backed by a 5-year Australian warranty through CCTV Guru. SKU PDBW82041 series. 5-Year AU Warranty Fast AU-Wide Shipping AU Tech Support Why Choose the Dahua PDBW82041 Multi-Sensor 360° Panoramic Dome 360° No-Splice Panoramic View Four 5 MP sensors stitched to a seamless 360° image by the on-camera hardware engine. Covers full 360° from a single ceiling mount — replaces 4–6 conventional cameras. 20 MP Total Resolution 4× 5 MP sensors = 20 MP across the stitched panorama. Identification-grade detail at all angles around the camera. WizMind 8 Pro AI — Top Tier Dahua's top WizMind Pro AI tier — face recognition with database, people counting, heat map, queue management, vehicle metadata, full IVS library. IK10 Vandal Dome — Ceiling Mount Full metal IK10-rated vandal dome housing — built for ceiling mount in vandal-prone interiors and transport platforms. ePoE — 800 m PoE Extends PoE to 800 m on Cat6 over a single Cat6 cable for all 4 channels + analytics. 20 m IR & 120 dB WDR Built-in IR up to 20 m + true 120 dB WDR for high-contrast indoor and undercover-outdoor scenes. Important Install Note This camera consumes 4 channels on most NVRs (one per sensor). PoE+ (802.3at) is required — the camera will not run on standard 802.3af PoE. Best mounted in the centre of the area to be monitored at 3–5 m above ground level for a balanced 360° panorama. Pair with a Dahua AI NVR for end-to-end AcuPick + face recognition + analytics. AI & Smart Detection Face Recognition (Database) On-camera face database with up to 10,000 entries across the 360° view. Perimeter Protection (IVS) Full IVS library — tripwire, intrusion, loitering, parking, abandoned/missing object, people gathering. People Counting + Heat Map Entry/exit counts and dwell-time heat maps over the full 360° area. Queue Management Real-time queue length detection. Vehicle Metadata Capture Vehicle classification with type, colour, direction. SMD Plus Motion alerts triggered only by humans and vehicles. Technical Specifications Multi-Sensor & Optics Model DH-IPC-PDBW82041-B360-S2 Form Factor Multi-sensor panoramic vandal dome Sensors 4 × 1/2.8" CMOS Starlight Per-Sensor Resolution 2592 × 1944 (5 MP) Combined Resolution 20 MP stitched 360° panoramic Frame Rate 25/30 fps each sensor WDR 120 dB Lens Type 4 × Fixed 2.8 mm Field of View 360° horizontal (stitched) IR Illumination Up to 20 m Encoding H.265 + H.264 triple-stream Pro AI, Audio & Network AI Engine WizMind 8 Series (Pro AI) Face Recognition Yes · on-camera database IVS Full library (human/vehicle classification) SMD SMD Plus People Counting Yes Heat Map Yes Queue Management Yes Vehicle Metadata Yes Audio I/O 1 in / 1 out Alarm I/O 2 in / 1 out Network Port RJ-45 (10/100) · ePoE Interoperability ONVIF (Profile S, G, T) · CGI Storage Micro SD up to 256 GB Mobile Client DMSS Power, Environment & Build Power Supply PoE+ (802.3at) / 24 VAC Operating Temperature −30 °C to +60 °C Protection IP67 · IK10 vandal Casing Metal Australian Warranty 5 Years (via CCTV Guru) Typical Applications Intersections & Atriums 360° situational awareness from a single ceiling/pole mount. Transport Platforms & Concourses Full coverage of open public spaces with WizMind analytics. Retail Floors & Shopping Centres People counting + heat map analytics from a single overhead camera. Government & Corporate Lobbies Face recognition + 360° situational awareness with WizMind AI. Recommended NVR Pairings Dahua DHI-NVR5216-16P-AI/ANZ 16-channel — one camera uses 4 channels. View NVR5216-16P-AI → Dahua DHI-NVR5432-AI/ANZ 32-channel · recommended for multi-PDBW deployments. View NVR5432-AI → Frequently Asked Questions How many NVR channels? 4 channels — one per sensor. WizMind 8? Dahua's top Pro AI tier — same chipset as their flagship analytics cameras. Standard PoE? No — PoE+ (802.3at) is required for the 4-sensor camera. Visible seams? No — the Dahua hardware stitcher produces a seamless 360° image. Mount type? Ceiling or pole mount, 3–5 m above ground. IR range? Up to 20 m. Pair with site lighting for full panoramic night operation. Third-party NVRs? Yes — ONVIF Profile S, G, T. Temperature? −30 °C to +60 °C. Mobile viewing? Yes — DMSS app. Downloads DH-IPC-PDBW82041-B360-S2 DatasheetDahua Multi-Sensor Panoramic Quick Start Guide Order Your Dahua PDBW82041-B360-S2 from CCTV Guru Multi-sensor panoramic deployments need design input — please contact our project team. 5-year Australian warranty. cctvguru.com.au/pages/contact.

Read more less

WizMind 8 · 8 MP + 2 MP PTZ · TandemVu · 220 m IR TandemVu Multi-Sensor Dahua DH-PSDW8842ML-A180-D237 — 8 MP Panoramic + 2 MP 37× PTZ TandemVu The Dahua PSDW8842ML-A180-D237 is a top-tier TandemVu multi-sensor surveillance system that fuses four 2 MP panoramic sensors (8 MP combined, 180° coverage) with a separate 2 MP 37× optical-zoom PTZ camera in a single WizMind 8 housing. The panoramic stitch gives you persistent situational awareness across a wide perimeter while the PTZ block independently tracks and zooms onto suspects, vehicles or licence plates — with IR reach up to 220 m at full zoom. Built for critical infrastructure, ports, prisons, stadiums, large car parks, council CBDs and industrial perimeters, the camera runs on DC 36 V (67.9 W max — not PoE), carries an IP66 outdoor rating and integrates with Dahua DSS, EVS storage and NVR5x AI/ANZ recorders for full WizMind 8 analytics, AutoTracking 3.0 and tripwire-to-PTZ hand-off. Backed by CCTV Guru's 5-year Australian warranty on this WizMind 8 tier. 5-Year AU Warranty Fast AU-Wide Shipping AU Tech Support Why Choose the Dahua PSDW8842ML-A180-D237 4× 2 MP Panoramic Stitch Four sensors deliver 180° of continuous panoramic coverage at 8 MP combined — no blind seams across the perimeter. 2 MP 37× Optical PTZ Independent PTZ camera with 37× optical zoom drops onto faces, plates and incident detail without losing the wide view. TandemVu Hand-Off Panoramic AI events automatically hand off coordinates to the PTZ for AutoTracking 3.0 follow without operator input. IR up to 220 m Long-range IR cluster on the PTZ block illuminates targets at hundreds of metres in complete darkness. WizMind 8 Pro AI Top Dahua AI tier — ANPR, face attributes, perimeter, queue, crowd density and traffic events run on-device. IP66 Outdoor Build Sealed for dust and heavy rain — designed for masts, light poles and rooftops at critical sites. Important Install Note This is a premium specialist camera with specific power and headend requirements. It is powered by DC 36 V (67.9 W max) — not PoE — so plan a dedicated 36 V supply and surge protection in the cabinet. For full WizMind 8 analytics, ANPR and AutoTracking 3.0 features you must pair it with a Dahua EVS, NVR5x AI/ANZ recorder or DSS Professional / Express VMS — lower-tier NVRs will see basic streams only. Allow extra time for commissioning panoramic stitch, PTZ presets and tripwire-to-PTZ rules. AI & Smart Detection Auto-Tracking 3.0 WizMind 8 PTZ tracking smoothly follows a designated person or vehicle across the panoramic frame and returns to home. ANPR / Licence Plates PTZ block captures plates at long range; pair with DSS for whitelist/blacklist alerts and gate triggers. Perimeter Protection Tripwire and intrusion across the panoramic field deliver low-false-alarm perimeter coverage at site scale. Face Attributes & Recognition WizMind 8 captures face attributes (age range, gender, glasses, mask) and supports recognition against DSS face libraries. Crowd & Queue Analytics Crowd-density heatmaps and queue-length events for stadiums, transit hubs and event grounds. Smart Object Detection Left-luggage and missing-object events for high-value zones — airports, museums, mall atriums. Technical Specifications Camera, Lens & Illumination Panoramic Sensors 4 × 1/2.8" 2 MP CMOS (8 MP combined) Panoramic Coverage 180° horizontal stitched PTZ Sensor 1/2.8" 2 MP CMOS PTZ Optical Zoom 37× optical PTZ Focal Length 6 mm – 222 mm IR Range Up to 220 m (PTZ block) WDR 140 dB True WDR Day/Night ICR mechanical filter Intelligence, Audio & Network AI Platform WizMind 8 Pro AI Smart Events ANPR, Auto-Tracking 3.0, Face, Perimeter, Crowd, Queue, Left/Missing Object Audio Mic & speaker, two-way audio Alarm I/O 7 in / 2 out Storage microSD up to 256 GB; full SD support Protocols ONVIF, RTSP, CGI, P2P, IEEE 802.1x Required Headend Dahua EVS / NVR5x AI/ANZ / DSS Mobile App Dahua DMSS (basic functions) Power, Environment & Build Primary Power DC 36 V (NOT PoE) Max Consumption 67.9 W Operating Temp −40 °C to +70 °C Ingress Rating IP66 Pan/Tilt Speed 0.1°/s – 200°/s Presets 300 presets, 8 tours, 5 patterns Housing Aluminium with glass dome Warranty 5-Year Australian Warranty Recommended NVR Pairings Dahua DHI-NVR5208-8P-AI/ANZ Entry WizSense AI NVR — suitable for trial deployments. For full WizMind 8 analytics, use Dahua EVS or DSS. View → Dahua DHI-NVR5216-16P-AI/ANZ 16-ch WizSense AI NVR for sites combining the multi-sensor with surrounding fixed PoE cameras. View → Dahua DHI-NVR4216-16P-AI/ANZ Budget 4K Smart AI NVR — basic streams only for this camera; not recommended as the primary headend. View → Dahua DHI-NVR5432-AI/ANZ 32-ch WizSense AI NVR (no built-in PoE) — best of the listed NVR options for full multi-sensor channel support. View → Frequently Asked Questions Can I power it with PoE?No — it requires DC 36 V with up to 67.9 W draw. Plan a dedicated supply and cabinet surge protection at the pole. What headend does it need?A Dahua EVS storage server, NVR5x AI/ANZ recorder or DSS Pro / Express VMS is required for full WizMind 8 analytics and AutoTracking 3.0. How far does the PTZ IR reach?Up to 220 m at full optical zoom — designed for ports, prisons and large perimeter monitoring at night. What is TandemVu?Dahua's architecture pairing wide panoramic sensors with an independent PTZ — the panoramic sees the whole scene while the PTZ zooms onto detail. Does it do licence-plate recognition?Yes — the PTZ block runs Dahua ANPR; pair with DSS for whitelist/blacklist gate triggers and vehicle logs. Can it auto-track a target?Yes — AutoTracking 3.0 on the PTZ follows a designated subject across the panoramic frame and returns to home preset. Does it use Dahua DMSS?DMSS supports basic live view and PTZ control; full analytics belong on the DSS VMS or NVR5x AI/ANZ. What is the warranty?Backed by a full 5-year Australian warranty via CCTV Guru on this WizMind 8 top-tier model. Where does it ship from?Australian stock from CCTV Guru with full AU support and local RMA — pre-sales commissioning advice available. Downloads Datasheet Quick Start Guide Installation Guide Order Your Dahua PSDW8842ML-A180-D237 from CCTV Guru CCTV Guru is an authorised Australian Dahua reseller for the WizMind 8 PSDW series. This is a specialist camera best deployed alongside DSS or EVS — talk to our team about commissioning, power and headend planning via cctvguru.com.au/pages/contact. Full 5-year Australian warranty included.

Read more less

Clearance. Limited supplier stock, available while stocks last. WizMind 8 · 4 × 2 MP · 180° Panoramic Dome · IK10 Dahua 8MP Panoramic DomeDahua DH-IPC-PDBW8802P-H-A180-E4-AC24V — 4 × 2 MP Multi-Sensor 180° Panoramic IR Dome WizMind Network Camera (8802 Series) The Dahua DH-IPC-PDBW8802P-H-A180-E4-AC24V is a flagship WizMind 8 multi-sensor panoramic dome — the dome form factor of the 8802 series, with four 1/2.8" 2 MP CMOS sensors spliced into a seamless 180° horizontal field of view for 8 MP of total panoramic detail across the hemisphere. Discreet ceiling/soffit-friendly chassis — ideal for transport platforms, retail interiors, building lobbies, undercover canopies and council reserves where a visible bullet would clash with architecture. Each sensor pairs Starlight low-light with the full WizMind 8 AI suite (face detection, perimeter protection, people counting, heat mapping); 30 m IR illumination across the panoramic field; IP67 sealed; IK10 vandal-rated metal housing; TVS 6000 V lightning protection. Power is 24 VAC or PoE+ (IEEE 802.3at) at ≤ 25.5 W. Operating range −40 °C to +60 °C. Backed by a 5-year Australian warranty through CCTV Guru as authorised Dahua AU reseller. SKU 8802 series. 5-Year AU Warranty Fast AU-Wide Shipping AU Tech Support Why Choose the Dahua PDBW8802P WizMind Panoramic Dome True 180° Splice from a Discreet Dome Four 2 MP CMOS sensors splice into a continuous 180° panoramic image — from a low-profile dome chassis that mounts cleanly under undercover canopies, soffits and architectural ceilings where a bullet would be too visible. WizMind 8 Edge AI Suite Face detection, perimeter protection, people counting, heat mapping and stereo analysis run on the dedicated WizMind AI chip — the premium-tier Dahua AI platform. IK10 Vandal-Rated Dome Metal housing with IK10 impact rating + TVS 6000 V lightning, surge and voltage-transient protection. Built for transport platforms, schools, retail interiors and shopping-centre carparks where vandalism risk is real. Built for Harsh Climates −40 °C to +60 °C operating range. Built-in heater pre-warms the optics in cold conditions. Suitable for Alpine, mountain, desert and tropical Australian deployments. 30 m Panoramic IR Built-in IR array delivers up to 30 m of even night-time illumination across the entire 180° panoramic field — designed for even coverage rather than spot range. Flexible Power — 24 VAC or PoE+ Runs on either 24 V AC mains or 802.3at PoE+. Maximum 25.5 W under full load — within standard PoE+ switch budgets. Important Install Note — PoE+ or 24 VAC Required This camera requires 802.3at PoE+ (Class 4) or 24 V AC supply — standard 802.3af will not run it. Multi-sensor processing draws up to 25.5 W under full load. The dome housing is heavy (~3.5 kg) and requires a heavy-duty ceiling mount — see compatible accessories below. AI & Smart Detection Capabilities Face Detection & Attribute Extraction Each sensor runs face detection with attribute extraction. Captures forensic-grade snapshots from busy 180° scenes. Subject to local privacy law for analytics use. Perimeter Protection (IVS) Tripwire, intrusion, abandoned/missing object, loitering, fast-moving, parking detection and people-gathering events — all with human and vehicle classification. People Counting & Heat Mapping Business intelligence built into the camera — track footfall, dwell time and movement patterns. Useful for retail, transport and educational facilities. SMD Plus & Motion Filtering Smart Motion Detection filters out animal, foliage, weather and lighting changes — only people and vehicles raise alarms in DMSS. Abnormality Detection SD card status, network disconnection, IP conflict, video tampering, audio detection and voltage detection — push to DMSS for any abnormal device state. ONVIF Profile S, G, T Compatible Records to any ONVIF-compatible third-party NVR. WizMind AI events push end-to-end only on a genuine Dahua AI NVR. Technical Specifications Multi-Sensor Camera System Model DH-IPC-PDBW8802P-H-A180-E4-AC24V Form Factor Multi-sensor panoramic dome (PDBW chassis) Sensors 4 × 1/2.8" CMOS Starlight Resolution per Sensor 2 MP (1920 × 1080) Total Resolution 8 MP across 180° splice Field of View H: 180° (splice across 4 sensors) Frame Rate Up to 25/30 fps per sensor WDR 120 dB per sensor Day / Night Auto (ICR) / Colour / B&W IR Illumination Up to 30 m built-in array Intelligence & Video AI Engine WizMind 8 Series (dedicated AI chip) IVS Library Tripwire · intrusion · abandoned/missing object · loitering · fast-moving · parking detection · people gathering Face Detection Per sensor — with attribute extraction People Counting / Heat Map Yes (panoramic analytics) SMD Plus Yes Video Compression H.265 · H.264 · Smart H.265+ · Smart H.264+ · MJPEG Resolutions 2 MP · 1080p · 1.3 MP · 720p · D1 · VGA · CIF per sensor Power, Environment & Build Power Supply 24 VAC / PoE+ (IEEE 802.3at Class 4) Power Consumption Max 25.5 W under full load Operating Temperature −40 °C to +60 °C Operating Humidity ≤ 95% RH (non-condensing) Protection IP67 · IK10 vandal · TVS 6000 V lightning · surge protection · voltage transient protection Casing Metal Network RJ-45 (10/100/1000 Base-T) · ONVIF Profile S, G, T · CGI · SDK Storage Micro SD up to 256 GB · FTP · SFTP · NAS Mobile Client DMSS (iOS / Android) Certifications CE-LVD (EN62368-1) · CE-EMC (2014/30/EU) · RCM (AU) Australian Warranty 5 Years (via CCTV Guru — WizMind tier) How It Compares — PDBW8802P (Dome) vs PFW8802P (Bullet) The natural sibling is the Dahua DH-IPC-PFW8802P-H-A180-E4-AC24V — the bullet version of this same camera. Choose the dome (this camera) for discreet ceiling installs and IK10 vandal resistance in interior environments; choose the bullet for outdoor mounting flexibility and longer 35 m IR reach. Feature PDBW8802P (this — dome) PFW8802P (sibling — bullet) Form Factor Dome — discreet ceiling/soffit Bullet — visible deterrence Sensors 4 × 2 MP 4 × 2 MP Total Resolution 8 MP across 180° 8 MP across 180° IR Distance Up to 30 m Up to 35 m WizMind AI Yes — full suite Yes — full suite IK10 Vandal Yes Yes Power 24 VAC / PoE+ 25.5 W 24 VAC / PoE+ 25.5 W Best For Building lobbies, undercover canopies, transport platforms, retail interiors Long fence-lines, building façades, carpark frontages, large open courtyards Recommended NVR Pairings Dahua DHI-NVR5216-16P-AI/ANZ 5-Series AcuPick NVR · 16 channels · 16 PoE+ ports. Runs the PDBW8802P plus 12 fixed cameras. View Dahua NVR5216-16P-AI → Dahua DHI-NVR5432-AI/ANZ 5-Series AcuPick NVR · 32 channels · 4 HDD bays. Enterprise pairing for multiple PDBW8802 deployments. View Dahua NVR5432-AI → Dahua DHI-NVR4216-16P-AI/ANZ 4-Series WizSense AI NVR · 16 channels · 16 PoE ports. Value-pick build. View Dahua NVR4216-16P-AI → Dahua DHI-NVR5208-8P-AI/ANZ 5-Series AcuPick NVR · 8 channels · 8 PoE+ ports. Single-camera site sizing. View Dahua NVR5208-8P-AI → Frequently Asked Questions What does "multi-sensor panoramic" mean? The camera contains four independent 2 MP sensors arranged to capture a continuous 180° horizontal field of view, spliced in-camera into a seamless panoramic stream. How many NVR channels does it use? Four. Each sensor presents as a separate IP video stream. Does it require PoE+ or will standard PoE work? PoE+ (802.3at Class 4) is required, or a local 24 V AC supply. Standard 802.3af will not run it under full load. How is the warranty 5 years rather than 3? WizMind series products carry a 5-year Australian warranty through CCTV Guru — reflecting their premium project-grade build. What IR distance does it provide? Up to 30 m built-in IR across the entire 180° panoramic field. What's the difference between the dome and bullet versions? Same sensors, AI and resolution. The dome (this) suits ceiling/soffit installs and interior environments; the bullet (PFW8802P) suits outdoor mounting and visible-deterrence positions, with 5 m longer IR reach. Does it work with third-party NVRs? Yes — ONVIF Profile S, G and T. WizMind AI events push end-to-end only on a genuine Dahua AI NVR. What temperature range is it rated for? −40 °C to +60 °C. Built-in heater pre-warms the optics in cold conditions. Can I view it on my phone? Yes — Dahua's free DMSS app. Each sensor viewable as a separate stream within the app. Downloads DH-IPC-PDBW8802P-H-A180-E4-AC24V DatasheetDahua Multi-Sensor Camera Quick Start GuideDahua Multi-Sensor Camera Installation GuideDahua Multi-Sensor Camera Operational Manual Order Your Dahua PDBW8802P-H-A180-E4-AC24V from CCTV Guru "Add to cart" to order online, or contact our Australian team for project pricing, multi-camera fleet deployments and NVR sizing advice. We are authorised Australian Dahua resellers, hold stock locally, and back every 8802 series WizMind camera with a 5-year Australian warranty and Australian-based tech support. Phone, email or live chat us through cctvguru.com.au/pages/contact — most enquiries are answered the same business day.
