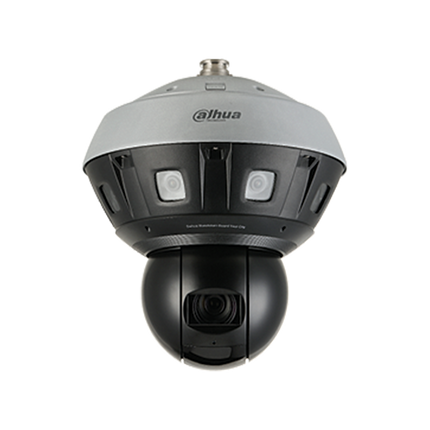

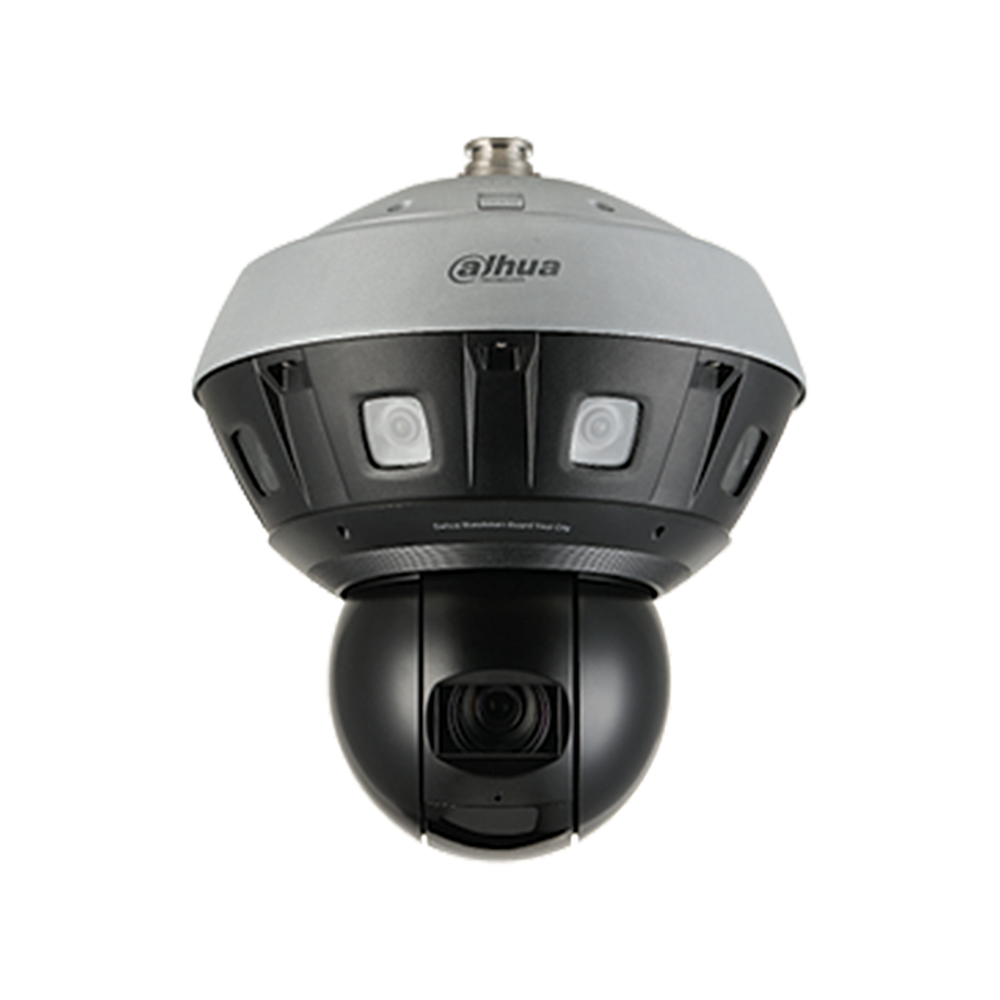

Dahua WizMind DH-PSDW8842ML-A180-D237 Panoramic + PTZ Camera
The DH-PSDW8842ML-A180-D237 is an all-in-one surveillance powerhouse from the Dahua WizMind series. It combines a four-sensor 180° panoramic module with a high-speed, 37x optical zoom PTZ camera. This unique design allows for total situational awareness while simultaneously capturing high-resolution forensic details through manual or automatic tracking[cite: 174, 176, 195].
Key Features
-
180° Panoramic View: Four 2MP CMOS sensors work in tandem to provide a seamless 180° wide-area overview[cite: 178, 180, 196].
-
Integrated High-Speed PTZ: Features a dedicated 2MP PTZ module with a powerful 37x optical zoom (5.62mm–208mm) for capturing distant details with clarity[cite: 179, 216].
-
Starlight Technology: Specifically engineered for challenging low-light environments, delivering usable color imagery in near-complete darkness[cite: 181, 203, 206].
-
AI Smart Tracking: Supports manual tracking and automatic tracking of multiple targets once tripwire or intrusion rules are triggered[cite: 185, 198, 210].
-
Long-Range IR Illumination: The PTZ module is equipped with infrared LEDs capable of reaching up to 220 meters (721.78 ft)[cite: 184, 216].
-
Active Monitoring Port: Includes 7 alarm inputs and 3 alarm outputs, alongside 2-channel audio inputs and outputs for comprehensive system integration[cite: 295, 297, 299, 302].
Technical Specifications
| Panoramic Sensor |
Four 1/1.8" 2MP Progressive Scan CMOS [cite: 178] |
| PTZ Sensor |
One 1/1.8" 2MP Progressive Scan CMOS [cite: 179] |
| Max. Resolution |
Panoramic: 4096 x 1800 | PTZ: 1920 x 1080 |
| Optical Zoom |
37x (5.62 mm–208 mm) |
| Video Compression |
Smart H.265+ / H.264+ [cite: 182] |
| Power Supply |
DC 36V (Max Consumption: 67.9W) [cite: 308, 309] |
| Ingress Protection |
IP66 [cite: 317] |
More Information
Download the official documentation for the DH-PSDW8842ML-A180-D237:
System Requirement: Designed for integration with Dahua EVS, NVR5X, and DSS management platforms[cite: 222].
