Dahua · IP Security Cameras16MP 180° Panoramic + 4MP 40x PTZ Camera

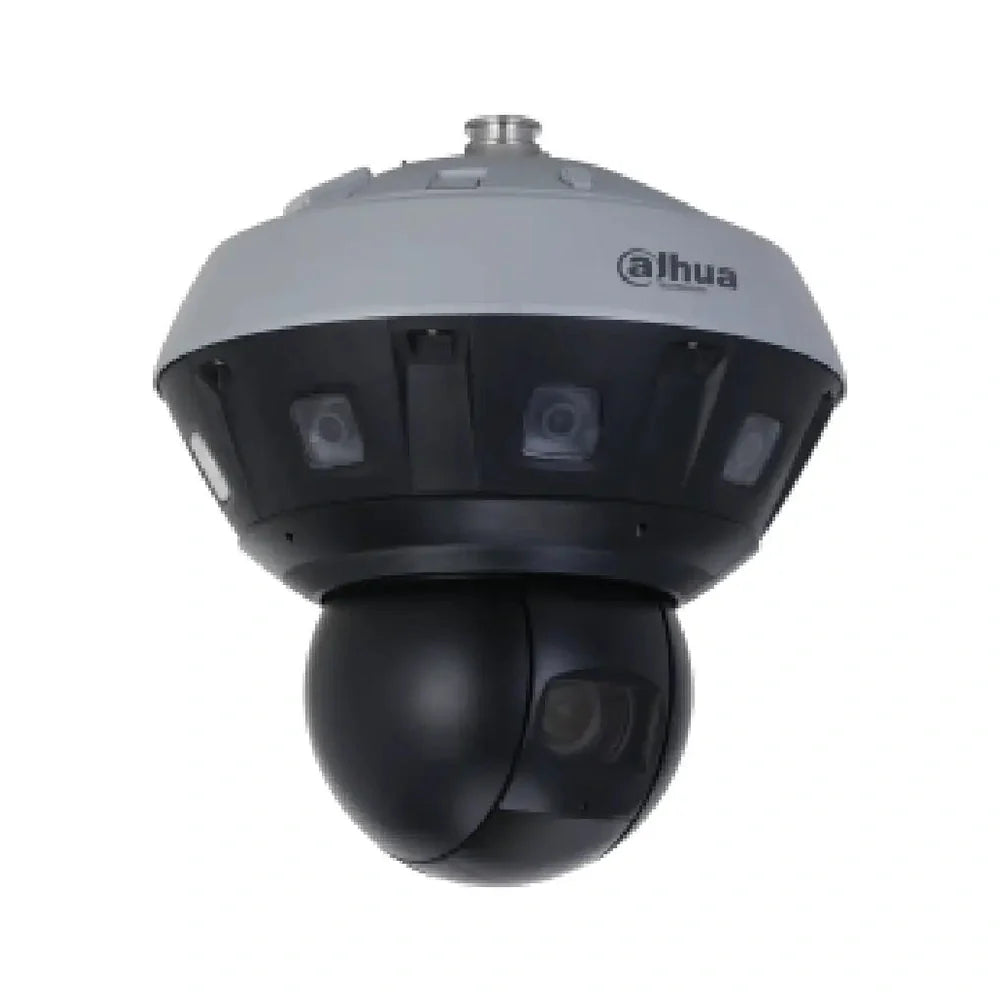

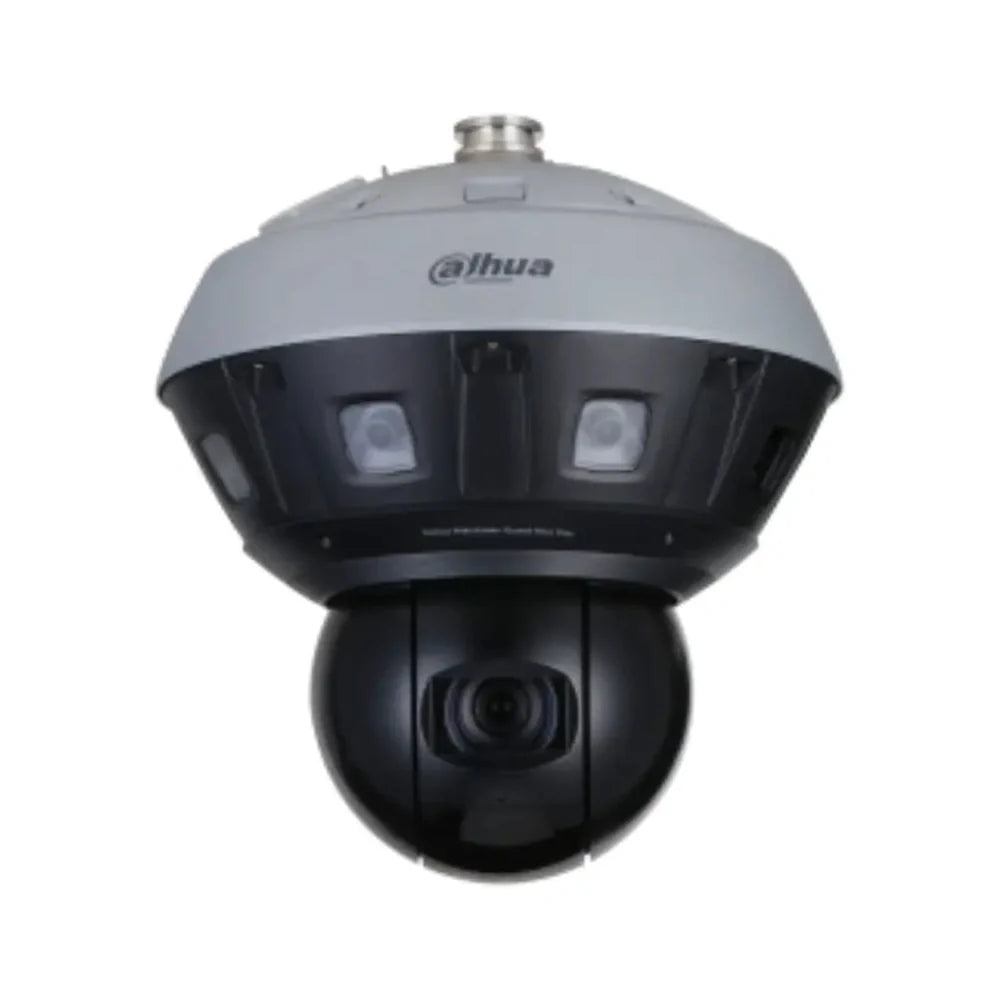

DH-PSDW81642M-A180-D440-S3 — Keep a wide overview while following detail with a separate zoom camera. This multi-sensor WizMind system combines a 16MP 180° panoramic image with a 4MP 40x PTZ channel, making it a project-focused option for large outdoor areas.
Key features
Overview and detail
Separate panoramic and PTZ channels reduce the trade-off between wide coverage and close-up viewing.
40x optical zoom
The PTZ channel can inspect a narrower area within a properly planned scene.
Smart linkage
Configured event rules can connect panoramic detection with PTZ tracking.
Long-range PTZ IR
The 400 m IR rating applies to the PTZ channel, not the panoramic sensors.
Applications & installation
Plan the panorama around the scene and configure smart linkage to direct the PTZ toward relevant activity. Suitable applications include large facilities, transport areas and open commercial sites. This is a heavy 36 V DC-powered system requiring engineered mounting and power planning, not a standard PoE camera.
Technical Specifications
| Model |
DH-PSDW81642M-A180-D440-S3 |
| Panoramic sensor system |
Four 4MP sensors |
| Panoramic output |
5520 × 2700 at 25/30 fps |
| Panoramic view |
180° horizontal |
| PTZ output |
4MP, 2560 × 1440 at 25/30 fps |
| PTZ optical zoom |
40x, 5.5–220 mm |
| PTZ night vision |
IR up to 400 m; panoramic channel has no integrated IR |
| Movement |
360° pan, −11° to 90° tilt |
| Functions |
Smart tracking linkage, AR panorama, supported crowd/vehicle analysis and PTZ metadata |
| Storage |
microSD up to 512 GB |
| Interfaces |
Gigabit Ethernet, 2 audio inputs/outputs, 7 alarm inputs and 3 outputs |
| Power |
36 V DC, maximum 99 W |
| Protection |
IP66 |
| Net weight |
14.4 kg |
| Warranty |
60 months — subject to warranty terms |
Compatible options & add-ons
Optional items are sold separately. Select the components needed for your installation; mounting parts may need to be used together.
Frequently asked questions
Will a standard PoE switch power it?
No. This model requires the specified 36 V DC power system. Confirm the supplied adapter and installation requirements before mounting.
Is the whole 180° scene illuminated to 400 m?
No. The IR range is for the PTZ channel. The panoramic channel needs suitable ambient lighting.
Which bracket should I order?
Dahua lists specialist PFB710W-SG, PFB7320W and PFA153-SG options. Ask us to check the complete mounting arrangement rather than substituting a similar-looking standard bracket.
Downloads
Manufacturer documentation: the datasheet identifies the product or stated product family; general guides cover the applicable equipment type. Confirm model-specific instructions before installation.
