Solution 6000 · Direct Link + Flash · USB LeadUSB Program LeadCM910 Direct Link Lead — Australian Stock & 3-Year Warranty The Bosch CM910 is the direct link and flash programming USB lead that connects a PC to a Bosch Solution 6000, 144, 64, 16plus or 16i panel. Paired with Solution Link software it enables fast on-site programming, configuration changes and panel firmware flashing, ensuring reliable data transfer during setup and maintenance. A must-have installer lead for the Solution range, backed by a 3-year Australian warranty. Technical Specifications Model / SKU Bosch CM910 (BOSCM910 / F.01U.316.497) Type Direct link / flash programming lead Interface USB Compatible Panels Solution 6000, 144, 64, 16plus (16+), 16i Function PC-to-panel programming & firmware flashing Warranty 3 Years (Australia) Downloads CM910 DatasheetBosch Programming Lead Quick Start GuideBosch Programming Lead User Manual Frequently Asked Questions What is the CM910 used for?It is a USB lead that connects a PC to a Bosch Solution panel for direct link programming and firmware flashing. Which panels does it suit?Solution 6000, 144, 64, 16plus and 16i. Do I need software as well?Yes — use it with Bosch Solution Link (SW500B) programming software on your PC. What connection does it use?USB on the PC side to the panel's programming port. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

Solution 6000 · Solution Link RAS · USB SoftwareRAS SoftwareSW500B Solution Link Software — Australian Stock & 3-Year Warranty The Bosch SW500B is the Solution Link RAS (Remote Alarm Software) programming package supplied on USB, the professional way to configure and manage Bosch Solution 6000, 144, 64, 16plus and 16i panels from a PC. It gives installers full access to programming, diagnostics and maintenance far faster than keypad entry, whether on-site or remotely. An essential installer tool for the Solution range, backed by a 3-year Australian warranty. Technical Specifications Model / SKU Bosch SW500B (BOSSW500B / F.01U.271.750) Type Solution Link RAS programming software Media USB Compatible Panels Solution 6000, 144, 64, 16plus (16+), 16i Function PC programming, diagnostics & maintenance Warranty 3 Years (Australia) Downloads SW500B DatasheetBosch Solution Link Quick Start GuideBosch Solution Link User Manual Frequently Asked Questions Which panels does SW500B program?It programs Bosch Solution 6000, 144, 64, 16plus and 16i control panels. What is in the box?The Solution Link RAS software supplied on a USB. Do I still need a connection lead?Yes — to connect the PC to the panel you also need a programming lead such as the Bosch CM910 (Solution 6000). What does the software do?It provides full PC-based programming, diagnostics and maintenance of the panel, much faster than programming from a keypad. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

RADION · 433MHz · 20mm Gap · Surface MountWireless ReedRFDW-SM Wireless Reed Contact — Australian Stock & 3-Year Warranty The Bosch RFDW-SM is a compact RADION-series wireless reed switch for doors and windows. When the door or window opens, the magnet separates from the reed switch and the contact reports the event wirelessly to the alarm, giving reliable perimeter protection with no cabling. With a generous 20mm detection gap and a discreet white surface-mount housing, it is quick to fit to almost any frame — all backed by a 3-year Australian warranty. Frequency 433 MHz Detection Gap 20 mm Power 1x AAA Mounting Surface Wireless Perimeter Protection Reports door and window openings to the alarm with no cabling to run. Generous 20mm Gap A 20mm detection gap tolerates real-world frame movement and alignment for reliable triggering. Discreet Surface Mount Compact white housing fits neatly on most door and window frames. RADION Reliability Uses Bosch RADION 433MHz wireless for dependable, supervised communication. Technical Specifications Model / SKU Bosch RFDW-SM (BOSRFDW-SM) Series RADION Device Type Wireless reed switch (door/window contact) Frequency 433 MHz Detection Gap 20 mm Battery 1x AAA (1.5V) Colour White Mounting Surface mount Requires Bosch B810 RADION receiver Warranty 3 Years (Australia) Downloads RFDW-SM DatasheetBosch Reed Contact Quick Start GuideBosch Reed Contact User Manual Frequently Asked Questions What is the RFDW-SM?A RADION wireless reed switch that detects when a door or window opens and reports it to the alarm system wirelessly. Does it need a receiver?Yes. It requires a Bosch B810 RADION receiver to operate on the alarm system. Which panels does it suit?It works with Bosch RADION-capable systems such as Solution 3000 via the B810 receiver; it is not compatible with Solution 2000 or Solution 6000. What is the detection gap?Up to 20mm between the contact and its magnet before the alarm triggers. What battery does it use?A single AAA 1.5V battery. How is it mounted?It surface mounts to the door or window frame with the magnet on the moving leaf. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

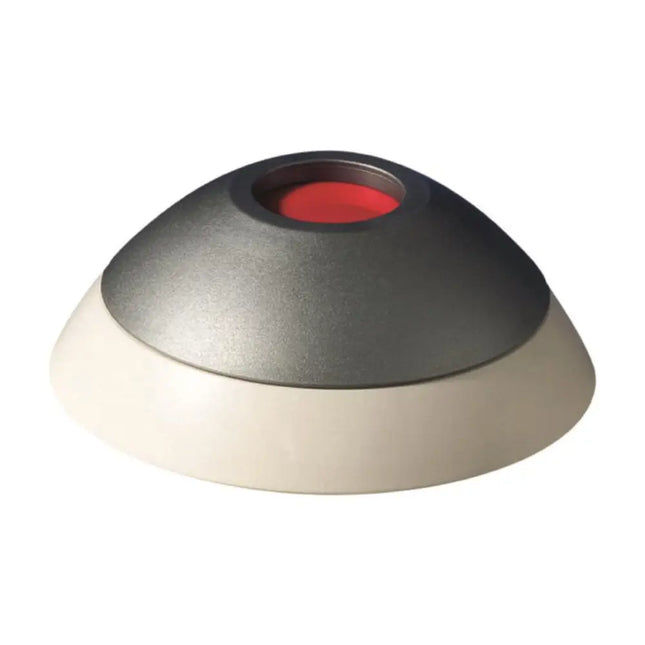

Panic Button · 1-Button · Tamper · Hardwired Panic Button ISC-PB1-100 Panic Button — Australian Stock & 3-Year Warranty The Bosch ISC-PB1-100 is a hardwired single-button panic (hold-up) button that lets staff raise a silent or audible alarm the instant they feel threatened. Built on Bosch's reliable DC circuit technology (GLT), the prominent red button wires straight into an intrusion panel and includes a tamper contact to detect interference with the housing. The grey IP40 plastic surface housing supports surface or flush cable entry and accepts an optional cap with cover to guard against accidental activation. Operating on 12-30 VDC with a single N/C output, it suits counters, offices and reception desks. Backed by a 3-year Australian warranty. Type 1-Button Panic Security Tamper Contact Output 1x N/C Rating / Power IP40 / 12-30 VDC Instant Duress Alarm One firm press on the red button raises a hold-up alarm, ideal for reception desks, counters and offices where staff may need to summon help discreetly. DC Circuit Technology (GLT) Bosch's proven GLT design delivers dependable, low-current signalling that connects directly into the intrusion panel for reliable activation. Built-In Tamper An integrated tamper contact signals if the housing is opened or interfered with, keeping the device secure and supervised by the panel. Flexible Install The IP40 grey surface housing supports surface or flush cable entry and accepts an optional cap with cover to prevent accidental activation. Technical Specifications Model / SKU Bosch ISC-PB1-100 (BOSISC-PB1-100) Type Hardwired 1-Button Panic / Hold-Up Button Technology DC circuit technology (GLT) Button Single red button Tamper Tamper contact included Output 1x N/C Power Supply 12-30 VDC IP Rating IP40 Housing / Colour Plastic, Grey (surface mount) Cable Entry Surface or flush Accessories Compatible with optional cap / cover Warranty 3 Years (Australia) Downloads ISC-PB1-100 Datasheet Bosch Panic Button Quick Start Guide Bosch Panic Button User Manual Frequently Asked Questions What is the ISC-PB1-100 used for?It's a single-button panic (hold-up) button that lets staff instantly trigger a duress alarm from a counter, desk or office by pressing the red button. Does it latch, and how is it reset?The button uses a mechanical action that holds its state when pressed; after an activation it is reset at the button before the panel zone restores. Wire it to a 24-hour hold-up zone so it reports whether the system is armed or disarmed. Does it have a tamper?Yes. An integrated tamper contact signals the panel if the housing is opened or interfered with, keeping the device supervised. How do I wire and power it?It operates on 12-30 VDC and provides a single normally-closed (N/C) output that connects into an intrusion panel, typically as a dedicated 24-hour panic zone. How is it mounted?The grey IP40 housing surface-mounts with surface or flush cable entry. An optional cap with cover can be fitted to help prevent accidental presses. Which panels does it work with?As a standard N/C hold-up input it connects to intrusion panels such as the Bosch Solution 2000, 3000 and 6000, assigned to a 24-hour panic/hold-up zone. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

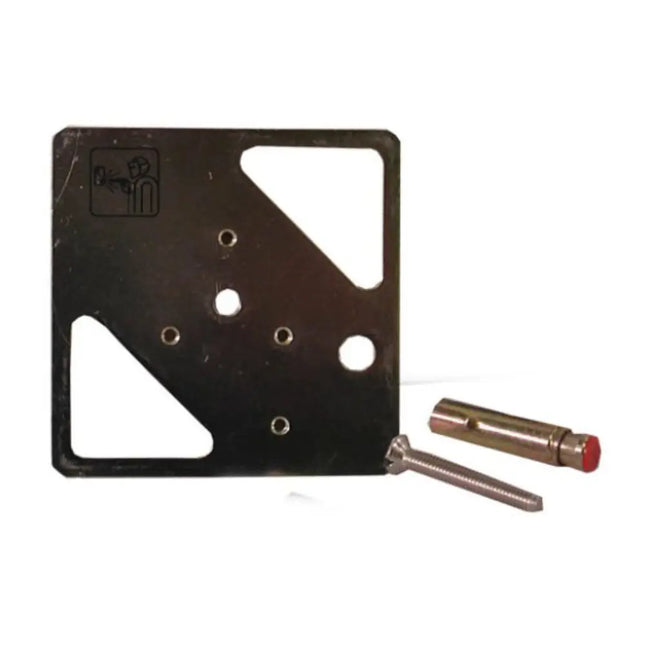

Seismic · Mounting Plate · Steel / ConcreteMount PlateISN-GMX-P0 Seismic Mounting Plate — Australian Stock & 3-Year Warranty The Bosch ISN-GMX-P0 is a dedicated mounting plate for Bosch seismic (vibration) detectors, engineered to surface-mount the sensor to steel or concrete. Solid coupling to the protected surface is critical for seismic detection, and this plate ensures vibrations from a drill, torch or hammer attack transfer cleanly to the detector for reliable triggering. The correct accessory for safe, vault and ATM installations, backed by a 3-year Australian warranty. Technical Specifications Model / SKU Bosch ISN-GMX-P0 (BOSISN-GMX-P0) Type Seismic detector mounting plate Mounts To Steel or concrete surfaces Mounting Surface mount Use With Bosch seismic / vibration detectors (e.g. ISN-SM-50) Warranty 3 Years (Australia) Downloads ISN-GMX-P0 DatasheetBosch Seismic Mount Quick Start GuideBosch Seismic Mount User Manual Frequently Asked Questions What is the ISN-GMX-P0 for?It is a mounting plate that fixes a Bosch seismic detector to a steel or concrete surface for reliable vibration detection. Which detectors does it suit?Bosch seismic / vibration detectors such as the ISN-SM-50. Why is a dedicated plate needed?Seismic sensing relies on solid mechanical coupling; the plate transfers surface vibration cleanly to the detector. What surfaces can it mount to?Steel or concrete, typical of safes, vaults and ATM housings. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

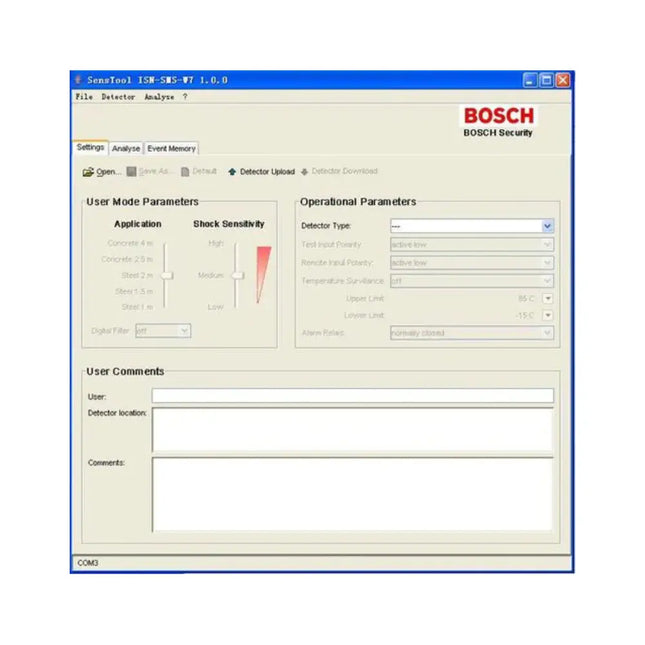

Seismic · Sens Tool Software + Interface CableSens Tool KitISN-SMS-W7 Sens Tool Software — Australian Stock & 3-Year Warranty The Bosch ISN-SMS-W7 is the Sens Tool software and interface cable used to set up and fine-tune Bosch seismic (vibration) detectors. Connecting the detector to a PC, it lets installers adjust sensitivity precisely, run diagnostics and analyse recorded event data — essential for high-security vault, safe and ATM applications where accurate calibration matters. The professional commissioning tool for Bosch seismic sensors, backed by a 3-year Australian warranty. Technical Specifications Model / SKU Bosch ISN-SMS-W7 (BOSISN-SMS-W7 / F.01U.004.306) Type Sens Tool software & interface cable Function Seismic sensitivity adjustment & data analysis Use With Bosch seismic / vibration detectors (e.g. ISN-SM-50) Connection Detector-to-PC interface cable Warranty 3 Years (Australia) Downloads ISN-SMS-W7 DatasheetBosch Sens Tool Quick Start GuideBosch Sens Tool User Manual Frequently Asked Questions What does the ISN-SMS-W7 do?It is the Sens Tool software and cable used to adjust the sensitivity of Bosch seismic detectors and to analyse their event data on a PC. Which detectors does it work with?Bosch seismic / vibration detectors such as the ISN-SM-50. What is in the box?The Sens Tool software plus the interface cable to connect a detector to a computer. Why adjust seismic sensitivity?Correct calibration ensures reliable attack detection on safes, vaults and ATMs while minimising false alarms. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

G-Series · RPS-lite Security Key · USBRPS Security KeyD5371-USB RPS-lite Security Key — Australian Stock & 3-Year Warranty The Bosch D5371-USB is the yellow RPS-lite security key — a USB dongle that authorises Bosch RPS (Remote Programming Software) to communicate with G-Series panels such as the B9512G. It simply plugs into a spare USB port on the programming PC and is the required accessory to enable RPS-lite operation. An essential installer/end-user licensing key for G-Series programming, backed by a 3-year Australian warranty. Technical Specifications Model / SKU Bosch D5371-USB (BOSD5371-USB / 4.998.143.727) Type RPS-lite security key (USB dongle) Interface USB Colour Yellow Function Authorises RPS to communicate with G-Series panels Compatible Panels Bosch G-Series (B9512G) Warranty 3 Years (Australia) Downloads D5371-USB DatasheetBosch RPS Quick Start GuideBosch RPS User Manual Frequently Asked Questions What is the D5371-USB for?It is the RPS-lite security key that enables Bosch RPS programming software to communicate with G-Series panels. Which panels does it support?Bosch G-Series panels such as the B9512G. How does it connect?It plugs into a USB port on the computer running RPS. Is it required for programming?Yes — it is a required accessory to enable RPS-lite communication. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

Solution 6000 · 433MHz · Reed + 1 Input · CR123ASOL6000 ReedRF113W Wireless Reed Switch — Australian Stock & 3-Year Warranty The Bosch RF113W is a 433MHz wireless reed switch designed specifically for the Bosch Solution 6000 and Solution 6000-IP wireless system. It protects a door or window via its built-in reed, and its one external input also lets you make an existing wired contact wireless. Powered by a long-life CR123A battery in a discreet grey surface-mount housing, it delivers cable-free perimeter protection through a Bosch SOL6000 wireless receiver — backed by a 3-year Australian warranty. Frequency 433 MHz Input 1x External Power CR123A Mounting Surface Built for Solution 6000 Purpose-made for the Solution 6000 and 6000-IP wireless ecosystem via a SOL6000 receiver. Reed + External Input Use the internal reed for a door/window, or the external input to make a wired contact wireless. Cable-Free Fit Surface mounts in minutes with no wiring back to the panel. Long Battery Life Runs from a single CR123A lithium battery for years of reliable service. Technical Specifications Model / SKU Bosch RF113W (BOSRF113W / F.01U.401.527) Series Solution 6000 Device Type Wireless reed switch with input Frequency 433 MHz External Input 1x input Battery 1x CR123A (3.3V) Colour Grey Material Plastic Mounting Surface mount Suits Solution 6000 / Solution 6000-IP (via SOL6000 receiver) Warranty 3 Years (Australia) Downloads RF113W DatasheetBosch Reed Contact Quick Start GuideBosch Reed Contact User Manual Frequently Asked Questions Which system is the RF113W for?It is designed for the Bosch Solution 6000 and Solution 6000-IP wireless system, working through a SOL6000 wireless receiver (RF120/RF121). Does it have an external input?Yes. It has one external input so you can wire in an existing contact and make it wireless. Is it compatible with Solution 2000/3000?No. The RF113W is specific to the Solution 6000 wireless system, not the RADION-based Solution 2000/3000. What battery does it use?A single CR123A 3.3V lithium battery. Does it need a receiver?Yes, it requires a Bosch SOL6000 wireless receiver such as the RF120 or RF121. How is it mounted?It surface mounts to the door or window frame. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

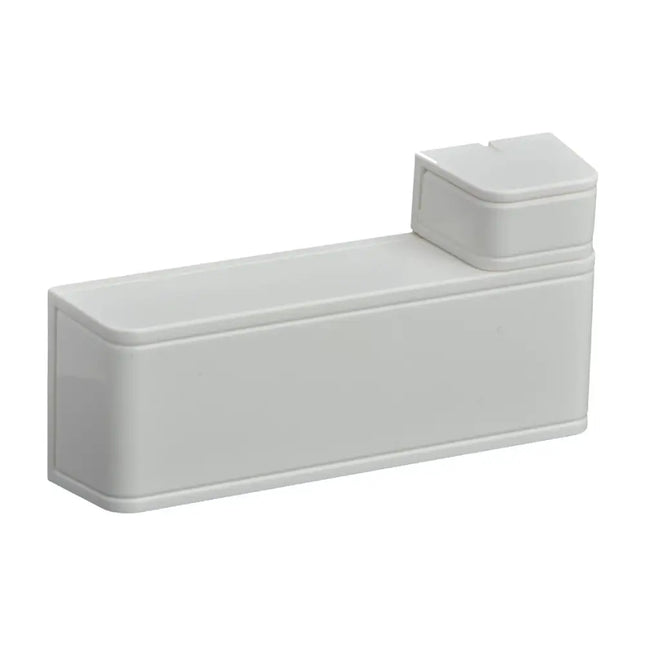

RADION · 433MHz · Built-in Reed + 1 Dry InputReed + InputRFUN Wireless Reed + Input — Australian Stock & 3-Year Warranty The Bosch RFUN is a versatile RADION-series wireless reed switch with an external input. It works as a standard door/window contact via its built-in reed and 12.7mm gap, and its one dry-contact input also lets you make almost any wired device — a roller-door contact, PIR, or third-party detector — wireless. Powered by a long-life CR123A battery with screw terminals for easy wiring, it is the flexible “universal” transmitter for RADION systems, backed by a 3-year Australian warranty. Frequency 433 MHz Detection Gap 12.7 mm Input 1x Dry Power CR123A Reed + External Input Use the built-in reed for a door/window, or its dry input to make a wired device wireless. Truly Universal Adds roller-door contacts, PIRs and other detectors to a RADION system without cabling back to the panel. Long-Life CR123A Runs from a single CR123A lithium battery with screw-terminal wiring. RADION Compatible Suits Bosch RFRC-OPT and B810 RADION receivers. Technical Specifications Model / SKU Bosch RFUN (BOSRFUN) Series RADION Device Type Wireless reed switch with input Frequency 433 MHz Detection Gap 12.7 mm External Input 1x dry contact Battery 1x CR123A (3.3V) Contact Size 18.5 x 24.5 x 12.5 mm Terminals Screw terminals Colour White Mounting Surface mount Suits RFRC-OPT / B810 Warranty 3 Years (Australia) Downloads RFUN DatasheetBosch Reed Contact Quick Start GuideBosch Reed Contact User Manual Frequently Asked Questions What makes the RFUN “universal”?Besides its built-in reed switch, it has a dry-contact input so you can connect a wired detector and make it wireless on a RADION system. Which receivers does it suit?Bosch RFRC-OPT and B810 RADION receivers. What can I wire to the input?Any dry-contact device such as a roller-door contact, a wired PIR, or a third-party detector. What battery does it use?A single CR123A 3.3V lithium battery. What is the reed detection gap?Up to 12.7mm between the reed and its magnet. How is it wired?Via screw terminals inside the housing for the external input. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

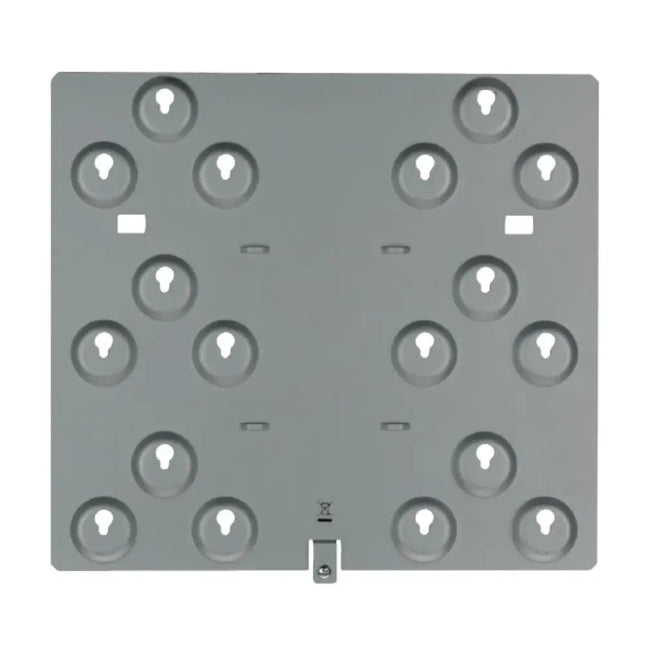

Genuine Bosch · G-Series · Steel Mounting Plates · Pack of 5 Bosch Mounting Plates D9002 G-Series Mounting Plates — Australian Stock & 3-Year Warranty The Bosch D9002 (product no. F.01U.217.699) is a pack of five grey steel mounting plates that add extra board locations and physical protection for 3-hole mounted G-Series modules inside the B8103 enclosure. Each plate accepts a six-location board and screws into G-Series-compatible enclosures, letting installers cleanly organise zone expanders, output modules and communicators in larger B9512G / B8512G systems. Genuine Bosch hardware, backed by a 3-year Australian warranty. Technical Specifications Model / SKU D9002 (BOSD9002-5) Product No. F.01U.217.699 Pack Quantity 5 mounting plates Suits 3-hole G-Series modules in B8103 enclosure Colour Grey Material Steel Dimensions (H x W x D) 287 x 290 x 5 mm Weight 2.60 kg Warranty 3 Years (Australia) Downloads D9002 Datasheet Bosch Mounting Plate Quick Start Guide Bosch Mounting Plate User Manual Frequently Asked Questions How many plates are supplied?Five mounting plates per pack (BOSD9002-5). Which modules do they suit?3-hole mounted G-Series modules — each plate holds a six-location board and mounts inside the B8103 enclosure. What system are they for?Bosch G-Series panels such as the B9512G / B8512G that use B8103-style enclosures. What are the plate dimensions?Each steel plate measures 287 x 290 x 5 mm and the pack weighs 2.60 kg. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

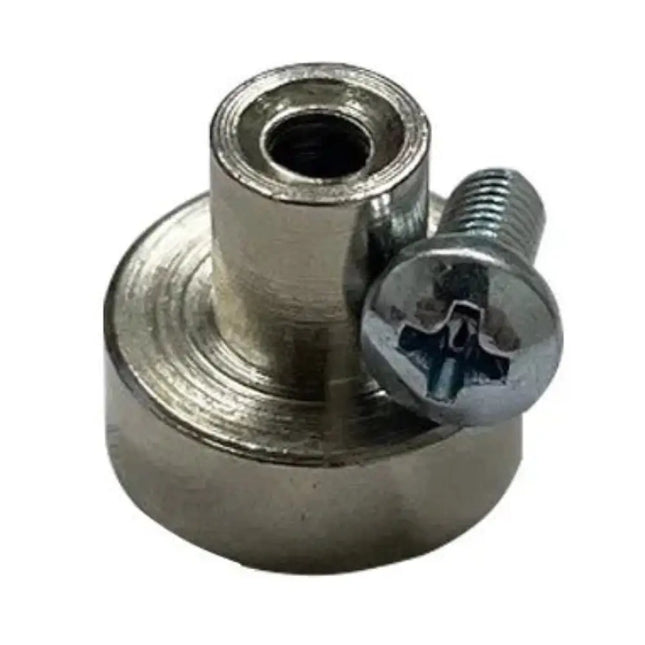

Genuine Bosch · Magnetic · 12mm · Pack of 20 Bosch PCB Standoffs MW892 12mm Magnetic PCB Standoffs — Australian Stock & 3-Year Warranty The Bosch MW892 is a pack of 20 magnetic 12 mm PCB standoffs for tool-free mounting of control panel boards and expander modules inside Bosch steel enclosures. The magnetic base grips the metal back box so boards can be positioned, adjusted and secured quickly without drilling — a real time-saver on service calls and new installs. Genuine Bosch spare, backed by a 3-year Australian warranty. Technical Specifications Model / SKU MW892 (BOSMW892) Type Magnetic PCB standoffs Height 12 mm Pack Quantity 20 standoffs Mounting Magnetic base (tool-free) Use With Bosch metal alarm enclosures Warranty 3 Years (Australia) Downloads MW892 Datasheet Bosch Standoffs Quick Start Guide Bosch Standoffs User Manual Frequently Asked Questions How many standoffs are in the pack?Each pack contains 20 magnetic 12 mm PCB standoffs. How do they mount?The magnetic base sticks straight to a steel enclosure, so boards can be positioned and secured without drilling. What are they used for?They raise and hold Bosch control panel PCBs and expander modules off the metal box for safe clearance and easy service. Which enclosures do they suit?They suit Bosch steel enclosures such as the MW250, MW350 and MW730B. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

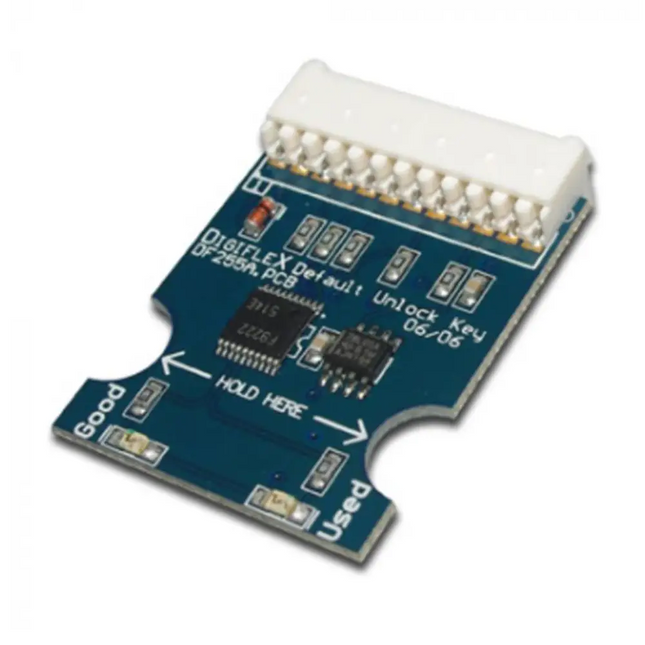

Solution Series · Panel Unlock Key · Single UseUnlock KeyBosch CM255B Panel Unlock Key — Australian Stock & 3-Year Warranty The Bosch CM255B (F.01U.271.514) is a genuine single-use unlock key for Bosch Solution alarm panels that have been locked out — for example after too many incorrect code attempts or when installer access has been lost. It provides a controlled, authorised way to regain access to the panel so a technician can reprogram or reset the system. As a one-use consumable, order the required quantity for your job. Backed by a 3-year Australian warranty on the genuine Bosch part. Technical Specifications Model / SKU CM255B (BOSCM255B) Product No. F.01U.271.514 Type Panel unlock key (single use) Compatibility Bosch Solution series panels Usage One use only per key Warranty 3 Years (Australia) Downloads CM255B DatasheetBosch Solution Quick Start GuideBosch Solution User Manual Frequently Asked Questions What does the CM255B do?It is a genuine single-use unlock key to regain authorised access to a Bosch Solution panel that has been locked out. Is it really single use?Yes. Each CM255B key can be used once, so order the quantity you need for the job. Which panels is it for?Bosch Solution series alarm panels. Confirm your panel model with your installer before ordering. Do I need an installer to use it?It is intended for technician use to reset or reprogram a locked panel; consult a qualified Bosch installer. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

RADION · 433MHz · 14mm Gap · Recessed / ConcealedRecessed ReedRFDW-RM Recessed Wireless Reed — Australian Stock & 3-Year Warranty The Bosch RFDW-RM is a RADION-series wireless recessed reed switch that hides inside a drilled 15.4mm hole in the door or window frame for a completely concealed install. When the leaf opens, the magnet moves away from the reed and the contact reports the event wirelessly. Screw terminals also allow an external contact to be wired in. Ideal where a discreet, tamper-resistant sensor is required — backed by a 3-year Australian warranty. Frequency 433 MHz Detection Gap 14 mm Fit 15.4mm Barrel Power 1x AAA Fully Concealed Recesses into a 15.4mm hole in the frame for an invisible, tamper-resistant install. Screw-Terminal Input Terminals let you connect an additional external contact for extra flexibility. 14mm Detection Gap Reliable triggering with a 14mm gap between contact and magnet. Broad Compatibility Suits RFRC-STR2, RF3212E and B810 RADION receivers. Technical Specifications Model / SKU Bosch RFDW-RM (BOSRFDW-RM) Series RADION Device Type Wireless recessed reed switch Frequency 433 MHz Detection Gap 14 mm Contact Barrel 15.4mm dia x 104.7mm Magnet Size 22 x 28 x 15 mm Battery 1x AAA (1.5V) Terminals Screw terminals for external contact Colour White Mounting Recessed mount Suits RFRC-STR2 / RF3212E / B810 Warranty 3 Years (Australia) Downloads RFDW-RM DatasheetBosch Reed Contact Quick Start GuideBosch Reed Contact User Manual Frequently Asked Questions What is the RFDW-RM?A RADION wireless recessed reed switch that hides inside the door or window frame and reports openings to the alarm wirelessly. Which receivers does it suit?It works with Bosch RFRC-STR2, RF3212E and B810 RADION receivers. What size hole does it need?The 15.4mm-diameter contact barrel recesses into a matching drilled hole in the frame. Can I add an external contact?Yes. Screw terminals let you wire in an additional external reed or contact. What is the detection gap?Up to 14mm between the reed and its magnet. What powers it?A single AAA 1.5V battery. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less
