Bosch RFDW-RM — RADION Wireless Recessed Reed Switch, 14mm Gap (White)

Description

RADION · 433MHz · 14mm Gap · Recessed / ConcealedRecessed Reed

RFDW-RM Recessed Wireless Reed — Australian Stock & 3-Year Warranty

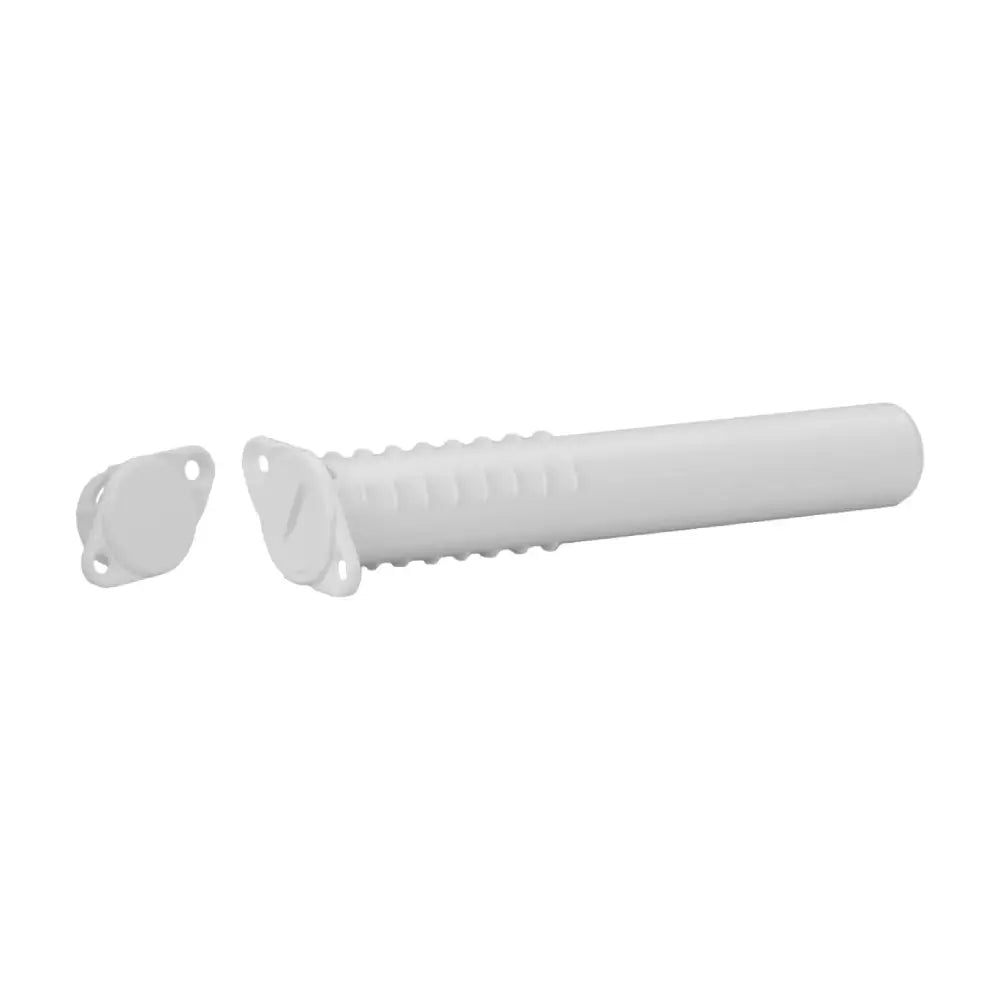

The Bosch RFDW-RM is a RADION-series wireless recessed reed switch that hides inside a drilled 15.4mm hole in the door or window frame for a completely concealed install. When the leaf opens, the magnet moves away from the reed and the contact reports the event wirelessly. Screw terminals also allow an external contact to be wired in. Ideal where a discreet, tamper-resistant sensor is required — backed by a 3-year Australian warranty.

Frequency
433 MHz
Detection Gap
14 mm
Fit
15.4mm Barrel
Power
1x AAA

Fully Concealed

Recesses into a 15.4mm hole in the frame for an invisible, tamper-resistant install.

Screw-Terminal Input

Terminals let you connect an additional external contact for extra flexibility.

14mm Detection Gap

Reliable triggering with a 14mm gap between contact and magnet.

Broad Compatibility

Suits RFRC-STR2, RF3212E and B810 RADION receivers.

Technical Specifications
Model / SKU Bosch RFDW-RM (BOSRFDW-RM)
Series RADION
Device Type Wireless recessed reed switch
Frequency 433 MHz
Detection Gap 14 mm
Contact Barrel 15.4mm dia x 104.7mm
Magnet Size 22 x 28 x 15 mm
Battery 1x AAA (1.5V)
Terminals Screw terminals for external contact
Colour White
Mounting Recessed mount
Suits RFRC-STR2 / RF3212E / B810
Warranty 3 Years (Australia)

Downloads

RFDW-RM DatasheetBosch Reed Contact Quick Start GuideBosch Reed Contact User Manual

Frequently Asked Questions

What is the RFDW-RM?
A RADION wireless recessed reed switch that hides inside the door or window frame and reports openings to the alarm wirelessly.
Which receivers does it suit?
It works with Bosch RFRC-STR2, RF3212E and B810 RADION receivers.
What size hole does it need?
The 15.4mm-diameter contact barrel recesses into a matching drilled hole in the frame.
Can I add an external contact?
Yes. Screw terminals let you wire in an additional external reed or contact.
What is the detection gap?
Up to 14mm between the reed and its magnet.
What powers it?
A single AAA 1.5V battery.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
