RADION · 433MHz · SDI2 · Solution 3000B810 RADION RXB810 RADION Wireless Receiver — Australian Stock & 3-Year Warranty

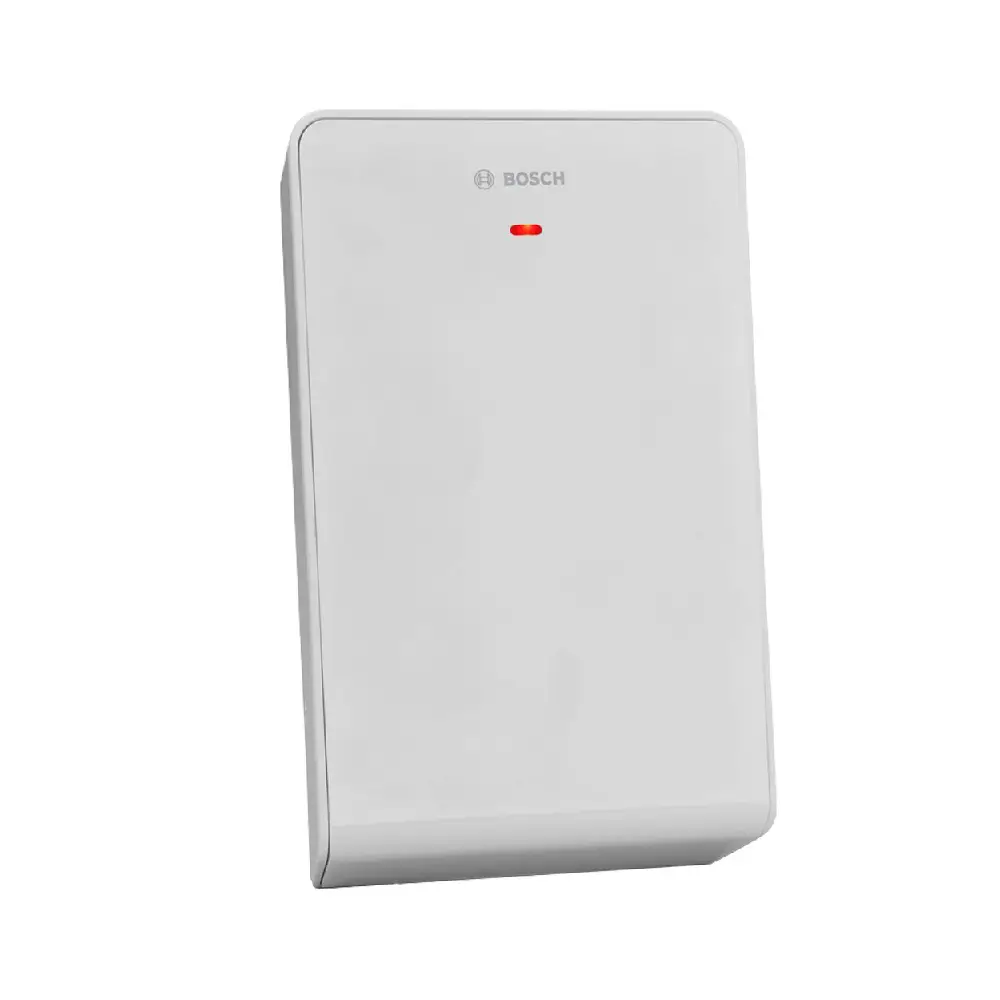

The Bosch B810 is the RADION wireless receiver that brings wireless devices into a Bosch Solution 3000 system. Connecting via the SDI2 bus, it supervises up to 504 wireless points, 1000 key fobs and 8 repeaters, letting you add wireless PIRs, reed contacts, glass-break detectors, key fobs and panic buttons without running cable. Dual internal antennas, RF interference detection and cover/wall tamper protection make for a reliable retrofit. Australian stock, backed by a 3-year warranty.
Full RADION Wireless
Adds Bosch RADION PIRs, reeds, glass-break detectors, fobs and panic buttons to a Solution 3000 without cabling.
High Capacity
Supervises up to 504 wireless points, 1000 key fobs and 8 repeaters for homes through to larger sites.
Dual Antenna Reliability
Two internal antennas give spatial and polar RF reception, with detection and reporting of RF interference.
Tamper Protected
Cover and wall tamper protection plus external status LEDs for secure, easy installation and diagnostics.
Technical Specifications
| Model / SKU |
Bosch B810 (BOSB810) |
| Series |
RADION |
| Type |
Wireless receiver |
| Frequency |
433 MHz |
| Bus / Connection |
SDI2 |
| Wireless Points Supported |
Up to 504 |
| Key Fobs Supported |
Up to 1000 |
| Repeaters Supported |
Up to 8 |
| Antennas |
Dual internal (spatial & polar) |
| Mounting / Colour |
Wall mount, White |
| Power |
Multi-voltage, 10–14 VDC |
| Compatible Panel |
Bosch Solution 3000 |
| Warranty |
3 Years (Australia) |
Downloads
Frequently Asked Questions
What does the B810 do?
It connects Bosch RADION wireless devices — PIRs, reeds, glass-break sensors, fobs and panic buttons — to a Solution 3000 panel.
Do I need it for wireless Bosch sensors?
Yes. The B810 is required to enrol any RADION wireless device onto the system.
Which panel is it for?
The Bosch Solution 3000. It is not intended for Solution 2000 or Solution 6000.
How does it connect to the panel?
Via the SDI2 bus, with multi-voltage 10–14 VDC power.
How many devices can it supervise?
Up to 504 wireless points, 1000 key fobs and 8 repeaters.
Is it tamper protected?
Yes — it includes cover and wall tamper protection plus RF interference detection.
