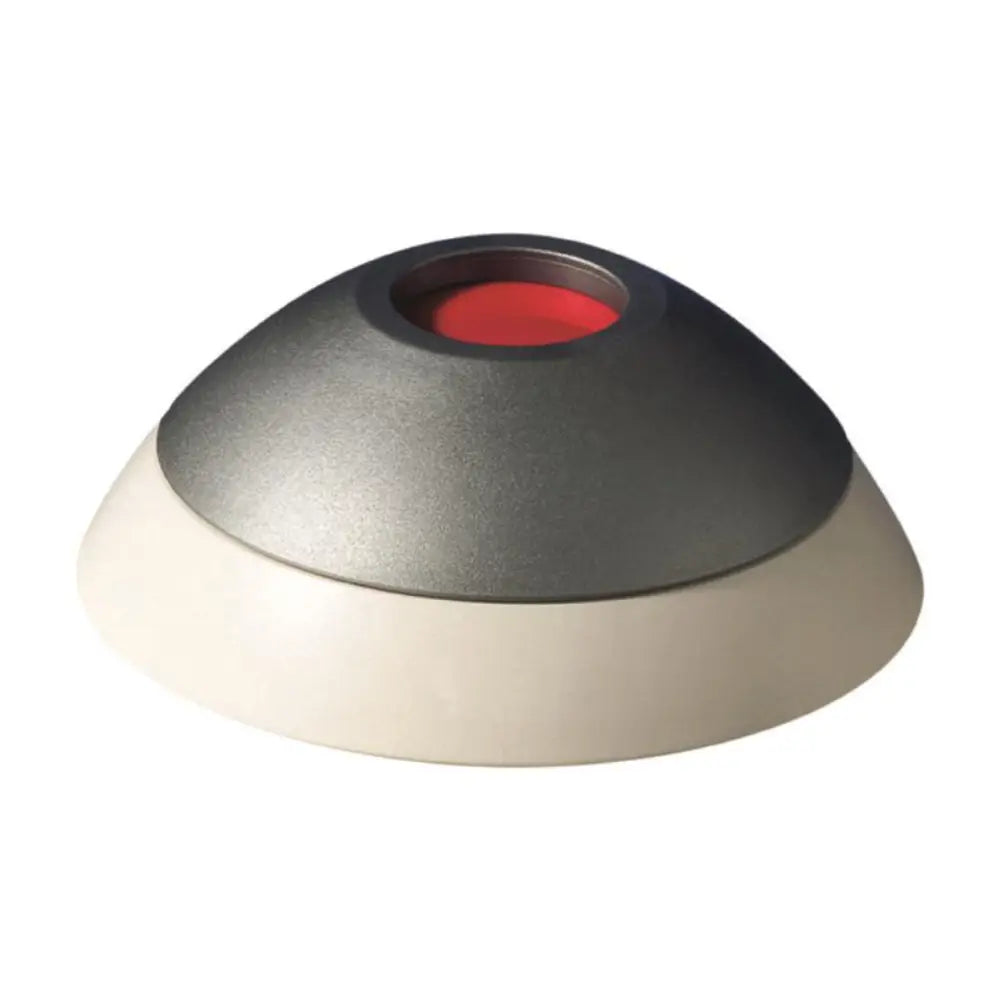

Instant Duress Alarm
One firm press on the red button raises a hold-up alarm, ideal for reception desks, counters and offices where staff may need to summon help discreetly.
DC Circuit Technology (GLT)
Bosch's proven GLT design delivers dependable, low-current signalling that connects directly into the intrusion panel for reliable activation.
Built-In Tamper
An integrated tamper contact signals if the housing is opened or interfered with, keeping the device secure and supervised by the panel.
Flexible Install
The IP40 grey surface housing supports surface or flush cable entry and accepts an optional cap with cover to prevent accidental activation.
What is the ISC-PB1-100 used for?
It's a single-button panic (hold-up) button that lets staff instantly trigger a duress alarm from a counter, desk or office by pressing the red button.
Does it latch, and how is it reset?
The button uses a mechanical action that holds its state when pressed; after an activation it is reset at the button before the panel zone restores. Wire it to a 24-hour hold-up zone so it reports whether the system is armed or disarmed.
Does it have a tamper?
Yes. An integrated tamper contact signals the panel if the housing is opened or interfered with, keeping the device supervised.
How do I wire and power it?
It operates on 12-30 VDC and provides a single normally-closed (N/C) output that connects into an intrusion panel, typically as a dedicated 24-hour panic zone.
How is it mounted?
The grey IP40 housing surface-mounts with surface or flush cable entry. An optional cap with cover can be fitted to help prevent accidental presses.
Which panels does it work with?
As a standard N/C hold-up input it connects to intrusion panels such as the Bosch Solution 2000, 3000 and 6000, assigned to a 24-hour panic/hold-up zone.
