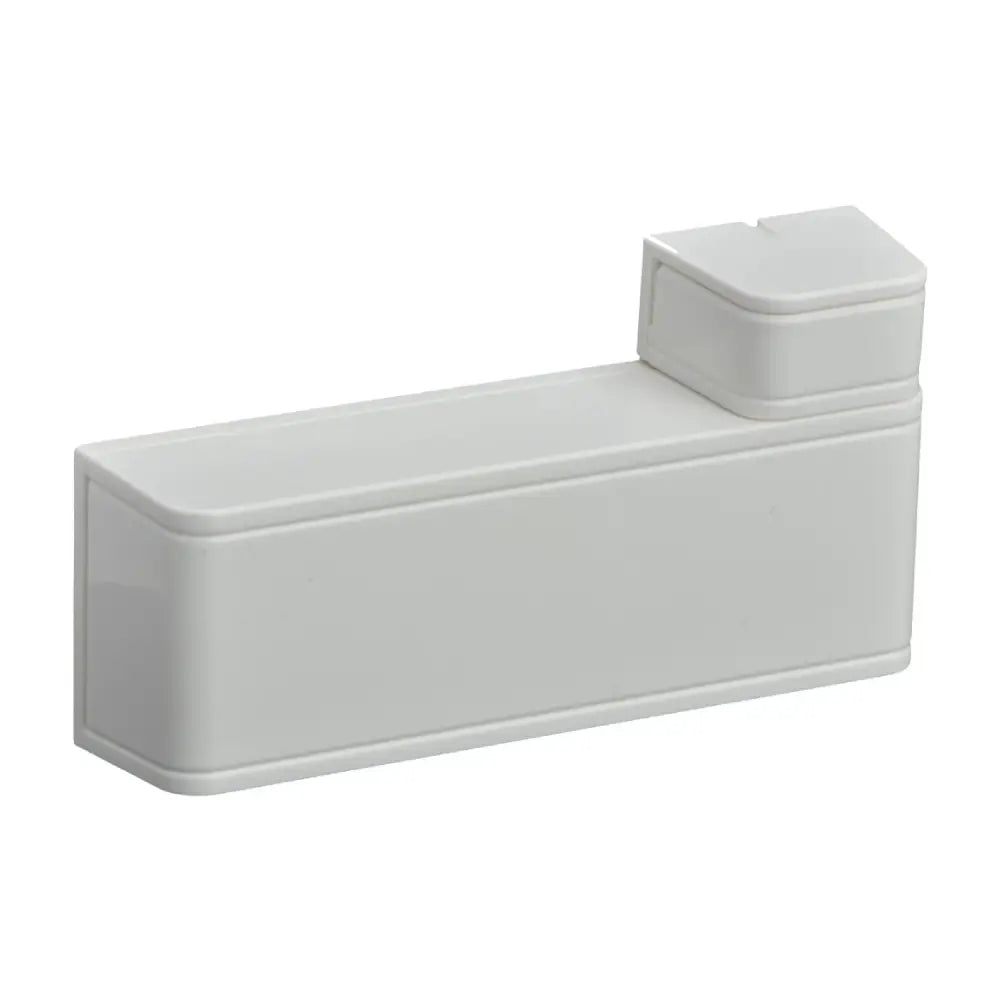

Reed + External Input
Use the built-in reed for a door/window, or its dry input to make a wired device wireless.
Truly Universal
Adds roller-door contacts, PIRs and other detectors to a RADION system without cabling back to the panel.
Long-Life CR123A
Runs from a single CR123A lithium battery with screw-terminal wiring.
RADION Compatible
Suits Bosch RFRC-OPT and B810 RADION receivers.
What makes the RFUN “universal”?
Besides its built-in reed switch, it has a dry-contact input so you can connect a wired detector and make it wireless on a RADION system.
Which receivers does it suit?
Bosch RFRC-OPT and B810 RADION receivers.
What can I wire to the input?
Any dry-contact device such as a roller-door contact, a wired PIR, or a third-party detector.
What battery does it use?
A single CR123A 3.3V lithium battery.
What is the reed detection gap?
Up to 12.7mm between the reed and its magnet.
How is it wired?
Via screw terminals inside the housing for the external input.
