Dahua · IPC-PDW3859-A180-AS-PV-ANZ-S2 · 8MP · 180° TiOC Duo 8MP 180° TiOC Duo

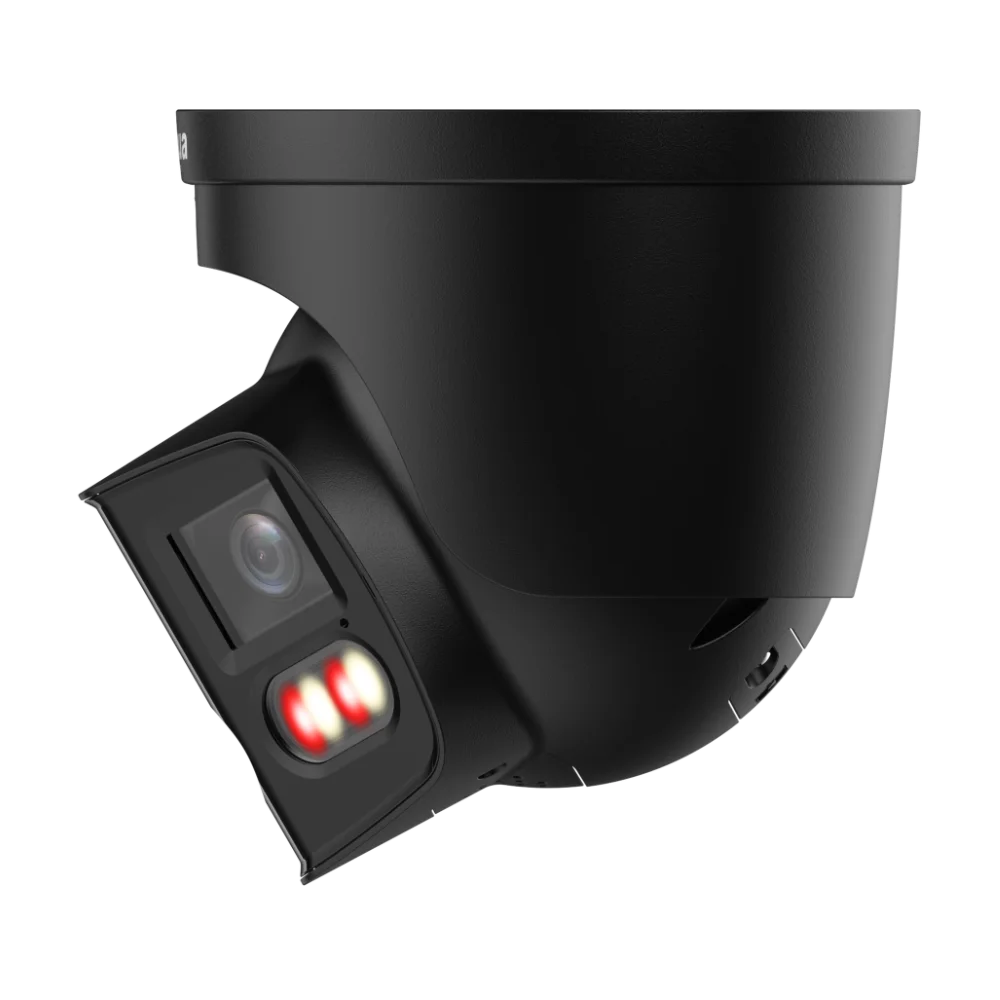

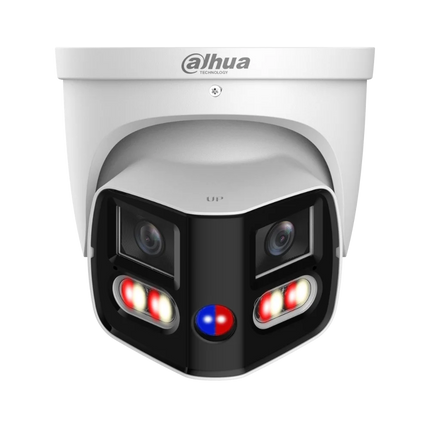

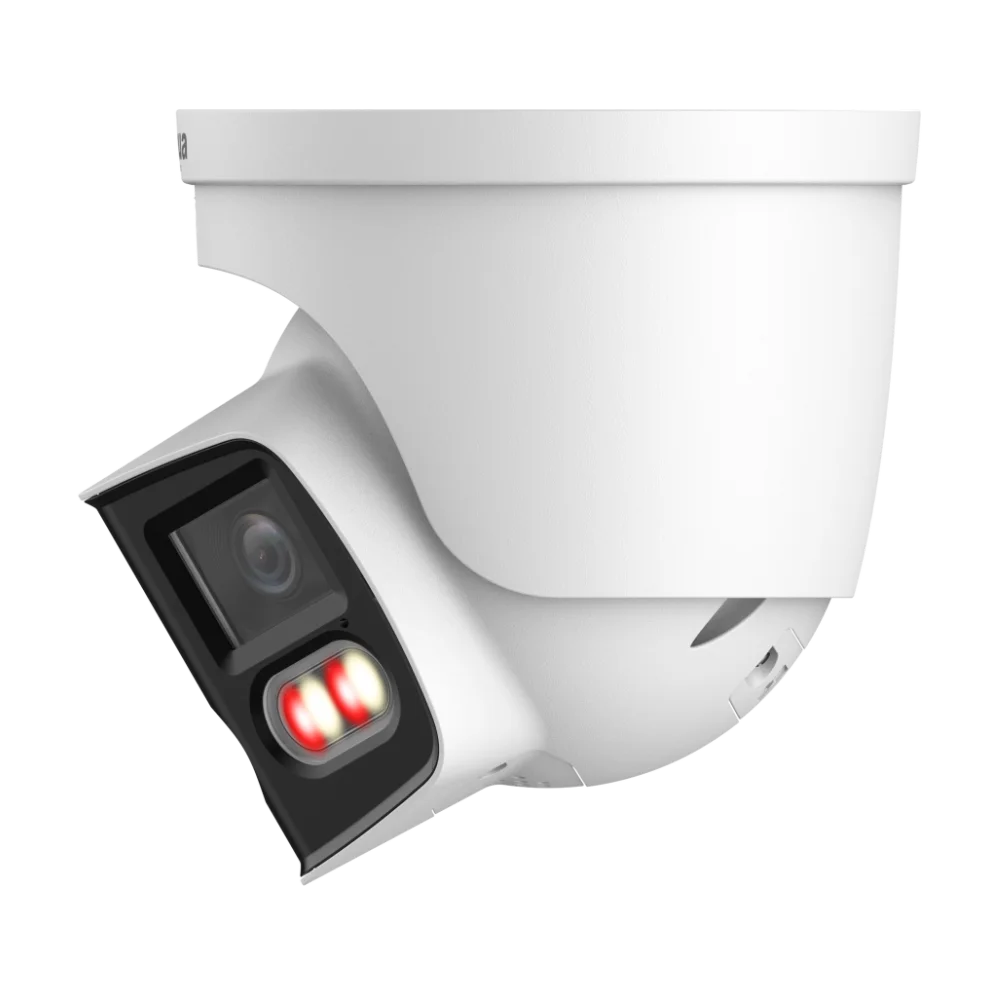

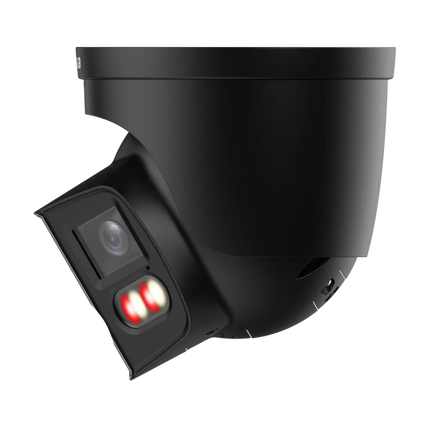

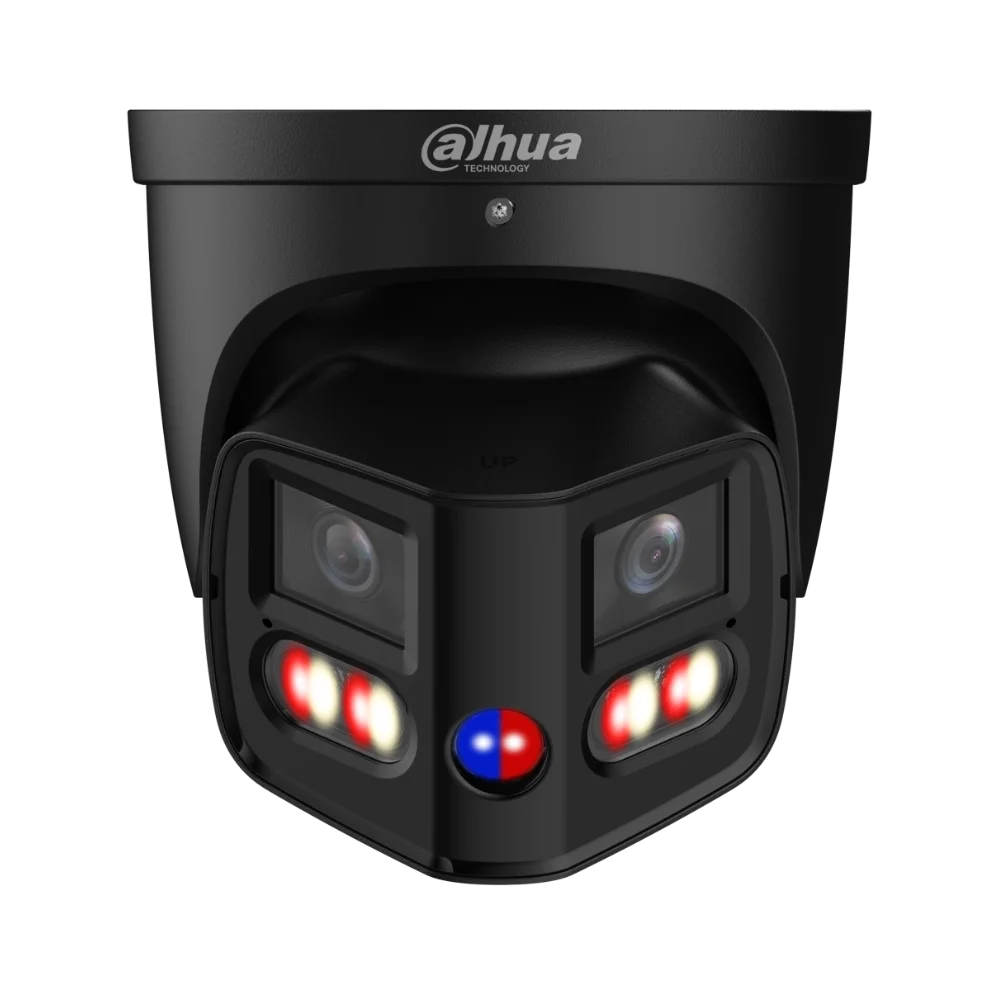

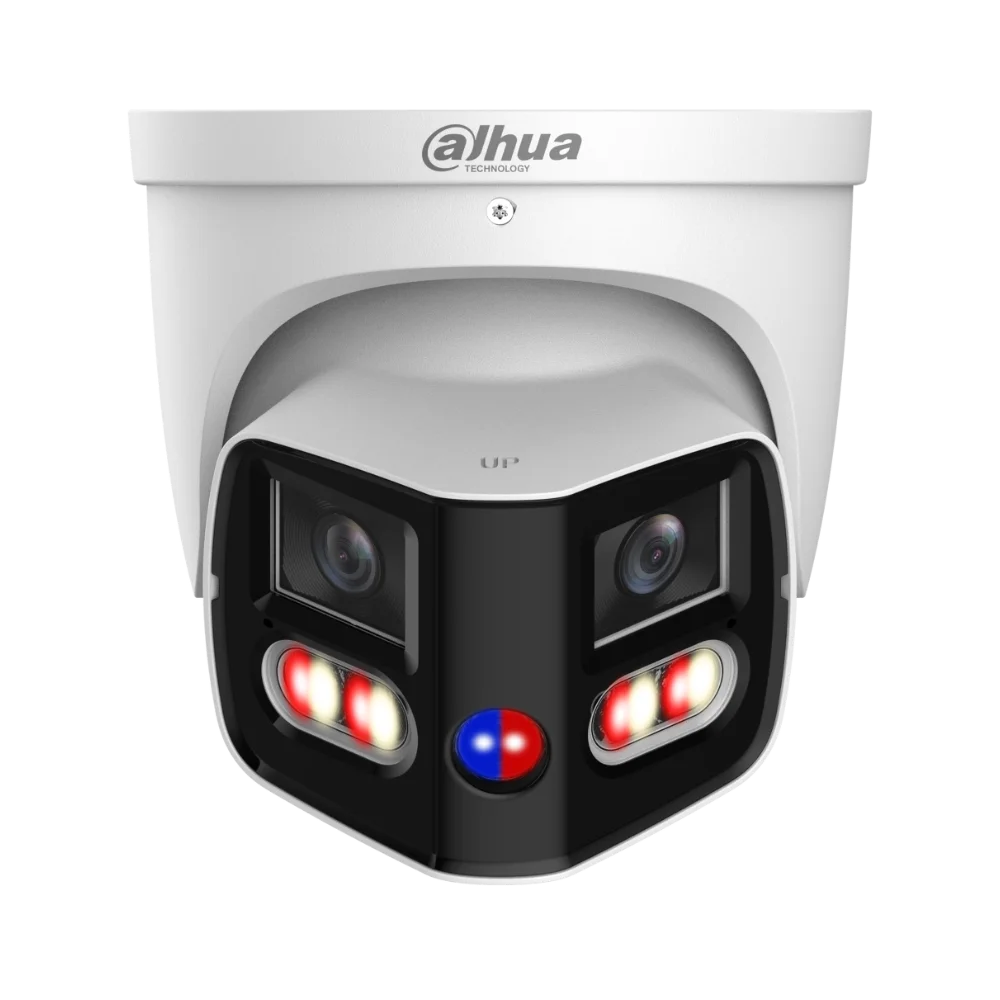

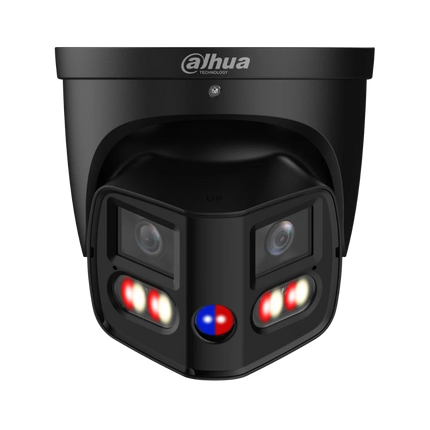

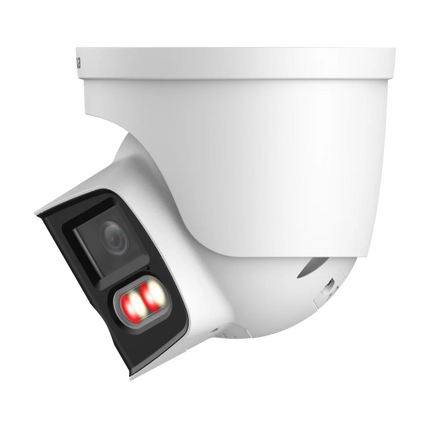

Dahua IPC-PDW3859-A180-AS-PV-ANZ-S2 8MP 180° TiOC Duo Eyeball Camera
Cover a broad frontage, driveway or perimeter with one panoramic Dahua TiOC Duo camera. Its dual-lens design produces a 180° horizontal image at up to 4320 × 1944 and 20 fps, helping reduce blind spots without installing two separate cameras. Choose White or Black to suit the installation.
Key Features
Coverage
8MP · 180° panoramic view
Night vision
IR + warm light to 30 m
Active deterrence
Siren · red/blue light · two-way talk
Built for outdoors
PoE+ · IP67 · metal housing
-
180° panoramic coverage: the dual-lens platform outputs an 8MP stitched image to cover a broad scene.
-
Target-led alerts: SMD 4.0, AcuPick, human and vehicle classification, tripwire, intrusion, stay, loitering and full-image face detection.
-
Active deterrence: configure red/blue light warnings, 11 built-in sound alarms or a custom imported sound; use the dual microphones and dual speakers for two-way talk.
-
Flexible recording: record to a microSD card up to 512GB, NAS, FTP or SFTP; three video streams support live viewing and recording requirements.
Technical Specifications
Dahua IPC-PDW3859-A180-AS-PV-ANZ-S2
| Camera & resolution |
1/2.7-inch CMOS · maximum 4320 × 1944 at 1–20 fps · progressive scan |
| Lens & field of view |
2.8 mm fixed focal M12 lens · F1.4 · 180° horizontal / 72° vertical · 0.8 m close focus |
| DORI distances |
Detect 50.6 m · observe 20.2 m · recognise 10.1 m · identify 5.1 m |
| Image controls |
120 dB WDR · 3D NR · BLC · HLC · Defog · ROI (4 areas) · 8 privacy masks · Smart Dual Light |
| Night vision |
Four multi-core IR + warm-light illuminators · up to 30 m IR and 30 m warm light |
| Video & streams |
H.265, H.264, H.264H, H.264B and MJPEG sub-stream · AI H.264/H.265 · three streams · 6–16,384 kbps |
| AI & search |
SMD 4.0 · AcuPick · human/vehicle intrusion and tripwire · stay and loitering detection · full-image face detection · EPTZ |
| Audio & deterrence |
Dual built-in microphones · dual 2 W speakers (up to 110 dB at 10 cm) · two-way talk · red/blue warning lights · 11 sound alarms + custom sound import |
| Alarm & audio I/O |
1 alarm input / 1 alarm output · 1 RCA audio input / 1 RCA audio output |
| Recording |
microSD card up to 512 GB · NAS · FTP · SFTP |
| Network & integration |
Gigabit RJ-45 (10/100/1000 Base-T) · ONVIF Profiles S, G, T and M · CGI · SmartPSS Lite, DSS, DMSS and DoLynk Care |
| Power |
12 V DC (±30%) or PoE+ (802.3at) · 5.6 W basic / 14.8 W maximum via PoE |
| Environmental rating |
IP67 · metal housing · –40°C to +60°C · ≤95% RH, non-condensing |
| Dimensions & weight |
135.2 mm × Ø122.0 mm · 0.99 kg net weight |
IPC-PDW3859 vs Earlier IPC-PDW3849
This is a practical model comparison with the earlier Dahua IPC-PDW3849-A180-AS-PV-ANZ. Both are 8MP-class, 180° TiOC Duo cameras with SMD 4.0, EPTZ, microSD storage to 512GB, IP67 metal housings and active sound/light deterrence.
What changed
| Specification |
IPC-PDW3859-A180-AS-PV-ANZ-S2 |
Earlier IPC-PDW3849-A180-AS-PV-ANZ |
| Maximum image |
4320 × 1944 at 20 fps |
4096 × 1860 at 20 fps |
| Illumination distance |
30 m IR + 30 m warm light |
25 m IR + 20 m warm light |
| Network port |
Gigabit 10/100/1000 Base-T |
10/100 Base-T |
| Power over Ethernet |
PoE+ (802.3at), 14.8 W maximum |
PoE (802.3af), 10.85 W maximum |
| Built-in audio |
Dual microphones + dual speakers |
Dual microphones + one speaker |
| Analytics & integration |
Adds full-image face detection and ONVIF Profile M; 8 privacy masks |
Quick Pick with an AI NVR; ONVIF Profiles S/G/T; 4 privacy masks |
| Vertical field of view |
72° |
86° |
Choosing between them: select the IPC-PDW3859 when the higher stitched resolution, longer IR/warm-light reach, Gigabit connection, PoE+ power budget, dual-speaker audio and updated analytics matter. The IPC-PDW3849 specification lists a wider 86° vertical field of view, so camera position and the required scene height should still be checked before choosing a model.
Downloads
Official Dahua Videos
Watch the two official technology overviews below. They are embedded in the page rather than linked as buttons.
Dahua 180° Panoramic Camera Overview
Dahua Smart Dual Light Overview
