Ultra Series · Backup Battery Support · Up To 128 Doors

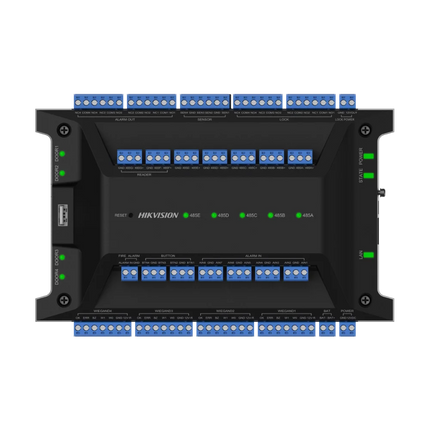

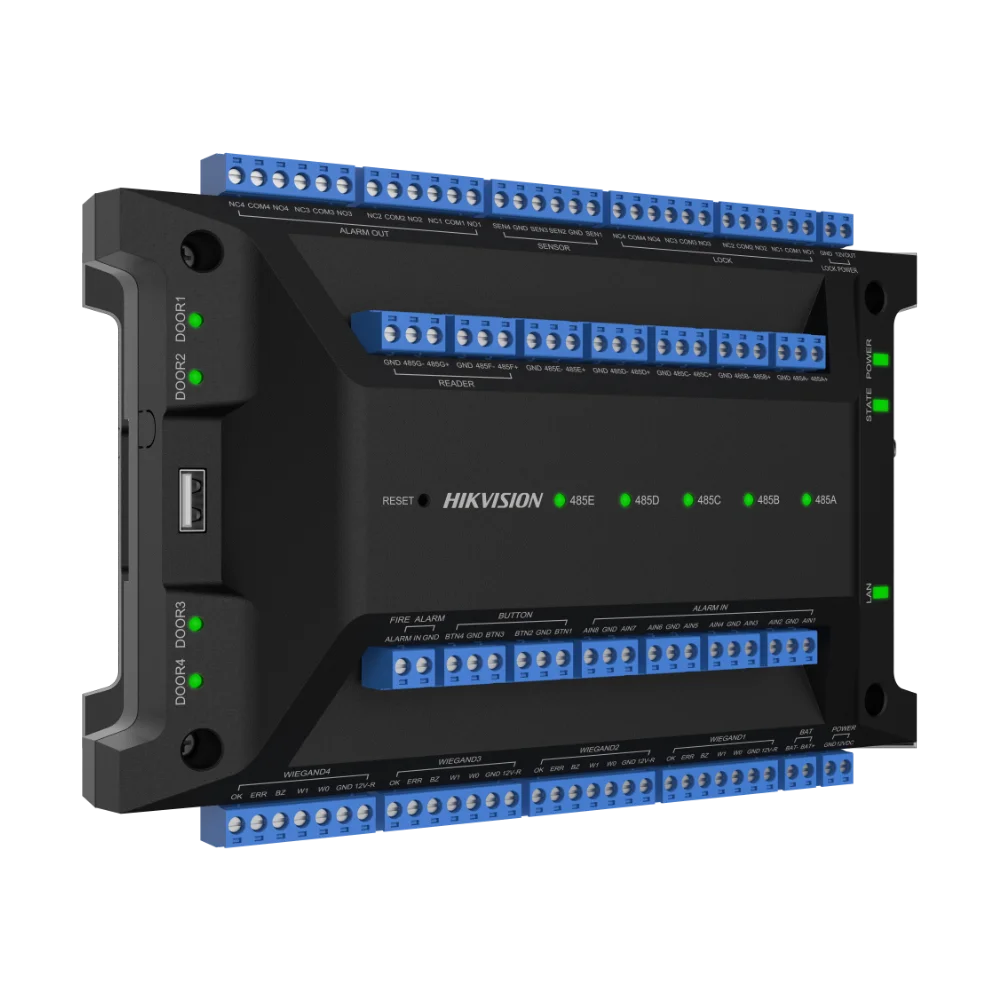

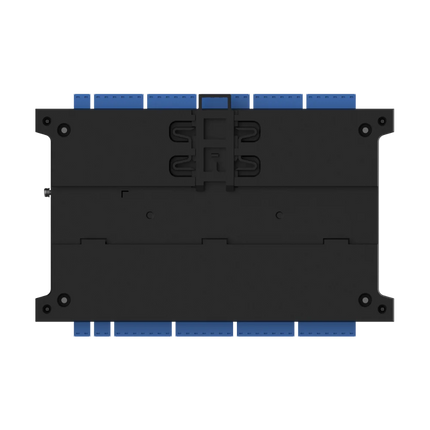

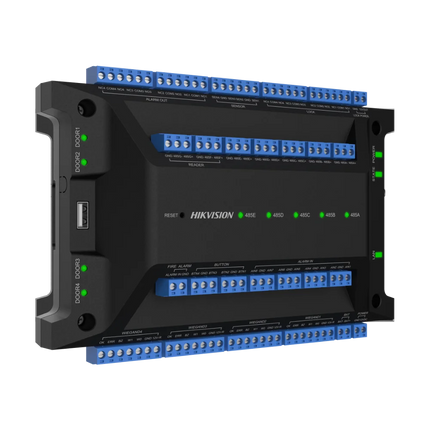

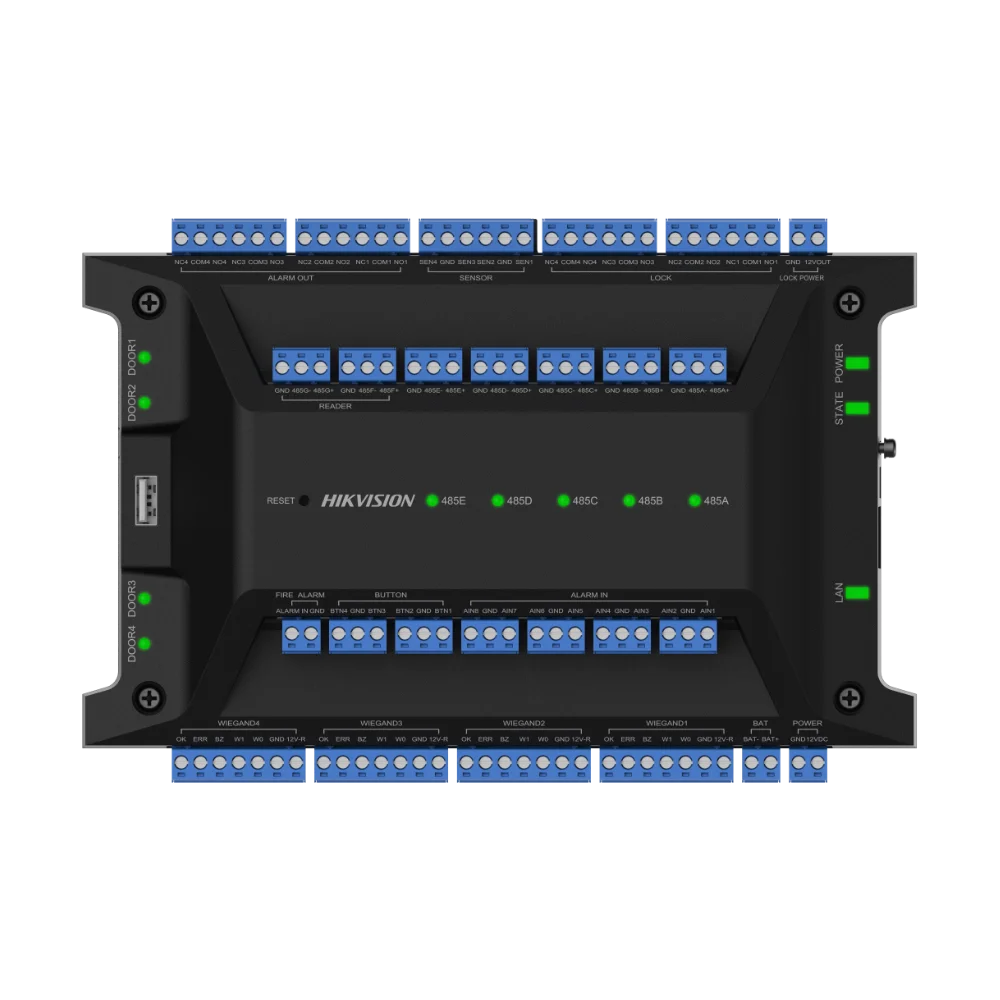

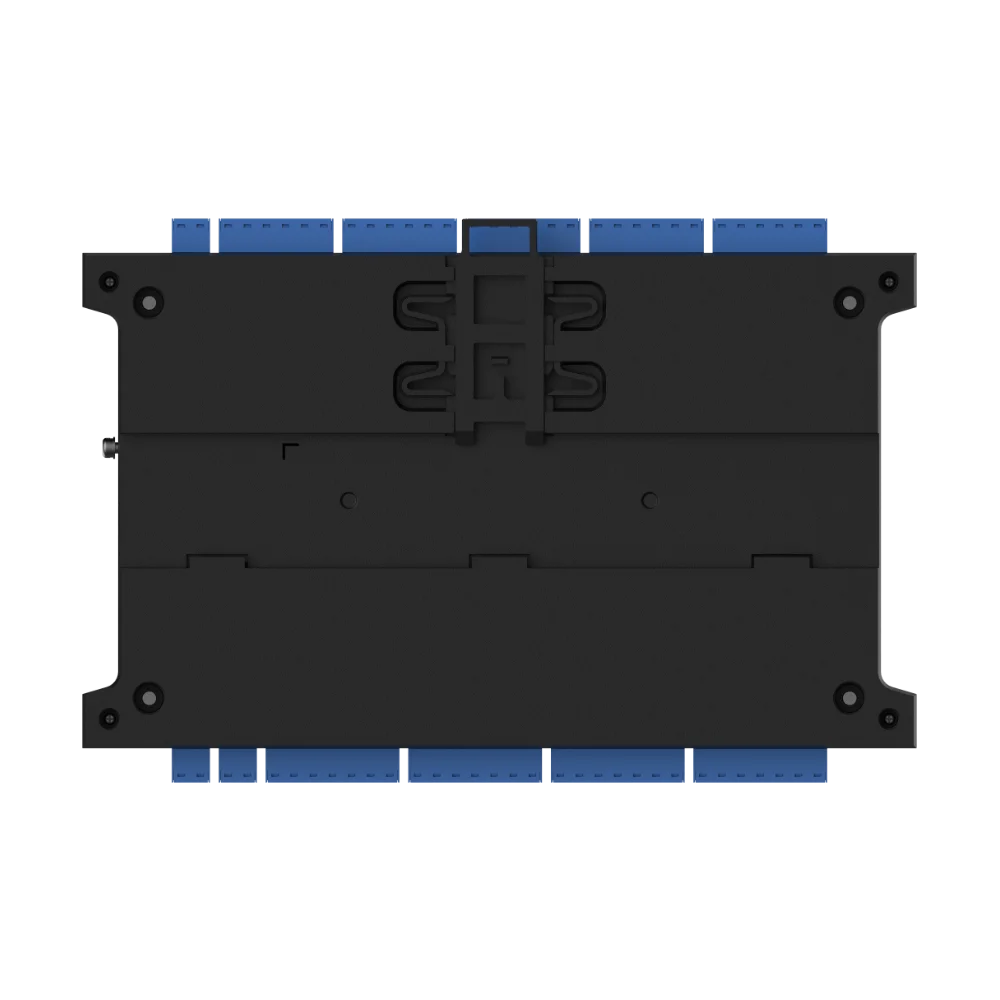

Hikvision DS-K2704X(P) Enterprise Access Controller with Backup Battery Support
The Hikvision DS-K2704X(P) is an enterprise-grade 4-door access controller designed for large commercial access control projects requiring centralised management, high reliability and backup power capability. It controls 4 doors natively and can expand to 128 doors through compatible DS-K2M002X access modules.
Unlike standard controller deployments, the DS-K2704X(P) supports backup battery charging and discharging, helping maintain access control operation during power interruptions. Combined with anti-passback, multi-door interlocking, RS-485 redundancy and web-based management, it provides a scalable access control platform for schools, hospitals, strata buildings, warehouses, airports, commercial facilities and critical infrastructure projects.
Native Doors
4 Door Control
Expansion
Up to 128 Doors
Backup Power
Battery Ready
Why Choose the Hikvision DS-K2704X(P)?
Built for Multi-Door Projects
The DS-K2704X controls 4 doors directly and can scale up to 128 doors with DS-K2M002X modules. That makes it ideal for staged projects where the access control system needs to grow over time.
Enterprise Access Control Backbone
Instead of relying on standalone readers at every door, the DS-K2704X gives your site a centralised controller for door permissions, events, alarms and system management.
Web Browser Configuration
Configure the controller through a web browser without needing a separate software application for basic setup and management.
Large User & Event Capacity
Supports up to 100,000 users, 200,000 cards, 10,000 fingerprints and 600,000 events, making it suitable for large staff, tenant, contractor and visitor environments.
Professional Access Control Features
Supports anti-passback, multi-door interlocking, multi-factor authentication and first-person-in access control workflows for higher-security sites.
Reliable RS-485 Expansion
Five downstream RS-485 interfaces support access module expansion, redundancy and stable communication across larger deployments.
Designed for Backup Power Applications
Supports battery charging and discharging functionality, helping maintain access control operation during power interruptions when used with compatible backup batteries.
Recommended For
Commercial Buildings
Control staff entrances, lift lobby doors, back-of-house areas, secure offices, plant rooms and tenancy access points.
Schools & Education Sites
Manage administration buildings, staff rooms, classrooms, gates, libraries and restricted areas with centralised access permissions.
Warehouses & Industrial Facilities
Secure loading docks, staff doors, stock rooms, cages, offices and after-hours access points.
Strata & Apartment Buildings
Use as the access control foundation for multi-door residential buildings, car parks, lobbies, bin rooms and shared amenities.
Healthcare & Clinics
Restrict access to treatment areas, medication rooms, back offices, staff-only zones and after-hours entry points.
Government & Critical Sites
Suitable for controlled access deployments where centralised event history, door status and access rules matter.
<
Critical Access Applications
Ideal for sites where maintaining door control during power outages is important, including healthcare facilities, commercial buildings, industrial sites and critical infrastructure.
Recommended Accessories
Typical 32-Door Deployment Example
The DS-K2704X is often used as the core controller in larger staged access control projects. For example, a 32-door commercial site may use the controller with expansion modules, readers, locks, exit buttons and door contacts to create a complete Hikvision access control system.
1 × DS-K2704X Controller
Central controller for the access control system, user database, events and door management.
DS-K2M002X Expansion Modules
Add compatible access modules to expand beyond the native 4 doors and scale the project as required.
Readers or Terminals
Pair with Hikvision card readers, QR terminals or intercom terminals depending on the entry point and user workflow.
Locks, Exit Buttons & Door Contacts
Complete each door with the correct electric strike, magnetic lock, request-to-exit button and door reed switch.
Recommended Accessories

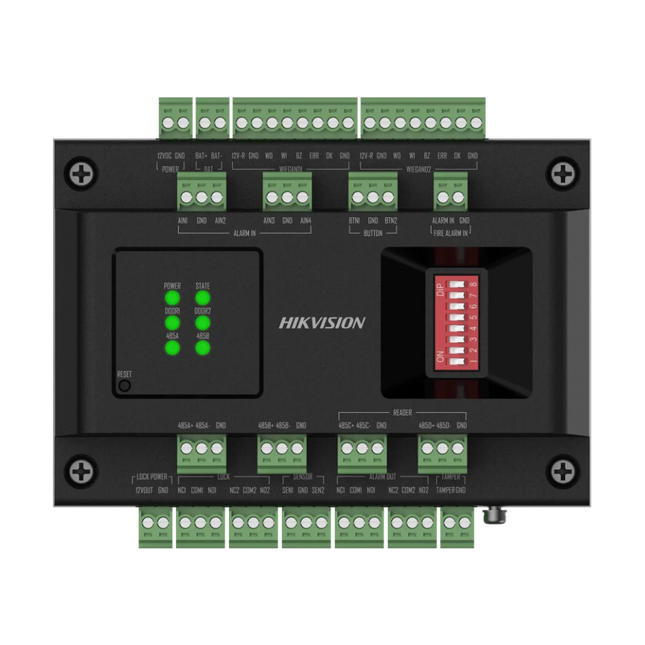

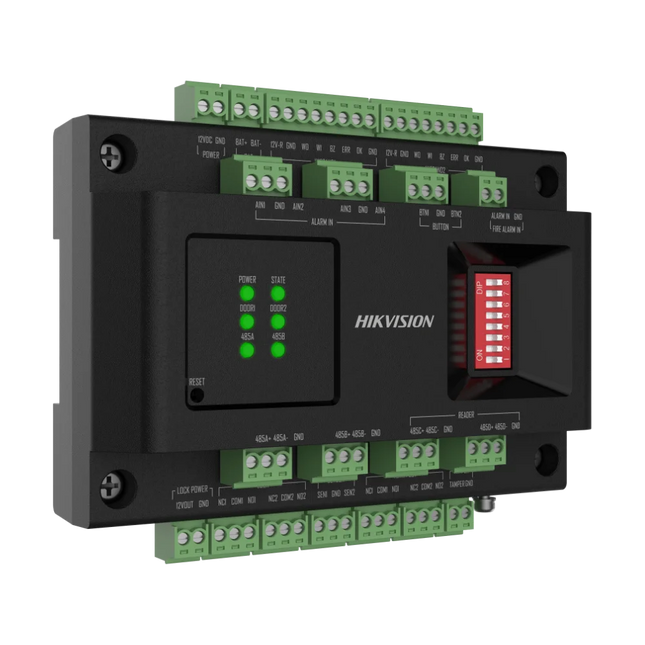

DS-K2M002X Access Module
Essential expansion module for growing the system beyond the controller’s native door capacity.

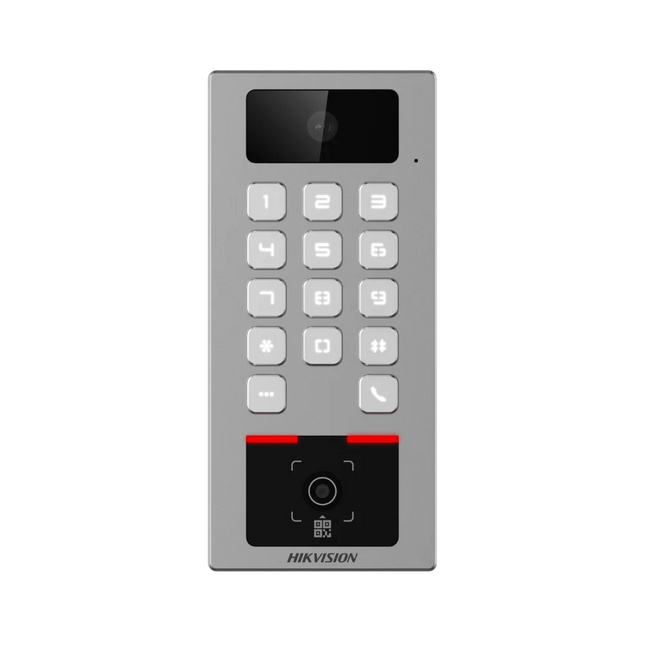

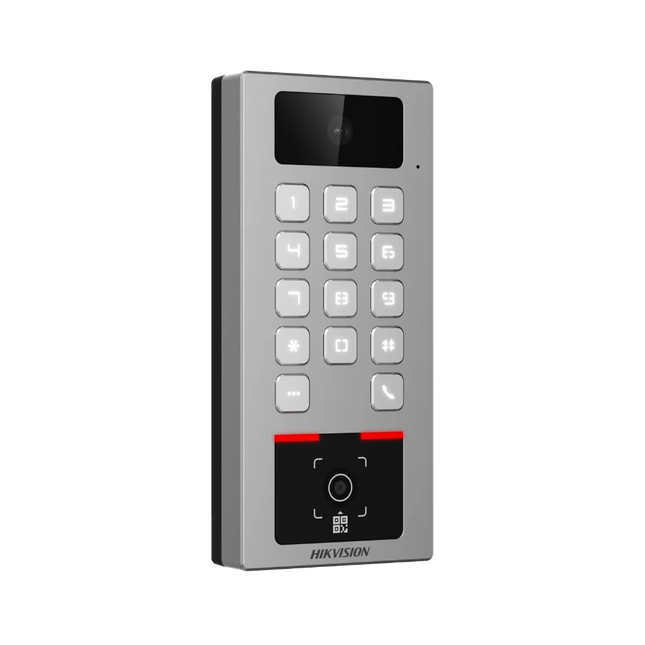

DS-K1T502DBWX-CQRE1 Terminal
Smart access terminal for QR code, card, PIN, Bluetooth and intercom-style entry points.
Hikvision Card Readers
Add compatible Hikvision readers for staff doors, secure rooms, car park entries and high-traffic access points.
LOX Electric Strike or Magnetic Lock
Choose the correct locking hardware based on the door type, frame, fail-safe/fail-secure requirement and fire compliance.
Exit Button & Door Contact
Add request-to-exit buttons and reed switches for proper access control logic and door status monitoring.
Backup Power
Use suitable backup power to help maintain controlled access during power interruptions.
Watch the DS-K2704X in Action
Official Hikvision overview of the DS-K2704X Ultra Series enterprise access controller, covering scalability, system architecture and deployment capabilities.
Learn how the DS-K2700X Series supports large-scale access control projects with expansion modules, advanced door management and centralised control.
Technical Specifications
Hikvision DS-K2704X · Enterprise Access Controller
| Model |
DS-K2704X |
| Product Type |
Enterprise Access Controller |
| Operating System |
Linux |
| Native Door Capacity |
4 doors |
| Extended Door Capacity |
Up to 128 doors with compatible access modules |
| Access Module Support |
Supports up to 62 DS-K2M002X access modules |
| Network Interface |
1 × RJ45, 10/100/1000 Mbps self-adaptive |
| Lock Control |
4 |
| Exit Button Input |
4 |
| Door Contact Input |
4 |
| Alarm Input |
8 |
| Alarm Output |
4 |
| Tamper Input |
1 |
| Fire Interface |
1 |
| RS-485 |
7 total: 2 for card readers and 5 for access modules, including redundancy support |
| Wiegand |
4 inputs, standard 26/34-bit with custom Wiegand support |
| USB |
1 × USB 2.0 |
| User Capacity |
100,000 users |
| Card Capacity |
200,000 cards |
| Fingerprint Capacity |
10,000 fingerprints |
| Event Capacity |
600,000 events |
| Supported Functions |
Web configuration, multi-factor authentication, first-person-in, anti-passback and multi-door interlocking |
| Indicators |
12 indicators for power, running status, network, RS-485 and door status |
| Battery |
Charge and discharge support |
| Power Supply |
100 VAC to 240 VAC |
| Power Consumption |
≤ 102 W |
| Operating Temperature |
−10°C to +55°C |
| Operating Humidity |
0% to 90%, non-condensing |
| Installation |
Wall mounting |
| Battery Support |
Battery charging and discharging supported |
| Status Indicators |
Power supply, communication, operation and system health indicators |
Downloads & Resources
Download the official Hikvision datasheet or view the product page for manuals, firmware, configuration files and updated technical resources.
Installation Notes
Professional Installation Recommended
This is a commercial access control controller and should be installed by a qualified security technician or licensed professional where required.
Plan the Door Hardware First
Confirm every door’s lock type, exit method, door contact, fire trip requirement and power design before ordering.
Use the Right Reader Layout
Decide whether each door needs entry-only, entry/exit readers, QR terminals, card readers or intercom terminals.
Allow Room for Expansion
If the site may grow later, design RS-485 module locations, enclosure space and power capacity from the start.
Frequently Asked Questions
How many doors does the DS-K2704X control?
It controls 4 doors natively and can expand up to 128 doors with compatible DS-K2M002X access modules.
Is this suitable for a single door?
It can be used for smaller projects, but it is best suited to multi-door commercial and enterprise access control systems.
Does it support web configuration?
Yes. The DS-K2704X supports configuration through a web browser.
Does it support anti-passback?
Yes. Anti-passback is supported for professional access control applications.
Can it work with Hikvision card readers?
Yes. It supports compatible Hikvision RS-485 and Wiegand card readers.
Can it connect to electric strikes and maglocks?
Yes. It provides lock control outputs, but the correct lock and power design must be selected for each door.
Does it support backup battery?
Yes. The DS-K2704X supports battery charging and discharging.
What software should I use with it?
It can be configured through a web browser and can be used within Hikvision access control ecosystems depending on the final system design.
Is this better than a standalone access terminal?
For multi-door sites, yes. A controller-based system gives better central management, event history, expansion and door logic.
Do you ship Australia-wide?
Yes. CCTV Guru ships genuine Hikvision access control products across Australia with local support.
What expansion module is required to increase door capacity?
The DS-K2704X supports expansion using Hikvision DS-K2M002X access modules, allowing the system to scale from 4 doors up to 128 doors for larger commercial deployments.
Can I use the DS-K2704X with QR code terminals?
Yes. The controller can be integrated with compatible Hikvision access terminals including QR code, card, PIN, Bluetooth and intercom-based devices depending on the project requirements.
What is the difference between the DS-K2704X and DS-K2704X(P)?
The DS-K2704X(P) supports backup battery charging and discharging functionality, making it suitable for installations requiring backup power capability and enhanced system resilience.
Can the DS-K2704X(P) continue operating during a power outage?
When installed with a compatible battery backup system, the controller can support continued access control operation during mains power interruptions.
