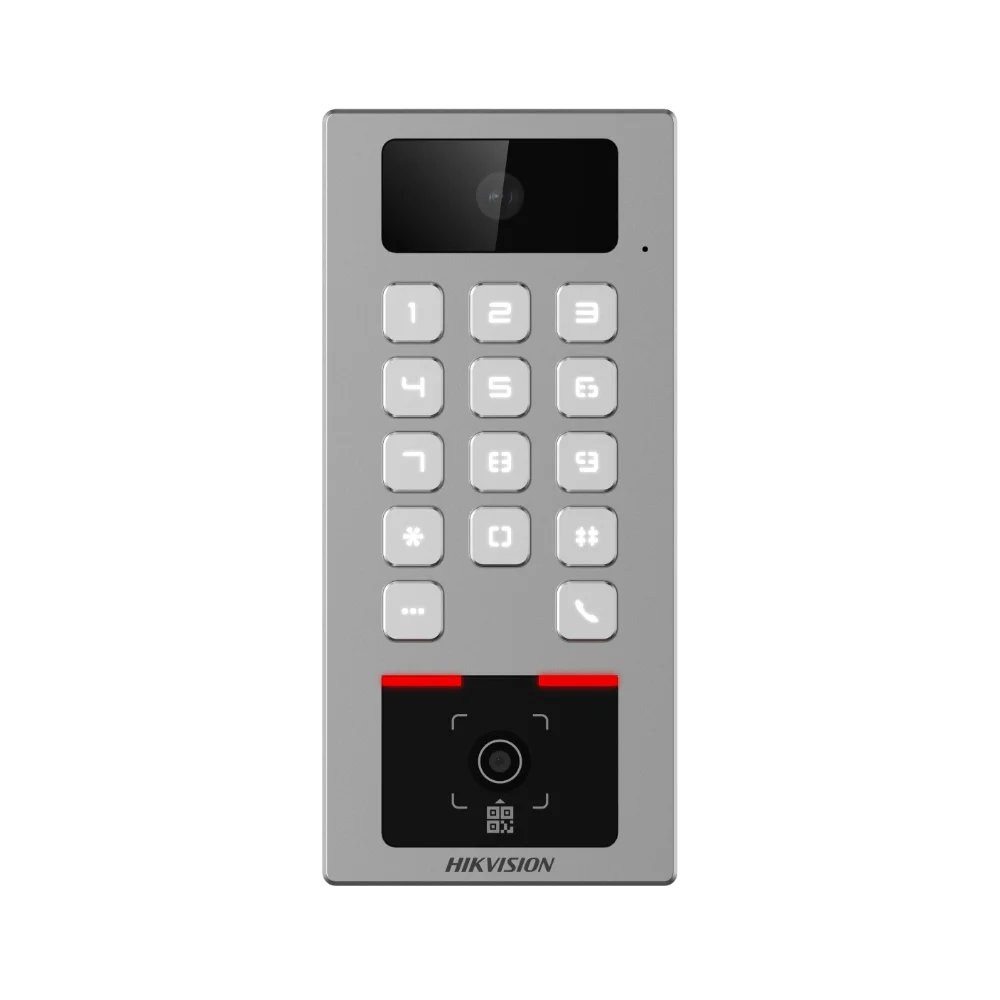

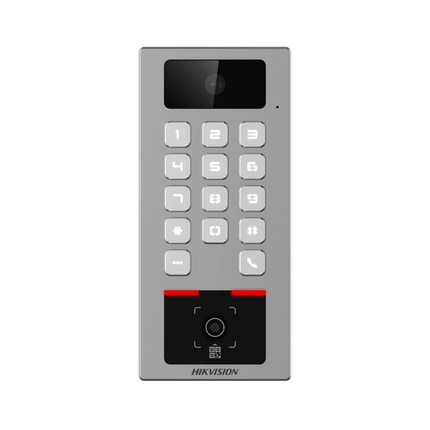

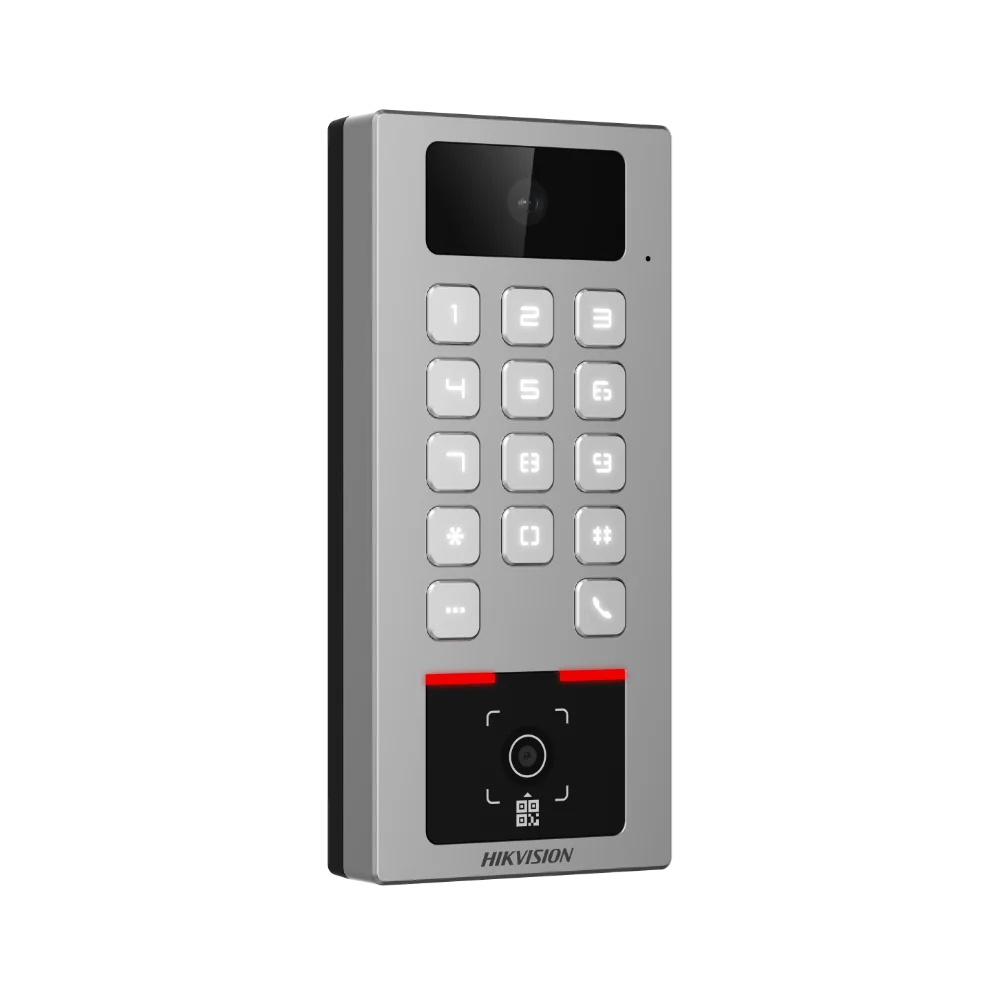

Hikvision DS-K1T502DBWX-CQRE1 Pro Card Terminal — Smart Access Control with QR, Card, PIN & Hik-Connect
The Hikvision DS-K1T502DBWX-CQRE1 is a professional access control and intercom terminal designed for Australian offices, apartments, warehouses, schools, clinics, retail stores and secure commercial entry points. It combines card access, PIN entry, QR code authentication, Bluetooth unlocking, Hik-Connect remote control and SIP intercom into one clean, vandal-resistant unit.
Built with a durable zinc alloy body, IP65 weather protection and IK09 impact resistance, this terminal is suitable for outdoor gates, building entrances, staff-only doors, apartment lobbies and business access points. It supports PoE power, local 12–24 VDC power, Wiegand, RS-485, door lock control, exit button input, door contact input, alarm input/output and integration with Hikvision access control systems.
Model
DS-K1T502DBWX-CQRE1
Authentication
QR · Card · PIN
Door Control
Dual Relay Support
Connectivity
Wi-Fi · Bluetooth · LAN
Why Choose the DS-K1T502DBWX-CQRE1?
One Device for Access Control & Intercom
Manage door access and visitor calling from a single professional terminal. Ideal for offices, apartment entries, strata gates, staff doors and commercial sites that need more than a basic card reader.
Multiple Authentication Options
Supports card, PIN, QR code and Bluetooth-based access. This gives businesses flexibility for staff, contractors, visitors and short-term access scenarios.
Hik-Connect Remote Control
Use Hik-Connect for mobile app integration, remote unlock and visitor handling where supported by the system design and configuration.
Built for Australian Conditions
IP65 weather protection and IK09 impact resistance make it suitable for exposed entrances, outdoor gates, warehouses and high-traffic commercial environments.
SIP Intercom Support
Supports SIP intercom integration with compatible SIP servers including 3CX, Asterisk, FreePBX and other supported platforms.
Installer-Friendly Integration
Includes Wiegand, RS-485, door contact input, exit button input, alarm input/output and lock control for professional access control installations.
Recommended For
Office & Staff Entry Doors
Give employees card, PIN or QR access while keeping visitor entry controlled and logged.
Apartment & Strata Entrances
Use intercom calling, QR access and remote management for shared building entrances and controlled lobby access.
Warehouses & Industrial Sites
Strong housing, wide operating temperature and vandal resistance make it practical for loading docks, staff doors and secure storage zones.
Retail & Back-of-House Access
Secure staff-only areas, stockrooms, office doors and rear entries with professional event logging.
Schools, Clinics & Community Sites
Manage controlled entry points with flexible authentication and remote unlock options.
Visitor & Contractor Access
QR code and PIN options make it easier to manage temporary access without issuing permanent cards to every visitor.
Key Features
QR Code Authentication
Supports QR code-based entry for modern visitor, tenant and temporary access workflows.
Card & PIN Access
Supports M1 and DESfire card authentication, plus PIN settings under platform mode and local mode.
Bluetooth Door Opening
Supports communication with smartphones via Bluetooth to open the door when configured correctly.
2MP Video for Intercom
Built-in 2MP video with wide field of view helps identify visitors at the entry point.
PoE Power Supply
Supports PoE 802.3at, helping installers reduce cabling complexity. The terminal can also support lock output power of 12 V, 1 A.
Dual Relay Control
Supports dual relays, allowing control of two doors via indoor station, web operation or compatible system configuration.
Technical Specifications
Hikvision DS-K1T502DBWX-CQRE1 · Pro Card Terminal
| Product Type |
Pro Card Terminal / Access Control Terminal with Intercom |
| Available Model |
DS-K1T502DBWX-CQRE1 |
| Video Resolution |
2 MP |
| Field of View |
HFOV 110° · VFOV 81° · DFOV 122° |
| Video Compression |
H.264 / H.265 |
| Authentication |
Card, PIN, QR code, Bluetooth smartphone opening |
| Card Types |
M1 card, M1 card content, DESfire card |
| Wired Network |
1 × RJ-45 10/100 Mbps self-adaptive |
| Wi-Fi |
2.4 GHz, 802.11b/g/n |
| Bluetooth |
Supported |
| Lock Control |
2 lock controls / dual relay support |
| Exit Button Input |
1 |
| Door Contact Input |
1 |
| Alarm Input |
2 |
| Alarm Output |
1 |
| Tamper |
1 |
| RS-485 |
1 × RS-485, half duplex |
| Wiegand |
1 × Wiegand, Hik 26-bit / Hik 34-bit |
| SD Card Slot |
1 |
| Hik-Connect |
Supported |
| Video Intercom |
Supported |
| SIP Intercom |
Supports compatible SIP platforms including 3CX, Asterisk, FreePBX and others |
| Power Supply |
PoE 802.3at or 12 VDC to 24 VDC, 1 A |
| Power Consumption |
≤ 24 W |
| Lock Output Power |
12 V, 1 A |
| Operating Temperature |
−40°C to +65°C |
| Protection Rating |
IP65 weather protection · IK09 impact resistance |
| Body Material |
Zinc alloy material |
Installation Notes
Use Professional Access Control Wiring
For reliable operation, use suitable cable, correct power supply sizing, proper lock wiring and a qualified security/access control installer where required.
Plan the Door Hardware First
Confirm your electric strike, maglock, request-to-exit button, door contact and fail-safe/fail-secure requirements before installation.
PoE or 12–24 VDC
The unit supports PoE 802.3at or local 12–24 VDC power. Choose the power method based on your door lock, cable route and site design.
Hikvision Ecosystem Ready
Best suited for Hikvision access control, Hik-Connect, HikCentral and compatible intercom environments where correct configuration is performed.
Watch the DS-K1T502DBWX-CQRE1 in Action
Learn how to configure QR code access, Hik-Partner Pro and Hik-Connect integration for the DS-K1T502DBWX-CQRE1.
Product unboxing and demonstration of the Hikvision vandal-resistant DS-K1T502 Series access control terminal.
Downloads & Resources
Download the official Hikvision datasheet or view the product resources page for manuals, configuration documents, firmware and installation information.
Frequently Asked Questions
Is the DS-K1T502DBWX-CQRE1 an access control reader or an intercom?
It is both. It combines access control authentication with intercom functionality in one device.
Does it support QR code access?
Yes. This CQRE1 model supports QR code authentication, making it suitable for visitor and temporary access workflows.
Can it be used outdoors?
Yes. It is rated IP65 for weather protection and IK09 for impact resistance, making it suitable for many outdoor entry applications.
Does it support Hik-Connect?
Yes. Hik-Connect is supported for compatible remote control and intercom use cases, depending on the final system configuration.
Can it unlock a door?
Yes. It supports lock control and can be used with suitable electric strike or magnetic lock hardware.
Does it support PoE?
Yes. The DS-K1T502DBWX-CQRE1 supports PoE 802.3at as well as 12–24 VDC local power.
Can it work with SIP systems?
Yes. It supports SIP intercom integration with compatible SIP platforms including 3CX, Asterisk and FreePBX.
Is this suitable for apartments?
Yes. It can be used for apartment, strata and shared-entry environments when paired with the right Hikvision indoor stations, software and access control configuration.
Does it include the door lock?
No. Door locks, exit buttons, door contacts, power supplies and cabling are normally selected separately based on the door type and installation design.
Do you ship Australia-wide?
Yes. CCTV Guru ships genuine Hikvision access control products Australia-wide with local support.
Order the Hikvision DS-K1T502DBWX-CQRE1 from CCTV Guru
Order the Hikvision DS-K1T502DBWX-CQRE1 Pro Card Terminal from CCTV Guru for fast Australia-wide dispatch, genuine Hikvision hardware, local technical support and expert advice on compatible locks, exit buttons, door contacts, indoor stations and access control system design.
