Axis Video Recorders

NDAA Compliant • 8-Channel PoE Recorder Compact 8-channel recorder with built-in PoE switch The Axis S3008 Mk II is a compact network video recorder with an integrated 8-port PoE switch, purpose-built and extensively tested for the Axis camera, intercom and audio portfolio. It powers and records up to eight PoE Class 3 devices over a single appliance, ships with a surveillance-grade hard drive (2, 4 or 8 TB), and delivers gigabit-uplink recording in ultra-high definition with encrypted storage — ideal for single-site, multi-site and expanding systems. Channels 8 Video PoE 8× Class 3 / 124W Storage 2 / 4 / 8 TB Uplink Gigabit Reliable and secure recording The S3008 Mk II provides dependable recording on its surveillance-grade hard drive, with a gigabit uplink for ultra-high-definition video and a validated capacity of 8 channels at up to 160 Mbit/s. Recordings are encrypted to protect your footage, a built-in USB port makes video export simple, and Axis Secure Remote Access lets you reach your system from anywhere while meeting strict cybersecurity requirements. All-in-one PoE recording An integrated 8-port PoE switch (Class 3, 124 W total) powers and records up to eight Axis devices — no separate switch required for a clean, single-box install. Camera-to-cloud with ACS Edge Paired with AXIS Camera Station Edge, it supports up to eight channels and is running in a few clicks, with remote live/recorded access and automatic security updates. Scales with ACS Pro In an AXIS Camera Station Pro system it adds network ports, PoE and distributed storage without loading the central server — ideal for growing single- and multi-site deployments. Validated, end-to-end Axis quality Every component, from the PoE switch to the surveillance-grade drive, is tested against the wider Axis range for trouble-free, reliable UHD surveillance. Technical Specifications Recording & Storage Validated video channels 8 Validated recording bitrate 160 Mbit/s System storage 2 TB, 4 TB or 8 TB (surveillance-grade HDD) HDD bays 1 (drive included, 0 free bays) RAID Not supported Encryption Encrypted recordings Video export USB port Operating system AXIS OS Network & PoE PoE ports 8 (up to PoE Class 3 per port) PoE total output power 124 W Uplink Gigabit Remote access Axis Secure Remote Access Software & System Form factor Standalone appliance AXIS Camera Station Edge Supported — up to 8 video channels (camera-to-cloud) AXIS Camera Station Pro Supported — integrates with a Windows recording server (cannot run standalone in ACS Pro) Compatible devices Axis cameras, intercoms and network audio General & Ordering In the box Recorder with surveillance HDD, 48 V DC 180 W mains adapter, mains cable Warranty 5-year Axis warranty Compliance NDAA & TAA compliant Part numbers (AU) 2 TB 02764-006 • 4 TB 02765-006 • 8 TB 02766-006 Downloads Axis S3008 Mk II Datasheet Axis Recorder Installation Guide Axis Recorder User Manual Frequently Asked Questions How many cameras can the S3008 Mk II record?It is validated for up to 8 video channels at a combined recording bitrate of 160 Mbit/s. Does it include a PoE switch?Yes. It has an integrated 8-port PoE switch (up to Class 3 per port, 124 W total) so it powers and records your Axis devices from one appliance. What storage options are available?It ships with a surveillance-grade hard drive in 2 TB, 4 TB or 8 TB capacities (single bay, drive included). Is the Axis S3008 Mk II NDAA compliant?Yes. Like the wider Axis range, it is NDAA (Section 889) and TAA compliant, suiting government and enterprise projects. Can I use it as a standalone recorder?Yes, with AXIS Camera Station Edge it runs as a standalone camera-to-cloud recorder. In an AXIS Camera Station Pro system it works alongside a Windows recording server rather than standalone. Are recordings secure?Recordings are encrypted, and Axis Secure Remote Access provides protected remote viewing that meets strict cybersecurity requirements. How do I export footage?A built-in USB port lets you export video directly from the recorder. Does it support RAID?No. The S3008 Mk II is a single-drive recorder and does not support RAID. What warranty applies in Australia?It is backed by a 5-year Axis warranty, supported locally by CCTV Guru with Australia-wide shipping and tech support. 5-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

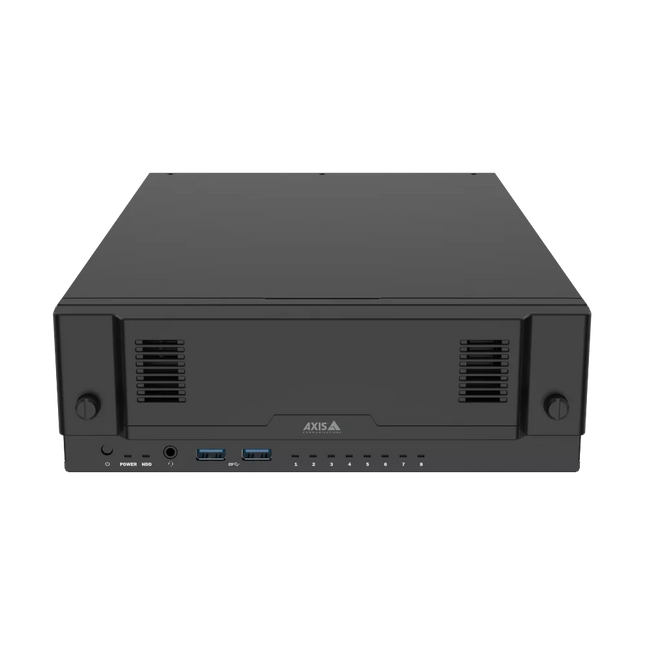

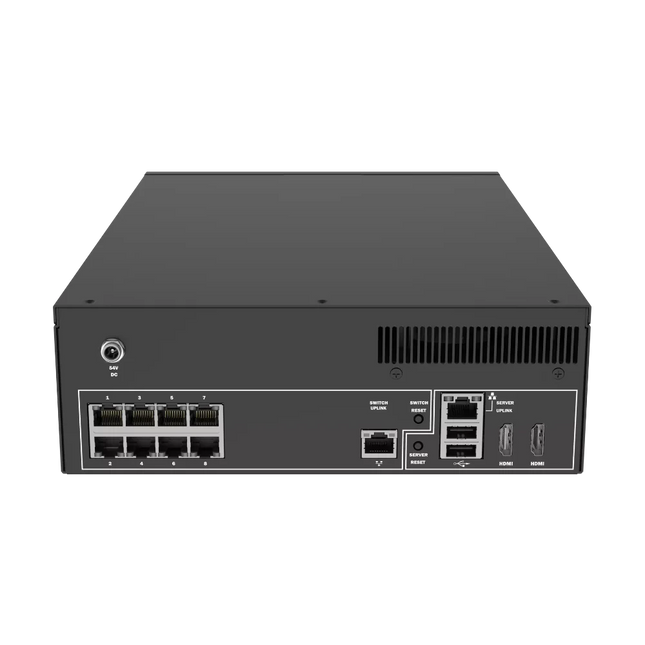

8-Channel · All-in-One PoE Recorder · NDAA · 4TB AXIS S2208 Appliance Mk II — All-in-One 8-Channel PoE Recorder with 4TB & Expansion Bay (02807-006) The AXIS S2208 Appliance Mk II is a professional all-in-one recording solution — an 8-channel network video recorder, an integrated 8-port PoE+ switch and 4TB of surveillance-grade storage in one silent, compact unit. Built on Microsoft Windows 11 IoT Enterprise LTSC 2024 with 8 AXIS Camera Station Pro licenses pre-loaded, it records straight out of the box, and a free second HDD bay lets you double capacity as you grow. NDAA FY19 and TAA compliant, backed by a 5-year hardware warranty with Advanced Replacement, and stocked Australia-wide by CCTV Guru. VMS Licensing — No Additional Licenses Required 8 AXIS Camera Station Pro licenses included 10 AXIS Audio Manager Pro licenses included No additional VMS licenses to buy — record straight out of the box Recording 8 Channels Integrated Switch 8 × PoE+ · 135 W Storage 4 TB + Free Bay Platform Win 11 IoT LTSC One box, complete surveillance Records straight out of the box Eight AXIS Camera Station Pro licenses are pre-loaded, plus 10 AXIS Audio Manager Pro licenses for integrated paging and background music — connect your cameras and start recording with no extra licensing to buy. Integrated 8-port PoE+ switch Power and record up to eight cameras from a single appliance with 135 W of PoE+. An extra uplink port lets you expand the system cost-effectively with the AXIS S30 Recorder Series. Expandable 4TB storage Ships with 4TB of surveillance-grade storage in one of two bays — drop a drive into the free bay to double capacity, or push recordings to AXIS Camera Station Cloud Storage. Cybersecurity by design Encrypted OS and recordings with a FIPS 140-2 Level 2 certified TPM, secure boot and a Software Bill of Materials (SBOM). Cameras are physically isolated from the corporate network to cut attack surface. See it in action AXIS Camera Station S22 Mk II Appliance Series — Official Overview Technical specifications Recording & Licensing Form factor Standalone all-in-one appliance Validated video channels 8 Validated recording bitrate 128 Mbit/s AXIS Camera Station Pro licenses 8 included AXIS Audio Manager Pro licenses 10 included Operating system Microsoft Windows 11 IoT Enterprise LTSC 2024 AI support Smart search 2 and compatible applications Storage & Integrated PoE Switch System storage 4 TB (surveillance-grade) HDD bays 2 total · 1 populated · 1 free for expansion Cloud option AXIS Camera Station Cloud Storage supported PoE ports 8 × Power over Ethernet Plus (PoE+) PoE total output 135 W Expansion uplink Additional uplink port for AXIS S30 Recorder Series Security & Compliance Trusted Platform Module FIPS 140-2 Level 2 certified TPM System protection Encrypted OS & recordings, secure boot, network isolation Supply-chain transparency Software Bill of Materials (SBOM) Compliance NDAA FY19 & TAA compliant Part number 02807-006 (AU) Warranty & service 5-year hardware warranty · Advanced Replacement Service Downloads AXIS S2208 Mk II (02807-006) Datasheet Axis Recorder Quick Start Guide Axis Recorder User Manual Frequently asked questions What's included with the AXIS S2208 Mk II?An 8-channel recorder, an integrated 8-port PoE+ switch, 4TB of storage, 8 AXIS Camera Station Pro licenses and 10 AXIS Audio Manager Pro licenses — everything to run an 8-camera system out of the box. Do I need to buy camera licenses separately?No. Eight AXIS Camera Station Pro licenses are already included, covering up to eight cameras. Can I expand the storage?Yes. It ships with 4TB in one of two bays, leaving a free bay so you can add a second surveillance drive, or use AXIS Camera Station Cloud Storage. How many cameras can it power?Up to eight, via the integrated PoE+ switch with 135 W of total output power. Is the AXIS S2208 Mk II NDAA compliant?Yes. It is produced in a TAA-designated country and complies with NDAA FY19, and ships with a Software Bill of Materials (SBOM). What operating system does it run?Microsoft Windows 11 IoT Enterprise LTSC 2024 — a stable, long-term, security-hardened platform. How is it secured?An encrypted OS and recordings protected by a FIPS 140-2 Level 2 certified TPM, secure boot, and physical isolation of cameras from the corporate network. Can the system grow beyond 8 cameras?Yes. The built-in switch has an extra uplink port to expand cost-effectively using the AXIS S30 Recorder Series. Is it suitable for an office or shop?Yes — it's compact and silent, so it won't disturb local operations in coffee shops, retail stores and offices. 5-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

16-Channel · All-in-One PoE Recorder · NDAA · 1U Rack AXIS Camera Station S2216 Mk II Rack Appliance — All-in-One 16-Channel PoE Recorder with 8TB (02809-006) The AXIS S2216 Mk II is a professional all-in-one rack recording solution — a 16-channel network video recorder, an integrated 16-port PoE+ switch and 8TB of surveillance-grade storage in a single 1U appliance. Built on Microsoft Windows 11 IoT Enterprise LTSC 2024 with 16 AXIS Camera Station Pro licenses pre-loaded, it records straight out of the box, and four drive bays (two free) with RAID 0/1/10 give you room to expand and protect your footage. Ideal for larger sites such as manufacturing and commercial buildings. NDAA FY19 and TAA compliant, backed by a 5-year hardware warranty with Advanced Replacement, and stocked Australia-wide by CCTV Guru. VMS Licensing — No Additional Licenses Required 16 AXIS Camera Station Pro licenses included 10 AXIS Audio Manager Pro licenses included No additional VMS licenses to buy — record straight out of the box Recording 16 Channels Integrated Switch 16 × PoE+ · 260 W Storage 8 TB · 4 Bays Platform Win 11 IoT LTSC One rack unit, complete surveillance Records straight out of the box Sixteen AXIS Camera Station Pro licenses are pre-loaded, plus 10 AXIS Audio Manager Pro licenses for integrated paging and background music — connect your cameras and start recording with no extra licensing to buy. Integrated 16-port PoE+ switch Power and record up to sixteen cameras from a single appliance with 260 W of PoE+. An extra uplink port lets you expand the system cost-effectively with the AXIS S30 Recorder Series. Expandable storage with RAID Ships with 8TB across four bays (two populated, two free). Supports RAID 0, 1 and 10 for redundancy, or push recordings to AXIS Camera Station Cloud Storage. Cybersecurity by design Encrypted OS and recordings with a FIPS 140-2 Level 2 certified TPM, secure boot and a Software Bill of Materials (SBOM). Cameras are physically isolated from the corporate network to cut attack surface. See it in action AXIS Camera Station S22 Mk II Appliance Series — Official Overview Technical specifications Recording & Licensing Form factor 1U rack appliance Validated video channels 16 Validated recording bitrate 256 Mbit/s AXIS Camera Station Pro licenses 16 included AXIS Audio Manager Pro licenses 10 included Operating system Microsoft Windows 11 IoT Enterprise LTSC 2024 AI support Smart search 2 and compatible applications Storage & Integrated PoE Switch System storage 8 TB (surveillance-grade) HDD bays 4 total · 2 populated · 2 free for expansion RAID support RAID 0, 1, 10 (default: not configured) Cloud option AXIS Camera Station Cloud Storage supported PoE ports 16 × Power over Ethernet Plus (PoE+) PoE total output 260 W Expansion uplink Additional uplink port for AXIS S30 Recorder Series Security & Compliance Trusted Platform Module FIPS 140-2 Level 2 certified TPM System protection Encrypted OS & recordings, secure boot, network isolation Supply-chain transparency Software Bill of Materials (SBOM) Compliance NDAA FY19 & TAA compliant Part number 02809-006 (AU) Warranty & service 5-year hardware warranty · Advanced Replacement Service Downloads AXIS S2216 Mk II (02809-006) Datasheet Axis Recorder Quick Start Guide Axis Recorder User Manual Frequently asked questions What's included with the AXIS S2216 Mk II?A 16-channel recorder, an integrated 16-port PoE+ switch, 8TB of storage, 16 AXIS Camera Station Pro licenses and 10 AXIS Audio Manager Pro licenses — everything to run a 16-camera system out of the box. Do I need to buy camera licenses separately?No. Sixteen AXIS Camera Station Pro licenses are already included, covering up to sixteen cameras. Can I expand the storage and use RAID?Yes. It ships with 8TB across four bays, leaving two free bays, and supports RAID 0, 1 and 10 for redundancy. AXIS Camera Station Cloud Storage is also supported. How many cameras can it power?Up to sixteen, via the integrated PoE+ switch with 260 W of total output power. Is the AXIS S2216 Mk II NDAA compliant?Yes. It is produced in a TAA-designated country and complies with NDAA FY19, and ships with a Software Bill of Materials (SBOM). What operating system does it run?Microsoft Windows 11 IoT Enterprise LTSC 2024 — a stable, long-term, security-hardened platform. How is it secured?An encrypted OS and recordings protected by a FIPS 140-2 Level 2 certified TPM, secure boot, and physical isolation of cameras from the corporate network. Can the system grow beyond 16 cameras?Yes. The built-in switch has an extra uplink port to expand cost-effectively using the AXIS S30 Recorder Series. Where is it best suited?Larger installations such as manufacturing sites and commercial buildings, where a rack-mounted, on-premises recorder is preferred. 5-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

NDAA Compliant • All-in-One 8-Channel Recorder AXIS Camera Station S2208 Appliance (01580-006) — Australian Stock & 5-Year Warranty The AXIS Camera Station S2208 Appliance collapses server, storage, licences and PoE switching into one 330 mm desktop or rack-mountable box. It ships preconfigured and preloaded with AXIS Camera Station, including 8 core licences tied to the hardware, 4 TB of surveillance-class storage and an integrated 8-port PoE switch with a 135 W budget — so a complete eight-camera Axis system comes up on site with no VMS build, no separate switch and no licence procurement. An Intel Core i3 with 8 GB RAM and a dedicated 120 GB SSD for the operating system keeps Windows off the recording drive, and the whole appliance is covered by Axis' 5-year warranty, hard drive included. CHANNELS 8 Validated STORAGE 4 TB • 2 Bays POE SWITCH 8 Ports • 135 W LICENCES 8 ACS Included One box, one part number, one afternoon Specifying an Axis system normally means a recorder, a PoE switch, a Windows build, disks and per-channel licences from four different lines. The S2208 is all of that under a single SKU. Plug the cameras into the eight PoE ports, point the appliance at the network, and AXIS Camera Station is already installed and licensed for those eight channels. It is qualified for a total recording rate of up to 128 Mbit/s and supports live view of a single 4K stream full-screen, a 4-way 1080p split, or up to 8 cameras in split view across two monitors. Licences already in the box 8 AXIS Camera Station core licences ship tied to the hardware, with all necessary system software. Additional licences can be added separately if the site grows. Integrated managed PoE Eight 802.3at Class 4 PoE ports share a 135 W budget, plus a gigabit RJ45 uplink and an SFP slot on the switch side for fibre or a longer-haul link back to the core network. OS on its own SSD Windows 10 IoT Enterprise lives on a dedicated 120 GB SSD with OS recovery built in, so a rebuild never puts your recorded footage at risk. Encryption and TPM 2.0 Both the operating system drive and the recording drive support encryption, backed by a FIPS 140-2 Level 2 certified Trusted Platform Module. Technical Specifications SYSTEM & LICENSING Form factor Standalone (rack ears included) Validated video channels 8 AXIS Camera Station licences included 8 core licences, tied to the hardware AXIS Audio Manager Pro licences included 10 System scalability Qualified for up to 8 video channels and 16 doors Operating system Microsoft Windows 10 IoT Enterprise (OS recovery supported) Part number 01580-006 RECORDING & VIDEO Validated recording bitrate Up to 128 Mbit/s total Max camera resolution Up to 4K Live view 1 × 4K stream full screen; 4-split 1080p; up to 8 cameras in split view Monitors Two monitors supported (maximum one 4K monitor recommended); playback on one monitor STORAGE Out-of-the-box storage 4 TB (1 × 4 TB surveillance-class HDD) Total HDD bays 2 Free HDD bays 1 Operating system drive 120 GB SSD (separate from recording storage) RAID Not supported on this model Expansion Axis Surveillance Hard Drive 4 TB (sold separately) HARDWARE & POE SWITCH Processor Intel Core i3 Memory 8 GB Graphics Intel HD Graphics Integrated switch 8 ports, 135 W total PoE power budget PoE standard IEEE 802.3at Class 4 Switch ports 8 × PoE 10/100 Mbps, 1 × SFP 10/100/1000 Mbps, 1 × RJ45 10/100/1000 Mbps uplink Server ports (rear) 1 × RJ45 10/100/1000 Mbps, 2 × USB 2.0, 1 × DisplayPort, 1 × HDMI Front ports 1 × USB 3.0, audio line in, audio line out POWER, ENVIRONMENT & PHYSICAL Power consumption Max 270 W (135 W dedicated to PoE) Power input 100–240 V AC, 3.5 A, 50/60 Hz; 54 V DC, 5 A external power adapter Operating conditions 0 °C to 40 °C, 10–90% RH non-condensing Storage conditions -40 °C to 65 °C, 10–90% RH non-condensing Dimensions 330 × 230 × 78 mm Weight 5.8 kg Included accessories Rack ears, power adapter, mains cable SECURITY, COMPLIANCE & WARRANTY Security Encryption support for OS drive and recording drive; TPM 2.0 (FIPS 140-2 Level 2 certified) Supply chain NDAA Section 889 compliant; TAA compliant Australian approvals RCM AS/NZS CISPR 32 Class A Safety IEC/EN 60950-1, IEC/EN 62368-1, UL 62368-1 Warranty 5-year warranty covering recorder and hard drive Downloads AXIS S2208 DatasheetAxis Recorder Quick Start GuideAxis Recorder User Manual Frequently Asked Questions Do I need to buy AXIS Camera Station licences separately?No. The S2208 ships with 8 AXIS Camera Station core licences tied to the hardware, plus all necessary system software. Additional licences are only needed if you exceed eight channels. How many cameras can I actually connect?It is qualified for 8 video channels with a total recording rate up to 128 Mbit/s, and there are 8 PoE ports on the integrated switch. It is also qualified for up to 16 doors on the access control side. Will the 135 W PoE budget run eight cameras?For typical Axis fixed domes and bullets drawing 6–12 W each, yes, comfortably. Heated outdoor housings, PTZs or 802.3bt devices draw far more — total those loads against the 135 W budget before committing, and power heavy devices from an external switch if needed. Can I add more storage later?Yes. One of the two HDD bays is free, and Axis offers a matching Surveillance Hard Drive 4 TB. Note that this model does not support RAID, so a second disk adds capacity rather than redundancy. Does it support RAID?No. The S2208 has no RAID support. For fault-tolerant storage, plan on scheduled backups, failover recording to camera SD cards, or step up to a larger Axis appliance. How does it connect to the rest of the network?The switch side has a gigabit RJ45 uplink plus an SFP slot for fibre; the server side has its own gigabit RJ45. That lets you keep the camera network separate from the corporate LAN if your design calls for it. Can I plug a monitor straight into it?Yes. HDMI and DisplayPort outputs are on the rear, with support for two monitors (one 4K maximum recommended). Playback is supported on one monitor at a time. Is it rack mountable?Rack ears are included in the box, and it measures 330 × 230 × 78 mm at 5.8 kg. The optional AXIS TS2901 Appliance Stand allows space-saving vertical desktop placement instead. What support does Axis provide long term?The appliance carries a 5-year Axis warranty covering both recorder and hard drive. Axis has confirmed hardware support and RMA service for the S2208 through to 31 December 2030. 5-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less
