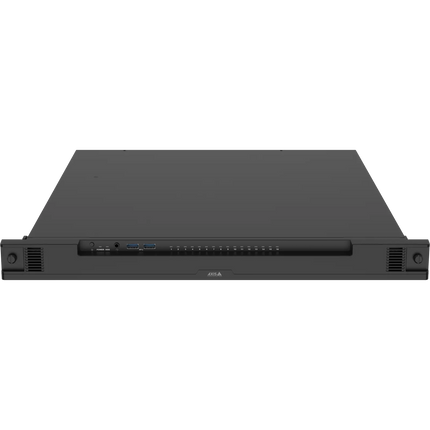

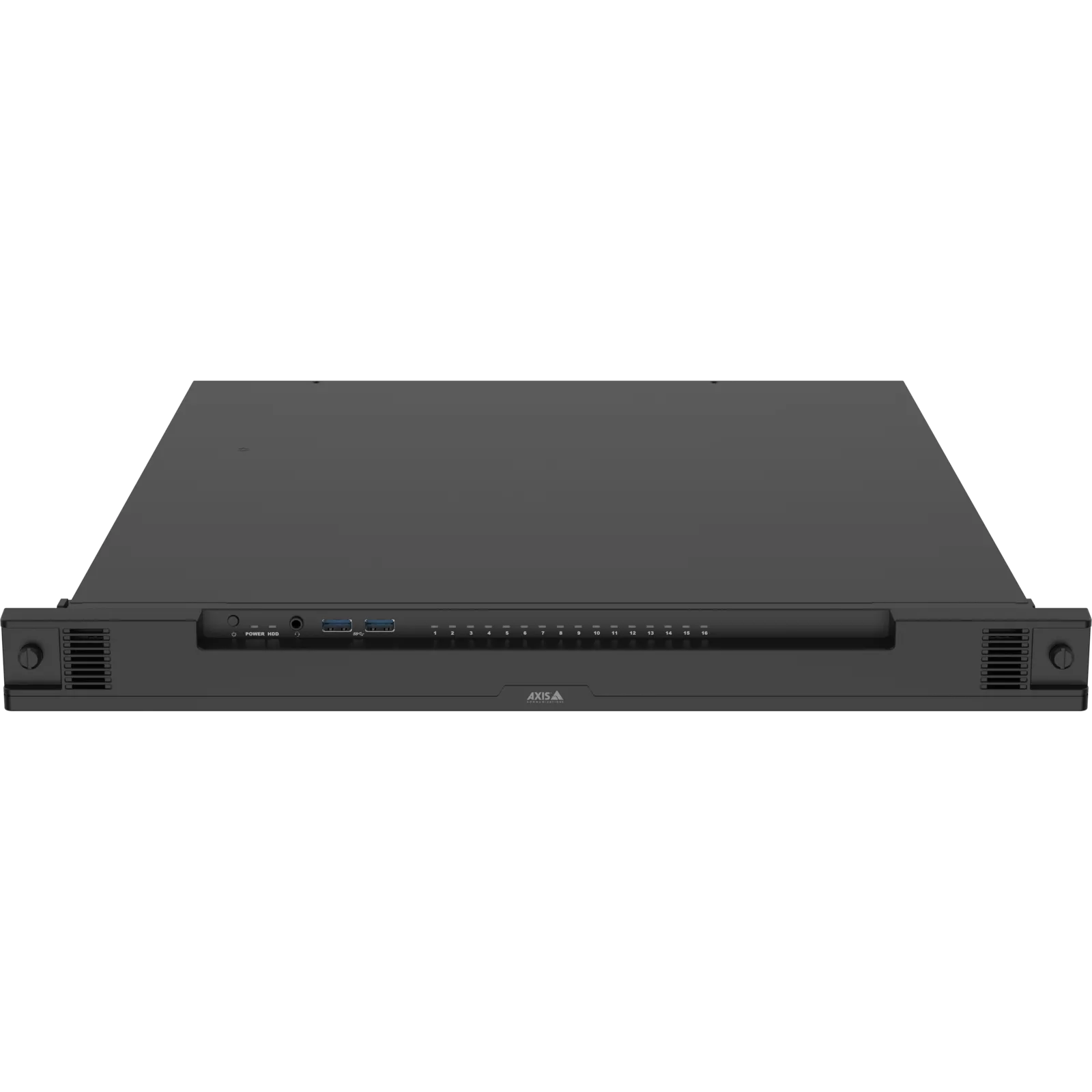

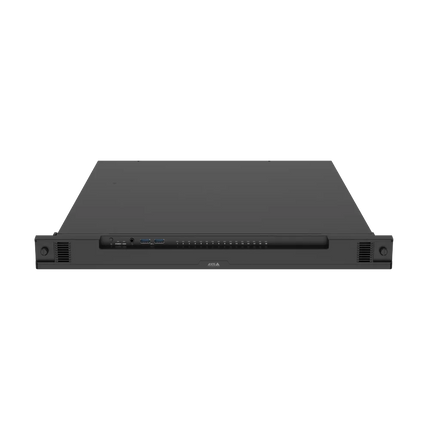

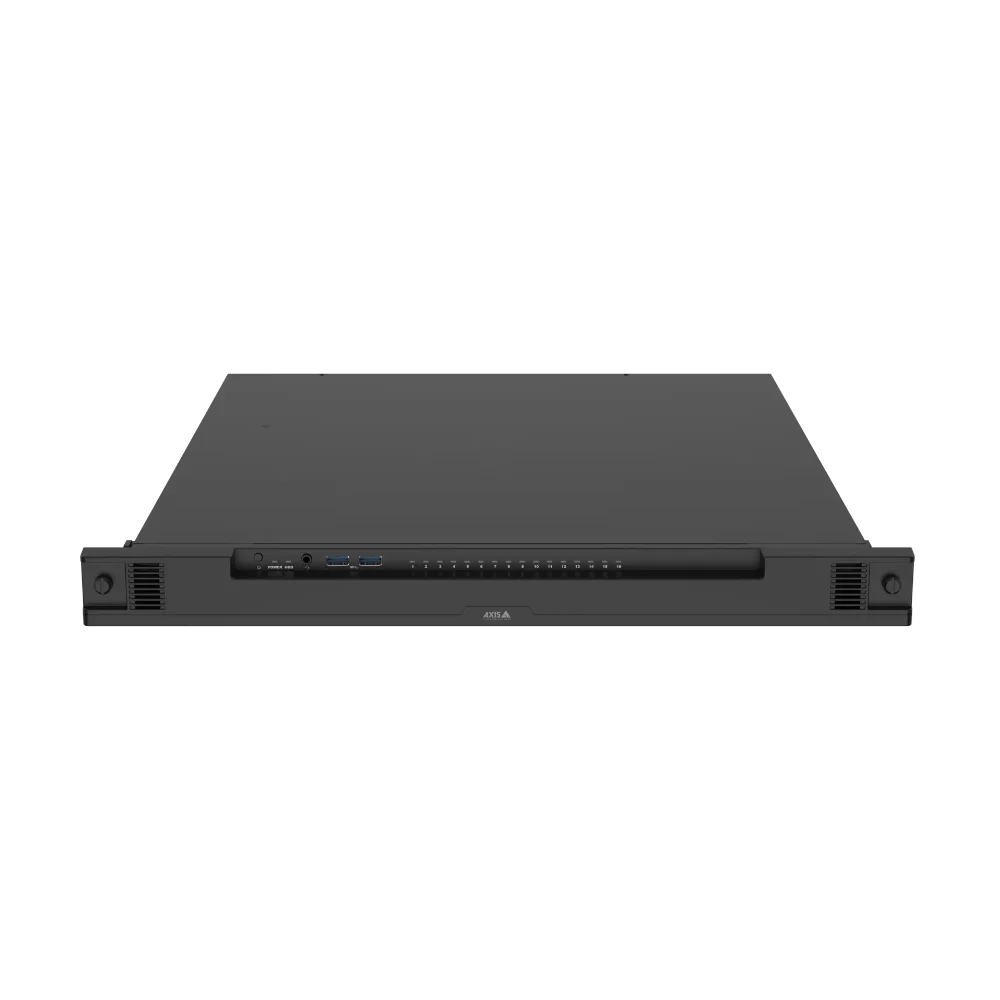

The AXIS S2216 Mk II is a professional all-in-one rack recording solution — a 16-channel network video recorder, an integrated 16-port PoE+ switch and 8TB of surveillance-grade storage in a single 1U appliance. Built on Microsoft Windows 11 IoT Enterprise LTSC 2024 with 16 AXIS Camera Station Pro licenses pre-loaded, it records straight out of the box, and four drive bays (two free) with RAID 0/1/10 give you room to expand and protect your footage. Ideal for larger sites such as manufacturing and commercial buildings. NDAA FY19 and TAA compliant, backed by a 5-year hardware warranty with Advanced Replacement, and stocked Australia-wide by CCTV Guru.
Records straight out of the box
Sixteen AXIS Camera Station Pro licenses are pre-loaded, plus 10 AXIS Audio Manager Pro licenses for integrated paging and background music — connect your cameras and start recording with no extra licensing to buy.

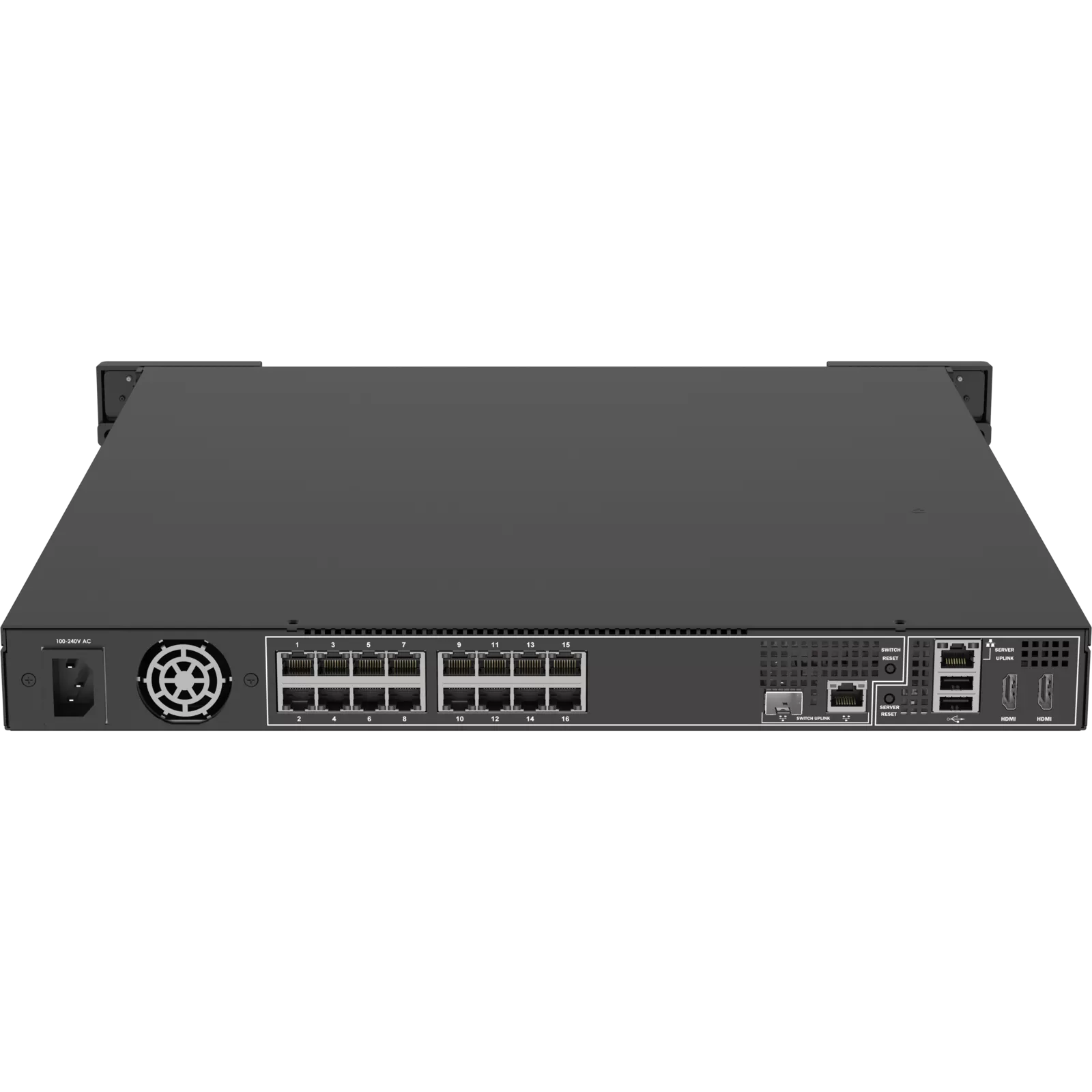

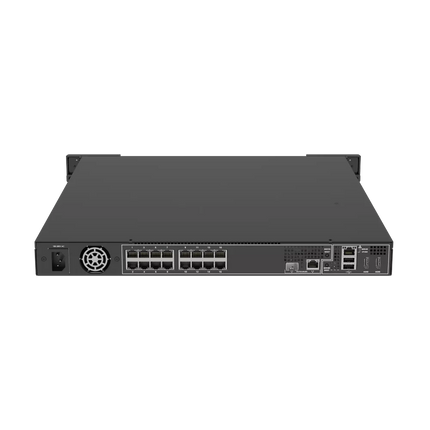

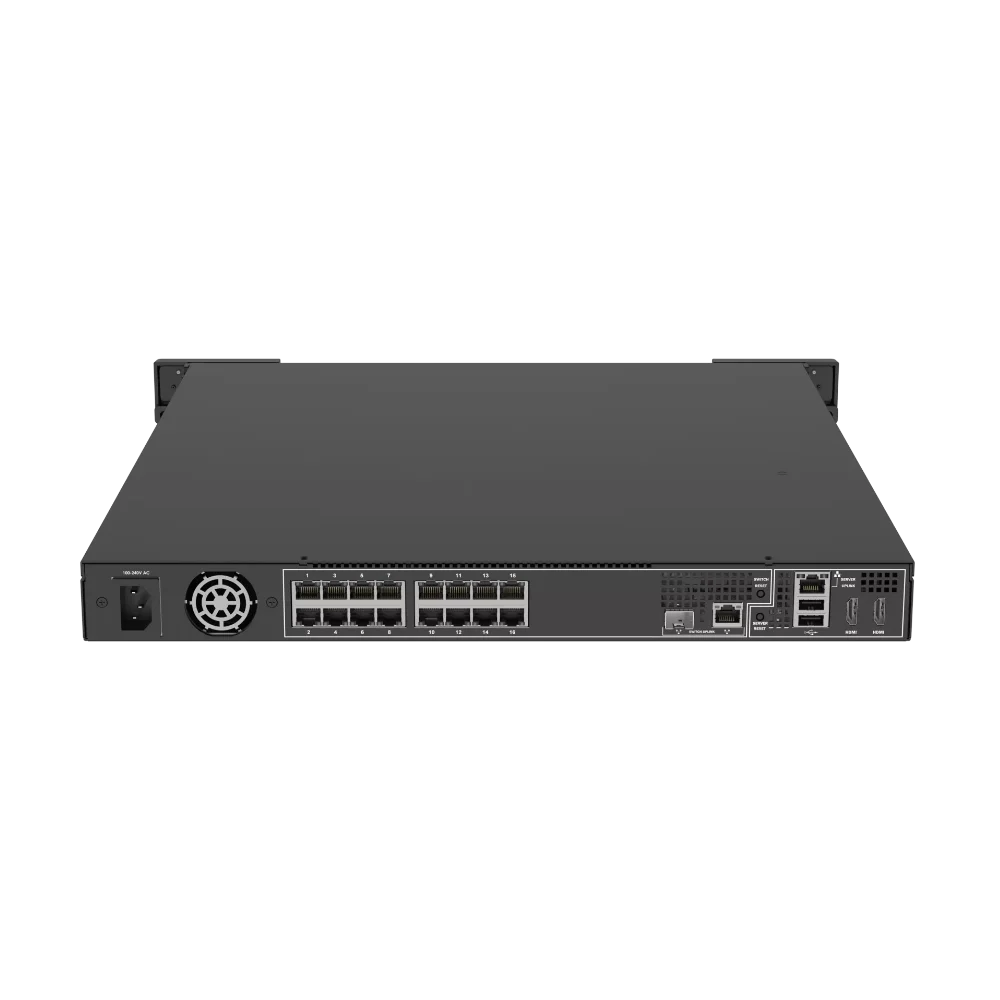

Integrated 16-port PoE+ switch
Power and record up to sixteen cameras from a single appliance with 260 W of PoE+. An extra uplink port lets you expand the system cost-effectively with the AXIS S30 Recorder Series.
Expandable storage with RAID
Ships with 8TB across four bays (two populated, two free). Supports RAID 0, 1 and 10 for redundancy, or push recordings to AXIS Camera Station Cloud Storage.
Cybersecurity by design
Encrypted OS and recordings with a FIPS 140-2 Level 2 certified TPM, secure boot and a Software Bill of Materials (SBOM). Cameras are physically isolated from the corporate network to cut attack surface.
What's included with the AXIS S2216 Mk II?A 16-channel recorder, an integrated 16-port PoE+ switch, 8TB of storage, 16 AXIS Camera Station Pro licenses and 10 AXIS Audio Manager Pro licenses — everything to run a 16-camera system out of the box.
Do I need to buy camera licenses separately?No. Sixteen AXIS Camera Station Pro licenses are already included, covering up to sixteen cameras.
Can I expand the storage and use RAID?Yes. It ships with 8TB across four bays, leaving two free bays, and supports RAID 0, 1 and 10 for redundancy. AXIS Camera Station Cloud Storage is also supported.
How many cameras can it power?Up to sixteen, via the integrated PoE+ switch with 260 W of total output power.
Is the AXIS S2216 Mk II NDAA compliant?Yes. It is produced in a TAA-designated country and complies with NDAA FY19, and ships with a Software Bill of Materials (SBOM).
What operating system does it run?Microsoft Windows 11 IoT Enterprise LTSC 2024 — a stable, long-term, security-hardened platform.
How is it secured?An encrypted OS and recordings protected by a FIPS 140-2 Level 2 certified TPM, secure boot, and physical isolation of cameras from the corporate network.
Can the system grow beyond 16 cameras?Yes. The built-in switch has an extra uplink port to expand cost-effectively using the AXIS S30 Recorder Series.
Where is it best suited?Larger installations such as manufacturing sites and commercial buildings, where a rack-mounted, on-premises recorder is preferred.
