Description

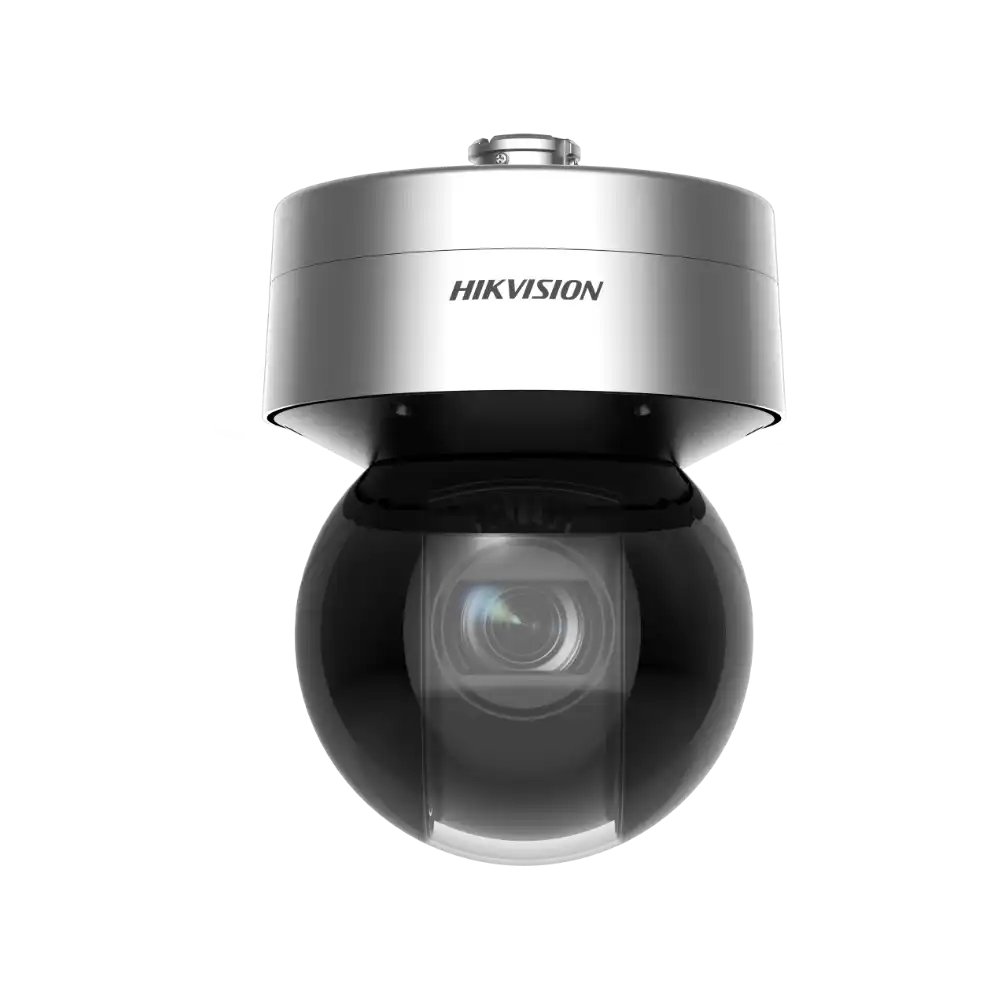

The Hikvision DS‑2DF7A436IXG‑EL(Y) is a high‑performance Ultra‑Series PTZ speed dome camera featuring a 4 MP sensor, 36× optical zoom, and DarkFighter 2.0 low‑light technology for exceptional imaging clarity at long‑range. Built for demanding outdoor surveillance with 150 dB adaptive wide dynamic range (AWDR), rapid focus, smart pan‑tilt correction and a built‑in gyroscope for stable video capture.
Key Features
-
4 MP (2688 × 1520) resolution with high‑quality imaging.
-
36× optical zoom + 16× digital zoom for long‑distance detail.
-
DarkFighter 2.0 technology for excellent low‑light performance.
-
150 dB adaptive WDR keeps details visible in high‑contrast scenes.
-
Smart pan‑tilt correction and built‑in gyroscope for stable tracking.
-
Rapid focus support for fast subject acquisition.
- Powerful infrared illumination for long‑range night vision (up to ~300 m).
-
Pan: 360° continuous rotation; Tilt: –20° to +90° (auto‑flip).
-
IP67 weatherproof and IK10 vandal‑resistant housing for harsh environments.
- Ideal for airports, ports, industrial perimeters, transport hubs and large sites.
Technical Specifications
| Specification |
Details |
| Model |
DS‑2DF7A436IXG‑EL(Y) |
| Image Sensor |
1/1.8″ Progressive Scan CMOS |
| Max. Resolution |
2688 × 1520 (4 MP) |
| Optical Zoom |
36× (6.0 – 216 mm) |
| Digital Zoom |
16× |
| Low‑Light Tech |
DarkFighter 2.0 |
| WDR |
150 dB Adaptive |
| Pan / Tilt Range |
Pan: 360°; Tilt: –20° to +90° |
| Night Vision |
Up to ~300 m IR |
| Stabilisation |
Built‑in gyroscope for image stability |
| Protection |
IP67 & IK10 |
| Rapid Focus |
Supported |
| Operating Temp. |
‑40 °C to +70 °C |
More Information
DS-2DF7A436IXG-EL-Y Datasheet
