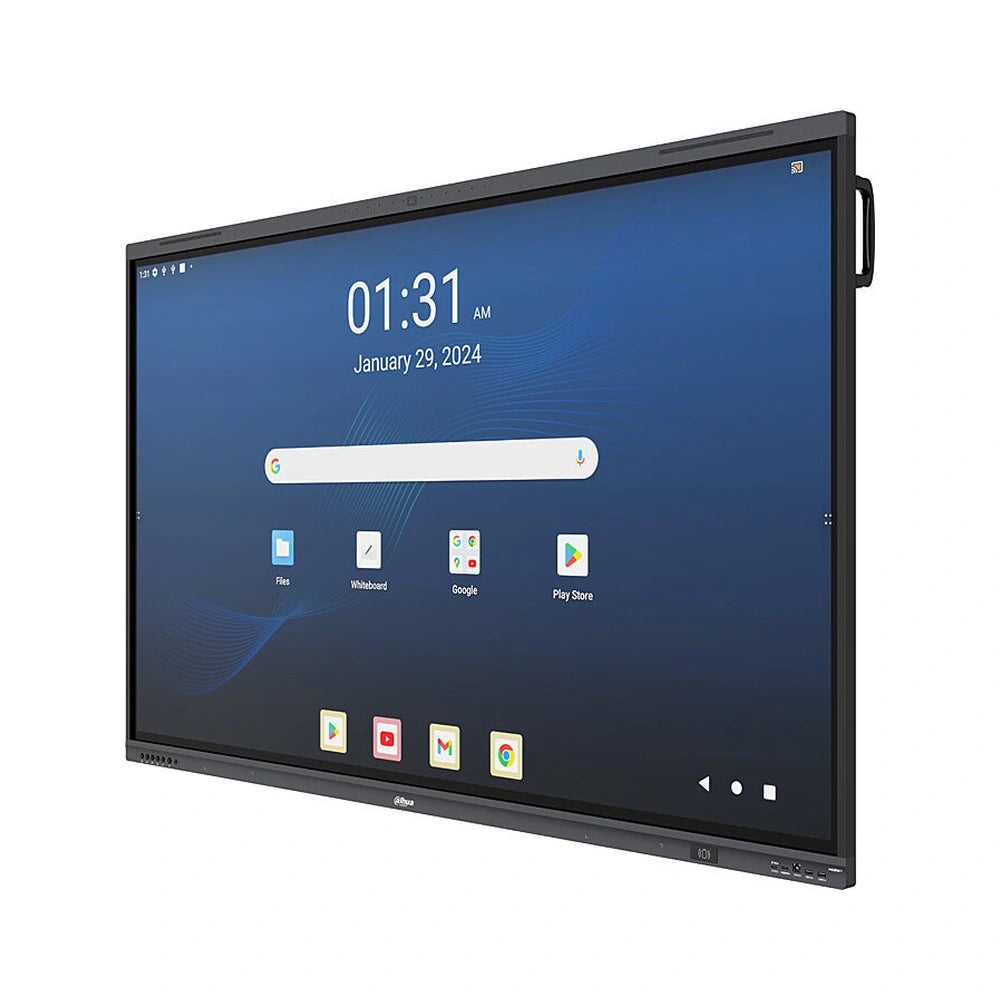

Dahua DeepHub · 75-inch 4K · Google EDLADahua DHI-LPH75-MC480-U 75-inch 4K Smart Interactive Whiteboard | Android 15
The DHI-LPH75-MC480-U brings a 75-inch 4K touch display, Android collaboration tools, camera, microphones and speakers into one meeting-room or classroom screen. Write on a digital whiteboard, present a laptop screen and run compatible meeting apps without making a separate desktop PC the centre of every session.
The MC480-U platform has 8GB RAM and 128GB storage. Current Dahua specifications list Android 15 and Google EDLA certification; the installed version can depend on delivery batch and approved firmware. Application availability, licences and third-party subscriptions are separate.
Key Features
75-inch 4K collaboration
3840 × 2160 DLED display at 60Hz, with anti-glare glass and finger or stylus input.
Camera and room audio
48MP still photos / 8MP video in Android mode, eight microphones and four speakers for shared-room collaboration.
USB-C up to 100W
The front full-featured USB-C input supports compatible laptop video, data and charging. Use a suitably rated full-featured cable.
Flexible screen sharing
Wireless screen sharing, NFC and wired HDMI/DisplayPort inputs let you select the connection that fits the room.
Technical Specifications
| Manufacturer model |
DHI-LPH75-MC480-U |
| Display |
75-inch DLED, 3840 × 2160, 16:9, 60Hz |
| Brightness |
400 cd/m² typical |
| Built-in platform |
RK3588; quad-core A76 + quad-core A55; Mali-G610 MP4 |
| Memory and storage |
8GB RAM / 128GB storage |
| Operating system |
Android 15 in current specifications; delivered firmware may vary |
| Google certification |
EDLA; compatible apps and licences required |
| Touch |
Infrared; up to 32 Android touch points / 50 with Windows |
| Glass |
3.2mm anti-glare tempered glass; ≥9H surface hardness |
| Camera |
Android: 48MP photo / 8MP video; Windows: 8MP photo / video |
| Camera field of view |
98° horizontal / 106° diagonal |
| Microphones |
8-microphone array; up to 12m pickup under suitable conditions |
| Speakers |
2 × 8W + 2 × 18W, 2.2-channel |
| Front connections |
2 × USB-A; HDMI IN; full-featured USB-C IN up to 100W PD; Touch USB-B |
| Rear video |
3 × HDMI IN, HDMI OUT, DisplayPort IN; USB-C IN and USB-C OUT; see datasheet for all port functions |
| Networking |
Gigabit RJ45 IN/OUT; Wi-Fi 6 station; Wi-Fi 5 access point; Bluetooth 5.2 |
| NFC |
Supported |
| Optional Windows expansion |
Compatible OPS module, sold separately; exact OS licence configuration must be checked |
| Power |
100–240V AC, 50/60Hz; 260W typical / 550W maximum |
| Dimensions |
1709.4 × 1038.9 × 85.4mm |
| Net weight |
51.05kg |
| Mounting holes |
800 × 400mm |
| Installation |
Wall mount or compatible mobile stand; professional installation recommended |
| Warranty |
CCTV Guru 3-year Australian warranty |
Choose Your MC480-U Screen Size
The three sizes share the same core collaboration platform. Choose by room layout, viewing distance and available wall space; stands and installation are not included unless specifically listed.
Installation and Optional Accessories
The listed standard pack includes the whiteboard, two stylus pens, remote control, power cord and wall-mount bracket. Arrange safe handling and suitable wall fixings for this heavy display. Check doorway, lift and loading access before delivery; contact us for bulky-freight and installation requirements.
- DHI-PKC-MS0A — the Dahua-listed mobile stand option for this screen size.

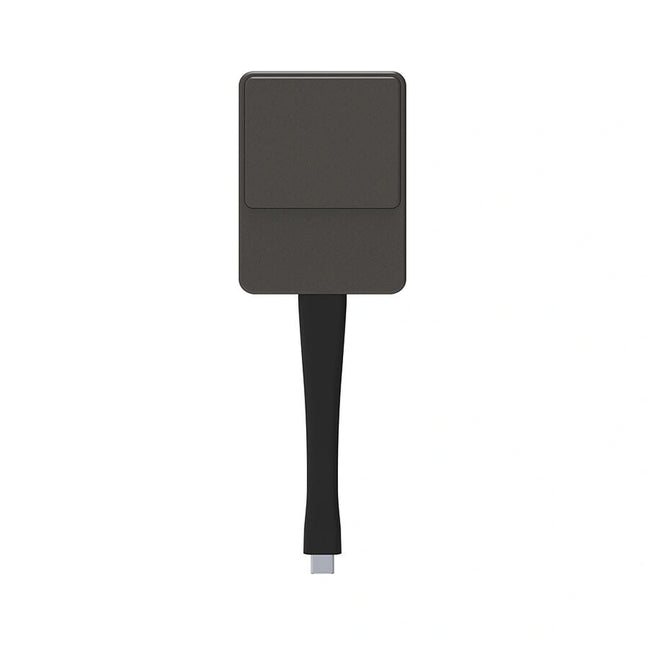

- DHI-PKP-WP1B — optional wireless screen-sharing dongle for compatible full-featured USB-C devices.

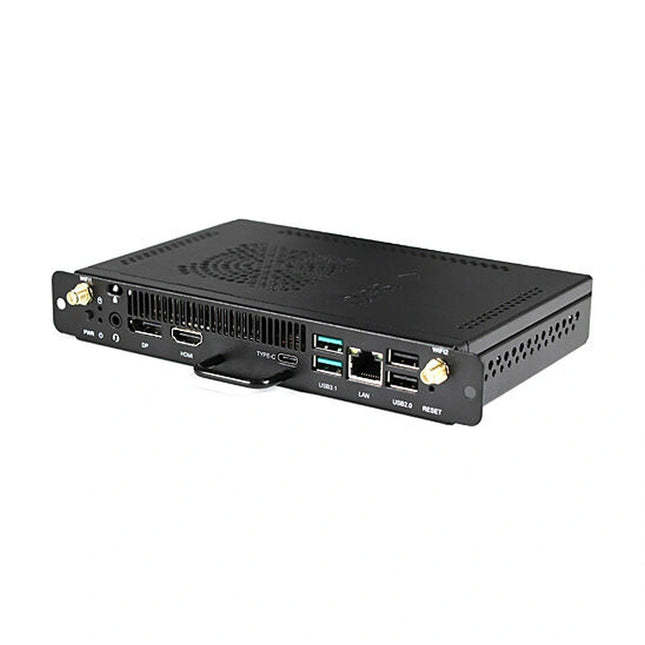

- DHI-SP-PI5C82IS — optional i5 OPS module for a compatible Windows setup; confirm the supplied licence configuration.
- Belkin surge protector — optional AC protection within the power board’s rated load; not a UPS.
Official Dahua Video
Dahua Technology UK & Ireland — MC480 Series overview
This official series video demonstrates the collaboration platform. It predates the current Android 15 specifications; regional versions, firmware and supplied accessories can differ.
Frequently Asked Questions
Do I need a separate computer?
Not for the built-in Android whiteboard and compatible Android apps. A connected computer or optional OPS module is needed for Windows-specific software.
Does 48MP mean 48MP video calls?
No. Current Dahua specifications list 48MP still photos and 8MP video in Android mode. Meeting-app limits, connection speed and software settings can reduce call resolution.
Is a mobile stand included?
No. The standard pack lists a wall-mount bracket. The DHI-PKC-MS0A mobile stand is an optional separate purchase.
Can one USB-C cable connect my laptop?
A compatible full-featured USB-C laptop connection and cable can carry video and data, with up to 100W charging from the front port. Charge-only USB-C cables will not provide all functions.
Is Windows included?
The display has a built-in Android platform. Windows requires a separate compatible computer or OPS module. Confirm licensing for the exact OPS configuration before ordering.
What should I check before delivery?
Confirm wall strength or mobile-stand compatibility, screen access, handling arrangements and bulky-freight requirements. The display is heavy and should be installed by suitable professionals.
Available to order from Australian supplier stock. Contact CCTV Guru to confirm dispatch timing and for product selection and compatibility advice. CCTV Guru’s 3-year Australian warranty is included.
