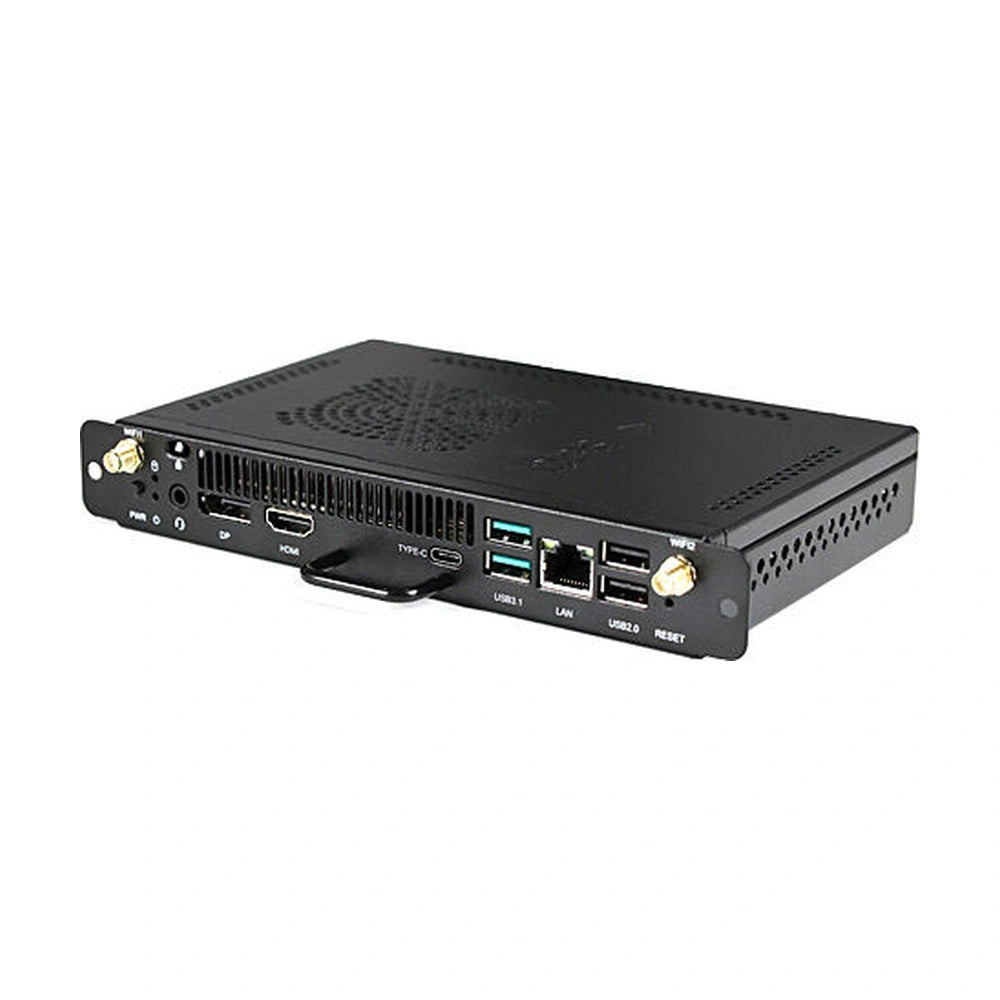

Dahua DHI-SP-PI5C82IS Intel i5 OPS PC Module | 8GB RAM, 256GB SSD

Description

Dahua · OPS expansion · Intel Core i5

Dahua DHI-SP-PI5C82IS Intel i5 OPS PC Module | 8GB RAM, 256GB SSD

The DHI-SP-PI5C82IS is a slot-in OPS computer for a compatible Dahua smart interactive whiteboard. Its 12th-generation Intel Core i5-12450H processor, 8GB memory and 256GB SSD provide a separate PC platform for Windows applications, presentations and meeting-room workflows.

Choose this module when your application needs a PC rather than the display’s built-in Android system. It is not a universal desktop PC or an upgrade for an NVR. Confirm the display’s OPS interface, module fit and operating-system licence configuration before ordering.

Key Features

Intel Core i5 platform

Alder Lake-H i5-12450H with a listed maximum frequency of 4.40GHz and integrated Intel UHD Graphics.

8GB RAM + 256GB SSD

A compact PC configuration for compatible presentation and business applications.

OPS slot-in design

80-pin JAE interface connects to the matching host display. Verify the exact whiteboard model.

Wired and wireless connections

Gigabit Ethernet, Wi-Fi/Bluetooth module, USB-A, USB-C, HDMI and DisplayPort outputs.

Technical Specifications
Model DHI-SP-PI5C82IS
Processor Intel Core i5-12450H; up to 4.40GHz
Graphics Intel UHD Graphics for 12th Gen Intel processors
Memory 8GB DDR4 3200MHz
Storage 256GB M.2 2280 SSD
Wireless module Intel AX101 Wi-Fi / Bluetooth
Operating system Windows 11 Pro supported; supplied licence / OS configuration must be confirmed
OPS interface 80-pin JAE
Ethernet 1 × Gigabit RJ45
USB 2 × USB 3.1; 2 × USB 2.0; 1 × USB 3.1 Type-C
Video outputs DisplayPort 1.2: up to 4K60; HDMI 1.4: up to 4K30
Audio Combined line-out / microphone connector
Power input 12–19V DC
Power consumption 53W typical; 58.8W maximum
Dimensions 119 × 180 × 30mm
Net weight 0.75kg
Operating temperature −5°C to +45°C
Included accessories 2 antennas, 2 M3 screws, user manual

Matching Whiteboards and Installation

Dahua lists this OPS model as an accessory for the MC480-U family: DHI-LPH65-MC480-U, DHI-LPH75-MC480-U, DHI-LPH86-MC480-U. The display is sold separately. Follow the host manual, isolate power before fitting the module and use the specified screws. Do not insert or remove it while powered.

Windows-specific meeting software may need its own licences and peripherals. Confirm whether your supplied OPS unit includes activated Windows before relying on it for deployment; the model documentation covers different OS configurations.

Frequently Asked Questions

Is the whiteboard included?

No. This listing is for the OPS computer module only. The compatible display is purchased separately.

Does it fit any OPS screen?

Do not assume universal fit. Confirm the exact host model, 80-pin JAE interface, physical dimensions and power requirements.

Is an activated Windows licence included?

The model documentation covers Windows 11 Pro and no-OS configurations. Confirm the exact supplied licence configuration with CCTV Guru before ordering.

Does the HDMI port output 4K60?

The datasheet specifies HDMI 1.4 up to 4K30 and DisplayPort 1.2 up to 4K60. Check the complete host and output configuration.

Downloads

DHI-SP-PI5C82IS Datasheet (PDF)

Available to order from Australian supplier stock. Contact CCTV Guru to confirm dispatch timing and for product selection and compatibility advice.

Dahua DHI-SP-PI5C82IS Intel i5 OPS PC Module | 8GB RAM, 256GB SSD

Product form

SKU: DHI-SP-PI5C82IS

$1,912.33 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    5% price beat on eligible offers — contact CCTV Guru; terms apply.

    • Shipped today? Order within: Oct 23, 2026 14:00:00 +1100
    • Warranty:  months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180

    Description

    Dahua · OPS expansion · Intel Core i5

    Dahua DHI-SP-PI5C82IS Intel i5 OPS PC Module | 8GB RAM, 256GB SSD

    The DHI-SP-PI5C82IS is a slot-in OPS computer for a compatible Dahua smart interactive whiteboard. Its 12th-generation Intel Core i5-12450H processor, 8GB memory and 256GB SSD provide a separate PC platform for Windows applications, presentations and meeting-room workflows.

    Choose this module when your application needs a PC rather than the display’s built-in Android system. It is not a universal desktop PC or an upgrade for an NVR. Confirm the display’s OPS interface, module fit and operating-system licence configuration before ordering.

    Key Features

    Intel Core i5 platform

    Alder Lake-H i5-12450H with a listed maximum frequency of 4.40GHz and integrated Intel UHD Graphics.

    8GB RAM + 256GB SSD

    A compact PC configuration for compatible presentation and business applications.

    OPS slot-in design

    80-pin JAE interface connects to the matching host display. Verify the exact whiteboard model.

    Wired and wireless connections

    Gigabit Ethernet, Wi-Fi/Bluetooth module, USB-A, USB-C, HDMI and DisplayPort outputs.

    Technical Specifications
    Model DHI-SP-PI5C82IS
    Processor Intel Core i5-12450H; up to 4.40GHz
    Graphics Intel UHD Graphics for 12th Gen Intel processors
    Memory 8GB DDR4 3200MHz
    Storage 256GB M.2 2280 SSD
    Wireless module Intel AX101 Wi-Fi / Bluetooth
    Operating system Windows 11 Pro supported; supplied licence / OS configuration must be confirmed
    OPS interface 80-pin JAE
    Ethernet 1 × Gigabit RJ45
    USB 2 × USB 3.1; 2 × USB 2.0; 1 × USB 3.1 Type-C
    Video outputs DisplayPort 1.2: up to 4K60; HDMI 1.4: up to 4K30
    Audio Combined line-out / microphone connector
    Power input 12–19V DC
    Power consumption 53W typical; 58.8W maximum
    Dimensions 119 × 180 × 30mm
    Net weight 0.75kg
    Operating temperature −5°C to +45°C
    Included accessories 2 antennas, 2 M3 screws, user manual

    Matching Whiteboards and Installation

    Dahua lists this OPS model as an accessory for the MC480-U family: DHI-LPH65-MC480-U, DHI-LPH75-MC480-U, DHI-LPH86-MC480-U. The display is sold separately. Follow the host manual, isolate power before fitting the module and use the specified screws. Do not insert or remove it while powered.

    Windows-specific meeting software may need its own licences and peripherals. Confirm whether your supplied OPS unit includes activated Windows before relying on it for deployment; the model documentation covers different OS configurations.

    Frequently Asked Questions

    Is the whiteboard included?

    No. This listing is for the OPS computer module only. The compatible display is purchased separately.

    Does it fit any OPS screen?

    Do not assume universal fit. Confirm the exact host model, 80-pin JAE interface, physical dimensions and power requirements.

    Is an activated Windows licence included?

    The model documentation covers Windows 11 Pro and no-OS configurations. Confirm the exact supplied licence configuration with CCTV Guru before ordering.

    Does the HDMI port output 4K60?

    The datasheet specifies HDMI 1.4 up to 4K30 and DisplayPort 1.2 up to 4K60. Check the complete host and output configuration.

    Downloads

    DHI-SP-PI5C82IS Datasheet (PDF)

    Available to order from Australian supplier stock. Contact CCTV Guru to confirm dispatch timing and for product selection and compatibility advice.
