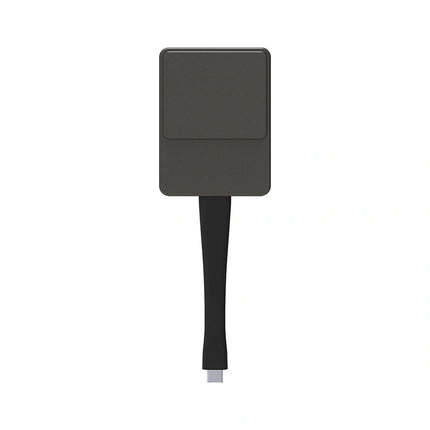

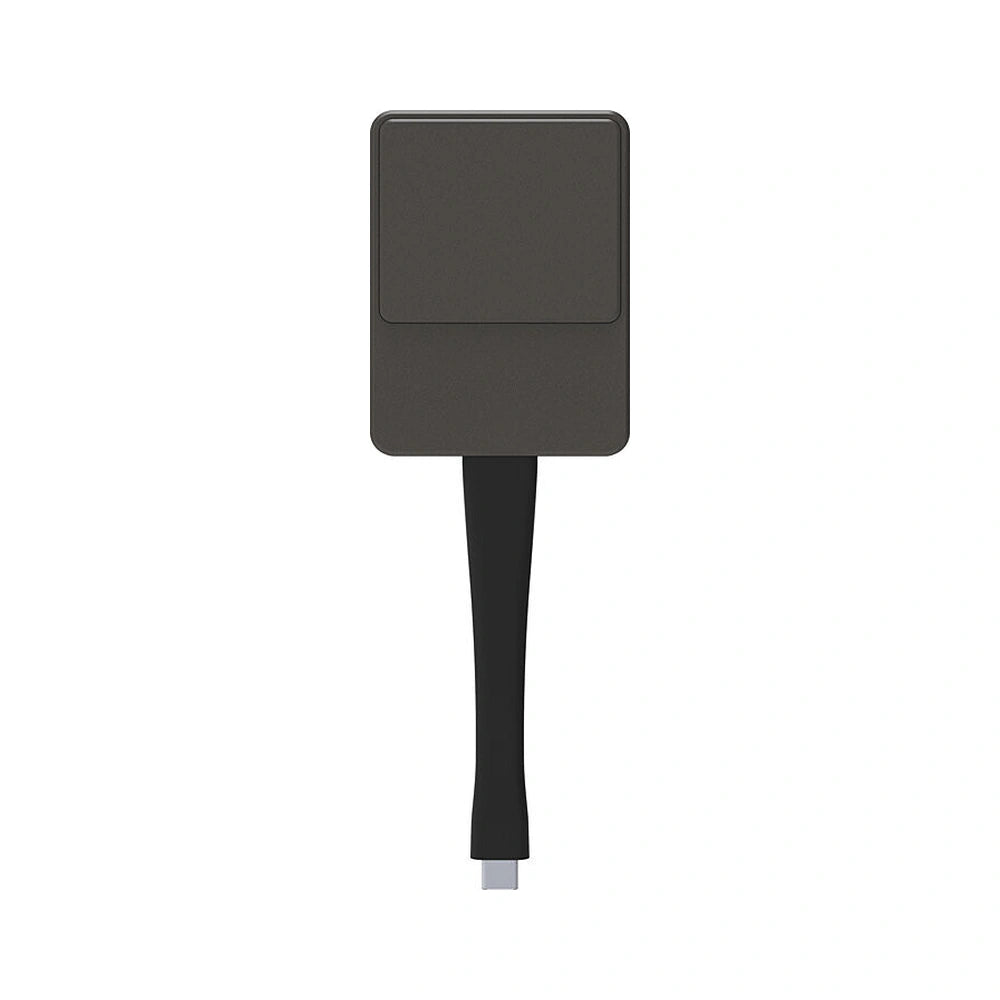

Dahua DHI-PKP-WP1B 4K USB-C Wireless Screen Sharing Dongle

Description

Dahua · Wireless presentation · Full-featured USB-C

Dahua DHI-PKP-WP1B 4K USB-C Wireless Screen Sharing Dongle

The DHI-PKP-WP1B helps a presenter share a compatible laptop screen with a Dahua smart interactive whiteboard using a single button. Pair the dongle with a compatible EShare-enabled receiver, connect it to a full-featured USB-C source, then start presenting video and audio wirelessly.

It suits meeting rooms where presenters regularly change computers. This is a screen-sharing transmitter, not a Wi-Fi network adaptor or a universal HDMI receiver. Check the source USB-C video capability and the receiving display before ordering.

Key Features

One-button presentation

Pair, connect and press the button to share with a compatible receiver.

Up to 4K output

Supports resolutions through 3840 × 2160. The stated up-to-60fps figure applies to Full HD, not a guaranteed 4K60 link.

Driver-free connection

Uses a full-featured USB-C connection with compatible operating systems and hardware.

Touch feedback

Supports up to 10-point touch control back to a compatible connected source.

Technical Specifications
Model DHI-PKP-WP1B
Product type Wireless screen-sharing transmitter / dongle
Host interface Full-featured USB Type-C
Maximum listed resolution 3840 × 2160
Frame rate Up to 60fps at Full HD, environment dependent
Wireless IEEE 802.11 a/g/n; 2.4GHz and 5GHz, with 5GHz recommended
Wireless data rate 54Mbps listed
Range Up to 15m under suitable conditions
Authentication / encryption WPA2 / CCMP
Touch back Up to 10 points with compatible source and receiver
Power 5V DC via USB-C; 2.5W average; 0.9A maximum
Operating systems Compatible full-featured USB-C devices using Windows, macOS, Chrome OS, Linux or Android
Dimensions 176 × 58 × 17mm
Net weight 80g
Operating temperature 0°C to +40°C

Pairing and Compatibility

  1. Confirm the receiving display supports EShare and the dongle.
  2. Pair the transmitter using the display instructions.
  3. Connect to a full-featured USB-C source with video output and power.
  4. Press the projection button and test sound, picture and touch feedback where supported.

Walls, interference and network conditions affect wireless performance. A charge-only USB-C port is not sufficient. Dahua lists this dongle with the MC480-U whiteboards: DHI-LPH65-MC480-U, DHI-LPH75-MC480-U, DHI-LPH86-MC480-U.

Frequently Asked Questions

Will it work with any USB-C laptop?

The source must have full-featured USB-C with the required video and power capabilities. Check the computer specification; a USB-C connector alone is not enough.

Is 4K at 60fps guaranteed?

No. The datasheet lists up to 4K resolution and up to 60fps at Full HD, depending on the environment.

Does it work with any television?

Not by itself. It requires a compatible receiving display or EShare-enabled receiver. It is not a universal HDMI receiver kit.

Is software required on the presenting computer?

Dahua describes the compatible USB-C presentation workflow as driver-free. Initial receiver pairing and source compatibility still apply.

Downloads

DHI-PKP-WP1B Datasheet (PDF)

Available to order from Australian supplier stock. Contact CCTV Guru to confirm dispatch timing and for product selection and compatibility advice.

Dahua DHI-PKP-WP1B 4K USB-C Wireless Screen Sharing Dongle

Product form

SKU: DHI-PKP-WP1B

$427.40 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    5% price beat on eligible offers — contact CCTV Guru; terms apply.

    • Shipped today? Order within: Oct 23, 2026 14:00:00 +1100
    • Warranty:  months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180

    Description

    Dahua · Wireless presentation · Full-featured USB-C

    Dahua DHI-PKP-WP1B 4K USB-C Wireless Screen Sharing Dongle

    The DHI-PKP-WP1B helps a presenter share a compatible laptop screen with a Dahua smart interactive whiteboard using a single button. Pair the dongle with a compatible EShare-enabled receiver, connect it to a full-featured USB-C source, then start presenting video and audio wirelessly.

    It suits meeting rooms where presenters regularly change computers. This is a screen-sharing transmitter, not a Wi-Fi network adaptor or a universal HDMI receiver. Check the source USB-C video capability and the receiving display before ordering.

    Key Features

    One-button presentation

    Pair, connect and press the button to share with a compatible receiver.

    Up to 4K output

    Supports resolutions through 3840 × 2160. The stated up-to-60fps figure applies to Full HD, not a guaranteed 4K60 link.

    Driver-free connection

    Uses a full-featured USB-C connection with compatible operating systems and hardware.

    Touch feedback

    Supports up to 10-point touch control back to a compatible connected source.

    Technical Specifications
    Model DHI-PKP-WP1B
    Product type Wireless screen-sharing transmitter / dongle
    Host interface Full-featured USB Type-C
    Maximum listed resolution 3840 × 2160
    Frame rate Up to 60fps at Full HD, environment dependent
    Wireless IEEE 802.11 a/g/n; 2.4GHz and 5GHz, with 5GHz recommended
    Wireless data rate 54Mbps listed
    Range Up to 15m under suitable conditions
    Authentication / encryption WPA2 / CCMP
    Touch back Up to 10 points with compatible source and receiver
    Power 5V DC via USB-C; 2.5W average; 0.9A maximum
    Operating systems Compatible full-featured USB-C devices using Windows, macOS, Chrome OS, Linux or Android
    Dimensions 176 × 58 × 17mm
    Net weight 80g
    Operating temperature 0°C to +40°C

    Pairing and Compatibility

    1. Confirm the receiving display supports EShare and the dongle.
    2. Pair the transmitter using the display instructions.
    3. Connect to a full-featured USB-C source with video output and power.
    4. Press the projection button and test sound, picture and touch feedback where supported.

    Walls, interference and network conditions affect wireless performance. A charge-only USB-C port is not sufficient. Dahua lists this dongle with the MC480-U whiteboards: DHI-LPH65-MC480-U, DHI-LPH75-MC480-U, DHI-LPH86-MC480-U.

    Frequently Asked Questions

    Will it work with any USB-C laptop?

    The source must have full-featured USB-C with the required video and power capabilities. Check the computer specification; a USB-C connector alone is not enough.

    Is 4K at 60fps guaranteed?

    No. The datasheet lists up to 4K resolution and up to 60fps at Full HD, depending on the environment.

    Does it work with any television?

    Not by itself. It requires a compatible receiving display or EShare-enabled receiver. It is not a universal HDMI receiver kit.

    Is software required on the presenting computer?

    Dahua describes the compatible USB-C presentation workflow as driver-free. Initial receiver pairing and source compatibility still apply.

    Downloads

    DHI-PKP-WP1B Datasheet (PDF)

    Available to order from Australian supplier stock. Contact CCTV Guru to confirm dispatch timing and for product selection and compatibility advice.
