Dahua TiOC 3.0 · Motorised Vari-Focal · F1.0 · AcuPick

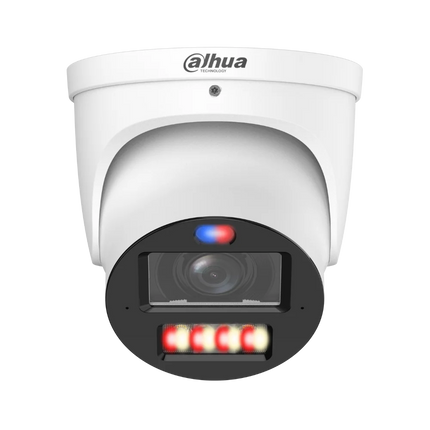

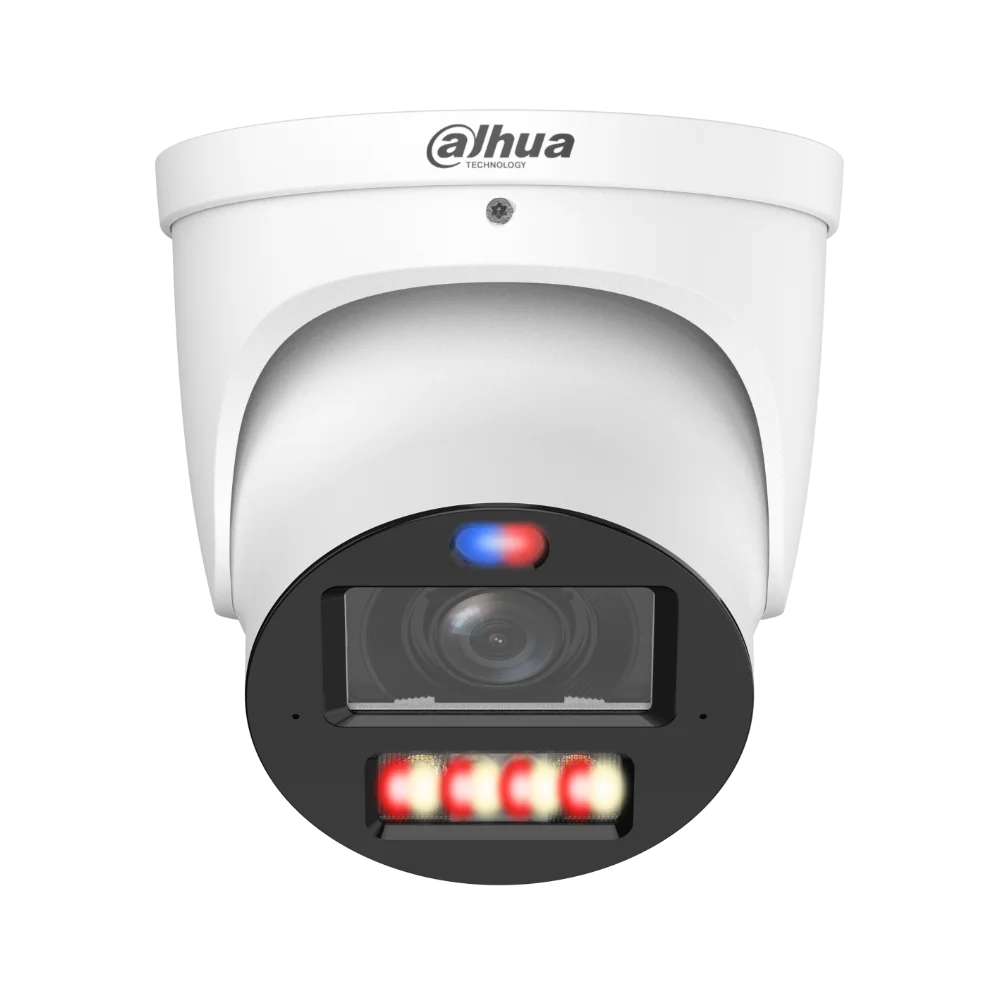

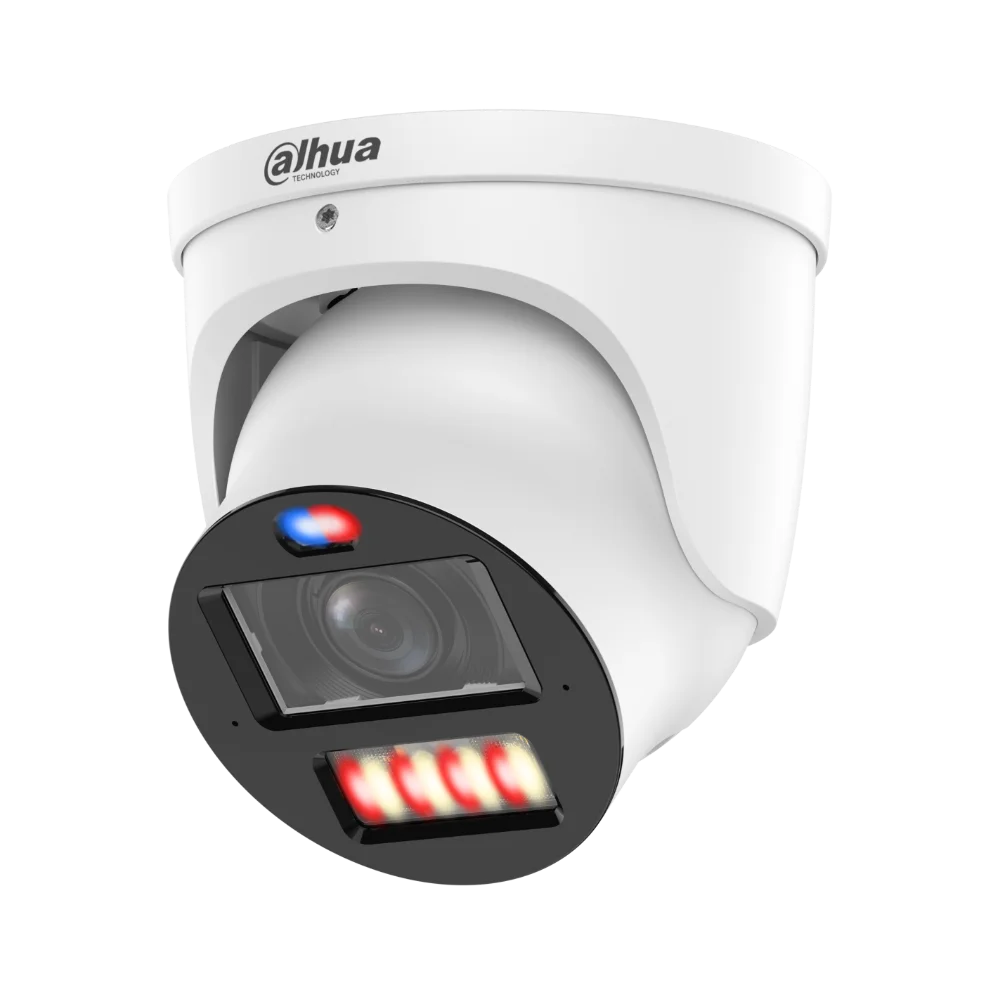

Dahua DH-IPC-HDW3649H-ZAS-PV-ANZ-S2 — 6MP TiOC 3.0 Motorised Vari-Focal AcuPick Active Deterrence Turret
The Dahua DH-IPC-HDW3649H-ZAS-PV-ANZ-S2 is the motorised vari-focal sibling of Dahua's 6MP TiOC 3.0 line — same red/blue strobe, siren and voice deterrence chain, same AcuPick AI and same Smart Dual-Light system as the fixed-lens 3649, but with a remotely-adjustable 2.7–13.5 mm zoom lens, a remarkable F1.0 aperture, and substantially longer reach. At wide-angle it covers a 104° field of view; at telephoto it can identify a face at 18.7 m and detect motion out to 186 m — turning a single camera into both a perimeter wide-shot and a high-zoom evidence camera.
Combined with extended 50 m IR + 40 m warm-light illumination (versus 30 m on the fixed-lens 3649), AcuPick attribute target search, SMD 4.0 false-alarm filtering, AI Coding (≥25% extra compression efficiency), EIS image stabilisation and full TiOC 3.0 active deterrence, this is the camera Australian installers reach for when they need both wide coverage and long-range identification from one mounting point — without paying the 4K-storage premium of the 8MP ZAS. Available in White (DH-IPC-HDW3649H-ZAS-PV-ANZ-S2) and Black (DH-IPC-HDW3649H-ZAS-PV-ANZ-S2-BLK). Australian stock with 3-year warranty.
Resolution
6MP · 3072 × 2048
Motorised Zoom
2.7–13.5 mm · F1.0
Night Vision
50 m IR · 40 m Warm
Active Deterrence
Strobe · Siren · Voice
Protection
IP67 · −30 °C to +60 °C
Power
PoE 802.3af · Max 12.1 W
3-Year Australian Warranty
Fast Australia-Wide Shipping
Why Choose the Motorised Vari-Focal 3649H-ZAS-PV-ANZ-S2
The vari-focal upgrade matters when one camera needs to do two jobs — cover a wide approach and pull tight on a number plate or face at the end of the driveway. Where the fixed-lens 3649 commits to a single 2.8 mm field of view forever, the ZAS lets you dial the zoom remotely after install, after a fence is built, after vegetation grows in, or after you change your mind. It's the camera Australian installers reach for on long rural driveways, carparks, loading docks, school perimeters and anywhere field-of-view requirements change over time — at a friendlier price point than the 8MP ZAS sibling.
2.7–13.5 mm Motorised Vari-Focal
Five-times optical zoom with remote focus and zoom control via DMSS or a Dahua NVR. Set the field of view once at install, then re-tune from your phone whenever the scene changes — no ladder, no scaffolding, no re-aiming.
F1.0 Aperture — Class-Leading Light Gathering
An F1.0 aperture across the entire zoom range — extremely rare for a vari-focal lens. F1.0 lets in 2.5× more light than a typical F1.6 fixed lens, the single biggest factor behind clean colour image in dark conditions.
Massive DORI Reach at Tele
At maximum zoom the 3649 ZAS will detect motion at 186 m, recognise a person at 37.3 m, and identify a face at 18.7 m — nearly three times the identification range of the fixed-lens 3649. One camera can secure a typical Australian residential block end-to-end.
50 m IR + 40 m Warm Light
Extended Smart Dual-Light reach matches the longer optical range — IR illumination out to 50 m, warm-light LED to 40 m. Enough to fully illuminate a long driveway or a typical carpark in pitch darkness.
TiOC 3.0 — Three-in-One Active Deterrence
Same active deterrence chain as the fixed-lens 3649: red/blue strobe, on-board siren and custom voice broadcast fire automatically the moment SMD 4.0 confirms a human or vehicle. No operator, no extra hardware.
AI Coding + EIS Stabilisation
AI Coding delivers ≥25% extra compression efficiency over Smart H.265+, while Electronic Image Stabilisation (EIS) — unique to the ZAS in this line — corrects subtle vibration on long-zoom shots from a pole or gable.
Smart Features for Real-World Australian Sites
Dahua TiOC 3 & PRO Webinar 2024 — Official English Walkthrough
Remote Zoom & Auto-Focus
Adjust the 2.7–13.5 mm zoom from the DMSS app or a Dahua NVR. The motor handles focus automatically as the lens zooms — no manual focus turret to fiddle with at the camera.
IVS Tripwire & Intrusion Zones
Define a virtual line across the driveway or a no-go zone around the shed — get a notification (and trigger the deterrence chain) only when a human or vehicle actually crosses it.
Two-Way Audio & Custom Voice
Dual built-in MICs and an on-board speaker support live two-way talk via DMSS or a Dahua NVR. Pre-loaded plus uploadable voice files let you record a site-specific warning in your own voice.
Edge Recording — MicroSD up to 512 GB
On-camera MicroSD records weeks of 6MP footage independently of the NVR — a critical redundancy layer if the network drops, the recorder is stolen or power is cut.
3:2 Sensor Aspect — More Vertical Pixels
The 6MP ZAS uses a 3072 × 2048 sensor crop (3:2 aspect) — taller than the standard 3649's 16:9 frame. Useful for doorways, narrow passages and tall fences where you want vertical reach without sacrificing horizontal coverage.
Plug & Play + Third-Party VMS
Drops into any Dahua NVR via plug-and-play, and works over ONVIF Profile S/G/T with Milestone, Genetec, Hanwha WAVE, ExacqVision, Blue Iris and Synology Surveillance Station.
Pair with a Dahua 5-Series NVR for the Full AcuPick Experience
SMD 4.0, IVS rules, two-way audio and the full TiOC 3.0 deterrence chain all run on-camera — they work with any Dahua AI NVR, or even an ONVIF third-party recorder. But to unlock AcuPick — attribute-based human and vehicle target search, similar-image cross-camera tracking and AI-accelerated playback — you need a compatible Dahua 5-Series AcuPick NVR. With a long-zoom 6MP camera the AcuPick payoff is even bigger: the long-tele footage carries enough pixel density for clean facial-attribute search at distance.
DHI-NVR5208-8P-AI/ANZ — 8 Channel · 8 PoE
Compact 1U 5-Series AcuPick NVR with 8 built-in PoE ports — ideal for a single-home or small-business install with 4–8 TiOC cameras. Full AcuPick target search and AI playback. View NVR5208-8P →
DHI-NVR5216-16P-AI/ANZ — 16 Channel · 16 PoE
16-channel 5-Series AcuPick NVR with 16 PoE ports and dual-HDD bays — the sweet-spot recorder for most residential and SMB Dahua TiOC fleets. Plug-and-play with the 3649H ZAS. View NVR5216-16P →
DHI-NVR5432-16P-AI/ANZ — 32 Channel · 16 PoE
32-channel 1.5U AcuPick NVR with 16 PoE and 4 HDD bays — the standard choice for medium commercial sites, retail chains and multi-building campuses. View NVR5432-16P →
DHI-NVR5432-AI/ANZ — 32 Channel · No PoE
32-channel AcuPick NVR without built-in PoE — for sites running a separate managed PoE switch (preferred in larger commercial deployments). Same AcuPick capability, more flexible network design. View NVR5432-AI →
Need help sizing? Browse the complete Dahua AcuPick NVR range → or contact our Australian team for a tailored recommendation based on your camera count, recording retention and AcuPick search workload.
Technical Specifications
DH-IPC-HDW3649H-ZAS-PV-ANZ-S2 · Full Specifications
| SKU |
DH-IPC-HDW3649H-ZAS-PV-ANZ-S2 (White) · DH-IPC-HDW3649H-ZAS-PV-ANZ-S2-BLK (Black) |
| Camera Type |
6MP TiOC 3.0 WizSense IP Network Turret · Motorised Vari-Focal · Active Deterrence |
| Image Sensor |
1/2.7" Progressive Scan CMOS |
| Max Resolution |
3072 × 2048 (6MP · 3:2 aspect) @ 25/30 fps |
| Lens Type |
Motorised vari-focal · 2.7–13.5 mm (5× optical zoom) · Auto-focus |
| Maximum Aperture |
F1.0 (2.5× the light gathering of F1.6) |
| Angular Field of View |
Wide (2.7 mm): H 104° / V 75° / D 128° · Tele (13.5 mm): H 33° / V 26° / D 42° |
| DORI — Wide Angle (2.7 mm) |
Detect 65.2 m · Observe 26.1 m · Recognise 13.0 m · Identify 6.5 m |
| DORI — Telephoto (13.5 mm) |
Detect 186.6 m · Observe 74.6 m · Recognise 37.3 m · Identify 18.7 m |
| Min. Illumination |
Colour: 0.003 lux @ F1.0 · B/W: 0.0003 lux · 0 lux (Illuminator on) |
| S/N Ratio |
> 56 dB |
| Dynamic Range |
120 dB True WDR |
| Day & Night |
Auto (ICR) / Colour / B&W |
| Illuminators |
2 × IR LED up to 50 m · 2 × Warm-light LED up to 40 m · Smart Dual-Light auto switching |
| Image Enhancement |
3D NR · HLC · BLC · Defog · AI SSA · Smart Illumination · EIS (Electronic Image Stabilisation) · Image Rotation |
| Active Deterrence |
Red/blue flashing warning lights · Built-in siren · Voice broadcast (custom audio supported) |
| Intelligent Video |
AcuPick · SMD 4.0 · IVS (Tripwire, Intrusion · human/vehicle classification) · AI SSA · Smart Search |
| Video Compression |
AI H.265 · AI H.264 · Smart H.265+ · Smart H.264+ · H.265 · H.264 · MJPEG (sub-stream) |
| AI Coding |
≥25% additional compression efficiency |
| Streaming |
3 streams — Main 3072×2048 · Sub 704×576 · Third 1920×1080 |
| Video Bitrate |
H.264 / H.265: 3 kbps – 16,384 kbps |
| Audio Compression |
G.711a · G.711Mu · G.726 · G.723 · PCM (Two-Way Audio) |
| IP Camera Protocol |
ONVIF Profile S/G/T · CGI · P2P · RTMP |
| Network Protocols |
IPv4/v6 · HTTP/HTTPS · TCP/UDP · RTP/RTSP/RTCP/RTMP · SMTP · FTP/SFTP · DHCP · DDNS · UPnP · NTP · ICMP · IGMP · NFS · PPPoE · SNMP · 802.1x |
| Cyber Security |
Trusted boot · Trusted execution · Trusted upgrade · HTTPS · 802.1x · IP/MAC filtering · X.509 import · syslog · video/firmware/config encryption · account lockout |
| Ethernet |
RJ-45 (10/100BASE-T) |
| Alarm I/O |
1 alarm in (wet contact) · 1 alarm out (wet contact) |
| Audio I/O |
Dual built-in MIC · 1-channel built-in speaker · 1 × RCA in / 1 × RCA out |
| Edge Storage |
MicroSD up to 512 GB · NAS · FTP / SFTP |
| Weatherproof Rating |
IP67 |
| Operating Temperature |
−30 °C to +60 °C · ≤ 95% RH |
| Power Source |
12 V DC · PoE (IEEE 802.3af) · ±30% wide voltage |
| Power Consumption |
Basic 4.5 W (12 V DC) / 5.8 W (PoE) · Max 10.3 W (12 V DC) / 12.1 W (PoE)
|
| Memory |
ROM 256 MB · RAM 2 GB
|
| Mobile App |
DMSS · Smart PSS Lite · DSS (iOS & Android) |
| Approvals |
CE-LVD (EN 62368-1) · CE-EMC 2014/30/EU |
| Housing |
Metal · White or Black |
| Dimensions |
127.6 mm × Φ 122.0 mm |
| Weight |
0.885 kg (net) · 1.060 kg (gross) |
| Warranty |
3-Year Australian Warranty (back-to-base) |
3649H-ZAS (Motorised) vs 3649H-AS (Fixed) — Which 6MP TiOC Should You Choose?
Both cameras share the same chassis, the same TiOC 3.0 deterrence chain, the same AcuPick AI and the same Smart Dual-Light system. The deciding question is the lens: do you need a single fixed field of view, or the flexibility to zoom in remotely? If the site has long sightlines, changing conditions, or you want one camera to cover both wide approach and high-zoom evidence, choose the ZAS. If you only need a fixed 97° wide view and the budget is tight, the fixed-lens 3649 is the cheaper pick.
Dahua 3649H-ZAS-PV-ANZ-S2 vs 3649H-AS-PV-ANZ-S2
Compatible Mounts & Accessories
Dahua PFA137 Waterproof Junction Box
Recessed IP66 junction box for clean cable concealment on exposed brick, render or weatherboard. Available in white and black to match the camera. View product →
Dahua PFB205W-E Wall Mount Bracket
Purpose-built wall arm for soffit, eave and external wall mounting. Available in white and black. View product →
Dahua PFA109 Mount Adapter
Required adapter to fit the 3649H ZAS turret onto Dahua wall and pole brackets. View product →
Dahua PFB220C Ceiling Mount
Drop-down ceiling bracket for retail awnings, undercover car parks and warehouse interiors. View product →
Dahua PFA152-E Pole Mount
Heavy-duty pole bracket for fence posts, light poles and gate columns. Pairs with PFB205W-E and PFA137. View product →
WD Purple 256 GB Surveillance MicroSD Card
Western Digital Purple — purpose-built for 24/7 surveillance read/write cycles, far longer endurance than consumer microSD cards. The recommended edge-recording card for Dahua TiOC motorised vari-focal turrets. View WD Purple 256 GB →
Frequently Asked Questions
What does the "Z" in 3649H-ZAS mean?
"Z" stands for motorised zoom — this is the motorised vari-focal lens version of the 6MP TiOC 3.0 line. The fixed-lens equivalent is the 3649H-AS-PV-ANZ-S2. Both share the same chassis, AcuPick AI, TiOC 3.0 deterrence and Smart Dual-Light; the ZAS adds a 2.7–13.5 mm zoom lens with auto-focus you can drive remotely.
Is the motorised vari-focal version worth the extra cost?
If the site has long sightlines (driveways, perimeters, carparks) or if field-of-view requirements are likely to change (new fences, vegetation, signage), yes — the ability to remotely re-zoom from the app saves a service call every time. For a fixed shop entrance or a narrow doorway, the fixed-lens 3649 is the cheaper choice.
Why pick the 6MP ZAS over the 8MP ZAS?
Two reasons. First, cheaper storage — 6MP files are about 30% smaller than 4K, so the same NVR drive holds more days of footage. Second, the 6MP ZAS uses a 3:2 aspect ratio (3072 × 2048) rather than 16:9 — giving more vertical pixels, useful for tall scenes like doorways and narrow passages. If you don't need 4K-level zoom-in capability, the 6MP ZAS often makes more sense.
Can the camera pan and tilt remotely too, or just zoom?
The 3649H-ZAS is a motorised vari-focal turret, not a PTZ. The lens supports remote zoom and auto-focus, but the camera body itself does not pan or tilt remotely — the housing is aimed manually at install time. For a fully remote pan/tilt/zoom camera, look at a Dahua PTZ.
Do I need a special NVR for AcuPick?
Yes — AcuPick target search requires a compatible Dahua 5-Series AcuPick NVR. The TiOC 3.0 deterrence chain, SMD 4.0, IVS and two-way audio all work on any Dahua AI NVR. Shop AcuPick NVRs here →
How much PoE budget does this camera need?
The ZAS draws a maximum of 12.1 W on PoE when the motor, strobe, siren and warm light are simultaneously active — well within the 802.3af PoE budget of 15.4 W. Most installs sit at 5–6 W in normal operation. Make sure your PoE switch budgets for the peak, especially on multi-camera switches.
Will the camera deter intruders automatically?
Yes. The TiOC 3.0 deterrence chain fires the instant SMD 4.0 confirms a human or vehicle inside the rule zone — strobe lights, siren and voice broadcast all run on-camera, 24/7, without any operator, NVR command or mobile-app interaction.
What is the difference between the White and Black versions?
Specifications are identical. DH-IPC-HDW3649H-ZAS-PV-ANZ-S2 is white; DH-IPC-HDW3649H-ZAS-PV-ANZ-S2-BLK is black. Choose black for dark eaves and charcoal fascia; white for traditional cream/render walls.
Will it keep recording if the NVR or internet goes down?
Yes. The on-board MicroSD slot accepts cards up to 512 GB and records 6MP footage independently of the NVR. Combined with DMSS cloud push notifications, you have three redundant recording paths: NVR, MicroSD and event clips to your phone.
Is the camera suitable for Australian outdoor conditions?
Yes. It is rated IP67 and −30 °C to +60 °C — comfortably covering every Australian climate from a Hobart winter to a Karratha summer. The metal housing and ±30% wide-voltage tolerance also handle dirty mains power common on rural sites.
Does it work with Hikvision NVRs or third-party VMS?
Basic recording, streaming and motion work over ONVIF Profile S/G/T on most third-party NVRs and VMS platforms (Milestone, Genetec, Hanwha WAVE, ExacqVision, Blue Iris, Synology). However, TiOC deterrence, AcuPick, SMD 4.0 and two-way audio require a Dahua NVR or DMSS to be triggered correctly.
What is the warranty and where is it serviced?
This camera ships with a 3-year Australian Dahua warranty, serviced back-to-base by Dahua Australia. CCTV Guru handles the entire RA process and provides Australian-based technical support for the life of the product.
