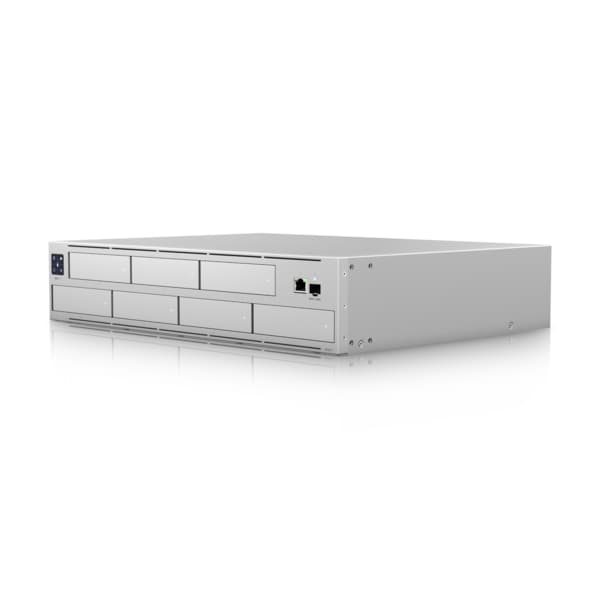

7 × HDD/SSD Bays — Up to 60 Days Retention
Install up to seven 2.5″ or 3.5″ SATA drives for massive local storage capacity — enough for up to 60 days of continuous footage from 20 × 4K cameras or 60 × Full HD cameras.
RAID 1 / 5 / 10 Data Protection
Flexible RAID configurations protect your recordings against drive failure — RAID 1 for mirroring, RAID 5 for capacity-efficient redundancy, or RAID 10 for maximum performance and protection.

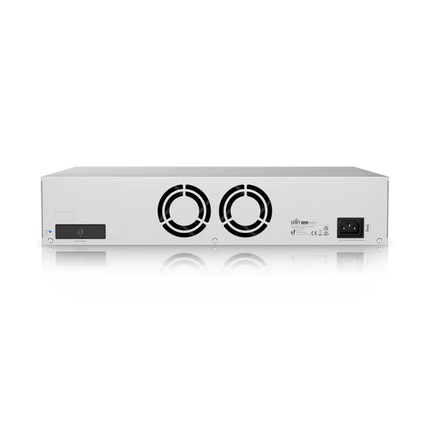

10G SFP+ Uplink
A 10-Gigabit SFP+ port handles the full bandwidth of 20 simultaneous 4K camera streams — essential for large enterprise deployments with high-resolution cameras.
1.3″ Built-in Touchscreen
Monitor system status, storage health, and network information directly on the unit via the built-in touchscreen — no PC or app required for on-site diagnostics.
Gigabit RJ45 Uplink
An additional Gigabit RJ45 port provides flexible connectivity for standard network infrastructure alongside the 10G SFP+ port.
Power Redundancy — USP-RPS Compatible
Connect the optional Ubiquiti USP-RPS Power Backup for enhanced power redundancy — keeping your surveillance system running during power outages or PSU failure.
UniFi Protect Pre-Installed
Ships with UniFi Protect pre-installed and ready to adopt cameras immediately — no separate software licence, no subscription, no cloud dependency.
NDAA Compliant
Fully NDAA Section 889 compliant for government, defence, and security-sensitive installations where supply-chain integrity is a requirement.
UNVR Pro Unit
7-bay 2U rack-mount NVR with UniFi Protect pre-installed.
Rack Mount Hardware
Rack-mount brackets, screws, and power cord included.
Quick-Start Guide
Installation guide and documentation included.
Not Included
HDDs/SSDs, cameras, and USP-RPS power backup are sold separately.
Does the UNVR Pro require a UniFi Protect subscription?
No. UniFi Protect comes pre-installed and runs fully locally. There are no monthly fees, no cloud subscription, and no data leaving your premises.
What hard drives are compatible?
Any compatible 2.5″ or 3.5″ SATA HDD or SSD. Ubiquiti recommends surveillance-grade drives such as WD Purple Pro or Seagate SkyHawk AI. Check Ubiquiti's HDD compatibility list before purchasing.
What RAID modes are supported?
RAID 1 (mirroring), RAID 5 (distributed parity), and RAID 10 (striped mirrors) are all supported — configurable through the UniFi Protect interface.
What's the difference between the UNVR and UNVR Pro?
The UNVR has 4 HDD bays and supports up to 15 × 4K cameras. The UNVR Pro has 7 HDD/SSD bays, RAID 1/5/10, a 1.3″ touchscreen, and supports up to 20 × 4K or 60 × HD cameras — designed for the most demanding enterprise deployments.
Does it support power redundancy?
Yes. The UNVR Pro is compatible with the Ubiquiti USP-RPS Power Backup unit for enhanced power redundancy — keeping your system running during power outages or PSU failure.
Is the UNVR Pro NDAA compliant?
Yes. Ubiquiti is a US-based manufacturer and the UNVR Pro is NDAA Section 889 compliant — suitable for government and security-sensitive sites.
