IDIS 4K UHD FIXED SERIES · NDAA & TAA COMPLIANT
Ultra HD 4K Forensic Precision Shielded by Ruggedized Structural Protection

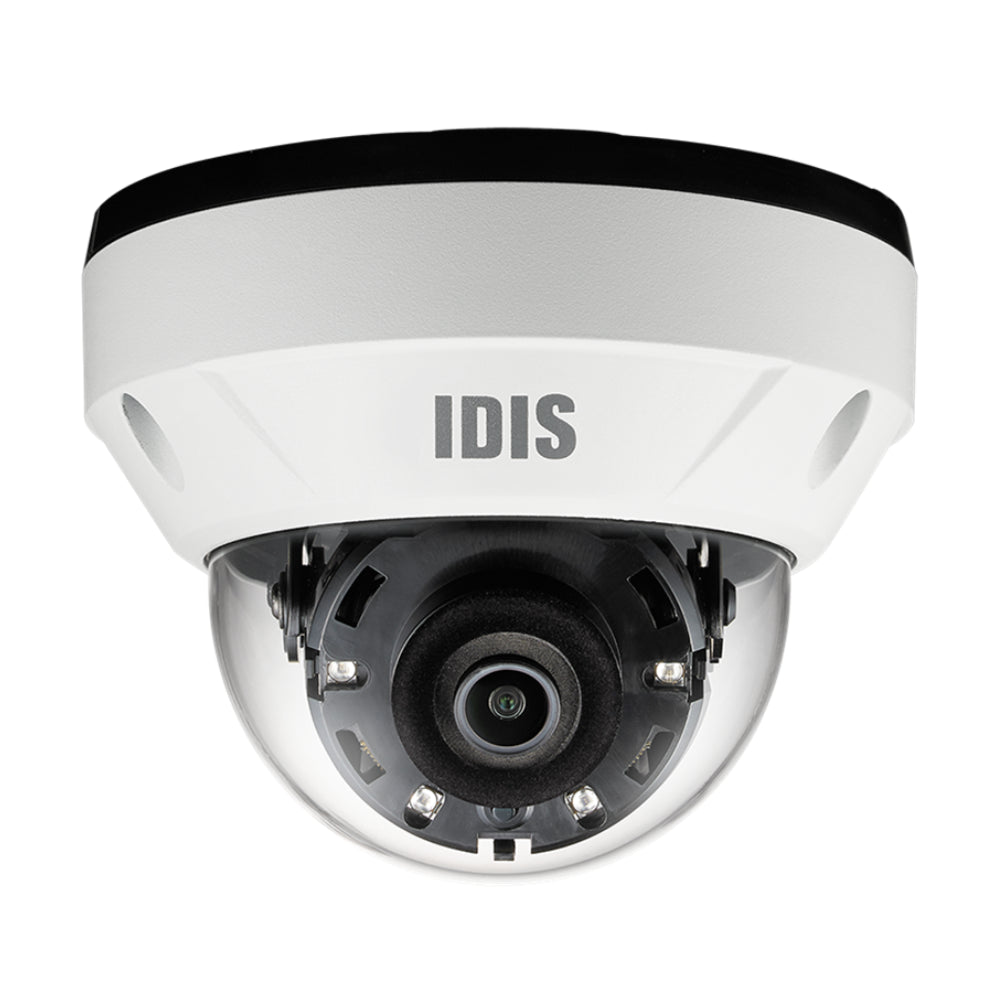

The IDIS DC-D4811WRX delivers pristine 8MP Ultra High Definition (4K UHD) surveillance clarity, providing businesses with a dense pixel matrix designed for flawless forensic zoom and tracking. Engineered with a wide-angle 3.3mm fixed-focal lens, this heavy-duty network endpoint captures sweeping peripheral coverage across critical entry gates, shipping ports, and retail floors. Fully vetted under rigorous NDAA and TAA compliance guidelines, its secure hardware core guarantees an uncompromised, defense-grade installation that satisfies federal regulations, public sector security audits, and global enterprise standards.
Resolution
8MP 4K UHD (3840x2160)
Optics Setup
3.3mm Wide Fixed Lens
Night Vision
30m Smart Adaptive IR
Protection
IP67 & IK10 Armor
Comprehensive 3-Axis Mechanics & Advanced Bandwidth Savings
The camera features a versatile 3-axis mechanical gimbal, allowing for flawless ceiling, angled-wall, or sloped surface orientation without distortion or awkward framing limits. It features an advanced 120dB True Wide Dynamic Range (WDR) processing core that instantly offsets extreme backlighting, eliminating the dark silhouettes often caused by glass vestibules and blinding afternoon sun. Leveraging premium H.265 compression alongside proprietary IDIS Intelligent Codec parameters, the DC-D4811WRX minimizes storage requirements by up to 90%, preserving deep data archives without overtaxing server drives. To integrate an optimized, long-term security configuration, combine this device with our fully compliant IDIS systems ecosystem.
True DirectIP Zero-Config Integration
Operating over the specialized IDIS DirectIP network standard, this 4K dome camera establishes rapid plug-and-play installation. Central recorders automatically discover and balance the device instantly upon connection, removing complex manual port-forwarding steps and closing corporate network structural vulnerabilities.
Smart Failover Storage Safeguard
Insulate critical evidentiary timelines against sudden network failures and communication dropouts. If a link breakage occurs, the camera diverts high-resolution data straight onto its built-in MicroSD card slot. Once the primary network automatically re-establishes connection, the data smoothly resynchronizes with the central archive.
Technical Specification Matrix
| Camera Model |
DC-D4811WRX |
| Optics Architecture |
Ultra HD 4K Wide-Angle Fixed Performance Core |
| Image Sensor |
1/2.8" Progressive Scan CMOS Sensor |
| Max. Resolution |
3840 x 2160 (8MP @ 30ips / 15ips with WDR Active) |
| Lens Configuration |
Fixed-Focal f=3.3mm / F2.0 Fixed Iris |
| Angular Field of View |
101.3° (Horizontal) / 54.5° (Vertical) / 119.7° (Diagonal) |
| Smart IR Array |
Up to 30 Meters (98.4 Feet) with 4 Adaptive IR Intensity LEDs |
| Wide Dynamic Range |
True WDR Processing Core (120dB) |
| Audio & Alarm I/O |
Two-Way Audio Support (1 In / 1 Out) | Alarm (1 In / 1 Out) |
| Environmental Armor |
IP67 Weatherproof Shield / IK10 Vandal-Resistant Enclosure |
| Streaming Profiles |
H.265, H.264 (Main Profile), M-JPEG Quadruple Stream |
| Power Architecture |
Power over Ethernet (PoE) IEEE 802.3af (Class 3), Max. 9.0W |
What spatial coverage advantages does the 3.3mm lens choice offer?
A 3.3mm fixed lens provides an expansive 101.3-degree horizontal field of view. Combined with a high-density 4K sensor, this camera captures wide-angle overviews while retaining the granular pixel density needed to digitally zoom in and identify license plates or facial features across large open spaces.
Does this model feature true hardware resistance to outdoor weather and impacts?
Yes. The DC-D4811WRX carries an IP67 weatherproof rating, meaning it is completely impervious to blowing dust and high-pressure storm deluges. It is also encased in a reinforced IK10-rated vandal-proof cast-aluminum body, which is tested to withstand kinetic impacts up to 20 joules.
Is the DC-D4811WRX certified for corporate and federal security infrastructure?
Absolutely. This security endpoint is fully compliant with both the National Defense Authorization Act (NDAA) and Trade Agreements Act (TAA). It does not contain chips or software components from restricted or blacklisted telecom manufacturers, making it fully approved for high-compliance government deployments.

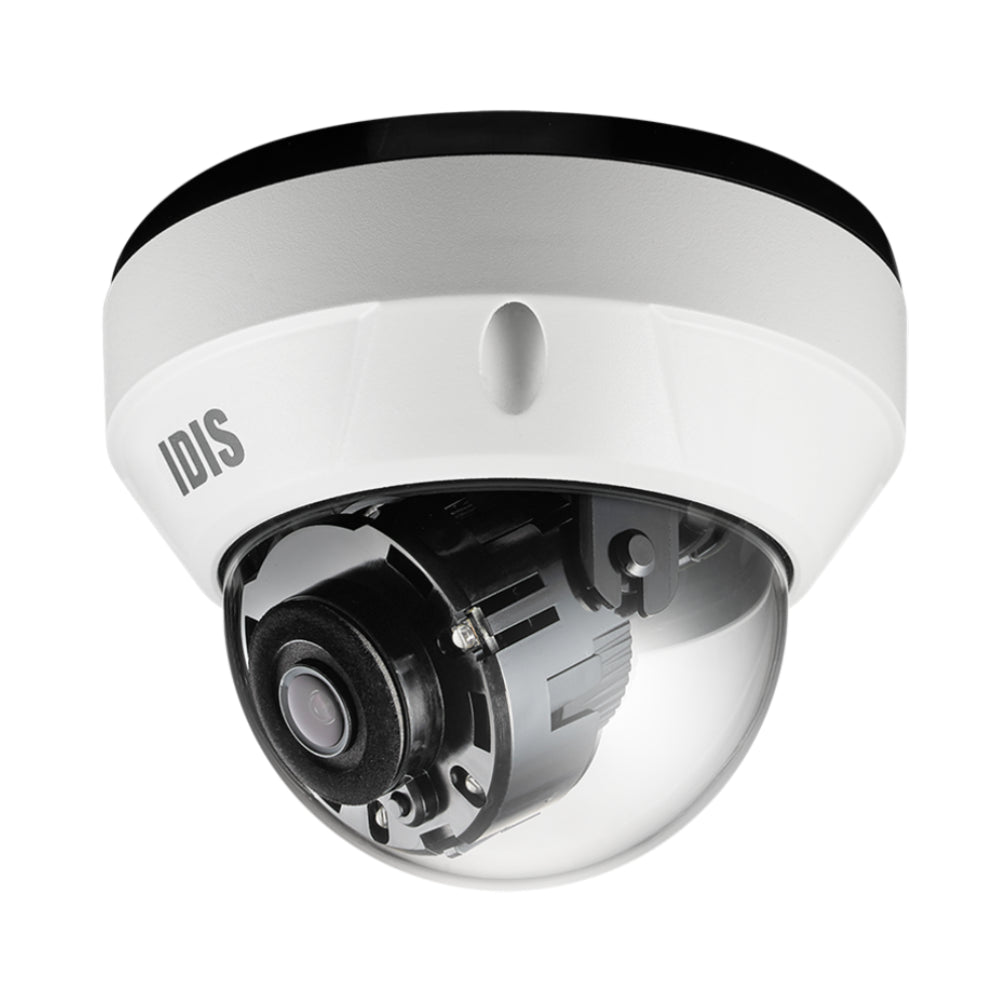

How does the integrated 3-axis gimbal mechanism assist during installation?
A 3-axis mechanical gimbal lets installers adjust the internal camera lens across pan (-170° to +170°), tilt (-5° to +67.5°), and rotation (-109° to +109°) angles independently. This gives you the flexibility to install the camera flush on flat ceilings, vertical walls, or sloped rafters while maintaining perfectly leveled images.
