IDIS D4536 SERIES · NDAA & TAA COMPLIANT
Low-Profile 5MP Indoor Surveillance with Motorized Focus Control

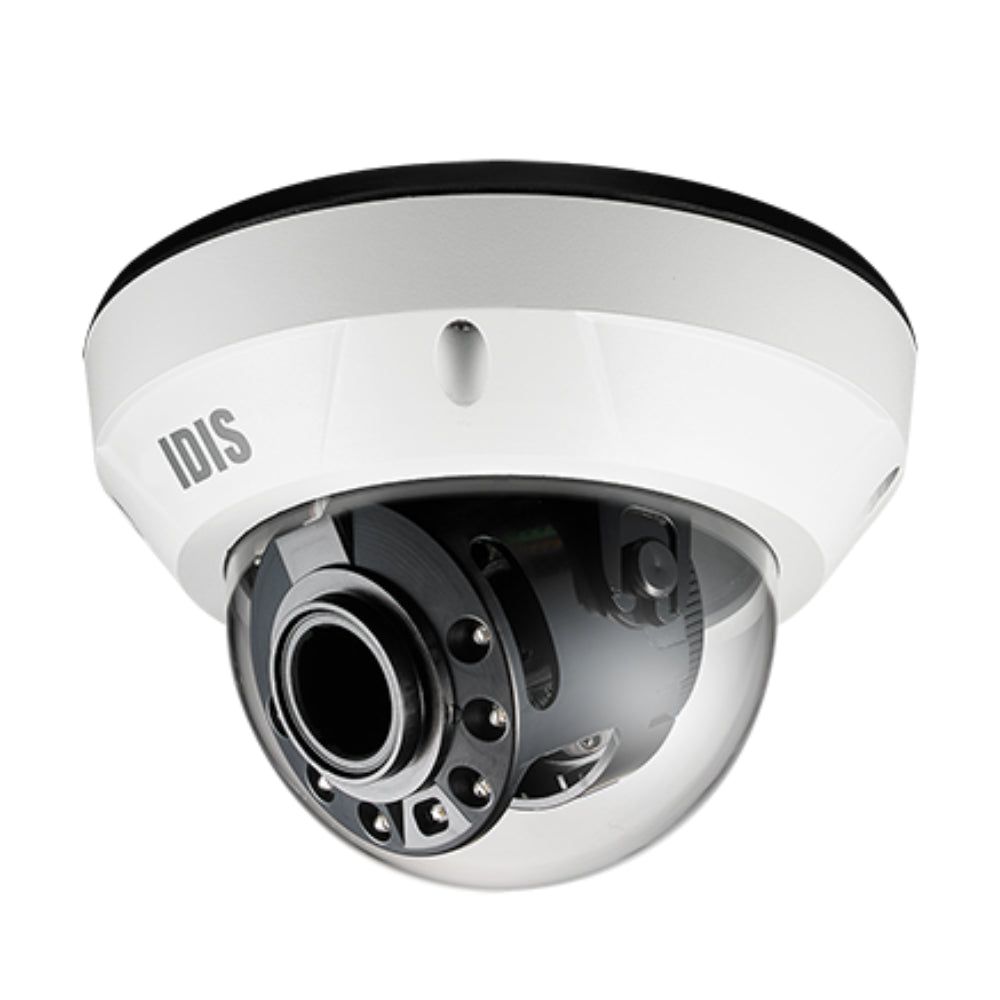

The IDIS DC-D4536HRX delivers premium, high-density 5MP video capture packed into a sleek, low-profile flush-mount architecture. Specially optimized for architectural environments where security hardware must blend seamlessly with interior design, this indoor dome sets into ceilings with absolute discretion. By meeting rigorous federal procurement standards, this professional network endpoint guarantees compliance with global NDAA and TAA tracking mandates—meaning zero components from untrusted or blacklisted suppliers, providing complete corporate and cybersecurity peace of mind.
Resolution
5MP High-Density
Optics
Motorized Varifocal
Night Vision
Adaptive Smart IR
Mounting
In-Ceiling Flush
Variable Optical Coverage & Dynamic Compression Balancing
Unlike fixed-lens options that restrict installation flexibility, this camera boasts a motorized varifocal lens mechanism. Users can easily manipulate fields of view and execute precise focus adjustment parameters directly via the network interface, eliminating manual ladder-tuning on the floor. Built-in True Wide Dynamic Range (WDR) core optimization clears away heavy light contrasts, effortlessly managing indoor shadows or stark glass storefront backlighting. Powered by H.265 Intelligent Codec streaming algorithms, storage requirements drop by up to 90% without compromising forensic pixel clarity. To build a unified secure perimeter, match this unit alongside our fully compliant IDIS systems ecosystem.
Seamless DirectIP Plug-and-Play
Running natively on the proprietary IDIS DirectIP architecture, this unit completely eliminates complex IP setup routines. Interconnected network frameworks instantly identify, match, and secure the device without tedious manual sorting, closing up vulnerabilities while minimizing active deployment hours for tech crews.
Onboard Smart Failover Backup
Mitigate the threat of communication loss during critical security events. The camera leverages its onboard MicroSD card expansion slot to activate immediate local data backup tracking if a physical link break occurs. When core network connectivity normalizes, the buffered video database automatically reconciles back to the central storage array.
Technical Specification Matrix
| Camera Model |
DC-D4536HRX |
| Image Sensor |
1/2.8" Progressive Scan CMOS |
| Max. Resolution |
2592 x 1944 (5MP @ 30ips) |
| Lens Configuration |
Motorized Varifocal (f=3.0mm to 13.5mm) / F1.4 to F3.2 |
| Angular Field of View |
Horizontal: 93.3° (Wide) to 28.5° (Tele) / Vertical: 68.6° to 21.4° |
| Smart IR Night Vision |
High-Performance Adaptive LEDs / Up to 20 Meters (65.6 Feet) |
| Wide Dynamic Range |
True WDR Processing Core (120dB) |
| Form Factor Housing |
Architectural Flush-Mount In-Ceiling / Indoor Profile |
| Streaming Profiles |
H.265, H.264 (Main Profile), M-JPEG Quadruple Stream |
| Power Input |
Power over Ethernet (PoE) IEEE 802.3af (Class 3) |
What are the design and aesthetic advantages of an indoor flush-mount camera?
Standard surface-mounted dome housings project outwards from structural walls and ceiling grids, which can disrupt smooth architectural design profiles. The DC-D4536HRX features a flush-mount chassis that embeds directly into standard drop ceilings or plasterboard, exposing only the lower camera face for ultra-discreet, non-intrusive surveillance tracking.
How does the motorized varifocal lens improve day-to-day configuration tasks?
Instead of requiring technicians to climb ladders to adjust manual zoom rings, this camera features internal motorized focal mechanics. Optical depth adjustments, field of view changes, and focus sharpening calibrations can be handled directly via remote NVR or VMS interfaces, saving valuable service time.
Is this model fully certified for sensitive defense and banking infrastructure?
Yes. This product is fully NDAA and TAA compliant. It completely avoids microchips, chipsets, or software frameworks from prohibited security vendors, satisfying strict compliance protocols for financial, government, and corporate networks.
Does this in-ceiling device require separate power line drops?
No. It functions utilizing standard Power over Ethernet (PoE Class 3) infrastructure. Both central system telemetry and device operational electricity flow cleanly over a single category networking run, lowering structural installation costs.
