IDIS D4517 SERIES · NDAA & TAA COMPLIANT
High-Density 5MP Clarity for Uncompromised Enterprise Interior Monitoring

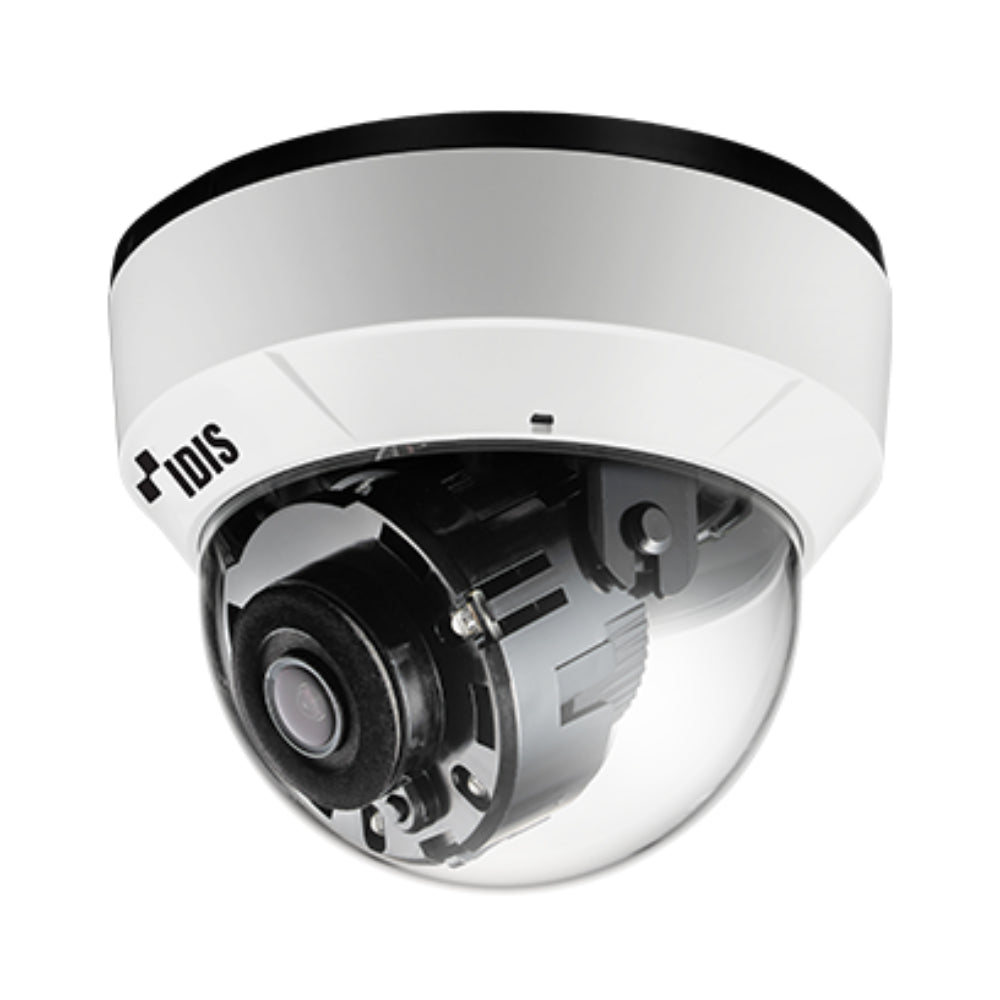

The IDIS DC-D4517RX brings exceptional high-density resolution to the interior perimeter, delivering sharp 5MP surveillance feeds designed to capture critical forensic data. Expressly built to align with stringent government cyber-security frameworks, this sleek and low-profile dome camera is an ideal endpoint for banking halls, corporate offices, asset vaults, and luxury retail floors. By completely excluding high-risk or blacklisted microchips, IDIS delivers elite network defense paired with uncompromised processing precision.
Resolution
5MP High-Density
Night Vision
Smart IR Illumination
Dynamic Range
True WDR Engine
Wide-Angle Context & High-Efficiency Stream Optimization
Outfitted with an advanced 2.8mm fixed lens, this unit delivers an expansive field of view designed to monitor entire rooms with minimal hardware footprints. Integrated True Wide Dynamic Range (WDR) allows the imaging core to balance extreme backlighting, eliminating dark shadows when positioned near glass atriums or bright indoor entryways. Operating smoothly under an advanced H.265 Intelligent Codec framework, it optimizes network resources by reducing active storage and bandwidth consumption by up to 90%. Build out a cohesive and trusted physical security framework by exploring the rest of our IDIS security lineup.
Seamless DirectIP 2.0 Integration
By leveraging the power of the proprietary IDIS DirectIP framework, this system provides true zero-configuration deployment. It automates device onboarding, sets secure data paths, and eliminates the cybersecurity flaws linked with traditional manual IP configurations and open-port management.
Onboard Smart Failover Backup
Protect your facility against network dropouts with a built-in MicroSD slot that acts as a secure storage buffer. If communication with the central NVR is broken, the camera writes video directly to local media, restoring and syncing the footage back to the database the moment the link recovers.
Technical Specification Matrix
| Camera Model |
DC-D4517RX |
| Image Sensor |
1/2.8" Progressive Scan CMOS |
| Max. Resolution |
2592 x 1944 (5MP @ 30ips) |
| Lens / Focal Length |
2.8mm Fixed-focal Lens / F2.0 Fixed Iris |
| Day & Night Operation |
True Day & Night with IR-Cut Filter |
| Wide Dynamic Range |
True WDR Processing |
| Streaming Codec |
H.265, H.264 (Main Profile), M-JPEG |
| Failover Edge Memory |
MicroSD / SDHC / SDXC Slot up to 512GB |
| Power Requirement |
Power over Ethernet (PoE) IEEE 802.3af (Class 2) |
What coverage advantages does a 5MP 2.8mm fixed lens provide?
The combination of a high-density 5MP sensor and a 2.8mm ultra-wide optic delivers extensive room coverage. This lets you monitor large rooms wall-to-wall while retaining enough digital zoom capability to identify details far from the camera position.
Is the IDIS DC-D4517RX approved for government facilities?
Yes, this network asset is fully NDAA and TAA compliant. It contains absolutely zero blacklisted components or sub-assembly microchips, meaning it meets all strict defense and federal contract requirements.
Does this model require local external power or a dedicated power supply?
No. It runs entirely on Power over Ethernet (PoE Class 2). It draws all operational power and carries data through a single standard RJ45 Ethernet run, cutting down on installation time and reducing infrastructure clutter.
Can I connect this camera to an ONVIF-supported non-IDIS network?
Yes. While it is fully optimized for the proprietary DirectIP framework, it supports ONVIF Profiles S and T. This allows it to easily integrate with third-party network video recorders and enterprise video management systems (VMS).
