IDIS D4516 SERIES · NDAA & TAA COMPLIANT
Rugged 5MP High-Density Security for Perimeter Protection

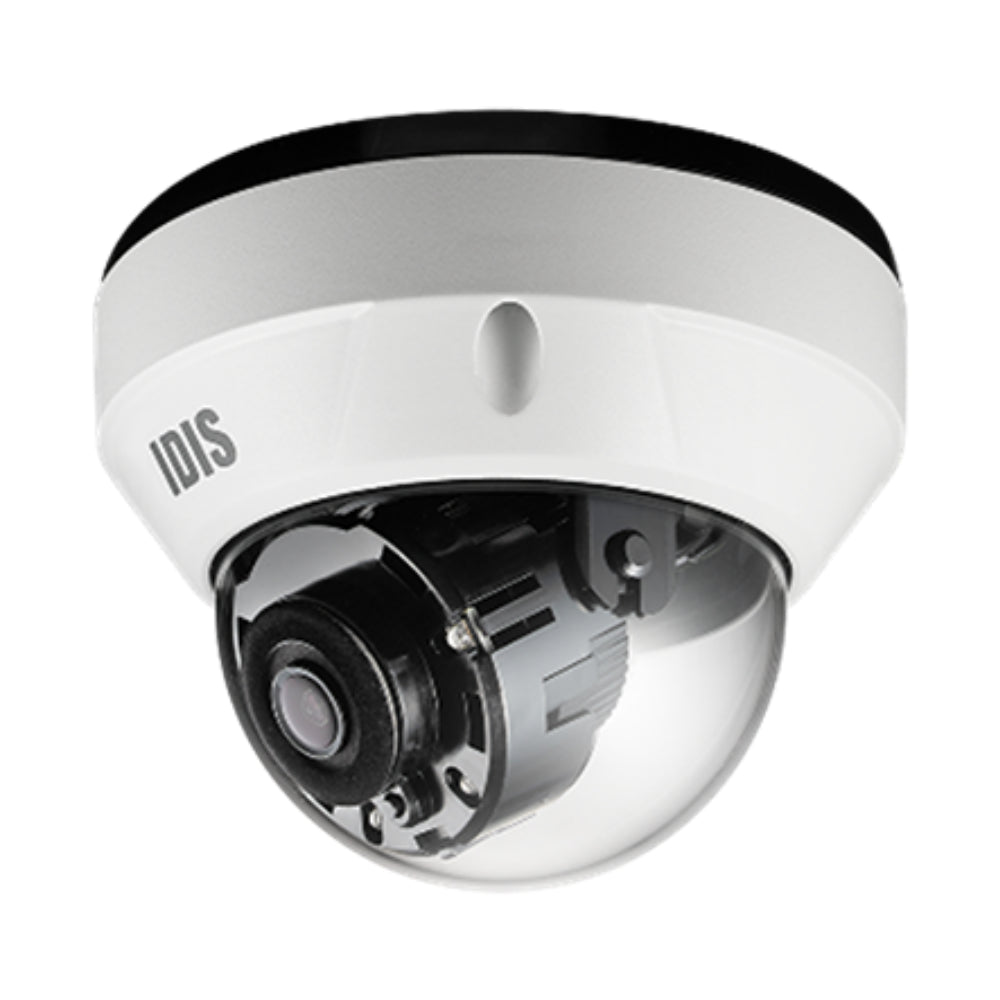

The IDIS DC-D4516WRX delivers heavy-duty environmental armor paired with high-density optics, providing exceptionally clear 5MP surveillance profiles across vulnerable points of interest. Explicitly designed to adhere to strict international defense procurement rules, this professional network camera stands up to heavy physical impacts and severe environmental stressors. By abandoning components sourced from restricted or blacklisted tech firms, IDIS guarantees ironclad cyber-resilience alongside outstanding structural durability for government sites, corporate logistics yards, and transit platforms.
Resolution
5MP High-Density
Night Vision
30m Smart IR LED
Protection
IP67 & IK10 Rated
Uncompromising Low-Light Vision & Advanced Stream Optimization
Equipped with a wide-angle 2.8mm lens, this camera covers an expansive sector with a single device deployment. Built-in True Wide Dynamic Range (WDR) processing clears away contrasting glare, balancing overexposed outdoor environments and dark entry recesses with absolute precision. Utilizing an advanced H.265 Intelligent Codec compression framework, it minimizes data demands, allowing your storage servers to maintain peak resolution recording while slashing bandwidth allocation down by up to 90%. To secure all angles of your facility, deploy this hardware seamlessly alongside our compliant IDIS security lineup.
True Zero-Config Integration
Operating natively over the IDIS proprietary DirectIP architecture, this endpoint provides complete plug-and-play installation simplicity. Network topologies automatically discover and isolate the hardware unit without painstaking manual IP tracking, closing off traditional cybersecurity entry points and minimizing installer time on site.
Onboard Smart Failover Safeguard
Protect valuable forensic tracking records against catastrophic system connection failures. If a physical network disconnect occurs, the camera uses its local MicroSD expansion slot to record video directly to internal storage. Once connection parameters restore, the data syncs back to the primary system storage without missing a second.
Technical Specification Matrix
| Camera Model |
DC-D4516WRX |
| Image Sensor |
1/2.8" Progressive Scan CMOS |
| Max. Resolution |
2592 x 1944 (5MP @ 30ips) |
| Lens Configuration |
2.8mm Fixed-focal Lens / F2.0 Iris |
| Smart IR Range |
Up to 30 Meters (98.4 Feet) with Adaptive LEDs |
| Wide Dynamic Range |
True WDR Processing Core |
| Weatherproof / Impact Rating |
IP67 Dust & Water Resistant / IK10 Vandal-Resistant |
| Streaming Profiles |
H.265, H.264 (Main Profile), M-JPEG Quadruple Stream |
| Power Input |
Power over Ethernet (PoE) IEEE 802.3af (Class 2) |
What coverage advantage does the 5MP 2.8mm combination bring to a facility?
The combination of a 5MP pixel-dense sensor with a wide 2.8mm focal profile allows a single device to capture wide perimeter context without suffering from pixelation. Security personnel can use digital zoom on captured clips to review small details cleanly.
Is the IDIS DC-D4516WRX approved for government applications?
Yes. This camera is fully NDAA and TAA compliant. It contains no components, microprocessors, or firmware sourced from prohibited security entities, passing all screening standards for state and federal networks.
Can this dome camera withstand intense sub-zero weather or direct rain?
Absolutely. It features a fully sealed IP67-rated weatherproof architecture that keeps out fine dust and heavy rain jets. Coupled with an IK10 vandal-resistant rating, it easily withstands physical strikes and harsh weather environments.
Does this model require a separate data or power drop?
No. It operates using standard Power over Ethernet (PoE Class 2) technology. All system data and operational electricity run securely through a single structural Category 5e or Category 6 Ethernet drop line.
