IDIS D4236 SERIES · NDAA & TAA COMPLIANT
Precision Focal Adaptation for Advanced Indoor Commercial Security

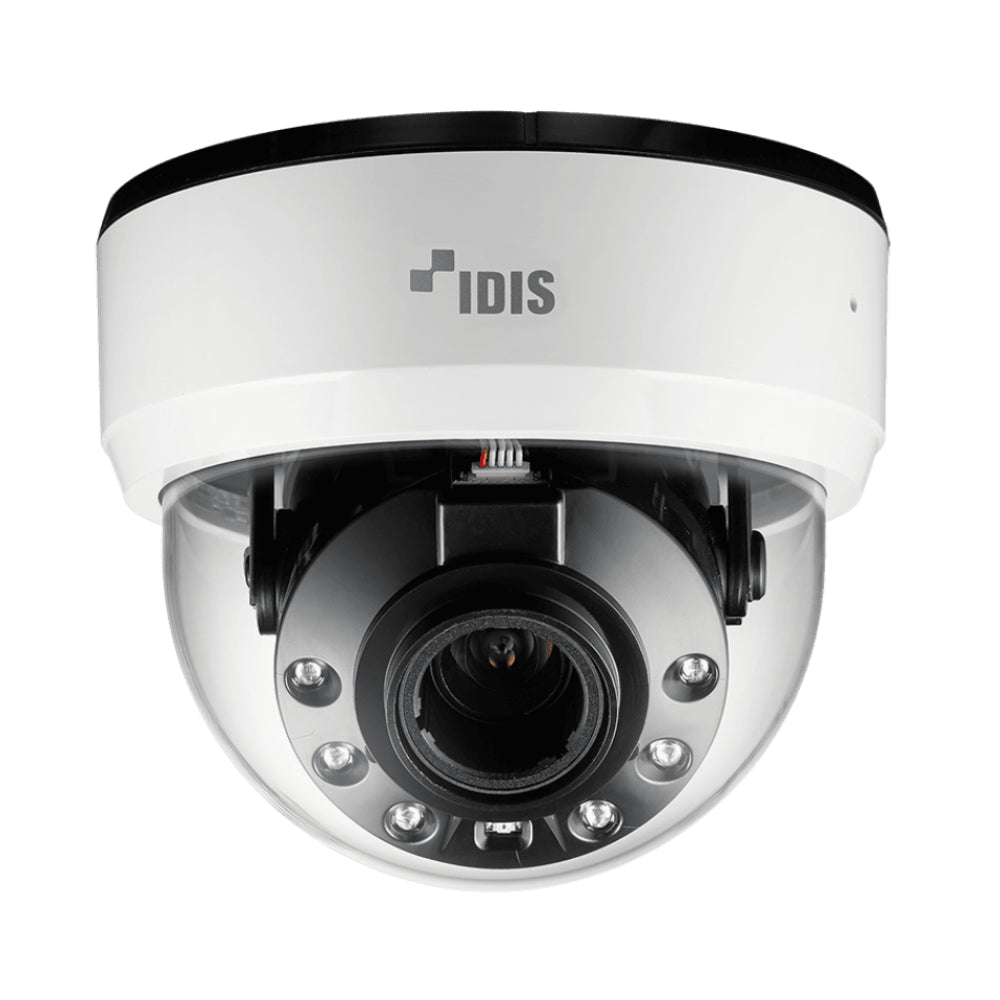

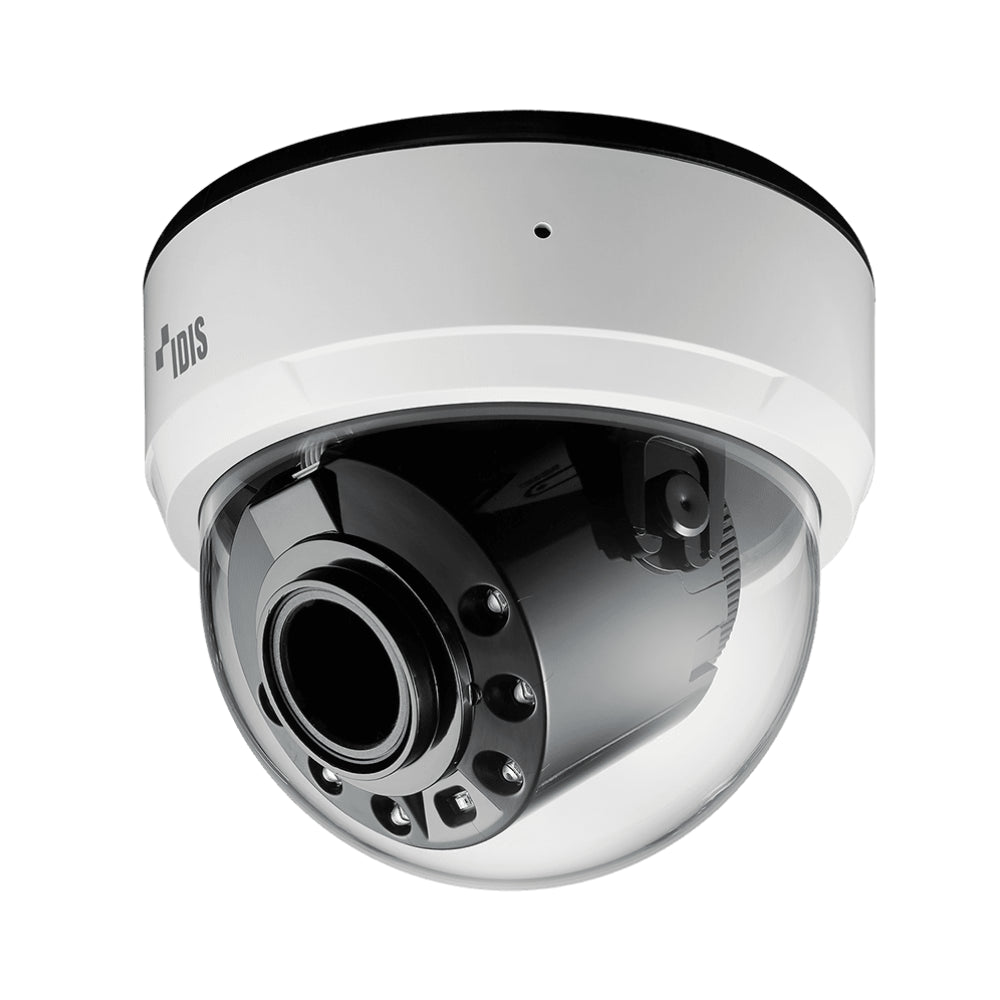

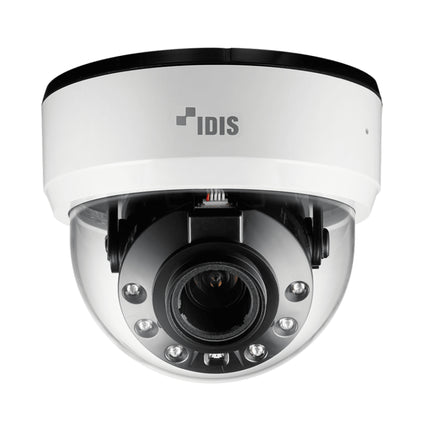

The IDIS DC-D4236RX balances high-definition visualization with architectural agility, delivering pristine 2MP Full HD (1080p) streams across a diverse range of enterprise environments. Explicitly engineered to satisfy rigid federal cyber-security compliance standards, this high-performance dome camera is an ideal hardware option for interior corporate offices, retail spaces, asset counting rooms, and public distribution corridors. By discarding restricted proprietary silicon and adopting a robust domestic-market network engine, IDIS delivers uninterrupted data protection combined with elite tracking precision.
Resolution
2MP Full HD (1080p)
Optics
2.8-12mm Motorized
Night Vision
30m Smart IR LED
Dynamic Range
120dB True WDR
Dynamic Zoom Capabilities & Proactive Edge Analytics
Engineered to eliminate blind spots across dynamic fields of view, this camera features an internal 2.8mm to 12mm motorized varifocal lens that allows technicians to manage zoom and focus settings remotely from a master console. Integrated with a 120dB True Wide Dynamic Range (WDR) processing algorithm, it automatically balances high-intensity glare streaming from windows without underexposing targets in shadowed entryways. To maximize structural scaling, integrate this network endpoint with our secure, compliant IDIS security lineup for comprehensive, full-stack enterprise recording reliability.
Motorized Zoom & Auto Focus Remote Management
Avoid the operational hazards and labor costs of manually adjusting lenses on physical ladders. The motorized system allows system administrators to refine focal metrics remotely over the network layer, shifting instantly from a wide-angle room overview to a highly tightened, detail-oriented telephoto view of cash registers or bottlenecks.
DirectIP Zero-Risk Network Architecture
Operating flawlessly over the proprietary IDIS DirectIP platform, this system provides a highly protected plug-and-play surveillance topology. It mitigates localized cybersecurity vulnerabilities by automating endpoint discovery, managing network isolation protocols, and removing manual IP configuration errors out of the setup equation.
Technical Specification Matrix
| Camera Model |
DC-D4236RX |
| Image Sensor |
1/2.8" Progressive Scan CMOS |
| Max. Resolution |
1920 x 1080 (Full HD @ 30ips) |
| Lens & Optical Zoom |
ƒ=2.8 - 12mm Motorized Varifocal / 4.3x Zoom |
| Angular Field of View |
Horizontal: 98.4° (Wide) ~ 31.2° (Tele) / Vertical: 52.3° ~ 17.6° |
| Dynamic Range |
120dB True WDR (Wide Dynamic Range) |
| Video Compression |
H.265, H.264 (Main Profile), M-JPEG |
| Local Memory Storage |
MicroSD / SDHC / SDXC Slot up to 512GB (Smart Failover) |
| Power over Ethernet |
PoE IEEE 802.3af (Class 2), Max 5.1W |
What are the clear benefits of a motorized varifocal lens over a standard fixed lens?
A motorized varifocal camera gives operators full post-installation flexibility. Instead of locked wide perspective lenses, the 2.8-12mm motorized optic framework allows operators to narrow down on tight paths, asset tables, or secure gates from afar without sacrificing visual detail.
Is the IDIS DC-D4236RX fully compliant for procurement within federal institutions?
Yes. This network asset is fully NDAA and TAA certified. It is compiled and assembled without blacklisted internal processing components or microchips, clearing it completely for government applications and federal agency networks.
How does Smart Failover protection prevent critical video data loss?
If local infrastructure experiences an unforeseen data drop or PoE switch reboot, the camera shifts its recorded stream directly onto its onboard MicroSD backup partition. Once standard network sync parameters restore, the lost video seamlessly reconciles back to the primary system recorder.
Can this indoor model be mounted onto walls or specialized drop ceilings?
Yes. The modular design easily supports flush surface installations directly out of the packaging. It also pairs perfectly with standard IDIS wall brackets, corner adapters, and drop-ceiling pendant mounts for customized institutional positioning.
