6MP · 2 All-in-One + 4 AcuSense Turrets · 8ch AI NVR
6MP 2+4 Camera Kit

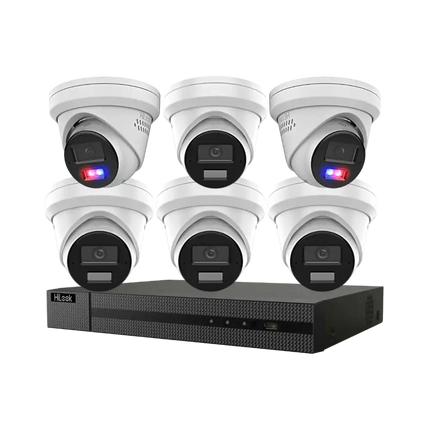

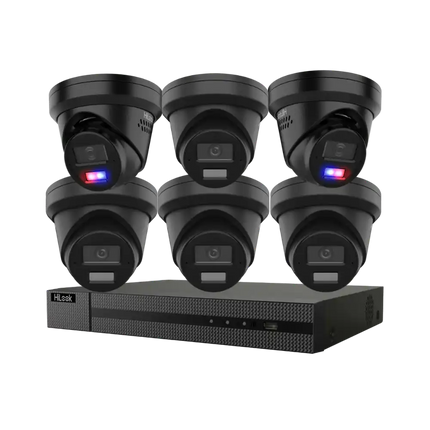

HiLook 6MP CCTV Kit — 2 All-in-One + 4 Standard AI Turrets, Australian Stock & 3-Year Warranty
This HiLook 6 MP kit combines two IPC-T269H-MU/SL all-in-one deterrence turrets — Smart Dual-Light, red & blue strobe and two-way audio — with four IPC-T361H-MU AcuSense AI turret cameras for crisp, around-the-clock cover, all recorded by an 8-channel NVR-108MH-C/8P(D) with 8 built-in PoE ports. Place the all-in-one cameras at your most vulnerable entry points for active deterrence, and the AcuSense turrets everywhere else for high-resolution detail with human/vehicle filtering. Backed by genuine Australian stock and a 3-year warranty.
Deterrence
2 × Strobe + Audio
Smart AI
AcuSense Person & Vehicle
PoE Ports
8 × Built-in PoE
Warranty
3-Year Australian
2 All-in-One Deterrence Turrets
The IPC-T269H-MU/SL cameras add Smart Dual-Light, a red & blue strobe, an audible alarm and two-way audio — ideal at front doors, gates and driveways where you want to warn intruders off live.
4 AcuSense AI Turrets
The IPC-T361H-MU cameras deliver sharp 6 MP detail with deep-learning human/vehicle classification and a built-in dual-microphone — perfect for general perimeter and area cover.
Smarter, Fewer False Alerts
AcuSense on the cameras plus Motion Detection 2.0 on the NVR filter out animals, rain and swaying foliage, so notifications and searches focus on real people and vehicles.
Plug-and-Play 8-Channel NVR
The NVR-108MH-C/8P(D) records all six cameras over its 8 built-in PoE ports, outputs true 4K over HDMI, and takes a single SATA HDD — no separate switch required.
What's Included
Kit Contents
| 2 × All-in-One Camera |
HiLook IPC-T269H-MU/SL — 6 MP all-in-one turret, Smart Dual-Light, red & blue strobe, two-way audio |
| 4 × Standard Camera |
HiLook IPC-T361H-MU — 6 MP AcuSense AI turret, dual-microphone, IR 30 m |
| 1 × Recorder |
HiLook NVR-108MH-C/8P(D) — 8-channel 4K NVR with 8 built-in PoE ports, Motion Detection 2.0 |
| Cabling & Mounts |
Mounting accessories for eaves installation included; brick-wall fixings sold separately |
| Hard Drive |
Surveillance HDD up to 8 TB (1 × SATA bay). Where an HDD variant is selected it is supplied but not pre-installed, ready to fit |
Best For
Family Homes
Deterrence at the entry points, detail everywhere else.
Retail & Shopfronts
Strobe and audio out front, AcuSense cover inside and around.
Offices & Clinics
Six-camera cover for entries, car parks and corridors.
Trades & Yards
Active deterrence at the gate to protect tools and stock.
Rural Properties
Human/vehicle AI cuts false alerts from livestock and wildlife.
Investment Property
Remote viewing and alerts via Hik-Connect from anywhere.
Camera Specifications
HiLook IPC-T269H-MU/SL — All-in-One (×2)
| Max. Resolution |
6 MP — 3200 × 1800 @ 25/30 fps |
| Lens |
Fixed 2.8 mm, F1.6 |
| Supplement Light |
Smart Dual-Light (IR + White Light) up to 30 m |
| Active Deterrence |
Red & blue strobe + audible alarm/siren |
| Two-Way Audio |
Built-in microphone + speaker (max 95 dB SPL) |
| Smart Detection |
Person & Vehicle detection, line crossing, tampering |
| Power / Rating |
PoE 802.3af or 12 VDC · IP67 · −30 °C to 60 °C |
HiLook IPC-T361H-MU — Standard AcuSense (×4)
| Max. Resolution |
6 MP — 3200 × 1800 @ 25/30 fps |
| Lens |
Fixed 2.8 mm, F1.6 |
| DORI (2.8 mm) |
Detect 76 m · Observe 30 m · Recognise 15 m · Identify 7 m |
| Night Vision |
Smart-controlled IR up to 30 m |
| Audio |
Built-in arrayed dual-microphone |
| AcuSense AI |
Human & vehicle classification, line crossing, intrusion |
| Power / Rating |
PoE 802.3af or 12 VDC · IP67 · −30 °C to 60 °C |
Recorder Specifications
HiLook NVR-108MH-C/8P(D) (×1)
| IP Video Input |
8-ch, up to 8 MP (4K) resolution |
| Incoming / Outgoing Bandwidth |
80 Mbps / 80 Mbps |
| Smart Analytics |
Motion Detection 2.0 — 4-ch human/vehicle analysis; camera-side VCA |
| Compression |
H.265+/H.265/H.264+/H.264 |
| PoE Ports |
8 × RJ-45 10/100 Mbps, IEEE 802.3af/at, total budget ≤ 75 W |
| HDMI / VGA Output |
HDMI up to 4K @ 30 Hz; VGA up to 1080p — simultaneous output |
| Storage |
1 × SATA, up to 8 TB |
| Remote Access |
Hik-Connect, iVMS-4200, HiLookVision |
How Much Footage Can It Hold?
Estimated Continuous Recording (6 × 6MP, H.265+)
| 2 TB |
≈ 10 days |
| 4 TB |
≈ 21 days |
| 6 TB |
≈ 31 days |
| 8 TB |
≈ 42 days |
Estimates assume all six cameras recording 24/7 at ~3 Mbps each with H.265+ compression. Real-world retention varies with scene activity, motion, frame rate and resolution settings — motion-only or schedule-based recording typically lasts far longer.
Installation Notes
- Place the two all-in-one cameras at your highest-risk entry points (front door, gate, driveway) so the strobe and audio do the most deterring.
- Each camera runs on a single Cat cable to one of the NVR's 8 PoE ports — no separate switch or power supplies needed (≤75 W total budget).
- Fit a surveillance-grade SATA HDD (up to 8 TB) before first use; where supplied it is not pre-installed, ready to fit.
Downloads & Resources
Frequently Asked Questions
What's in this kit?
Two HiLook IPC-T269H-MU/SL all-in-one deterrence turrets, four IPC-T361H-MU AcuSense AI turrets, and one 8-channel NVR-108MH-C/8P(D) with 8 built-in PoE ports.
What's the difference between the two camera types?
The all-in-one IPC-T269H-MU/SL adds Smart Dual-Light, a strobe, alarm and two-way audio for active deterrence; the IPC-T361H-MU is a standard AcuSense turret focused on sharp detail and human/vehicle AI.
Where should I put the all-in-one cameras?
At your highest-risk entry points — front door, gate or driveway — so the strobe and audio can warn intruders off live.
What is AcuSense?
HiLook's deep-learning engine that classifies people and vehicles, so motion from animals, rain and headlights no longer triggers nuisance alerts.
Do I need a separate PoE switch?
No. The NVR has 8 built-in PoE ports, so each camera runs on a single cable for both power and data (≤75 W total).
What hard drive does it take?
One SATA surveillance HDD up to 8 TB. Where an HDD variant is selected it is supplied but not pre-installed, ready to fit.
How long will recordings last?
Roughly 21 days on 4 TB or 42 days on 8 TB with all six cameras recording 24/7; motion-only recording lasts much longer.
Why choose 6 MP over 1080p?
6 MP gives around three times the pixels on target, so faces and number plates stay sharp when you zoom into recorded footage.
Will it cope with Australian weather?
Yes — all cameras are IP67 rated with a −30 °C to 60 °C operating range for full sun, dust and heavy rain.
How do I view it remotely?
Through the free Hik-Connect mobile app or the iVMS-4200 desktop client for live view, playback and notifications anywhere.
