HiLook · 4 × 6MP AI Turret · AcuSense + Dual-Mic Audio · 4-CH PoE NVR
4 × 6MP · 4-CH PoE Kit
HiLook 4× 6MP AI Turret CCTV Kit — Australian Stock & 3-Year Warranty

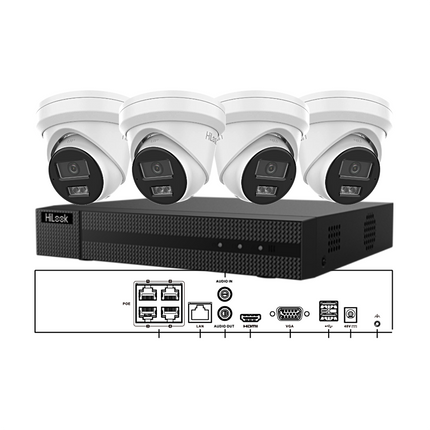

This complete four-camera kit pairs four HiLook IPC-T361H-MU 6 MP AcuSense AI turret cameras with the HiLook NVR-104MH-C/4P 4-channel 4K PoE recorder — everything you need to cover a home, shopfront, warehouse or small office out of one box. Each camera delivers 6 MP (3200 × 1800) detail, AcuSense human and vehicle classification to cut false alarms, a built-in arrayed dual-microphone for audio capture, and smart IR to 30 m for round-the-clock cover. The NVR's four built-in PoE ports power and connect all four cameras over a single Cat6 cable each. Need more channels? Choose the 8-channel NVR-108MH-C/8P variant for eight PoE ports and headroom to double your camera count later. Backed by genuine Australian stock and a 3-year warranty.
Cameras
4 × 6MP AI Turret
Resolution
6 MP · 3200 × 1800
Storage
1 SATA · up to 8 TB
AcuSense Human/Vehicle AI
The IPC-T361H-MU uses AcuSense to classify people and vehicles and trigger line-crossing and intrusion alerts — so you get notified about what matters and far fewer false alarms from trees, rain or animals.
Dual-Mic Audio
Each camera has a built-in arrayed dual-microphone, capturing clear on-scene audio alongside 6 MP video for richer evidence when you need it.
True PoE Plug & Play
All four cameras auto-discover on the NVR's built-in PoE ports over a single Cat6 cable each. No injectors, no IP addressing — most installs are running in under an hour.
4 or 8 Channel Choice
Start with the 4-channel NVR-104MH-C/4P, or pick the 8-channel NVR-108MH-C/8P variant for eight PoE ports and room to add four more HiLook cameras later.
What's Included
| 4 × Cameras |
IPC-T361H-MU — 6 MP AcuSense AI turret with dual-mic audio |
| 1 × Recorder |
NVR-104MH-C/4P — 4-channel 4K NVR with 4 built-in PoE ports (8-channel NVR-108MH-C/8P variant available) |
| Power |
Cameras powered over PoE (IEEE 802.3af) from the NVR; NVR ships with its AC power adapter |
| Storage |
1 × 3.5" SATA bay (up to 8 TB). HDD not included — add a surveillance-grade drive at checkout |
| Mounting |
Turret mounting screws and wall anchors included with each camera |
| Warranty |
3-Year Australian warranty, local CCTV Guru support |
Best For
Family Homes
Cover the front door, driveway, back yard and side gate with AI alerts that ignore false triggers.
Retail & Cafés
Watch the entrance, POS counter, stockroom and rear exit with human/vehicle smart detection.
Warehouses & Workshops
Keep eyes on loading bays, aisles and tool stores with 6 MP detail and on-scene audio.
Offices
Front entry, reception, car park and back door coverage with smart alerts to your phone.
Construction Sites
IP67 cameras handle the elements; AcuSense flags people and vehicles after hours.
Rentals & Acreage
Spread four cameras across entry points and outbuildings for full-property coverage.
Camera Specifications — IPC-T361H-MU
| Image Sensor |
1/2.4" Progressive Scan CMOS |
| Max. Resolution |
6 MP — 3200 × 1800 @ 25/30 fps |
| Lens |
Fixed 2.8 mm F1.6 — 105° horizontal field of view |
| Night Vision |
Smart IR up to 30 m (850 nm) |
| Smart Detection |
AcuSense human/vehicle classification, line crossing, intrusion |
| Audio |
Built-in arrayed dual-microphone |
| WDR |
120 dB true WDR |
| DORI |
Detect 76 m · Observe 30 m · Recognise 15 m · Identify 7 m |
| Compression |
H.265+/H.265/H.264+/H.264 |
| Storage |
microSD up to 512 GB |
| Power |
PoE IEEE 802.3af (Class 3, max 9.5 W) or 12 VDC |
| Weather Rating |
IP67 dust & water resistant |
| Operating Temp. |
−30 °C to 60 °C |
Recorder Specifications — NVR-104MH-C/4P
| Channels |
4-channel IP, with 4 built-in PoE ports |
| Max. Incoming Bandwidth |
40 Mbps |
| Decoding |
1-ch @ 8 MP (30 fps) or 5-ch @ 1080p (30 fps) |
| Video Output |
HDMI up to 4K (4096 × 2160 @ 30 Hz); VGA |
| Compression |
H.265+/H.265/H.264+/H.264 |
| Storage |
1 × SATA bay, up to 8 TB HDD |
| Network |
1 × RJ-45 + 4 × PoE |
| Remote Access |
Hik-Connect app (iOS & Android), iVMS-4200 |
| 8-Channel Option |
NVR-108MH-C/8P — 8 PoE ports (802.3af/at), 80 Mbps in/out |
How Much Footage Can It Hold?
| 2 TB HDD |
~14 days continuous · ~28 days motion-only |
| 4 TB HDD |
~28 days continuous · ~57 days motion-only |
| 6 TB HDD |
~43 days continuous · ~86 days motion-only |
| 8 TB HDD |
~57 days continuous · ~114 days motion-only |
Estimates assume 4 × 6 MP cameras at roughly 3 Mbps each with H.265+ and continuous 24/7 recording; motion-only assumes ~half the day records; real-world varies.
Installation Notes
- Run one Cat6 cable from each camera back to a PoE port on the NVR — no separate power supply needed at the camera.
- Mount cameras 2.5–3 m high, angled slightly down, and keep IR away from nearby walls or eaves to avoid glare.
- HDD is an optional add-on and not pre-installed. If you add a surveillance-grade drive (e.g. WD Purple or Seagate SkyHawk) it is supplied with the kit but not pre-installed, ready to fit into the single SATA bay.
Downloads & Resources
Frequently Asked Questions
What's included in this kit?
Four HiLook IPC-T361H-MU 6 MP AcuSense AI turret cameras and one NVR-104MH-C/4P 4-channel 4K PoE NVR, plus camera mounting hardware and the NVR power adapter.
Can I get an 8-channel NVR instead?
Yes — choose the NVR-108MH-C/8P variant for eight built-in PoE ports (IEEE 802.3af/at) and 80 Mbps in/out, giving you room to add four more HiLook cameras later.
Is a hard drive included?
No — the HDD is an optional add-on and not pre-installed. The NVR has one SATA bay for up to an 8 TB drive; if you add one it is supplied with the kit but not pre-installed, ready to fit.
How much footage will it store?
With all four cameras recording 24/7, expect roughly 14 days on a 2 TB drive, 28 days on 4 TB and 57 days on 8 TB. Motion-only recording roughly doubles those figures.
What is AcuSense?
AcuSense uses on-camera AI to classify humans and vehicles, so alerts trigger on real targets and ignore false events from rain, leaves or animals — cutting nuisance notifications.
Do the cameras record audio?
Yes — each IPC-T361H-MU has a built-in arrayed dual-microphone that captures clear on-scene audio alongside the 6 MP video.
How are the cameras powered?
Over a single Cat6 cable each using the NVR's built-in PoE ports (IEEE 802.3af) — no separate power supply at the camera.
Can I view it on my phone?
Yes — the free Hik-Connect app (iOS & Android) gives remote live view and playback with no port forwarding or static IP required.
Are the cameras weatherproof?
Yes, all four cameras are IP67 rated and operate from −30 °C to 60 °C, suitable for outdoor use anywhere in Australia.
What output does the NVR have?
HDMI up to 4K (4096 × 2160 @ 30 Hz) plus VGA, so you can connect it straight to a TV or monitor for local live view and playback.
