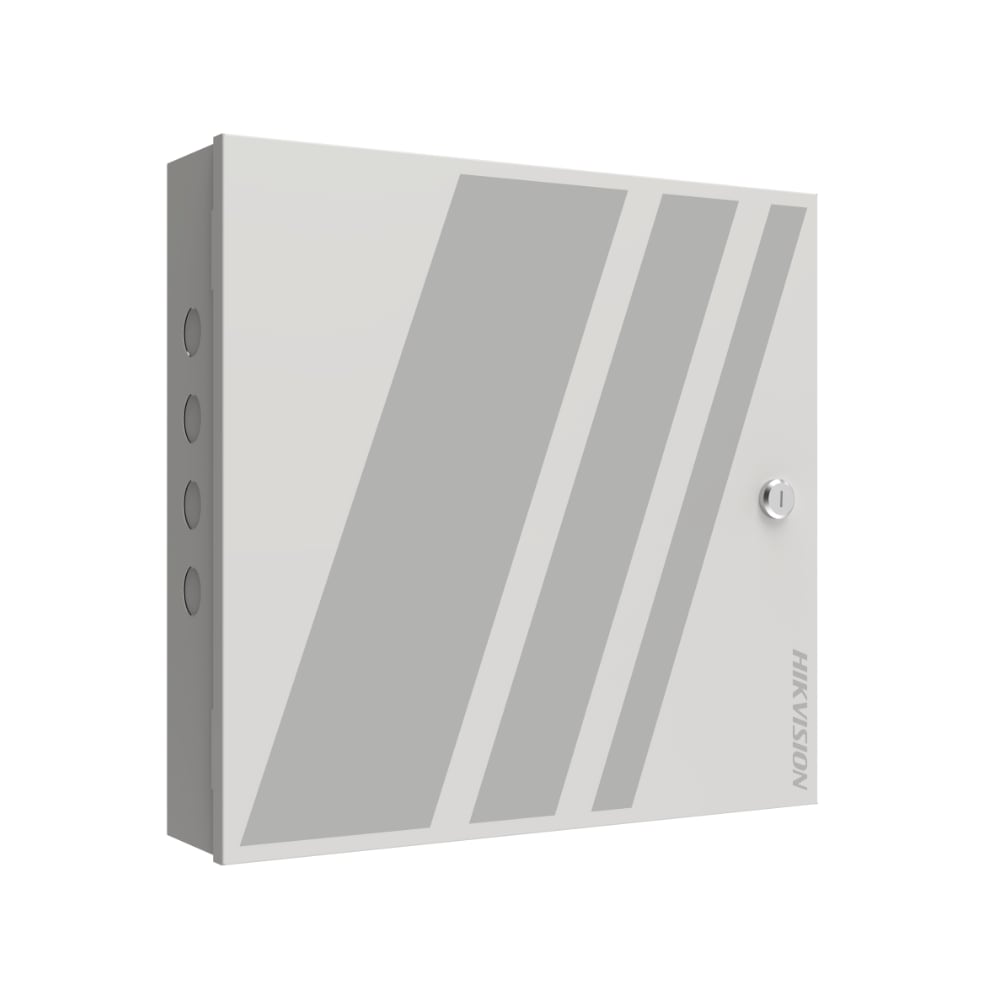

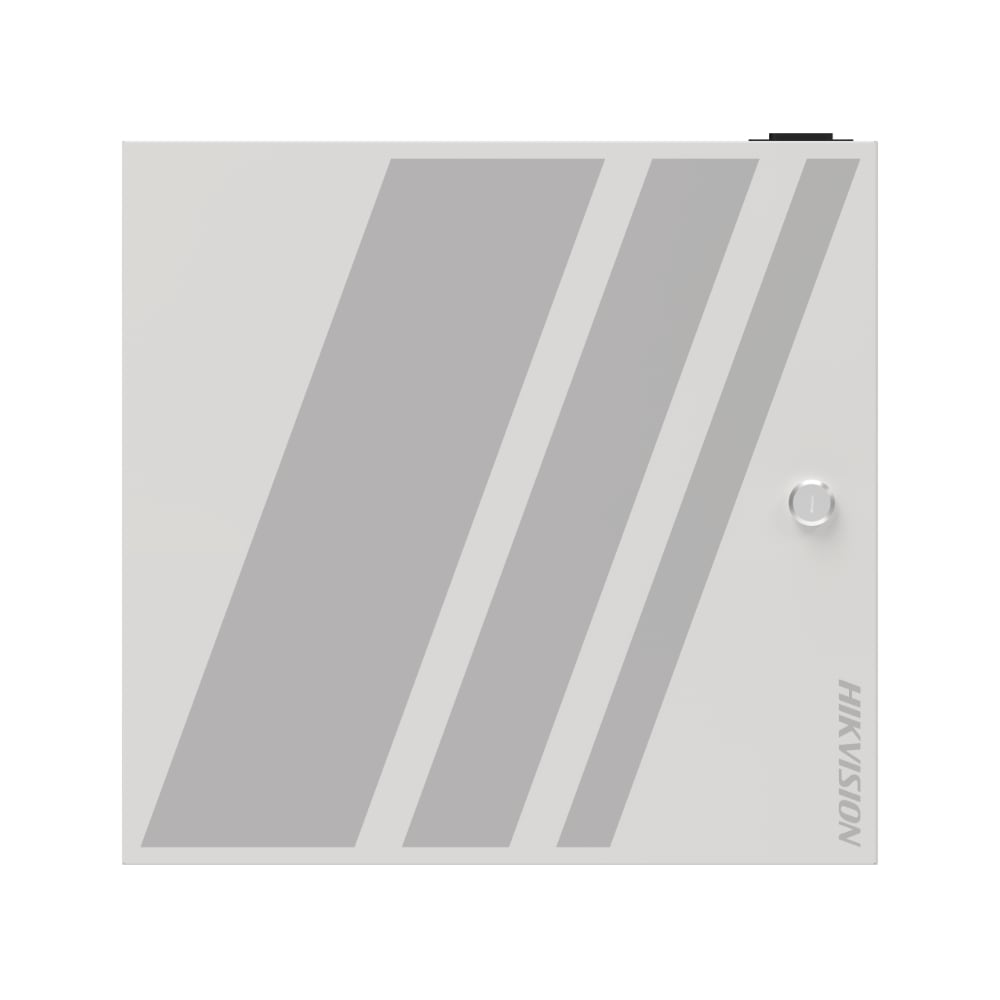

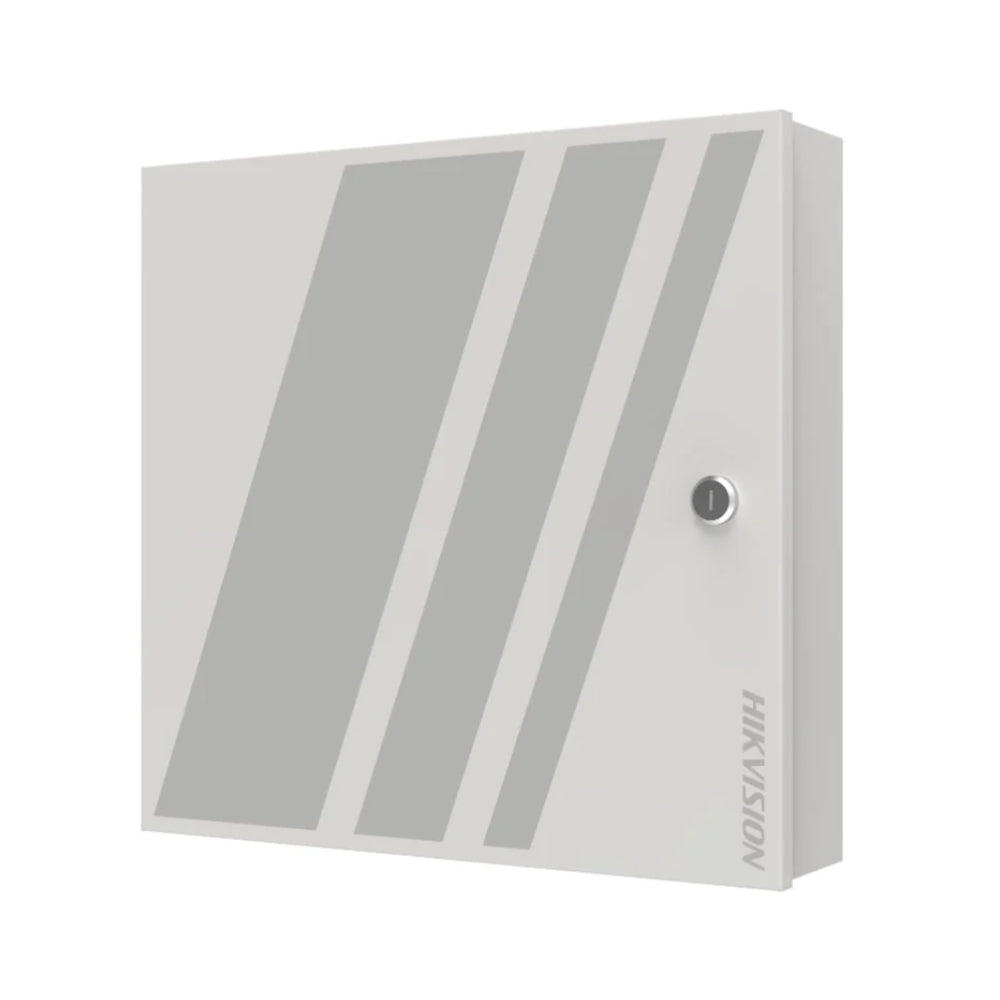

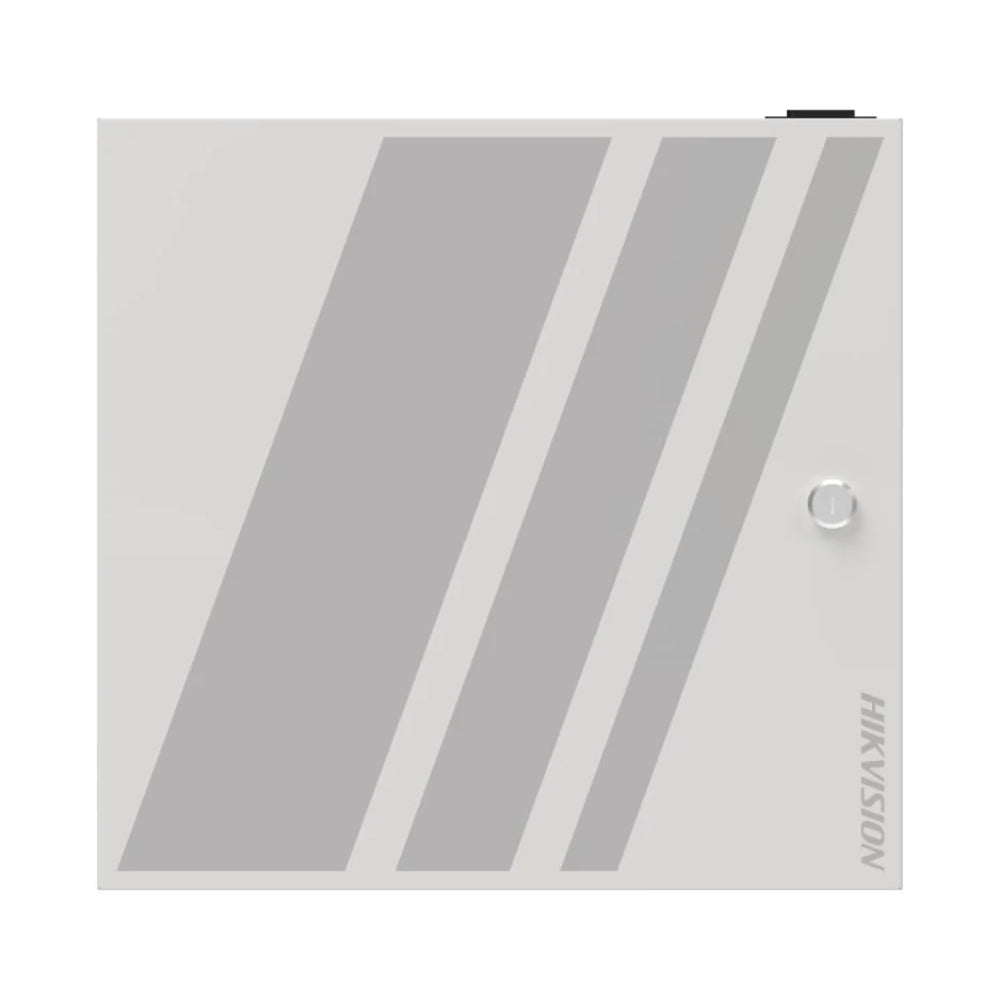

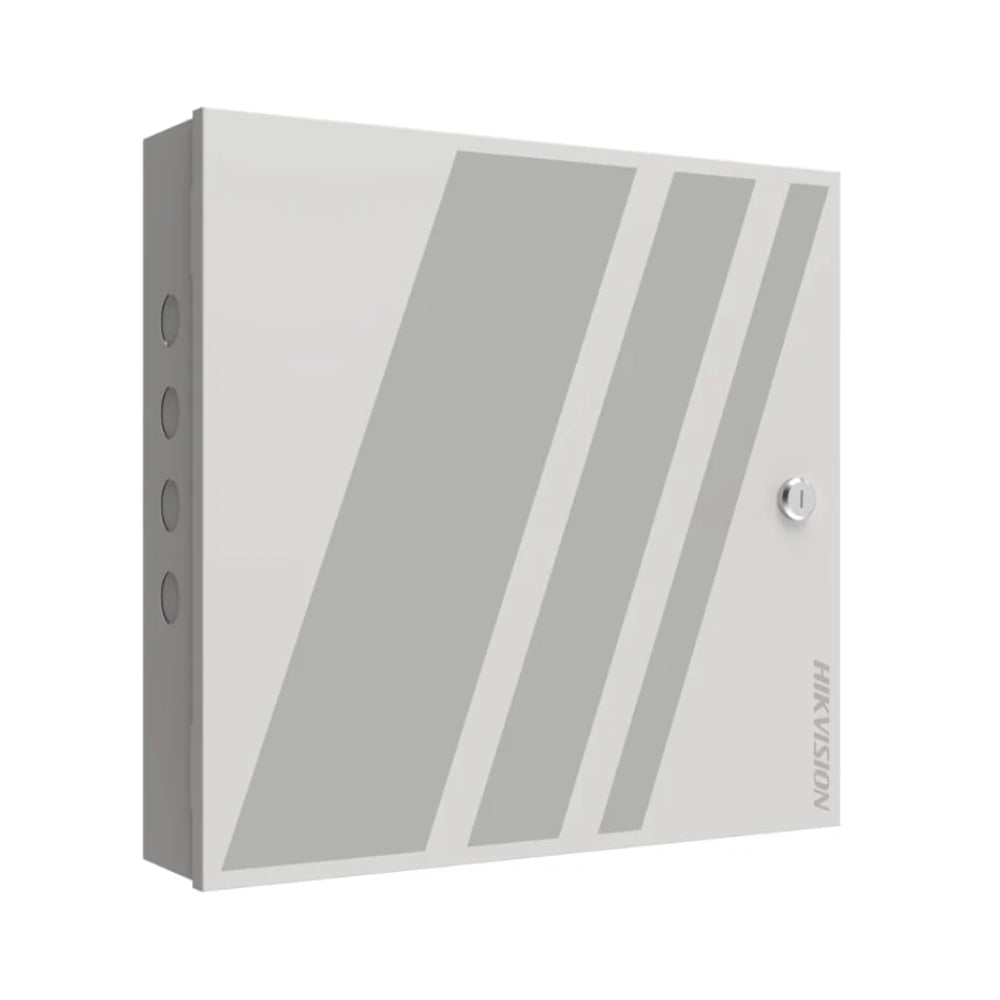

Hikvision DS-K2704X Enterprise Access Controller — 4-Door Controller Expandable to 128 Doors
The Hikvision DS-K2704X is an enterprise-grade access control controller designed for Australian commercial buildings, schools, warehouses, offices, strata complexes, healthcare sites and multi-door facilities. It controls 4 doors natively and can expand to up to 128 doors when connected with compatible DS-K2M002X access modules .
This is the controller to choose when a basic standalone door reader is not enough. With web browser configuration, large user capacity, anti-passback, multi-door interlocking, RS-485 redundancy, Wiegand reader support and rich alarm I/O, the DS-K2704X gives installers and facility managers a scalable Hikvision access control backbone for serious projects.
Ideal for schools, hospitals, government buildings, universities, strata complexes, warehouses, manufacturing facilities and multi-tenant commercial sites requiring centralised access control management.
Native Doors
4 Door Control
Expansion
Up to 128 Doors
Reliability
RS-485 Redundancy
Why Choose the Hikvision DS-K2704X?
Built for Multi-Door Projects
The DS-K2704X controls 4 doors directly and can scale up to 128 doors with DS-K2M002X modules. That makes it ideal for staged projects where the access control system needs to grow over time.
Enterprise Access Control Backbone
Instead of relying on standalone readers at every door, the DS-K2704X gives your site a centralised controller for door permissions, events, alarms and system management.
Web Browser Configuration
Configure the controller through a web browser without needing a separate software application for basic setup and management.
Large User & Event Capacity
Supports up to 100,000 users, 200,000 cards, 10,000 fingerprints and 600,000 events, making it suitable for large staff, tenant, contractor and visitor environments.
Professional Access Control Features
Supports anti-passback, multi-door interlocking, multi-factor authentication and first-person-in access control workflows for higher-security sites.
Reliable RS-485 Expansion
Five downstream RS-485 interfaces support access module expansion, redundancy and stable communication across larger deployments.
Recommended For
Commercial Buildings
Control staff entrances, lift lobby doors, back-of-house areas, secure offices, plant rooms and tenancy access points.
Schools & Education Sites
Manage administration buildings, staff rooms, classrooms, gates, libraries and restricted areas with centralised access permissions.
Warehouses & Industrial Facilities
Secure loading docks, staff doors, stock rooms, cages, offices and after-hours access points.
Strata & Apartment Buildings
Use as the access control foundation for multi-door residential buildings, car parks, lobbies, bin rooms and shared amenities.
Healthcare & Clinics
Restrict access to treatment areas, medication rooms, back offices, staff-only zones and after-hours entry points.
Government & Critical Sites
Suitable for controlled access deployments where centralised event history, door status and access rules matter.
Typical 32-Door Deployment Example
The DS-K2704X is often used as the core controller in larger staged access control projects. For example, a 32-door commercial site may use the controller with expansion modules, readers, locks, exit buttons and door contacts to create a complete Hikvision access control system.
1 × DS-K2704X Controller
Central controller for the access control system, user database, events and door management.
DS-K2M002X Expansion Modules
Add compatible access modules to expand beyond the native 4 doors and scale the project as required.
Readers or Terminals
Pair with Hikvision card readers, QR terminals or intercom terminals depending on the entry point and user workflow.
Locks, Exit Buttons & Door Contacts
Complete each door with the correct electric strike, magnetic lock, request-to-exit button and door reed switch.
Recommended Accessories
DS-K2M002X Access Module
Essential expansion module for growing the system beyond the controller’s native door capacity.
DS-K1T502DBWX-CQRE1 Terminal
Smart access terminal for QR code, card, PIN, Bluetooth and intercom-style entry points.

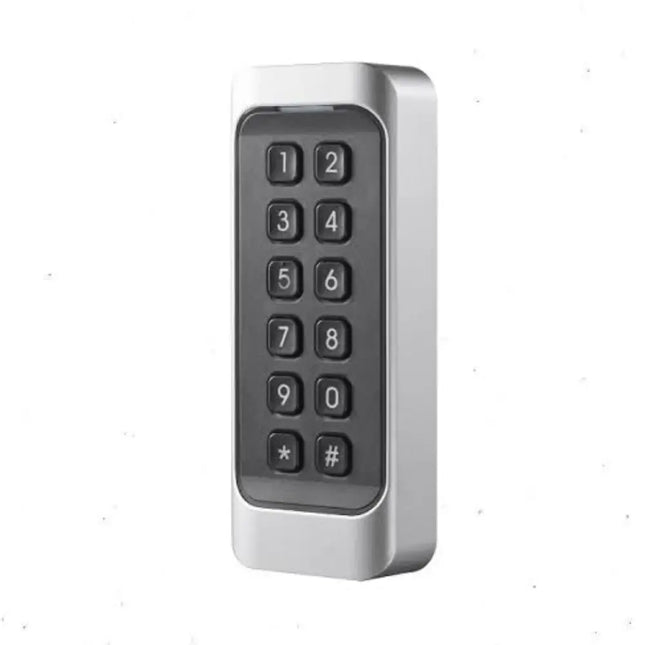

Hikvision Card Readers
Add compatible Hikvision readers for staff doors, secure rooms, car park entries and high-traffic access points.
LOX Electric Strike or Magnetic Lock
Choose the correct locking hardware based on the door type, frame, fail-safe/fail-secure requirement and fire compliance.
Exit Button & Door Contact
Add request-to-exit buttons and reed switches for proper access control logic and door status monitoring.
Backup Power
Use suitable backup power to help maintain controlled access during power interruptions.
Watch the DS-K2704X in Action
VIDEO
Official Hikvision overview of the DS-K2704X Ultra Series enterprise access controller, covering scalability, system architecture and deployment capabilities.
VIDEO
Learn how the DS-K2700X Series supports large-scale access control projects with expansion modules, advanced door management and centralised control.
Technical Specifications
Hikvision DS-K2704X · Enterprise Access Controller
Model
DS-K2704X
Product Type
Enterprise Access Controller
Operating System
Linux
Native Door Capacity
4 doors
Extended Door Capacity
Up to 128 doors with compatible access modules
Access Module Support
Supports up to 62 DS-K2M002X access modules
Network Interface
1 × RJ45, 10/100/1000 Mbps self-adaptive
Lock Control
4
Exit Button Input
4
Door Contact Input
4
Alarm Input
8
Alarm Output
4
Tamper Input
1
Fire Interface
1
RS-485
7 total: 2 for card readers and 5 for access modules, including redundancy support
Wiegand
4 inputs, standard 26/34-bit with custom Wiegand support
USB
1 × USB 2.0
User Capacity
100,000 users
Card Capacity
200,000 cards
Fingerprint Capacity
10,000 fingerprints
Event Capacity
600,000 events
Supported Functions
Web configuration, multi-factor authentication, first-person-in, anti-passback and multi-door interlocking
Indicators
12 indicators for power, running status, network, RS-485 and door status
Battery
Charge and discharge support
Power Supply
100 VAC to 240 VAC
Power Consumption
≤ 102 W
Operating Temperature
−10°C to +55°C
Operating Humidity
0% to 90%, non-condensing
Installation
Wall mounting
Downloads & Resources
Download the official Hikvision datasheet or view the product page for manuals, firmware, configuration files and updated technical resources.
Installation Notes
Professional Installation Recommended
This is a commercial access control controller and should be installed by a qualified security technician or licensed professional where required.
Plan the Door Hardware First
Confirm every door’s lock type, exit method, door contact, fire trip requirement and power design before ordering.
Use the Right Reader Layout
Decide whether each door needs entry-only, entry/exit readers, QR terminals, card readers or intercom terminals.
Allow Room for Expansion
If the site may grow later, design RS-485 module locations, enclosure space and power capacity from the start.
Frequently Asked Questions
How many doors does the DS-K2704X control?
Is this suitable for a single door?
Does it support web configuration?
Does it support anti-passback?
Can it work with Hikvision card readers?
Can it connect to electric strikes and maglocks?
Does it support backup battery?
What software should I use with it?
Is this better than a standalone access terminal?
Do you ship Australia-wide?
What expansion module is required to increase door capacity?
Can I use the DS-K2704X with QR code terminals?
