Hikvision 8MP AcuSense Enterprise Business Kit

Description

Hikvision · 2 Live-Guard + 2 Audio Turrets + 2 Mini-Domes · 16CH 8K NVR 6 × 8MP Business Kit

Hikvision 8MP AcuSense Business Kit — 2 Live-Guard + 2 Audio Turrets + 2 IK08 Mini-Domes with 16-Channel 8K NVR

The Hikvision 8MP AcuSense Business Kit is a ready-to-grow bundle built for Australian offices, retail, warehouses and multi-tenant sites. It pairs two DS-2CD2386G2H-IS2U/SL AcuSense Live-Guard turrets for active deterrence on your perimeter, two DS-2CD2386G2H-IU AcuSense DarkFighter audio turrets for detailed coverage, and two DS-2CD2586G2-IS IK08 vandal-resistant mini-domes for discreet indoor and entry monitoring — all running on a DS-7616NI-M2/16P 16-channel 8K M-Series NVR. The 16-port recorder powers all six cameras over a single Cat6 cable each and leaves ten spare channels to expand as the business grows.

Cameras
6 × 8MP 4K
Active Deterrence
2 × Live-Guard Strobe+Siren
Recorder
16CH 8K NVR · 16 PoE
Low-Light
DarkFighter · 0.0008 lux
Smart AI
AcuSense Human/Vehicle
Room to Grow
10 Spare Channels

Three-Tier Coverage

Live-Guard turrets actively deter intruders on the perimeter, DarkFighter audio turrets capture detailed 4K with sound, and discreet IK08 mini-domes cover entries and interiors — deterrence, evidence and discretion in one kit.

Active Deterrence Built In

The two Live-Guard turrets flash a white strobe, sound a siren and let you talk down via Hik-Connect the moment AcuSense detects a person or vehicle — turning intruders away instead of just recording them.

16 PoE Ports — Plug & Play

One Cat6 cable per camera carries power and video to the NVR's 16 built-in PoE ports — no separate power supplies, with ten spare channels to grow.

Built to Expand

Starting on a 16-channel 8K NVR means you never replace the recorder later — add up to ten more Hikvision cameras as the business grows, with up to 32 TB of storage across dual SATA bays.

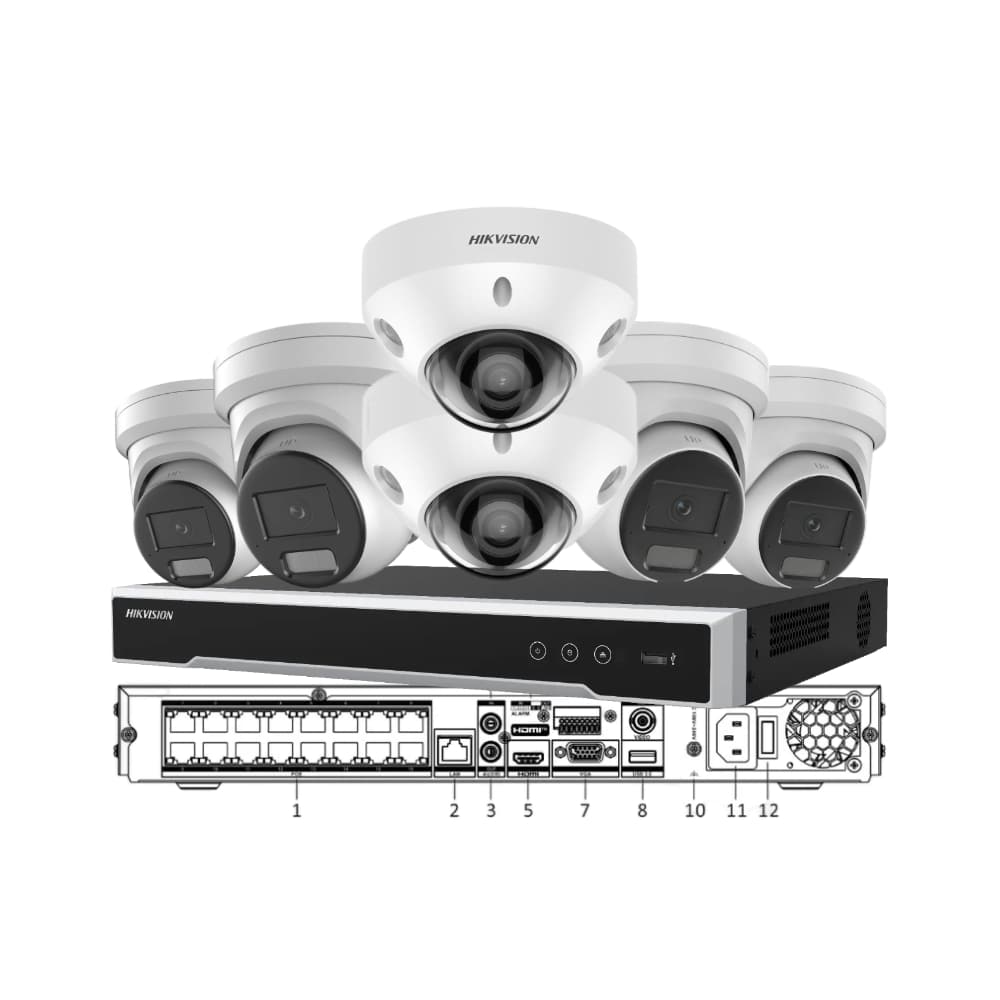

What's Included
2 × Deterrence Turrets DS-2CD2386G2H-IS2U/SL — 8MP 4K AcuSense Live-Guard turret with white strobe, siren and two-way audio, Smart Hybrid Light, DarkFighter low-light colour, IP67.
2 × Audio Turrets DS-2CD2386G2H-IU — 8MP 4K AcuSense powered-by-DarkFighter turret, 120 dB WDR, built-in microphone, 1/1.8" sensor, IP67.
2 × Mini-Domes DS-2CD2586G2-IS — 8MP 4K AcuSense DarkFighter mini-dome, 120 dB WDR, built-in mic, IR up to 30 m, IP67 + IK08 vandal-resistant, low-profile for offices and retail.
1 × Recorder DS-7616NI-M2/16P — 16-channel 8K M-Series NVR with 16 built-in PoE ports, up to 32 MP per channel, dual SATA bays, 8K HDMI output and Hik-Connect remote access.
Storage Add a surveillance-grade HDD to suit your retention needs — dual SATA bays accept up to 16 TB per drive (32 TB total). Choose a surveillance HDD (Seagate SkyHawk or WD Purple) to record from day one.
Power 16 × PoE ports built into the NVR — one Cat6 network cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Mounting Brackets and templates included for turret eave/soffit installs and dome ceiling/wall mounting. For brick or flush-wall mounting, add a Hikvision wall-mount bracket per camera; junction boxes are available for tidy cable management.
Warranty 3-Year Australian warranty · local CCTV Guru tech support. Genuine Hikvision Australian stock.
Best For
Offices & reception
Discreet mini-domes over reception, corridors and meeting rooms, with deterrence turrets on external entries.
Retail & convenience
Mini-domes at the POS and aisles, audio turrets in 4K, with Live-Guard guarding the rear door after hours.
Warehouses & logistics
Loading docks, yard and aisles in 4K, with strobe-and-siren deterrence on roller doors and perimeters.
Multi-tenant & strata
Common areas, lifts and car-park entries, with ten spare channels to add cameras as the site grows.
Cafés & hospitality
Dining floor, register and kitchen pass with audio, plus deterrence on the rear lane and bins.
Medical & professional
Low-profile domes over waiting rooms and corridors with toggleable audio, deterrence turrets on entries.
Deterrence Turret — DS-2CD2386G2H-IS2U/SL
Camera Type 8MP 4K AcuSense Live-Guard Smart Hybrid Light Turret
Image Sensor 1/1.8" Progressive Scan CMOS · DarkFighter low-light
Max. Resolution 8MP · 3840 × 2160 @ 25 fps
Lens Fixed 2.8 mm · 105° FOV (4 mm 90° available)
Active Deterrence White-light strobe · audible siren · two-way audio (built-in mic & speaker)
Supplement Light Smart Hybrid Light · IR + white light up to 30 m
AI AcuSense human & vehicle classification · perimeter protection
Audio / Storage Built-in mic & speaker · microSD up to 512 GB
Power / Protection 12 VDC / PoE (IEEE 802.3af) · IP67
Audio Turret — DS-2CD2386G2H-IU
Camera Type 8MP 4K AcuSense Powered-by-DarkFighter Turret
Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 8MP · 3840 × 2160
Min. Illumination Colour 0.0008 lux @ F1.0
Lens Fixed 2.8 mm · 108° FOV (4 mm 88° available)
WDR / AI 120 dB · AcuSense human & vehicle classification
Audio / Storage Built-in mic · microSD up to 512 GB
Power / Protection 12 VDC / PoE (IEEE 802.3af) · IP67
Mini-Dome — DS-2CD2586G2-IS
Camera Type 8MP 4K AcuSense Powered-by-DarkFighter Mini-Dome
Max. Resolution 8MP · 3840 × 2160
Lens Fixed 2.8 mm
Night Vision IR up to 30 m
WDR / AI 120 dB · AcuSense human & vehicle classification
Audio Built-in microphone (toggleable) · audio & alarm interface
Compression H.265+ / H.265 / H.264+ / H.264
Protection IP67 weatherproof · IK08 vandal-resistant
Dimensions Ø 113.6 mm × 72.6 mm · approx. 400 g
Recorder Specifications — DS-7616NI-M2/16P
Channels 16 IP channels · up to 32 MP input
Incoming Bandwidth 256 Mbps
PoE 16 × PoE ports (IEEE 802.3 af/at) · 200 W budget · up to 30 W/port
Storage 2 × SATA (up to 16 TB per bay, 32 TB total) · HDD not included
Video Output 1 × HDMI (up to 8K @ 30 Hz) + 1 × VGA · simultaneous
AI Functions AcuSense human/vehicle · perimeter · facial (with compatible cameras)
Compression H.265+ / H.265 / H.264+ / H.264
Remote / App Hik-Connect (iOS & Android) · P2P · ONVIF
Installation Notes
  • ›Camera placement: put the two Live-Guard turrets on the highest-risk approaches (entries, roller doors, rear lanes), the audio turrets on general 4K coverage, and the mini-domes indoors over reception, aisles and corridors.
  • ›Cabling: run solid-copper Cat6 from each camera back to the NVR's PoE ports for stable power and video up to 100 m.
  • ›Audio privacy: the audio turrets and mini-domes have built-in microphones — recording can be disabled per camera in the NVR menu (Video/Audio > Video Only) where audio capture is not permitted.

Setup & Demo Videos — Hikvision

AcuSense — human & vehicle detection
AcuSense NVR — smart false-alarm filtering

Official NVR & Camera Setup Videos

Use these official Hikvision tutorials to complete the recorder startup wizard and connect the supplied PoE cameras. Menu names may vary slightly with firmware version.

NVR 5.0 Startup Wizard — Official Hikvision Tutorial
Add a PoE Camera to NVR 5.0 — Official Hikvision Tutorial

Downloads & Resources

DS-2CD2386G2H-IS2U/SL Datasheet DS-2CD2386G2H-IU Datasheet DS-2CD2586G2-IS Datasheet DS-7616NI-M2/16P Datasheet Hikvision Camera Quick Start Guide
Why a 16-channel NVR for six cameras?
Starting on a 16-channel recorder means you never have to replace it later. Ten spare channels and PoE ports let you add cameras as the business grows, and the M-Series engine gives plenty of bandwidth for all six 4K cameras now.
What's the difference between the three camera types?
The Live-Guard turrets add strobe, siren and two-way audio for active deterrence; the audio turrets are detail-focused DarkFighter cameras with a mic; the mini-domes are low-profile, IK08 vandal-resistant cameras ideal for indoor and entry coverage.
Are the mini-domes vandal-resistant?
Yes — the DS-2CD2586G2-IS is rated IK08 against impact and tampering, plus IP67 for dust and water resistance, so it suits exposed entries and public-facing areas.
Can I turn off the strobe and siren?
Yes. The Live-Guard deterrence can be scheduled to activate only after hours or disabled entirely from the Hik-Connect app or NVR menu.
Is a hard drive included?
No — the NVR ships as a chassis with two empty SATA bays (up to 32 TB total). Add a surveillance-grade Seagate SkyHawk or WD Purple drive to record from day one.
