Dahua · Intercom Door Stations2MP Wi-Fi & PoE Villa Video Door Station

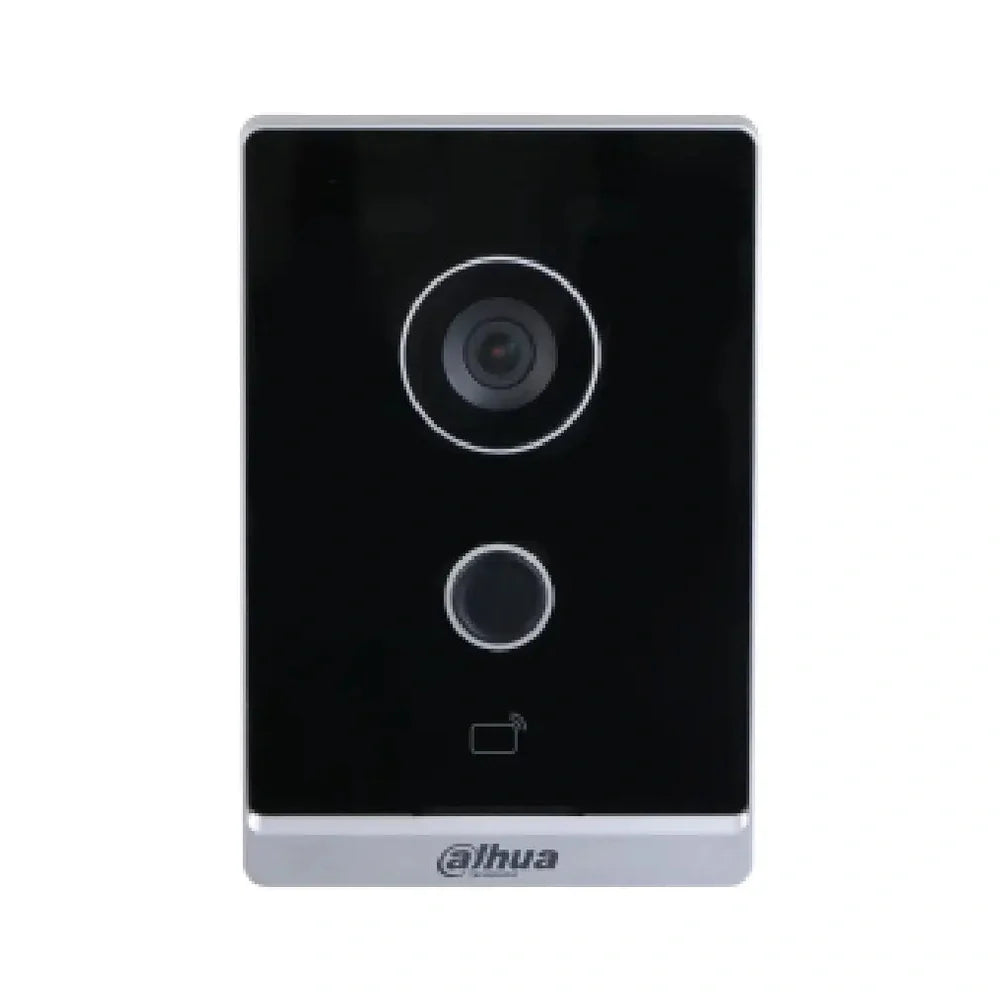

DHI-VTO2211G-WP-S2 — Add visitor calling, two-way audio and card access with a compact 2MP Wi-Fi door station. The single mechanical call button suits a simple entry point, while 2.4 GHz wireless networking offers an alternative to a wired data connection where signal conditions are suitable.
Key features
Wired or Wi-Fi data
Choose Ethernet or a suitable 2.4 GHz wireless connection.
Visitor conversation
A built-in microphone and speaker support two-way audio.
Card and remote release
Combine authorised IC cards with supported monitor/app unlocking.
Compact entrance fit
A slim 150 × 100 mm front suits appropriately planned entry locations.
Applications & installation
Plan the door station as part of a compatible Dahua intercom system. Wi-Fi carries data, not power: use the specified 12 V DC supply or standard PoE connection. Confirm the wireless signal at the mounting position and correctly silicone-seal the installation for IP65 protection.
Technical Specifications
| Model |
DHI-VTO2211G-WP-S2 |
| Camera |
2MP, 1/2.8-inch CMOS |
| Field of view |
125° horizontal / 71° vertical / 142° diagonal |
| Wide dynamic range |
120 dB |
| Night illumination |
Infrared |
| Wi-Fi |
2.4 GHz, IEEE 802.11b/g/n |
| Wired network |
Ethernet |
| Call and audio |
1 mechanical button, microphone and speaker |
| Card capacity |
Up to 10,000 IC cards |
| Storage |
microSD up to 256 GB |
| Interfaces |
RS-485, 1 alarm input/output and lock relay |
| Power |
12 V DC, 1 A or standard PoE |
| Maximum consumption |
7 W |
| Protection |
IP65 with correct silicone sealing |
| Housing |
PC/acrylic, black front and silver frame |
| Dimensions |
150 × 100 × 25.4 mm |
| Warranty |
36 months — subject to warranty terms |
Compatible options & add-ons
Optional items are sold separately. Select the components needed for your installation; mounting parts may need to be used together.
Compare the related model
For the alternative network option, see DHI-VTO2211G-P-S2. Check wired versus Wi-Fi support before choosing.
Frequently asked questions
Is it battery-powered when using Wi-Fi?
No. A suitable external power supply is still required. Wi-Fi replaces only the data connection.
Does it use 5 GHz Wi-Fi?
The specified wireless standard is 2.4 GHz IEEE 802.11b/g/n, not 5 GHz.
Downloads
Manufacturer documentation: the datasheet identifies the product or stated product family; general guides cover the applicable equipment type. Confirm model-specific instructions before installation.
