Dahua · Intercom Door Stations2MP PoE Villa Video Intercom Door Station

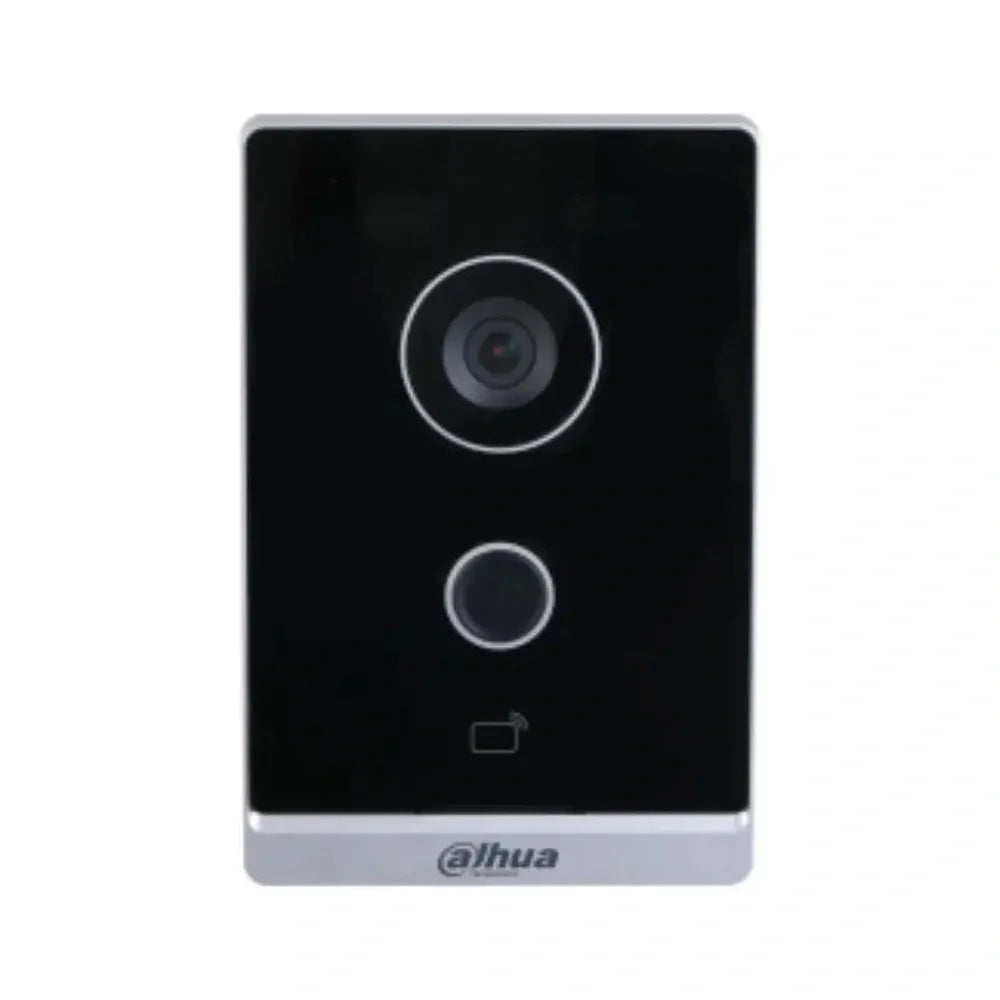

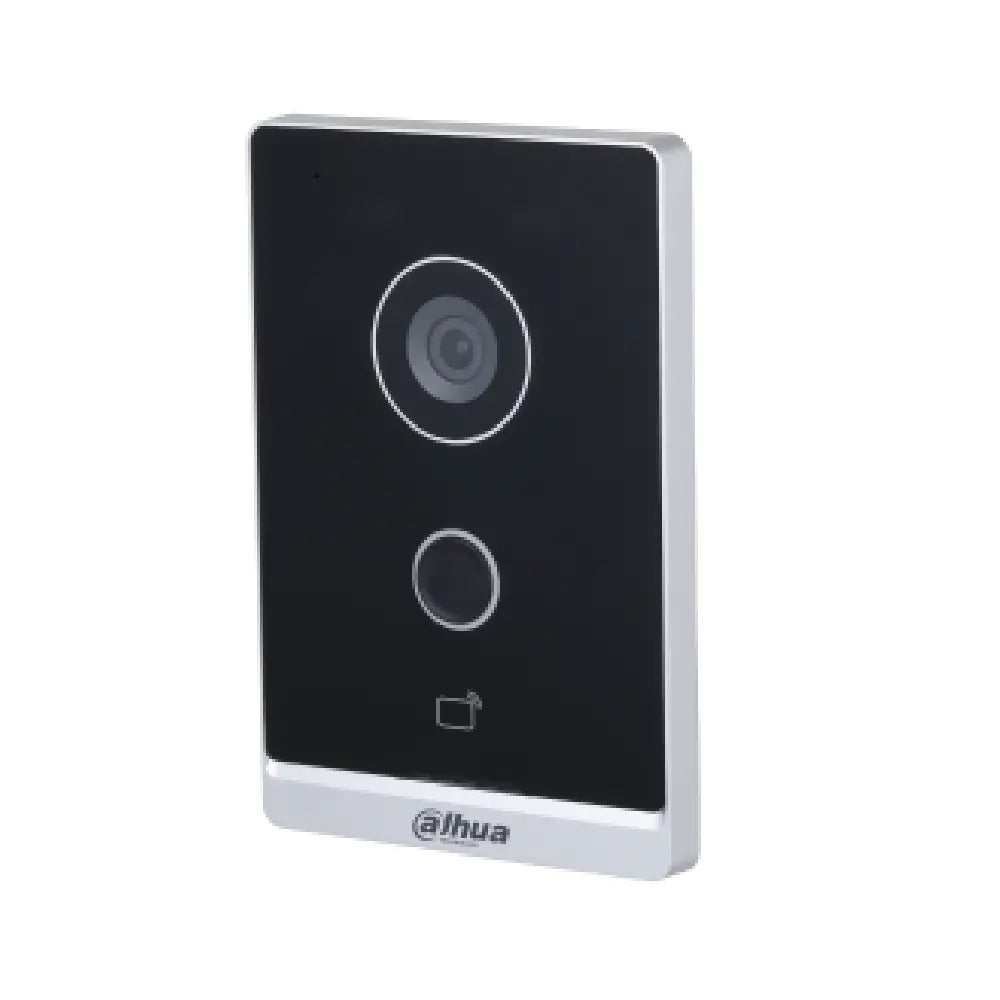

DHI-VTO2211G-P-S2 — See and speak to visitors from a compact single-button IP door station. A 2MP camera, wide 125° horizontal view, infrared illumination and two-way audio combine with IC-card access and supported remote unlocking for a planned Dahua intercom system.
Key features
Single-button calling
A straightforward call interface for a planned single-entry intercom system.
Wide 2MP view
A 125° horizontal field of view helps show visitors near the entrance.
IC-card access
Manage authorised cards alongside supported remote door release.
PoE installation
Use compatible Ethernet power or the specified separate DC supply.
Applications & installation
Suitable for a home or single-call entrance when paired with compatible Dahua intercom equipment. Provide standard PoE or 12 V DC power, configure the indoor station and lock relay, and seal the mounting interface as instructed to achieve IP65 protection. This P model is wired, not Wi-Fi.
Technical Specifications
| Model |
DHI-VTO2211G-P-S2 |
| Camera |
2MP, 1/2.8-inch CMOS |
| Field of view |
125° horizontal / 71° vertical / 142° diagonal |
| Wide dynamic range |
120 dB |
| Night illumination |
Infrared |
| Call button |
1 mechanical button |
| Audio |
Built-in microphone and speaker, two-way audio |
| Card capacity |
Up to 10,000 IC cards |
| Unlocking |
Card and supported monitor/app control |
| Storage |
microSD up to 256 GB |
| Connections |
Ethernet, RS-485, 1 alarm input/output and lock relay |
| Power |
12 V DC, 1 A or standard PoE |
| Maximum consumption |
7 W |
| Protection |
IP65 when correctly silicone-sealed |
| Housing |
PC/acrylic, black front and silver frame |
| Dimensions |
150 × 100 × 25.4 mm |
| Warranty |
36 months — subject to warranty terms |
Compatible options & add-ons
Optional items are sold separately. Select the components needed for your installation; mounting parts may need to be used together.
Compare the related model
For the alternative network option, see DHI-VTO2211G-WP-S2. Check wired versus Wi-Fi support before choosing.
Frequently asked questions
Does this model include Wi-Fi?
No. Choose DHI-VTO2211G-WP-S2 if you need the Wi-Fi variant, and still provide a suitable power supply.
Can the door station power any electric lock?
No. Select and wire the lock, relay and power supply according to their electrical ratings. Ask an installer to confirm the complete door-release circuit.
Downloads
Manufacturer documentation: the datasheet identifies the product or stated product family; general guides cover the applicable equipment type. Confirm model-specific instructions before installation.
