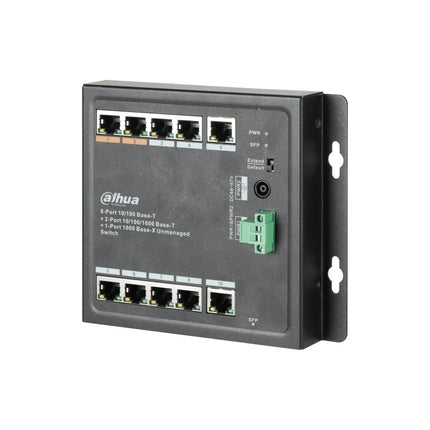

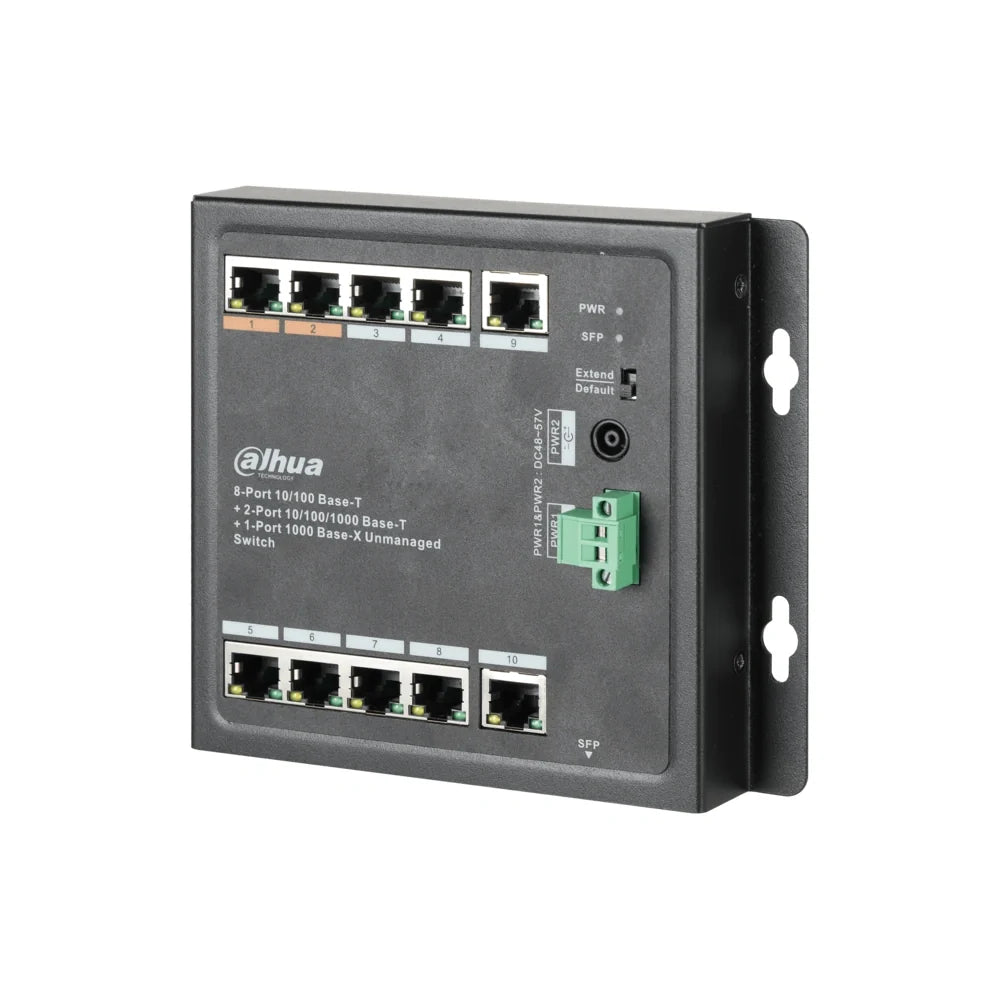

Dahua · Network Switches8-Port PoE Switch 96W with Gigabit & SFP Uplinks
DH-PFS3111-8ET-96-F — Connect up to eight compatible network cameras to a compact unmanaged PoE switch with a shared 96 W power budget. Eight 10/100 Mbps camera ports are complemented by two Gigabit RJ45 uplinks and one Gigabit SFP slot, giving eleven physical network ports in total.
Key features
Eight powered camera ports
Carry data and compatible PoE power over the same Ethernet connection.
Copper or fibre uplink
Choose the correct uplink for the network; an SFP transceiver is a separate item.
96 W shared budget
Plan by maximum camera consumption, not just the number of sockets.
Extended mode option
Longer links trade speed for reach and depend on compatible cable and installation conditions.
Applications & installation
Useful beside an NVR or at a small camera distribution point. Add up the maximum power draw of every camera before selecting the switch, including night illumination and PTZ movement. The two high-power ports do not each have an independent 96 W supply—the total budget remains shared.
Technical Specifications
| Model |
DH-PFS3111-8ET-96-F |
| PoE downlinks |
8 × 10/100 Mbps RJ45 |
| Copper uplinks |
2 × 10/100/1000 Mbps RJ45 |
| Fibre uplink |
1 × Gigabit SFP slot |
| Total network ports |
11 |
| Total PoE budget |
96 W |
| Power standards |
IEEE 802.3af/at and Dahua Hi-PoE |
| Ports 1–2 |
Up to 60 W Hi-PoE each, within the total budget |
| Ports 3–8 |
Up to 30 W each, within the total budget |
| Extended transmission |
Up to 250 m at 10 Mbps on ports 1–4 under specified conditions |
| Management |
Unmanaged Layer 2 |
| Power input |
48–57 V DC |
| Operating temperature |
−30°C to +65°C |
| Dimensions |
158 × 130 × 25 mm |
| Warranty |
36 months — subject to warranty terms |
Compatible options & add-ons
Optional items are sold separately. Select the components needed for your installation; mounting parts may need to be used together.
Frequently asked questions
Are all ports Gigabit?
No. The eight PoE camera ports are 10/100 Mbps. The two RJ45 uplinks and SFP slot are Gigabit.
Can I run eight 30 W cameras?
No. Eight devices at 30 W would exceed the shared 96 W PoE budget. Calculate the total maximum load before purchase.
Downloads
Manufacturer documentation: the datasheet identifies the product or stated product family; general guides cover the applicable equipment type. Confirm model-specific instructions before installation.
