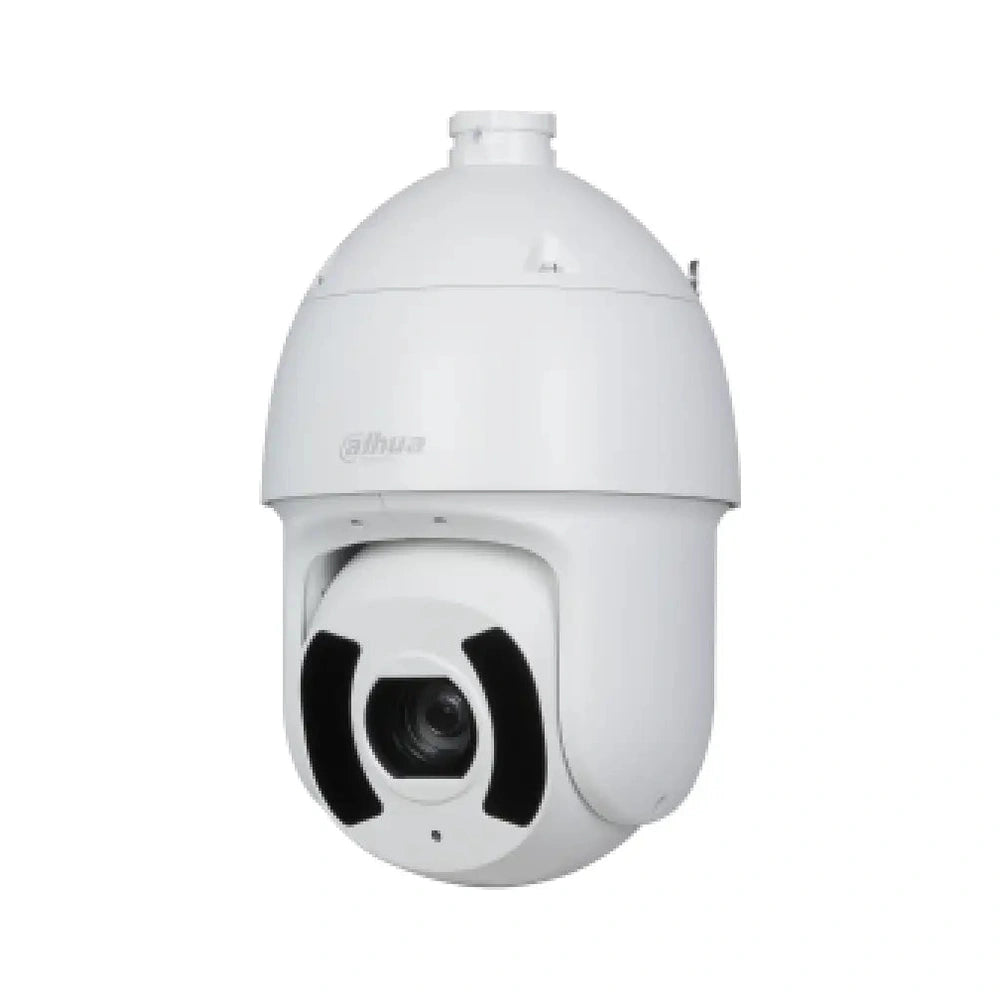

WIZSENSE · 45× OPTICAL ZOOM · AUTO TRACKINGDahua DH-SD6CE445GB-HNR 4MP 45× Starlight IR PTZ Camera
Cover a large outdoor area and zoom in on activity with the DH-SD6CE445GB-HNR. This 4MP network PTZ combines 45× optical zoom, endless 360° pan and Auto Tracking 3.0. It suits professionally designed car-park, perimeter and commercial surveillance systems where an operator or configured rule needs to follow a target.
Key Features
45× optical zoom
The 3.95–177.75mm lens moves from an overview to a tighter view. Optical zoom changes the lens view; digital zoom only enlarges existing pixels.
Automatic target tracking
Auto Tracking 3.0 works with configured rules to follow activity. The site layout, obstructions and commissioning affect tracking performance.
Long-range IR illumination
Built-in infrared is rated up to 250m. This is an illumination specification, not a guaranteed face or number-plate identification distance.
Outdoor-ready PTZ
IP67 and IK10 ratings, 120dB WDR and electronic image stabilisation support demanding outdoor scenes.
Technical Specifications
| Model |
DH-SD6CE445GB-HNR |
| Image sensor / resolution |
1/2.8-inch CMOS; 2560 × 1440; up to 25/30fps |
| Optical zoom / lens |
45×; 3.95–177.75mm; F1.6–F4.95 |
| IR illumination |
Up to 250m; Smart IR |
| Movement |
360° endless pan; −20° to +90° tilt with auto flip |
| Positioning |
300 presets; 8 tours; 5 patterns |
| Analytics |
Auto Tracking 3.0; SMD 4.0; perimeter protection; face detection |
| Recorder search |
Compatible Quick Pick/SMD workflows; additional search functions depend on installed firmware and recorder support |
| Image processing |
120dB WDR; electronic image stabilisation; electronic defog |
| Video |
H.265/H.264; three streams |
| Storage |
microSD up to 512GB; FTP; NAS |
| Network |
10/100Mbps Ethernet; ONVIF S/G/T |
| Connections |
1 audio input/1 output; 7 alarm inputs/2 outputs; RS-485; CVBS |
| Power |
24V DC, 2.5A supply or IEEE 802.3at PoE+ |
| Consumption |
13W basic; 25W maximum |
| Protection / temperature |
IP67; IK10; −40°C to +70°C |
| Dimensions / weight |
337.4mm high × 209mm diameter; 5.9kg |
Setup and Compatibility
Use a mounting structure and bracket combination rated for the camera’s weight and wind exposure. A PTZ only records the direction it is facing, so retain fixed cameras where continuous coverage is essential. Check PoE+ capacity, cable routing and recorder compatibility before installation. Audio requires external equipment through the audio connections; a built-in microphone or speaker is not specified. Newer manufacturer documents list additional analytics, so confirm the supplied unit’s firmware before relying on them.
Choosing Accessories
Dahua lists the PFB305W wall bracket and 24V/2.5A adapter as included accessories. Confirm the supplied package before installation. Optional PFB300C, PFB301C and PFA151 options need the appropriate mounting adapters. Add a surveillance microSD card if local recording is required.
Official Dahua Technology Video
This is a technology overview, not a demonstration of this exact hardware model. Use the model-specific specifications above when selecting your system.
Dahua UK & Ireland: Auto Tracking 3.0 technology overview — other PTZ models shown
Downloads
Installation and operation manuals are shared Dahua guides. Available menus and functions depend on the exact model and firmware.
Frequently Asked Questions
Does 250m IR mean identification at 250m?
No. IR illumination range and identification detail are different. Lens position, lighting, target size and installation conditions determine useful detail.
Does this PTZ record every direction at once?
No. It records the direction currently in view. Use fixed cameras for areas that must remain continuously visible.
Does it need a Hi-PoE injector?
The datasheet specifies IEEE 802.3at PoE+ or 24V DC. Check port power capacity and installation requirements rather than choosing a supply by brand alone.
