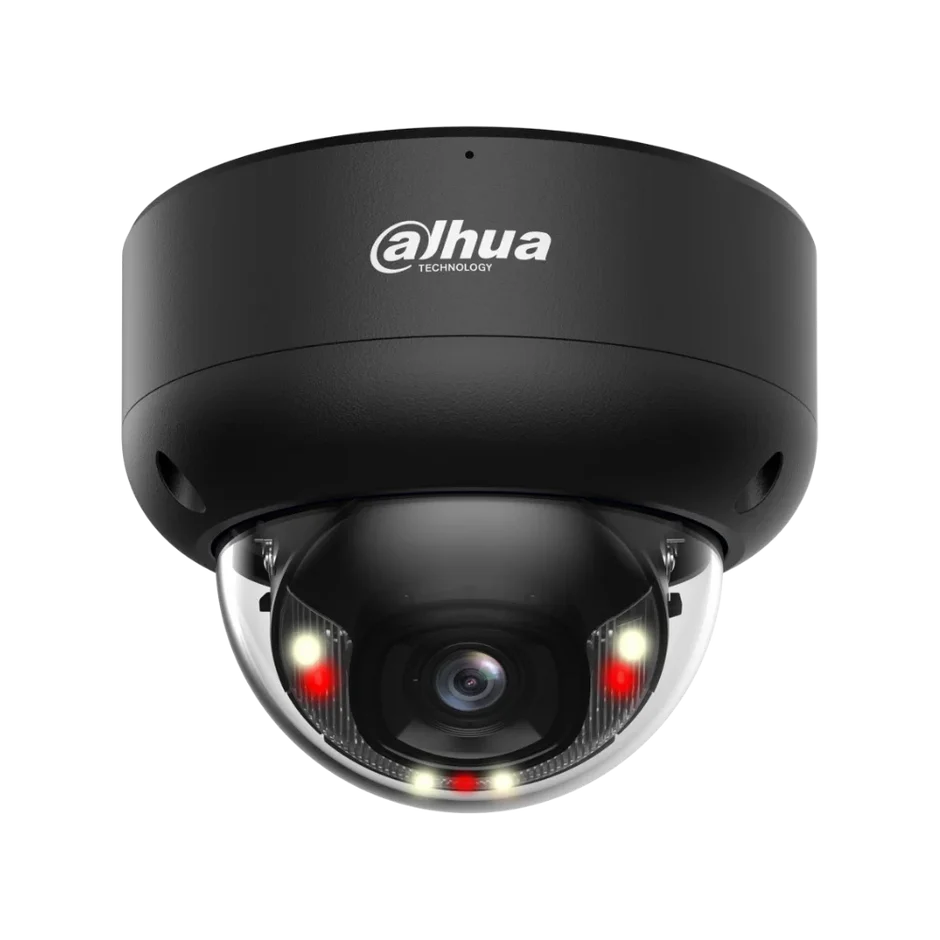

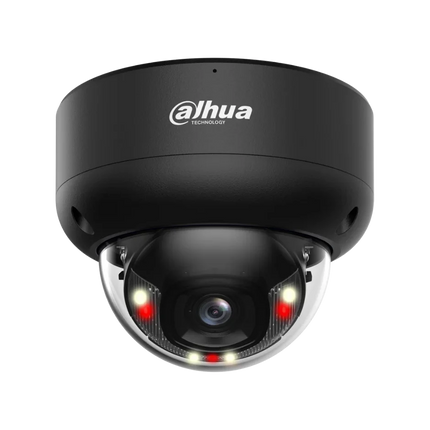

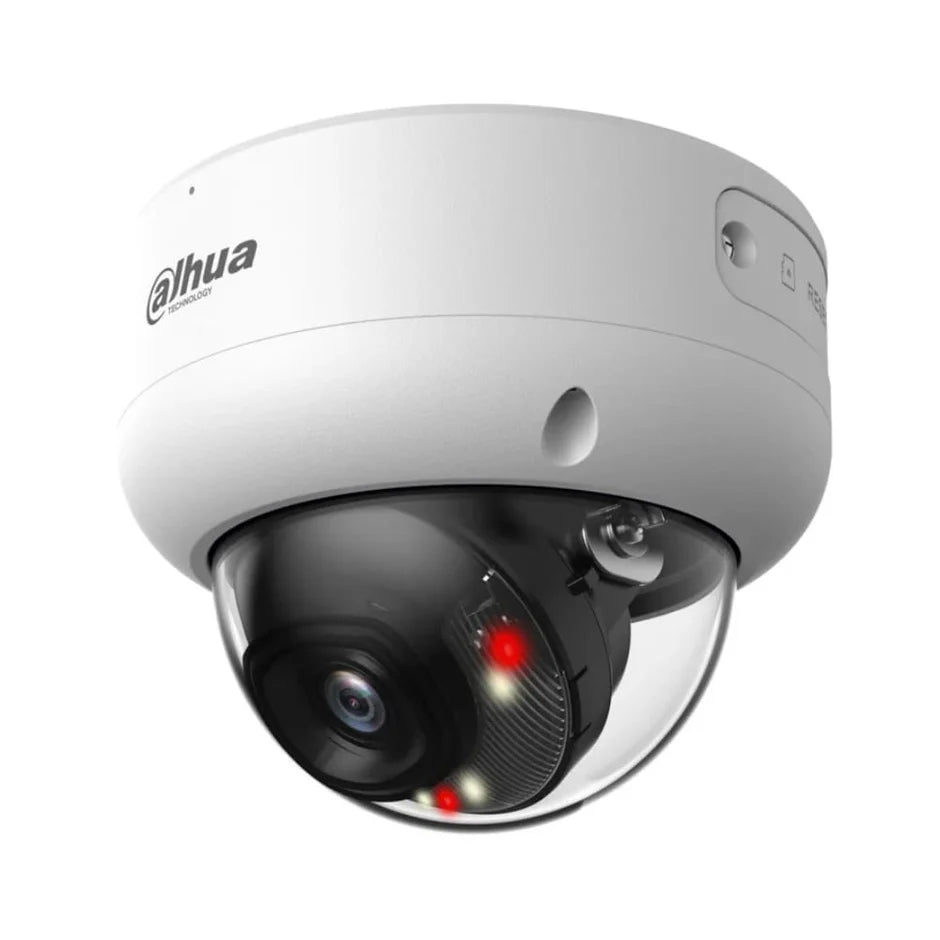

Dahua DH-IPC-HDBW3667E-AS-IL-ANZ — 6 MP WizSense 3 Smart Dual Light Fixed-Lens IK10 Vandal Dome Network Camera (3667 Series, 2.8 mm)

Brand:Dahua
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

DAHUA WIZSENSE 3 · 6 MP · SMART DUAL LIGHT 30 M · IK10 VANDAL · ANZ VARIANT Dahua 6MP WizSense Dome

DH-IPC-HDBW3667E-AS-IL-ANZ 6 MP WizSense 3 Smart Dual Light Vandal Dome — Australian Stock & 3-Year Warranty

The Dahua DH-IPC-HDBW3667E-AS-IL-ANZ is a 6 MP WizSense 3-Series fixed-lens IK10 vandal-rated dome with Smart Dual Light for 24/7 full-colour night vision, built for the Australian and New Zealand market with local firmware and a 3-year AU warranty. A 1/2.7" CMOS sensor captures 3288 × 1850 at 25/30 fps through a fixed 2.8 mm F1.4 wide-angle lens covering a 110° horizontal field of view — the classic under-eave, ceiling and soffit dome install pattern.

Smart Dual Light pairs 3 IR LEDs + 4 warm-light LEDs for auto-switching stealth IR (30 m) or warm-light full-colour (30 m) based on SMD 4.0 classified events. WizSense 3 Pro AI handles on-camera Perimeter Protection (tripwire + intrusion with human/vehicle classification) and AcuPick attribute search when paired with a compatible Dahua AI NVR. The metal IK10 vandal chassis and IP67 weather sealing make it a go-to for corridors, entryways, retail and any position that gets bumped, tampered with, or exposed to weather.

Standard PoE (802.3af) or 12 VDC, built-in microphone, RCA audio I/O and 1/1 alarm I/O — runs on 7.5 W max off any budget PoE switch.

3-Year AU Warranty

Fast AU-Wide Shipping

AU Tech Support

Why the HDBW3667E-AS-IL-ANZ

6 MP fixed 2.8 mm dome

6 MP 3288×1850 at up to 30 fps through a 2.8 mm F1.4 wide-angle lens (110° FoV) — ideal for covering an entire foyer, lift lobby, corridor or garage in a single ceiling-mounted dome.

Smart Dual Light

3 IR LEDs + 4 warm-light LEDs reach 30 m each — stealth IR when quiet, warm-light full-colour when SMD detects a human or vehicle.

IK10 vandal + IP67

Metal IK10 vandal-rated dome resists physical tampering and impact. IP67 for outdoor eaves, awnings and outbuildings. Standard for indoor-plus-transitional zones.

WizSense 3 Pro AI + AcuPick

On-camera Perimeter Protection (tripwire + intrusion) with human/vehicle classification, plus AcuPick attribute search when paired with a Dahua AI NVR — search footage by clothing colour or vehicle type.

Standard PoE, low power

Runs on PoE 802.3af at just 4.6 W typical / 7.5 W max — drops onto any Dahua/Hikvision/UNV NVR PoE port or budget switch. Lowest-power camera in this AI tier.

ANZ regional variant

The -ANZ suffix ships with Australian firmware and is officially supported by the Dahua Australia distribution channel — backed by CCTV Guru's local 3-year warranty and same-day RMA.

Camera, lens & illumination

Model	DH-IPC-HDBW3667E-AS-IL-ANZ
Form factor	Fixed-lens dome (HDBW chassis, metal, IK10)
Image sensor	1/2.7" CMOS progressive
Maximum resolution	3288 × 1850 (6 MP)
Frame rate	6 MP @ 25/30 fps · 1080p @ 25/30 fps
WDR	120 dB True WDR · HLC · BLC · 3D-NR · Defog · SSA
Day / night	Auto (ICR) / Colour / B&W
Lens type	Fixed focal, M12 mount, fixed iris
Focal length	2.8 mm (also available as 3.6 mm variant)
Maximum aperture	F1.4
Field of view (2.8 mm)	H: 110° · V: 58° · D: 132°
Minimum focus distance	1.4 m (2.8 mm) · 1.9 m (3.6 mm)
IR illumination	Up to 30 m (3 multi-core IR LEDs)
Warm-light illumination	Up to 30 m (4 warm-light LEDs)
Smart Dual Light	Yes — auto or manual switching

Pro AI, audio & network

AI engine	WizSense 3-Series (Pro AI)
Perimeter Protection	Tripwire · Intrusion (with human / vehicle classification)
SMD	SMD 4.0
AcuPick	Yes — with a compatible Dahua AI NVR
AI SSA	Yes
Video compression	AI H.265 · AI H.264 · Smart H.265+ · Smart H.264+ · MJPEG (sub-stream)
Built-in microphone	Yes
Audio I/O	1 in / 1 out (RCA)
Alarm I/O	1 in / 1 out
Audio codec	PCM · G.711a/Mu · G.726 · G.723
Network port	RJ-45 10/100 Base-T
ONVIF	Profile S, G, T, M · CGI
Storage	microSD up to 512 GB · FTP / SFTP / NAS
Mobile client	DMSS (iOS / Android)

Power, environment & build

Power supply	12 VDC / PoE (802.3af)
Power consumption	Basic 4.6 W (PoE) / 3.7 W (12 VDC) · Max 7.5 W (PoE) / 6.4 W (12 VDC)
Operating temperature	−40 °C to +60 °C
Humidity	≤ 95% RH non-condensing
Protection	IP67 · IK10 vandal
Casing	Metal
Dimensions	Ø 111.7 × 89.1 mm
Net weight	0.53 kg
Certifications	CE-LVD (EN 62368-1) · CE-EMC (2014/30/EU)
Australian warranty	3 years (via CCTV Guru)

Best used for

Foyer, lobby & corridor

Ceiling-mounted 110° wide view — captures whole entry areas without a second camera. Discreet dome form.

Retail & hospitality

Overhead till, storeroom or bar view. Tamper-resistant IK10 chassis withstands accidental knocks and deliberate tampering.

Body-corp common areas

Lift lobbies, mailrooms, undercroft carparks — low-power PoE, easy multi-camera daisy-chain.

Under-eave & soffit

IP67 outdoor sealing for exposed soffits, entry canopies and garage-door lintels — ceiling-facing mount preferred over bullet.

Works with

Dahua WizSense NVRs

Full AI feature parity with any Dahua 4-Series or 5-Series WizSense AI NVR. AcuPick works end-to-end with an AcuPick NVR.

Third-party NVRs (ONVIF)

ONVIF Profile S, G, T, M — drops onto Hikvision, HiLook, UNV and Milestone NVRs for live view + record.

DMSS mobile app

Free iOS / Android app for remote view, playback and event alerts.

Any 802.3af PoE switch

Only 7.5 W max — runs on any budget PoE switch. No PoE+ required.

Installation notes

Lens variants: This SKU is the 2.8 mm version (110° wide). A 3.6 mm version is available separately (86° narrower).
Not a TiOC — no built-in strobe/siren/speaker for active deterrence. The warm-light LED is the visual deterrent; no audio alarm on this model.
Ceiling or wall mountable directly through the base plate. Junction-box adapter (PFA136 or similar) recommended for surface-conduit installs.
Powered by standard PoE 802.3af or 12 VDC — max draw 7.5 W.
No ePoE on this chassis — standard 100 m Cat5e/Cat6 max. Use a PoE extender for longer runs.
microSD up to 512 GB for edge recording (bring your own card).

Frequently asked questions

Bullet or dome — which for my install?
Domes (like the HDBW3667E) are ceiling-mounted, discreet and vandal-resistant — ideal for indoor foyers, lobbies and eaves. Bullets (like the HFW3867E) are wall-mounted, more visible and better for long horizontal views like driveways.

What's the difference between the "-ANZ" and standard IPC-HDBW3667E-AS-IL?
The -ANZ is the Australia / New Zealand regional variant with local firmware, supported by the Dahua AU distribution channel — that's what carries the local 3-year warranty. Non-ANZ grey-market units are not warranted by AU distributors.

Does it have red/blue strobe or siren?
No — this is not a TiOC. The warm light provides passive visual deterrence, but there is no built-in strobe or speaker. For active audio-visual deterrence, see the Dahua TiOC PRO range.

What's IK10 vandal-rating in real terms?
IK10 is the highest impact rating in the IK protection standard — the dome withstands an impact equivalent to a 5 kg mass dropped from 40 cm. Designed for high-vandalism positions like retail counters, hallways and lift lobbies.

How far does the night vision reach?
Up to 30 m IR (stealth) or 30 m warm light (full colour). Smart Dual Light auto-switches based on SMD-classified event.

Will it work with my existing Hikvision or UNV NVR?
Yes for live view + recording via ONVIF Profile S/T. AI features (AcuPick, human/vehicle metadata) only work end-to-end with a Dahua AI NVR.

Does it support standard PoE?
Yes — runs on PoE 802.3af. Max draw only 7.5 W.

Operating temperature range?
−40 °C to +60 °C — alpine NSW to tropical Top End rated. Metal IP67 chassis.

Downloads

DH-IPC-HDBW3667E-AS-IL-ANZ Datasheet Dome Network Camera Quick Start Guide Dome Network Camera Installation Guide
