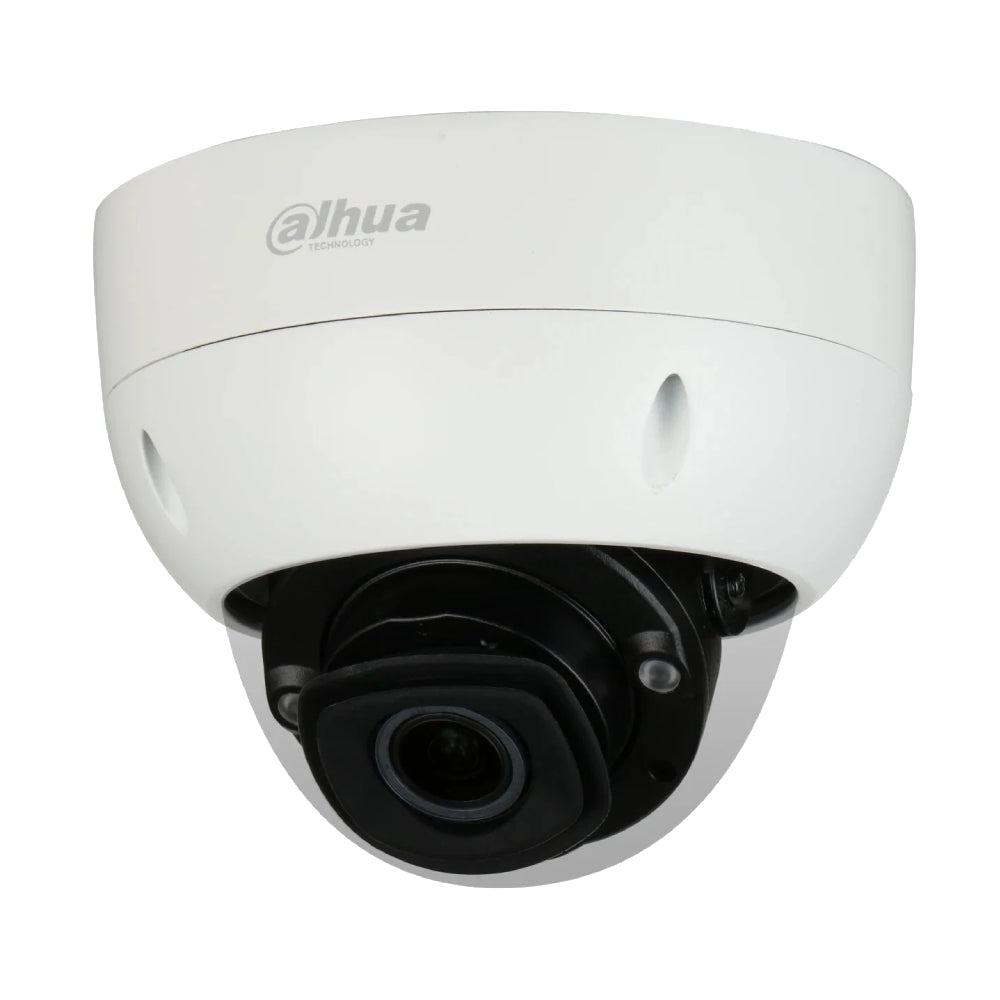

WizMind 5 · 8 MP 4K · Motorised 2.7–12 mm · IK10 Vandal DomeDahua DH-IPC-HDBW5842HP-ZHE-2712F — 8 MP 4K IR Motorised Vari-Focal Vandal Dome WizMind 5 Network Camera (5842 Series)
The Dahua DH-IPC-HDBW5842HP-ZHE-2712F is a WizMind 5 series 8 MP 4K vandal dome built around a 1/2" CMOS Starlight+ sensor with native 3840 × 2160 resolution at 25/30 fps. A motorised 2.7–12 mm vari-focal lens delivers a wide 113° field at 2.7 mm down to a tight 30° pull at 12 mm — re-frameable remotely from the DMSS app. Built-in IR illumination reaches up to 50 m; WDR is 140 dB for high-contrast Australian outdoor scenes; the IK10 vandal-rated metal dome housing is IP67 sealed with TVS 6000 V lightning protection. Power is 12 VDC, 24 VAC or ePoE (extended PoE) at ≤ 13 W. WizMind 5 deep-learning edge AI runs the full project-grade suite — face detection with attribute extraction, perimeter protection (tripwire, intrusion, loitering, parking detection) with human and vehicle classification, plus people counting, heat mapping and SMD Plus. Built for Australian commercial buildings, schools, transport hubs, shopping centres, council reserves and government sites where 4K detail and project-grade WizMind AI are required. Backed by a 5-year Australian warranty through CCTV Guru as authorised Dahua AU reseller. SKU 5842 series.
Why Choose the Dahua HDBW5842HP-ZHE-2712F WizMind 5 4K Vandal Dome
True 8 MP 4K Detail
Native 3840 × 2160 raster — four times the pixel density of 1080p. Digital zoom into faces, plates and signage stays usable instead of dissolving into noise. The 4K standard for forensic-grade evidence.
Re-Frameable Motorised Lens
2.7–12 mm motorised vari-focal — install wide for general coverage, then pull tight to 12 mm on the area of interest remotely via the DMSS app. No ladder visits for re-framing.
WizMind 5 Edge AI — Full Suite
Face detection with attribute extraction (age, gender, expression), perimeter protection, people counting, heat mapping — the premium-tier Dahua AI platform on a 4K vandal dome.
IK10 Vandal Dome & 6000 V Surge
Metal housing with IK10 impact rating + TVS 6000 V lightning, surge and voltage-transient protection. Built for transport platforms, schools, retail interiors and high-vandalism positions.
140 dB WDR & Starlight+ Low-Light
Class-leading wide dynamic range plus a 1/2" Starlight+ sensor for usable colour at low ambient light levels. 50 m IR for full darkness.
ePoE — Long-Cable Flexibility
Dahua ePoE technology supports power and data over standard Ethernet cable at extended distances. Saves trade time on long cable runs and removes the need for midspan power injectors on most installs.
Important Install Note
This camera draws up to 13 W under full load — comfortable on standard 802.3at PoE+ switches. The motorised vari-focal lens is remote-controllable via DMSS for one-time install framing or ongoing re-alignment. The dome housing is heavy — use a heavy-duty wall or ceiling bracket. For coastal or humid Australian installs, the all-metal IP67 chassis with built-in heater handles moisture and condensation cycles.
AI & Smart Detection Capabilities
Face Detection & Attribute Extraction
Captures face snapshots with attribute extraction — age, gender, expression. Forensic-grade snapshots from 4K resolution. Subject to local privacy law for analytics use.
Perimeter Protection (IVS)
Tripwire, intrusion, fast-moving, abandoned/missing object, loitering, parking detection and people gathering — with accurate human/vehicle classification.
People Counting & Heat Mapping
Business intelligence built into the camera — track footfall, dwell time and movement patterns. Useful for retail, transport and educational sites.
SMD Plus Motion Filtering
Smart Motion Detection filters out animal, foliage, weather and lighting changes. Only people and vehicles raise alarms in DMSS.
Remote PTZ-Style Operation
The motorised lens enables remote zoom and re-framing from the DMSS app — PTZ-style operation in a fixed dome chassis.
Abnormality Detection
SD card status, network disconnection, IP conflict, video tampering, audio detection and voltage detection — push to DMSS for any abnormal device state.
Technical Specifications
Camera & Image Sensor
| Model |
DH-IPC-HDBW5842HP-ZHE-2712F |
| Form Factor |
Vandal dome (HDBW chassis) |
| Image Sensor |
1/2" CMOS Starlight+ |
| Maximum Resolution |
3840 × 2160 (8 MP 4K) |
| Frame Rate |
4K @ 25/30 fps |
| WDR |
140 dB |
| Day / Night |
Auto (ICR) / Colour / B&W |
| IR Illumination |
Up to 50 m |
Lens & Intelligence
| Lens Type |
Motorised vari-focal |
| Focal Length |
2.7 mm – 12 mm |
| Field of View |
H: 113° – 30° |
| Zoom Control |
Motorised (remote via DMSS) |
| AI Engine |
WizMind 5 Series |
| IVS Library |
Tripwire · intrusion · fast-moving · abandoned/missing object · loitering · parking detection · people gathering |
| Face Detection |
Yes — with attribute extraction |
| People Counting / Heat Map |
Yes |
| SMD Plus |
Yes |
| Video Compression |
H.265 · H.264 · Smart H.265+ · Smart H.264+ · MJPEG |
Power, Environment & Build
| Power Supply |
12 VDC / 24 VAC / ePoE |
| Power Consumption |
Max ~13 W under full load |
| Operating Temperature |
−40 °C to +60 °C |
| Protection |
IP67 · IK10 vandal · TVS 6000 V lightning · surge protection |
| Casing |
Metal |
| Network |
RJ-45 · ePoE · ONVIF Profile S, G, T · CGI · SDK |
| Storage |
Micro SD up to 256 GB |
| Mobile Client |
DMSS (iOS / Android) |
| Australian Warranty |
5 Years (via CCTV Guru — WizMind tier) |
How It Compares — HDBW5842HP-ZHE (Motorised Dome) vs HDBW5442EP-ZE-2712 (4MP Motorised Dome)
The natural sibling is the Dahua DH-IPC-HDBW5442EP-ZE-2712 — the 4 MP version of the same WizMind 5 motorised vandal dome. Choose this 8 MP version for forensic-grade pixel density; choose the 4 MP for lower storage footprint and easier bandwidth budgeting at scale.
| Feature |
HDBW5842HP-ZHE (this — 8 MP) |
HDBW5442EP-ZE (sibling — 4 MP) |
| Resolution |
8 MP 4K (3840 × 2160) |
4 MP (2688 × 1520) |
| Sensor |
1/2" CMOS Starlight+ |
1/1.8" CMOS Starlight+ |
| Lens |
Motorised 2.7–12 mm |
Motorised 2.7–12 mm |
| AI Engine |
WizMind 5 |
WizMind 5 |
| IR Distance |
Up to 50 m |
Up to 40 m |
| WDR |
140 dB |
140 dB |
| IK10 Vandal |
Yes |
Yes |
| Storage Footprint |
Heavier — 4K main stream |
Lighter — ~50% less |
| Best For |
Forensic-grade pixel density, ANPR-style capture, large-area coverage |
Storage-budget-conscious deployments with full WizMind AI |
Recommended NVR Pairings
Dahua DHI-NVR5216-16P-AI/ANZ
5-Series AcuPick NVR · 16 channels · 16 PoE+ ports · ePoE compatible. Most common pairing for medium commercial deployments.
View Dahua NVR5216-16P-AI →
Dahua DHI-NVR5432-AI/ANZ
5-Series AcuPick NVR · 32 channels · 4 HDD bays. Enterprise-scale for multi-camera 4K deployments.
View Dahua NVR5432-AI →
Dahua DHI-NVR5208-8P-AI/ANZ
5-Series AcuPick NVR · 8 channels · 8 PoE ports. Small commercial site sizing.
View Dahua NVR5208-8P-AI →
Dahua DHI-NVR4216-16P-AI/ANZ
4-Series WizSense AI NVR · 16 channels · 4K HDMI. Value-pick 16-channel build.
View Dahua NVR4216-16P-AI →
Frequently Asked Questions
Is the Dahua HDBW5842HP-ZHE-2712F NDAA compliant?
No. Dahua is not certified under NDAA Section 889.
What does "ZHE" mean in the SKU?
Z = motorised vari-focal lens; H = heater; E = ePoE (Dahua extended PoE technology). Combined: motorised, heated, ePoE-capable.
What is ePoE?
Dahua extended PoE technology that delivers power and data over standard Cat5e/Cat6 cable at extended distances (up to 800 m at reduced bandwidth, or 300 m at full speed). Useful for long perimeter runs.
Can I re-frame the lens after install?
Yes — the motorised vari-focal lens is fully controllable via the DMSS mobile app or the camera's web UI. Zoom and focus adjustments are remote-controlled with no need for a ladder visit.
How is the warranty 5 years rather than 3?
WizMind series products carry a 5-year Australian warranty through CCTV Guru — reflecting their premium project-grade build.
How far can it see at night?
Up to 50 m built-in IR. With Starlight+ low-light, the camera also captures usable colour at moonlight ambient levels before the IR engages.
Does it work with third-party NVRs?
Yes — ONVIF Profile S, G and T compatible. ePoE works only with Dahua ePoE-capable switches and NVRs at extended distances; standard PoE+ works on third-party equipment at standard 100 m.
What temperature range is it rated for?
−40 °C to +60 °C. Built-in heater pre-warms the dome optics in cold conditions. Suitable for Alpine, mountain, desert and tropical Australian deployments.
Does it require PoE+ or will standard PoE work?
Standard 802.3af PoE or PoE+ both work; ePoE extended-distance mode requires a Dahua ePoE switch or NVR PoE port.
Can I view it on my phone?
Yes — Dahua's free DMSS app on iOS and Android. Remote PTZ-style zoom and re-framing also supported via DMSS.
Downloads
Order Your Dahua HDBW5842HP-ZHE-2712F from CCTV Guru
"Add to cart" to order online, or contact our Australian team for project pricing, multi-camera fleet deployments and NVR sizing advice. We are authorised Australian Dahua resellers, hold stock locally, and back every 5842 series WizMind camera with a 5-year Australian warranty and Australian-based tech support. Phone, email or live chat us through cctvguru.com.au/pages/contact — most enquiries are answered the same business day.
