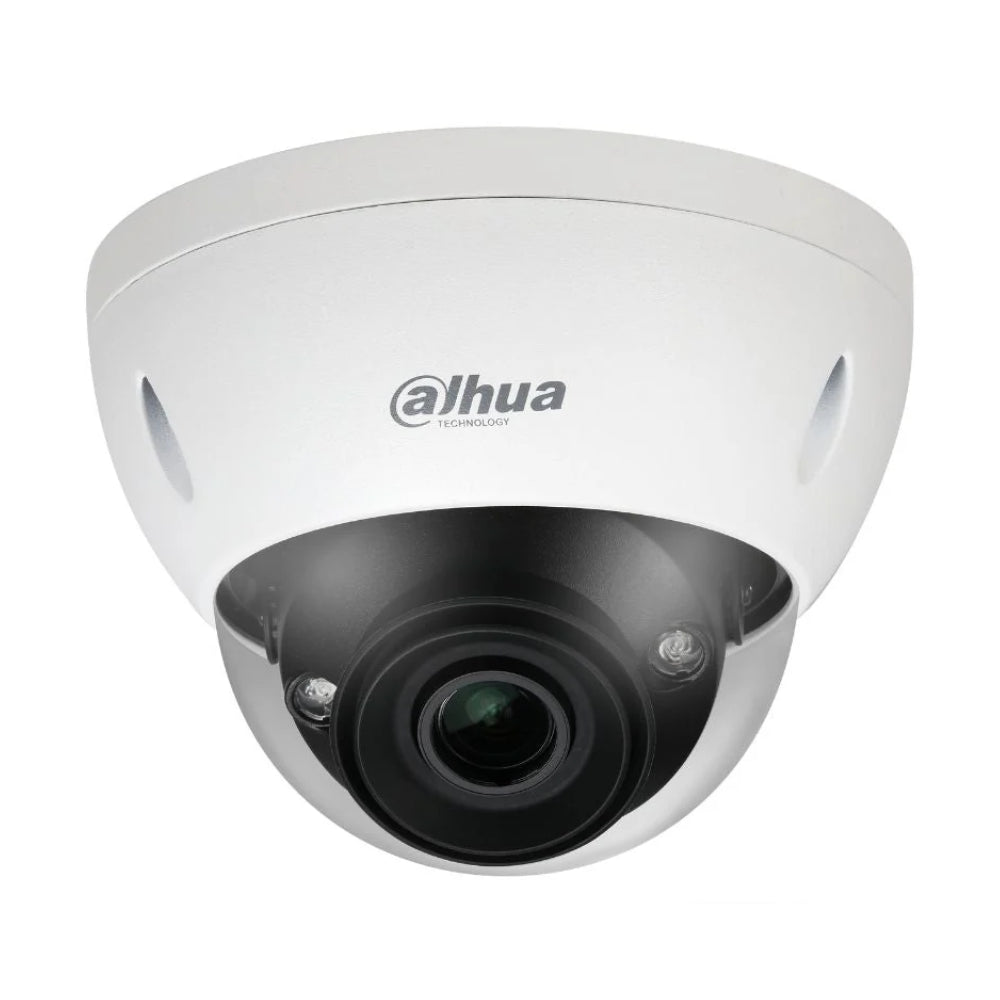

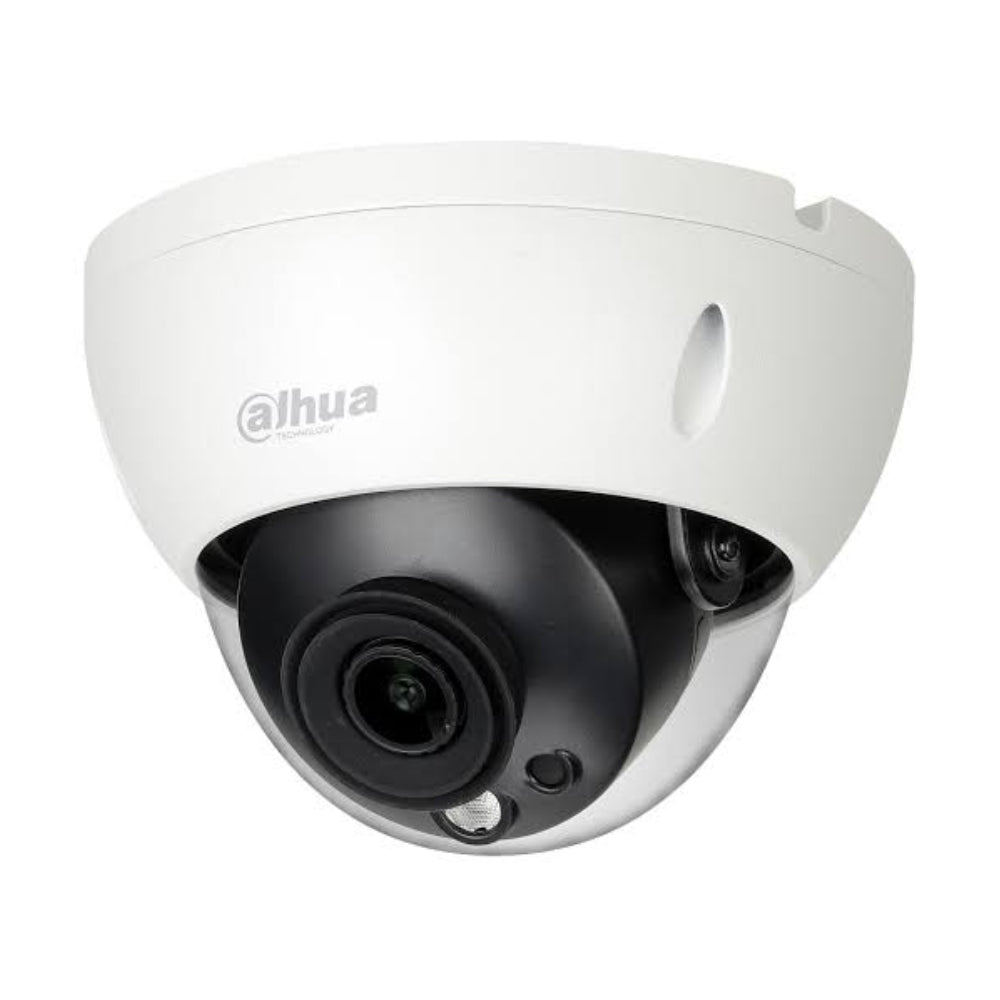

WizMind 5 · 4 MP · Motorised 2.7–12 mm · IK10 Vandal DomeDahua WizMind 5 · 4 MP Pro AI Vandal DomeDahua DH-IPC-HDBW5442EP-ZE-2712 — 4 MP Pro AI Motorised Vari-Focal Starlight+ IR Vandal Dome WizMind 5 Network Camera (2.7–12 mm)
The Dahua DH-IPC-HDBW5442EP-ZE-2712 is the WizMind 5 Pro AI 4 MP motorised vandal dome — the dome sibling to Dahua's flagship 4 MP HFW5442EP-ZE bullet. Built around a 1/1.8" Starlight+ CMOS — physically larger and roughly twice the light-gathering area of WizSense's 1/2.7" — capturing 2688 × 1520 at 25/30 fps with Smart H.265+ encoding. The motorised 2.7–12 mm vari-focal lens delivers a wide 100° field at 2.7 mm down to a tight 33° pull at 12 mm with auto-focus, remote-controllable via DMSS. Built-in IR reaches up to 40 m; WDR is 140 dB (vs WizSense's 120 dB); the IK10 vandal-rated metal dome housing is IP67 sealed across −30 °C to +60 °C. WizMind 5 deep-learning AI runs the full Pro suite — face recognition with database, full perimeter protection, people counting, heat map, stereo analysis and vehicle metadata. ePoE extends PoE to 800 m over Cat6 for long perimeter runs without an edge network closet. Built for project-grade Australian deployments where a vandal dome is preferred — transport platforms, shopping centres, schools, airports, hospitals, council and government facilities. Backed by a 5-year Australian warranty through CCTV Guru. SKU 5442 series.
Why Choose the Dahua HDBW5442EP-ZE WizMind 5 Pro AI Vandal Dome
IK10 Vandal Dome with Pro AI
Full metal IK10-rated dome chassis — built for shopping centres, transport platforms, schools and high-vandalism positions. Pro AI features baked in.
1/1.8" Starlight+ Sensor
Physically larger sensor with roughly twice the light-gathering area of WizSense's 1/2.7". Usable colour video in moonlight, low noise.
WizMind 5 Full Pro AI
Face recognition with on-camera database, perimeter protection, people counting, heat map, stereo analysis, vehicle metadata — the flagship Pro AI feature set.
ePoE — 800 m PoE Distance
Extends data + power to 800 m on Cat6 (vs the standard 100 m limit) — long perimeter runs without an edge network closet. Also supports AC24V / DC12V.

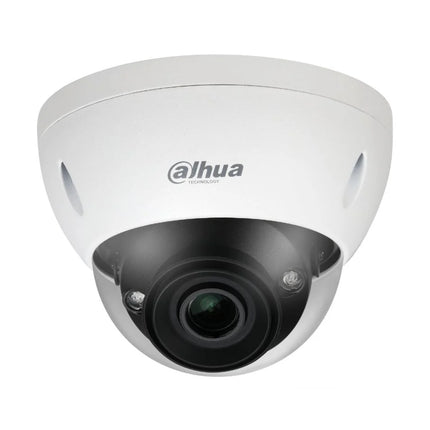

Motorised 2.7–12 mm Vari-Focal
4.4× motorised vari-focal with auto-focus — remote re-framing via DMSS, no ladder visits required.
140 dB True WDR + 40 m IR
True 140 dB WDR (vs WizSense's 120 dB) for harsh Australian sun. Built-in IR array reaches up to 40 m for night surveillance.
Important Install Note
The motorised vari-focal lens is remote-controllable via DMSS. To use ePoE's 800 m range, pair with a Dahua ePoE switch or NVR with ePoE ports — on a standard 802.3af/at PoE switch the camera works at the standard 100 m limit. The dome also supports AC24V power as a backup option.
AI & Smart Detection Capabilities
Face Recognition (Database)
On-camera face database with up to 10,000 face entries. Real-time recognition with similarity scoring and DMSS alarm push.
Perimeter Protection (IVS)
Tripwire and intrusion zones with human and vehicle classification.
People Counting + Heat Map
Statistics for entry/exit counts, queue length and dwell-time heat maps — ideal for retail and transport analytics.
SMD Plus Smart Motion
Motion alerts triggered only by humans and vehicles. Filters out branches, animals and shadows at the edge.
Stereo Analysis
Stereo-vision behaviour analysis — fall detection, fight detection, person stationary, person walking.
Vehicle Metadata Capture
Vehicle classification with attribute capture — type, colour and direction metadata.
Technical Specifications
Camera, Lens & Illumination
| Model |
DH-IPC-HDBW5442EP-ZE-2712 |
| Form Factor |
Vandal dome (HDBW chassis) |
| Image Sensor |
1/1.8" CMOS Starlight+ |
| Maximum Resolution |
2688 × 1520 (4 MP) |
| Frame Rate |
4 MP @ 25/30 fps · 1080p @ 50/60 fps |
| WDR |
140 dB |
| Day / Night |
Auto (ICR) / Colour / B&W |
| Lens Type |
Motorised vari-focal with auto-focus |
| Focal Length |
2.7 mm – 12 mm |
| Maximum Aperture |
F1.5 — F2.7 |
| Field of View |
H: 100° – 33° |
| IR Illumination |
Up to 40 m |
Pro AI, Audio & Network
| AI Engine |
WizMind 5 Series (Pro AI) |
| Face Recognition |
Yes · on-camera database (up to 10,000) |
| IVS |
Tripwire · intrusion (with human/vehicle classification) |
| SMD |
SMD Plus |
| People Counting |
Yes |
| Heat Map |
Yes |
| Stereo Analysis |
Yes |
| Vehicle Metadata |
Yes |
| Audio I/O |
1 in / 1 out |
| Alarm I/O |
1 in / 1 out |
| Network Port |
RJ-45 (10/100 Base-T) · ePoE |
| Interoperability |
ONVIF (Profile S, G, T) · CGI |
| Storage |
Micro SD up to 256 GB |
| Mobile Client |
DMSS (iOS / Android) |
Power, Environment & Build
| Power Supply |
12 VDC / 24 VAC / PoE (802.3af) / ePoE |
| ePoE Distance |
Up to 800 m (10 Mbps) on Cat6 |
| Operating Temperature |
−30 °C to +60 °C |
| Protection |
IP67 · IK10 vandal |
| Casing |
Metal |
| Certifications |
CE-LVD (EN62368-1) · CE-EMC (2014/30/EU) · RCM (AU) |
| Australian Warranty |
5 Years (via CCTV Guru) |
How It Compares — HDBW5442EP-ZE (Dome) vs HFW5442EP-ZE (Bullet)
The natural sibling is the Dahua DH-IPC-HFW5442EP-ZE — the bullet version of this same WizMind 5 Pro AI platform. Choose the dome (this product) for shopping centres, vandal-prone interiors and ceiling-mount installs; choose the bullet for outdoor wall mount and longer IR throw.
| Feature |
HDBW5442EP-ZE-2712 (this — dome)
|
HFW5442EP-ZE-2712 (sibling — bullet)
|
| AI Tier |
WizMind 5 (Pro AI) |
WizMind 5 (Pro AI) |
| Sensor |
1/1.8" Starlight+ |
1/1.8" Starlight+ |
| WDR |
140 dB |
140 dB |
| Lens |
Motorised 2.7–12 mm |
Motorised 2.7–12 mm |
| IR Distance |
Up to 40 m |
Up to 60 m |
| Form Factor |
IK10 Vandal Dome |
Bullet |
| Best For |
Vandal-prone & ceiling installs — transport, retail, schools |
Outdoor wall mount, long-range IR |
Recommended NVR Pairings
Frequently Asked Questions
What does "IK10" mean?
IK10 is the highest impact rating in the IK protection standard — the dome can withstand an impact equivalent to 5 kg dropped from 40 cm. Designed for high-vandalism positions.
What is "WizMind 5"?
Dahua's flagship Pro AI tier — the same chipset used in their face-recognition and traffic-analytics cameras. Full feature suite: face recognition, people counting, heat map, stereo analysis, vehicle metadata, perimeter protection.
What does "ePoE" actually do?
ePoE extends PoE distance from 100 m up to 800 m on Cat6 (300 m at 100 Mbps). Pair with a Dahua ePoE switch or NVR.
Can I run it on standard PoE?
Yes — 802.3af/at-compliant. ePoE only activates with a Dahua ePoE source.
How far can it see at night?
Up to 40 m built-in IR. The 1/1.8" Starlight+ sensor also produces usable colour video in moonlight without IR.
Does it work with third-party NVRs?
Yes — ONVIF Profile S, G, T. AI features only work end-to-end on Dahua AI NVRs.
What is the warranty?
5-year Australian warranty via CCTV Guru — WizMind 5 tier carries Dahua's longest AU warranty.
What temperature range?
−30 °C to +60 °C. Suitable for all Australian sites.
Can I view it on my phone?
Yes — Dahua's free DMSS app on iOS and Android.
