AXIS C-SERIES · NDAA & TAA COMPLIANT
Intelligent, Long-Range Public Address Messaging

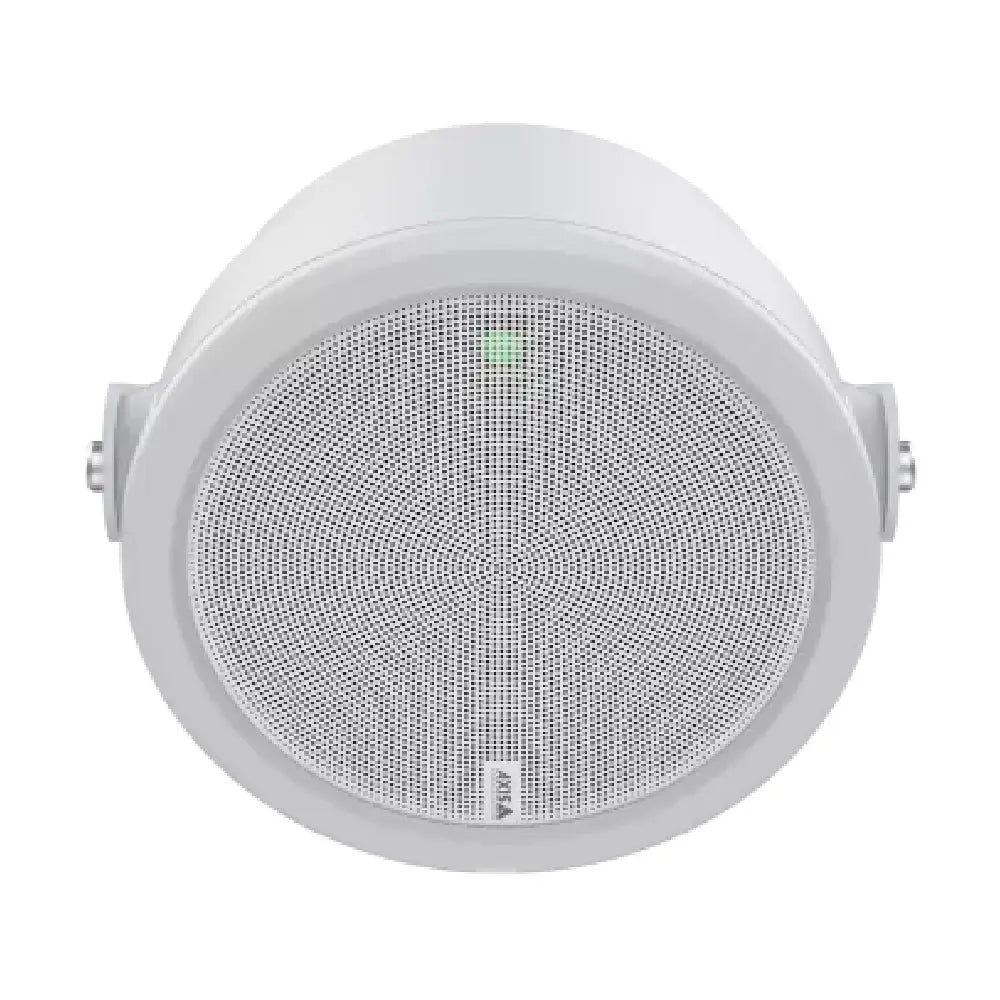

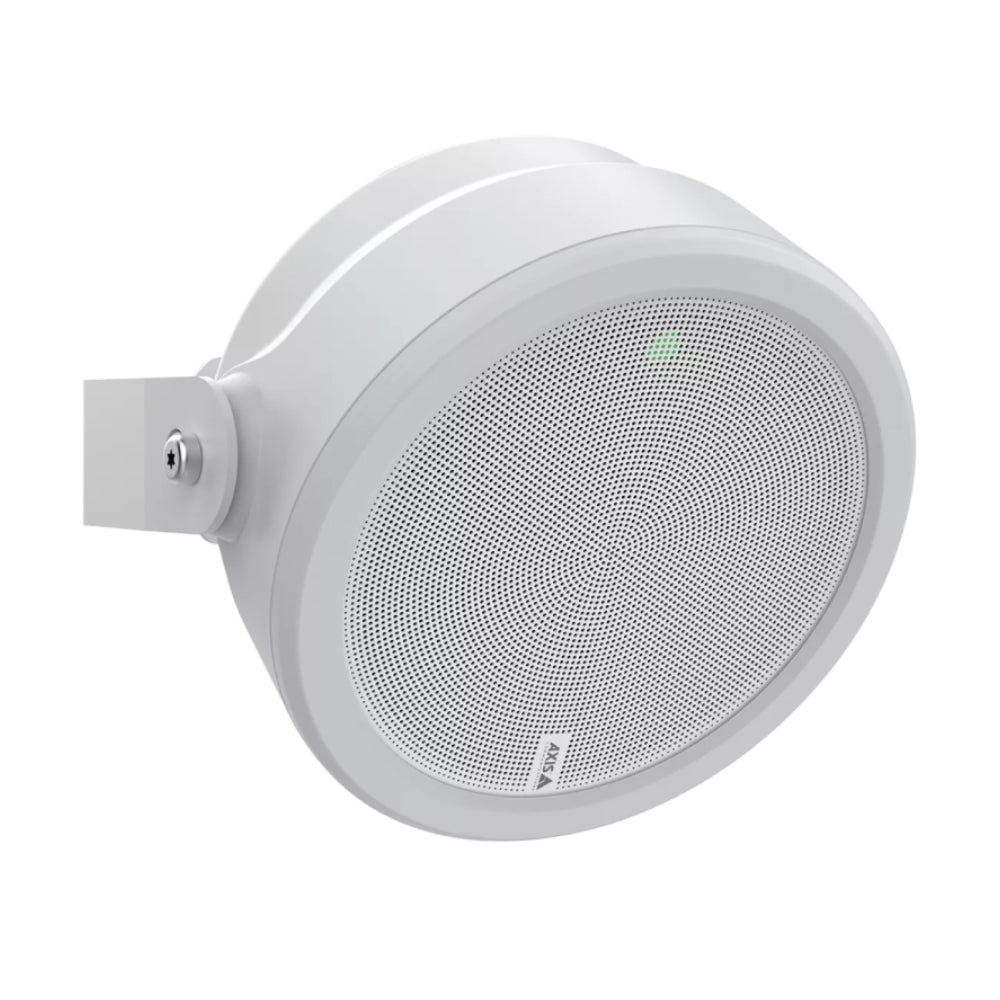

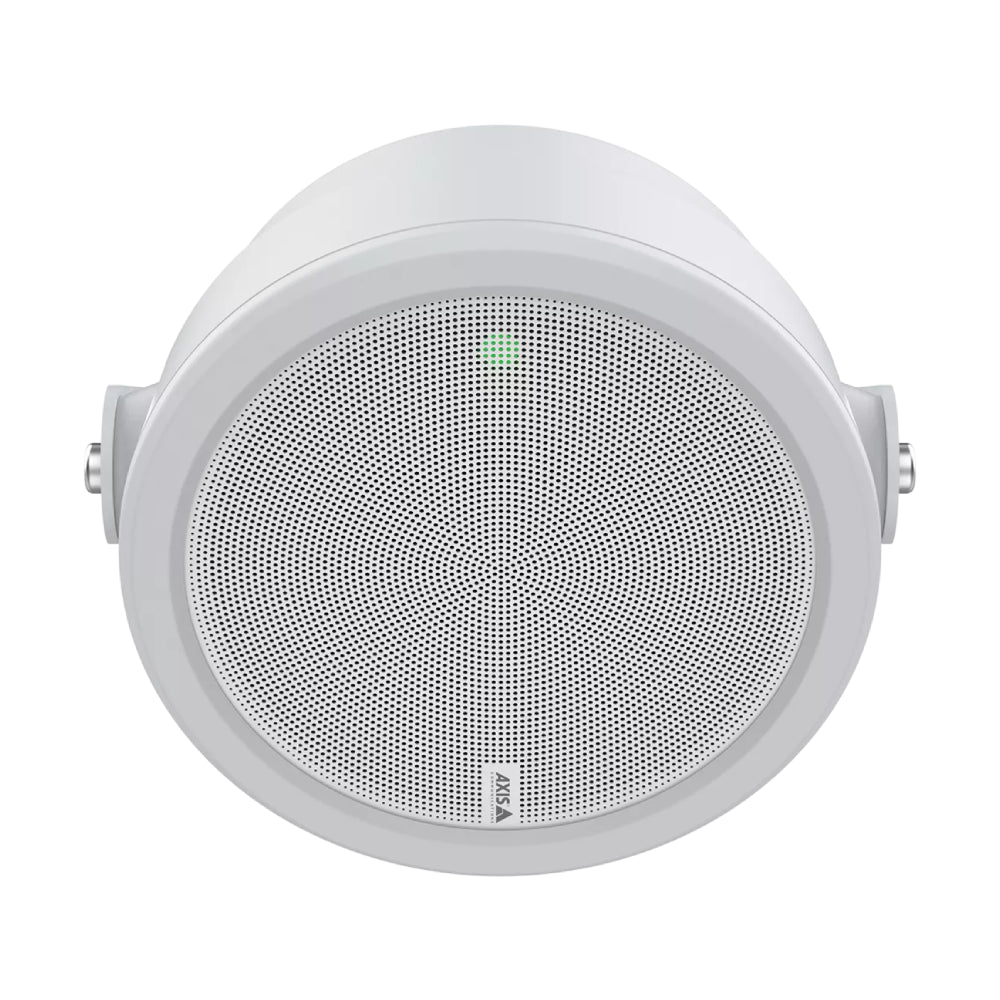

The AXIS C1610-VE is a rugged, network-integrated sound projector engineered to deliver crystal-clear voice messages across expansive commercial and public areas. Ideal for harsh outdoor environments, industrial perimeters, and high-density urban zones, this standalone IP speaker acts as a powerful audio deterrent. With a robust minimalist aesthetic and integrated smart capabilities, it seamlessly blends proactive voice intervention with your existing network video surveillance environment.
Audio Output
121 dB Max SPL
Dispersion
Long-Range Direct
Intelligence
Auto Health Test
Protection
IP66/IP67 & IK10
Advanced Edge Integration & Acoustic Testing
Driven by edge-based software, the AXIS C1610-VE operates as an all-in-one audio management powerhouse without relying on external servers. It comes equipped with pre-loaded AXIS Audio Manager Edge, enabling operators to manage scheduling, zones, and content permissions efficiently. A built-in microphone continuously monitors speaker health by performing automated acoustic tests, guaranteeing the device is fully functional when emergency announcements or security call-outs are critically needed.
All-in-One Audio System
Eliminate complex cabling and dedicated central amplifiers. The system contains a built-in power amplifier and digital signal processor (DSP) that optimizes clarity out of the box. Connects directly to standard IP networks via a single PoE/PoE+ drop for maximum installation simplicity.
Vandal & Weatherproof Engineering
Encased in a certified IK10, IP66, IP67, and NEMA 4X rated chassis. The device handles extreme environments ranging from -40 °C to 60 °C, offering long-term reliability against heavy downpours, windborne debris, corrosion, and intentional tampering.
Technical Specification Matrix
| Camera Model |
AXIS C1610-VE |
| Audio Output |
121 dB SPL (Peak at 1m) |
| Power Method |
Power over Ethernet (PoE) IEEE 802.3af/802.3at |
| Integrated Software |
AXIS Audio Manager Edge (Pre-installed) |
| Microphone |
Built-in electret condenser (for auto speaker test & two-way audio) |
| Environmental Ratings |
IP66, IP67, NEMA 4X, IK10 vandal resistance |
| Operating Temperature |
-40 °C to 60 °C (-40 °F to 140 °F) |
| Compliance |
NDAA Compliant, TAA Compliant |
Does the system require a central server for audio schedules?
No. The unit features built-in AXIS Audio Manager Edge firmware, allowing you to configure zones, manage schedules, handle content, and deploy updates locally directly from a web browser.
How does the automatic health test work?
The integrated microphone listens for a sub-audible tone emitted by the internal amplifier components. This self-test validates that the amplifier and speaker drivers are operating flawlessly without needing onsite visual or audible checkups.
Is this model fully compliant with federal procurement standards?
Yes. The speaker is completely NDAA and TAA compliant, making it safe and certified for placement within US government sites, defense applications, and enterprise infrastructures.
Can it connect to VoIP systems?
Absolutely. It supports Session Initiation Protocol (SIP) for seamless integration with modern Voice over IP (VoIP) telephony systems, allowing live page messages via standard office phone lines.
