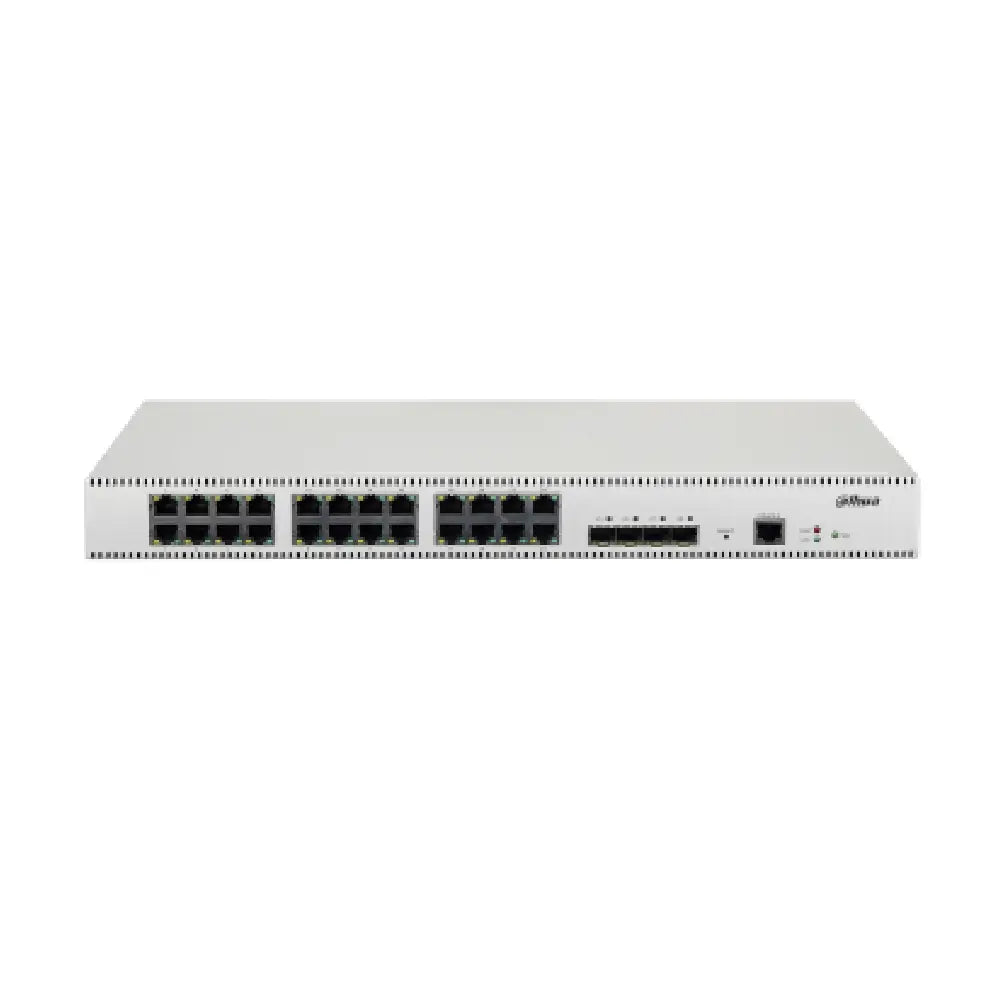

Dahua · Network Switches24-Port Gigabit Managed Switch with 4 × 10G SFP+
DH-PFS5428-24GT-V2 — Build a higher-capacity network aggregation point with 24 Gigabit RJ45 ports and four 1/10G SFP+ uplinks. This managed Layer 2+ rack switch supports segmentation, link redundancy and static routing for a planned business or surveillance network.
Key features
24 Gigabit connections
Aggregate wired devices and downstream camera switches.
Four 10G-capable uplinks
Use suitable SFP+ modules and fibre to reduce uplink bottlenecks.
Managed network control
VLANs and supported routing and redundancy functions help organise a larger network.
Fanless rack format
A 440 mm wide chassis without cooling fans suits appropriate rack installations.
Applications & installation
Use it to connect recorders, workstations and downstream switches that already provide camera power. It is a non-PoE switch: connecting a camera does not supply power. Configure VLANs, management access and redundant links to match the network design before deployment.
Technical Specifications
| Model |
DH-PFS5428-24GT-V2 |
| Copper ports |
24 × 10/100/1000 Mbps RJ45 |
| Fibre uplinks |
4 × 1/10G SFP+ |
| Power over Ethernet |
No PoE output |
| Switching capacity |
128 Gbps |
| Packet forwarding rate |
96 Mpps |
| Management |
Layer 2+ with static routing |
| Network features |
VLAN, STP/RSTP/MSTP, ERPS, link aggregation and SNMP |
| Cooling |
Fanless |
| Power input |
100–240 V AC, 50/60 Hz |
| Dimensions |
440 × 300 × 44 mm |
| Net weight |
3.15 kg |
| Operating temperature |
−20°C to +55°C |
| Datasheet scope |
PFS5428-24GT family document supplied for the V2 listing |
| Warranty |
36 months — subject to warranty terms |
Compatible options & add-ons
Optional items are sold separately. Select the components needed for your installation; mounting parts may need to be used together.
Frequently asked questions
Will this switch power IP cameras?
No. Use a separate compatible PoE switch, injector or camera power supply.
Are SFP+ modules included?
Do not assume transceivers or fibre leads are included. Select modules matching link speed, fibre type, connector and distance.
Downloads
Manufacturer documentation: the datasheet identifies the product or stated product family; general guides cover the applicable equipment type. Confirm model-specific instructions before installation.
