The WI-CPE513P-KIT V3 is a high-performance 5GHz 300Mbps outdoor wireless bridge kit designed for professional long-range network extensions and CCTV backhaul. With a transmission range of up to 5km and a pre-configured plug-and-play design, this kit eliminates the need for complex software setup, making it an ideal solution for remote IP camera connectivity and site-to-site networking. Key Features 5km Long-Range Transmission: High-performance 15dBi dual-polarized directional antenna ensures stable connectivity over distances up to 5km. 300Mbps High-Speed Wireless: Utilizes the 5GHz 802.11a/n standard to provide ample bandwidth for multiple high-definition IP camera streams. PoE Passthrough (PoE In & Out): Features dual Ethernet ports—one for PoE Input (802.3at) to power the bridge, and one for PoE Output (802.3af) to power an attached IP camera. Pre-Configured Pairing: The kit comes pre-paired for instant PTP deployment. Includes a digital LED display and DIP switches for easy manual channel adjustment without a PC. Wi-Tek Cloud Management: Supports centralized remote management and real-time monitoring via the Wi-Tek Cloud platform and mobile app. All-Weather Reliability: IP65-rated weatherproof housing and professional 6kV ESD/10kV lightning protection for stable operation in harsh outdoor environments. Technical Specifications Wireless Speed Up to 300Mbps (5GHz) Antenna Gain 15dBi Directional (30° Beamwidth) Interfaces 1x 10/100M PoE IN, 1x 10/100M PoE OUT Power Supply 48V 802.3at/af PoE (Adapter Included) Operation Modes Base Station, CPE, WISP, Repeater Ingress Protection IP65 Waterproof Operating Temp -40°C to 70°C What's in the Box 2 x WI-CPE513P V3 Units 2 x 48V PoE Adapters 2 x Pole Mounting Straps 1 x Quick Installation Guide More Information WI-CPE513P-KIT_Datasheet_V2.0WI-CPE513P-KIT V3 _QIGWireless CPE Discovery Software for model WI-CPE111-KIT V2 W-CPE511H-KIT WI-CPE513P-KIT V3 WI-CPE515H-KIT

Read more less

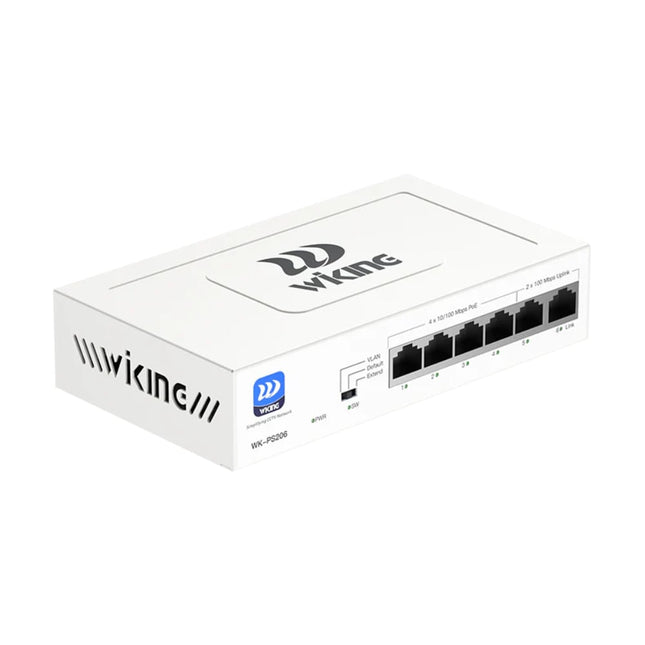

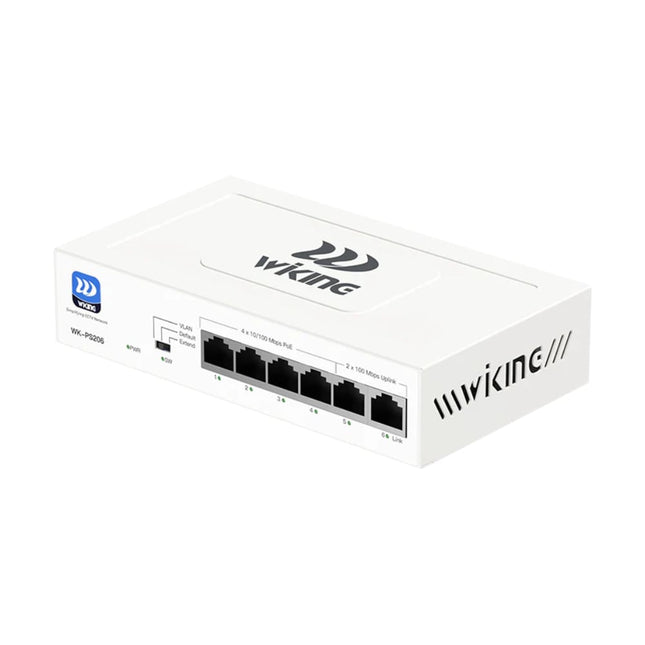

The Wi-Tek Wiking WK-PS206 is a compact 4-port 100Mbps PoE switch with 2 uplink ports, designed for cost-effective and reliable CCTV and IP device networking. Supporting a 45W PoE budget, it powers up to 4 PoE-enabled devices with IEEE 802.3af/at compliance. Equipped with smart DIP switch modes, the WK-PS206 allows 250m long-distance PoE transmission, VLAN port isolation for security, and PD Alive watchdog to automatically reboot unresponsive devices. Its fanless metal housing provides silent and durable operation, making it perfect for surveillance systems, small business networks, and hospitality environments where quiet reliability is essential. Key Features 4 × 10/100Mbps PoE Ports + 2 Uplink Ports for flexible connectivity IEEE 802.3af/at Compliant (up to 30W per port) 45W Total PoE Budget for powering multiple IP devices 250m Extend Mode for long-distance PoE transmission VLAN Mode isolates downlink ports to improve network security PD Alive Watchdog auto-reboots offline PoE devices Fanless Metal Housing ensures quiet, reliable performance Plug-and-Play Installation — no configuration required Compact Desktop/Wall-Mount Design for flexible deployment Certified Safe: CE, FCC, RoHS, UKCA, RCM Technical Specifications Brand / Model Wi-Tek Wiking WK-PS206 SKU WK-PS206 Downlink Ports 4 × 10/100 Mbps RJ45 PoE (IEEE 802.3af/at, up to 30 W per port) [oai_citation:0‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS) Uplink Ports 2 × 10/100 Mbps RJ45 [oai_citation:1‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS) Total PoE Budget 45 W (pins 1/2 +, 3/6 –) [oai_citation:2‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS) Switching Capacity 1.2 Gbps [oai_citation:3‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS) Forwarding Rate 0.89 Mpps [oai_citation:4‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS) MAC Address Table 2K [oai_citation:5‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS) Buffer / Jumbo Frame 768 Kbit buffer; 15 KB jumbo frame [oai_citation:6‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS) Forwarding Mode Store-and-Forward [oai_citation:7‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS) DIP Switch Modes Default: 100 m PoE @ 100 Mbps (VLAN & PD-Alive off). VLAN: Downlink port isolation to uplinks; PD-Alive enabled. Extend: Up to 250 m @ 10 Mbps; PD-Alive enabled. PD-Alive: Auto-reboots unresponsive PoE devices. Power Input 100–240 V AC, 50/60 Hz [oai_citation:8‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS) Power Consumption Idle: 10 W; Full load (PoE + traffic): 55 W [oai_citation:9‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS) Housing / Cooling Metal (iron), fanless [oai_citation:10‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS) Installation Desktop / Wall-mount [oai_citation:11‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS) Dimensions 160 × 90 × 35 mm (switch); 245 × 190 × 60 mm (package) [oai_citation:12‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS) Weight 0.37 kg (net); 0.64 kg (package) [oai_citation:13‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS) LED Indicators PWR: On = power OK Link: On = link; Blinking = activity SW: On = VLAN; Blinking = Extend; Off = Default [oai_citation:14‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS) Standards IEEE 802.3, 802.3u, 802.3x; compatible with 802.3af/at [oai_citation:15‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS) Operating / Storage 0–40 °C, 10–90% RH; storage –40–70 °C, 5–90% RH [oai_citation:16‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS) Surge / ESD IEC 61000-4-5: CM ±4 kV, DM ±2 kV; IEC 61000-4-2: Contact ±6 kV, Air ±8 kV [oai_citation:17‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS) Certifications CE, FCC, RoHS, UKCA, RCM [oai_citation:18‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS) Package Contents Switch, AC power cord, Quick Installation Guide [oai_citation:19‡WK-PS206_Datasheet_V3.0_20250115.pdf](file-service://file-LTWnU5D9n4VCnTgmXP3QqS) The WK-PS206 PoE Switch is ideal for: Small CCTV Networks – power and connect up to 4 IP cameras. Retail & Office Environments – VLAN mode enhances network security. Hospitality & Hotels – silent fanless design ensures noise-free operation. Entry-Level PoE Deployments – cost-effective power for APs, IP phones, and cameras. Its compact form factor, plug-and-play setup, and PD Alive watchdog make it a reliable choice for small-scale PoE applications.

Read more less

The Wi-Tek Wiking WK-PS219GF is a robust 16-port 100Mbps PoE switch designed for professional CCTV and IP deployments. With 2 gigabit RJ45 uplinks and 1 SFP slot, it provides flexible network expansion. Delivering a 180W PoE budget, it powers multiple cameras, access points, and IP devices with stability and efficiency. Port 1 supports Hi-PoE 60W for high-demand devices like PTZ cameras, while Ports 2–16 comply with IEEE 802.3af/at standards. A smart DIP switch enables 250m Extend mode, VLAN isolation, and PD Alive watchdog to auto-reboot unresponsive devices. The fanless metal housing ensures silent operation, while desktop or rack-mount options make it versatile for businesses, hotels, and surveillance networks.  Key Features 16 × 10/100Mbps PoE Ports for IP cameras and devices Port 1 Hi-PoE 60W, Ports 2–16 support IEEE 802.3af/at (30W each) 180W Total PoE Power Budget 2 × Gigabit RJ45 Uplinks + 1 × Gigabit SFP for flexible expansion 250m Extend Mode for long-distance PoE transmission VLAN Isolation Mode prevents broadcast storms PD Alive Watchdog auto-reboots offline devices Fanless Metal Housing for quiet and reliable operation Plug-and-Play Setup, no configuration required Desktop or Rack-Mount Installation Certified: CE, FCC, RoHS, UKCA, RCM Technical Specifications Technical Specifications — Wi-Tek Wiking WK-PS219GF Brand / Model Wi-Tek Wiking WK-PS219GF SKU WK-PS219GF Downlink Ports 16 × 10/100 Mbps RJ45 PoE Uplink Ports 2 × 10/100/1000 Mbps RJ45, 1 × 1000 Mbps SFP  PoE Standards Port 1: Hi-PoE up to 60 W; Ports 2–16: IEEE 802.3af/at (30 W each) Total PoE Budget 180 W  Switching Capacity 9.2 Gbps  Forwarding Rate 6.84 Mpps MAC Address Table 2K  Buffer / Jumbo Frame 768 Kbit buffer; 2 KB jumbo frame Forwarding Mode Store-and-Forward DIP Switch Modes Default: 100 m standard mode. VLAN: Downlink port isolation; PD Alive watchdog enabled. Extend: Up to 250 m @ 10 Mbps; PD Alive watchdog enabled. Power Input 100–240 V AC, 50/60 Hz  Power Consumption Idle: 10 W; Full load: 190 W Housing / Cooling Metal (iron), fanless Installation Desktop / Rack-mount Dimensions 320 × 207 × 45 mm  Weight 1.61 kg (net); 2.14 kg (package) LED Indicators PWR: System power status PoE: PoE enabled/disabled Link: On = link; Blinking = activity SW: VLAN/Extend/PD Alive mode status PoE Max: On ≥95% usage; Blinking 90–95%; Off <90%  Operating / Storage –10 °C to 50 °C, 10–90% RH; Storage –40 °C to 70 °C, 5–95% RH Surge / ESD Protection ±4 kV CM, ±2 kV DM; ±6 kV contact, ±8 kV air  Certifications CE, FCC, RoHS, UKCA, RCM Package Contents Switch, AC power cord, Quick Installation Guide, Mounting accessories (hooks ×2, screws ×8) More Information WK-PS219GF Datasheet

Read more less

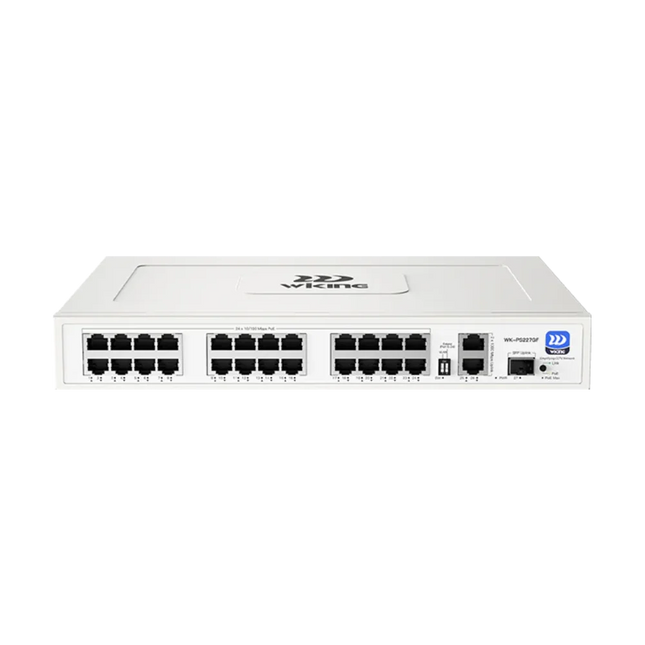

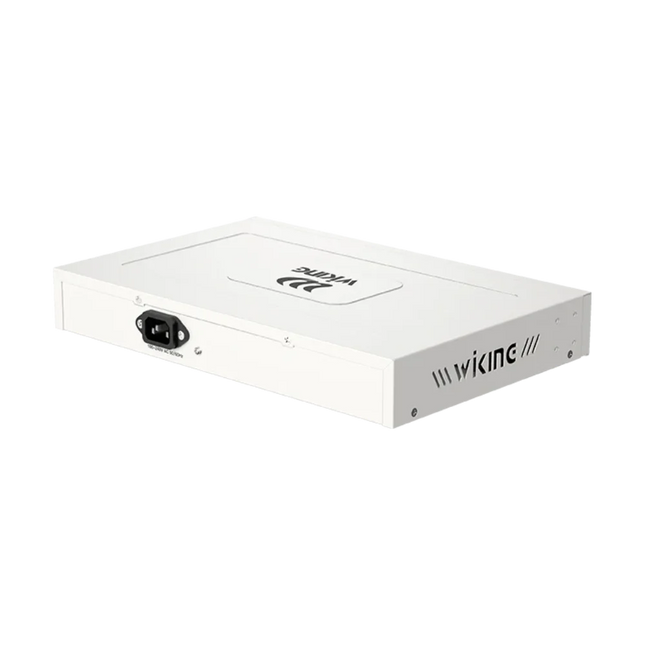

Wi-Tek CCTV PoE Infrastructure 24-Port PoE Power for Professional CCTV Networks The Wi-Tek WK-PS227GF is a practical 24-port PoE switch built for surveillance, business networking and installer-led CCTV projects. With 24 PoE ports, Gigabit uplinks, an SFP slot and a total PoE budget of up to 280W, it gives installers a clean way to power multiple IP cameras while keeping the network simple, tidy and reliable. Built for CCTV Installers, Businesses and Growing Sites A good CCTV system depends on more than cameras and an NVR. The switch behind the system needs enough ports, enough PoE budget and stable uplink options to support the cameras on site. The WK-PS227GF is designed for security camera installations where multiple PoE devices need to be powered from one central network point. It is well suited to retail stores, warehouses, offices, car parks, access control points and commercial CCTV upgrades where a simple plug-and-play PoE switch is preferred over complex network configuration. Why Choose the Wi-Tek WK-PS227GF? 280W PoE Budget Supports a total PoE power budget of up to 280W, giving CCTV installers practical headroom for multi-camera IP surveillance systems. 24 PoE Camera Ports Includes 24 x 10/100Mbps PoE ports for powering IP cameras, access control devices and other PoE-powered network equipment. Gigabit Uplinks + SFP Includes 2 x 10/100/1000Mbps RJ45 uplink ports and 1 x 1000Mbps SFP slot for connection back to an NVR, router or upstream network. 250m Extend Mode Supports 250m Extend mode on the DIP switch, useful for long cable runs where standard Ethernet distance may not be enough. Port Isolation DIP switch port isolation support helps separate connected devices, making it useful for security-focused CCTV network layouts. PD Alive Function PD Alive mode can detect and automatically reboot unresponsive PoE-powered devices, helping reduce manual site visits. Fanless Metal Housing The metal housing and fanless design help create a quiet installation environment for offices, small businesses and comms areas. ✅ Plug and Play No configuration is required for standard operation, making it easier for installers and businesses to deploy quickly. Common Applications 🏬 Retail and Offices Power multiple indoor and outdoor CCTV cameras from one switch for shops, offices, showrooms and small commercial sites. 🏭 Warehouses and Car Parks Suitable for surveillance layouts that need many camera points across larger areas, loading zones and parking entries. 🚪 Access Control and Network Expansion Can support PoE-powered devices where CCTV, access control and network expansion need to share a clean infrastructure path. Practical note: always check the total PoE wattage required by your cameras and PoE devices before choosing a switch. Allow extra headroom for infrared, active deterrence, PTZ movement or future camera expansion. Official Specifications Model WK-PS227GF PoE Ports 24 x 10/100Mbps PoE ports RJ45 Uplink Ports 2 x 10/100/1000Mbps RJ45 uplink ports SFP Slot 1 x 1000Mbps SFP slot Total PoE Budget Up to 280W Extend Mode Supports 250m Extend function on DIP switch Port Isolation Supported on DIP switch PD Alive Detects and reboots unresponsive PoE-powered devices automatically Housing Metal housing Cooling Design Fanless design Configuration Plug and play, no configuration required Official Downloads Official Product Page View Wi-Tek WK-PS227GF product page Product Datasheet Download WK-PS227GF datasheet Quick Installation Guide Download WK-PS227GF QIG Frequently Asked Questions Is the Wi-Tek WK-PS227GF suitable for CCTV cameras? Yes. It has 24 PoE ports and is suitable for powering multiple IP CCTV cameras in business, commercial and surveillance installations. How much PoE power does it provide? The official Wi-Tek specification lists a total PoE power budget of up to 280W. Does it have Gigabit uplink ports? Yes. It includes 2 x 10/100/1000Mbps RJ45 uplink ports plus 1 x 1000Mbps SFP slot. Does it support long cable runs? Yes. The switch supports 250m Extend mode on the DIP switch. This can be useful for longer CCTV cable runs where supported by the installation design. What is PD Alive? PD Alive mode detects unresponsive PoE-powered devices and can reboot them automatically, helping reduce manual troubleshooting on site. Is configuration required? No. The WK-PS227GF is plug and play for standard operation, with no configuration required. How do I choose the right PoE switch? Check the number of cameras, the wattage required by each device and the total PoE budget. It is best to leave extra capacity for night vision, active deterrence cameras or future expansion. Build a Cleaner CCTV Network Backbone The Wi-Tek WK-PS227GF gives installers and businesses a simple way to power up to 24 PoE devices with Gigabit uplinks, SFP flexibility and CCTV-friendly DIP switch functions. Shop Network Switches Build Your CCTV Kit 🇦🇺 Australian Support Local CCTV Guru support for product selection, compatibility and installation planning. 🚚 Fast Shipping Quick dispatch across Australia for CCTV, networking and security installation products. 🧰 Installer Friendly Practical product guidance for security installers, businesses and serious DIY CCTV upgrades.

Read more less

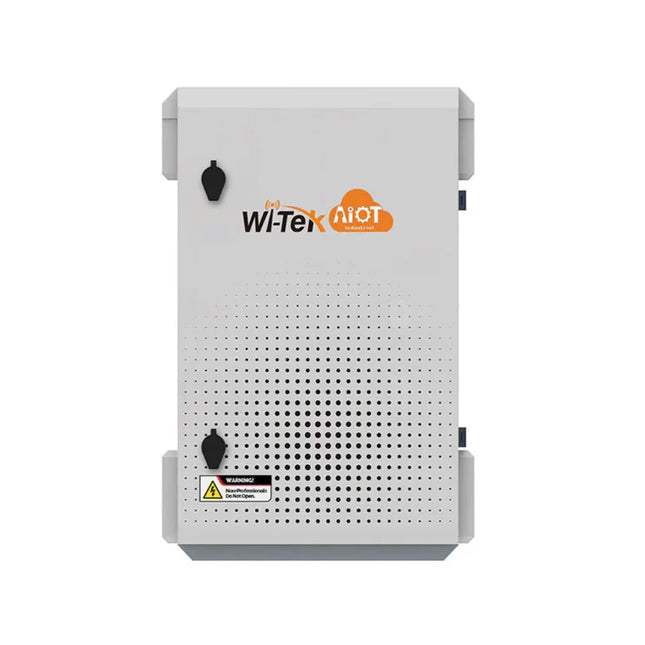

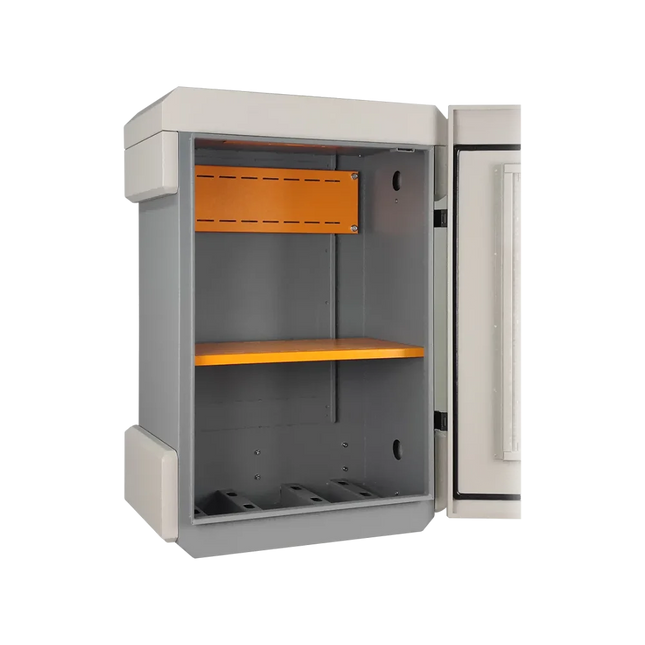

Professional IP65 & IK10 Outdoor Smart IoT Enclosure The WI-TEK Smart IoT Box series is a professional-grade, all-weather protection solution designed for outdoor electrical equipment. Engineered for durability in harsh environments, these enclosures are the ideal choice for CCTV surveillance, WLAN deployments, and Industrial IoT projects. Key Technical Features Rugged IK10 Impact Resistance: Featuring a seamless welding box body, this enclosure is built to withstand significant external force without deformation. IP65 Weatherproof Rating: Complete protection against dust ingress and high-pressure water jets, ensuring your internal hardware remains dry and functional. Advanced Material Science: Constructed from SUS430 stainless steel with an electrostatic powder spraying finish to resist UV damage, salt spray, and acid/alkali corrosion. Active Thermal Management: Includes an integrated top-mounted cooling fan and bottom ventilation ports that create a natural air duct for superior heat dissipation. Modular Installation: A highly flexible design featuring a detachable top cover, side panels, and mounting plates to accommodate vertical or horizontal equipment layouts. Enhanced Security: Equipped with a secure lock cartridge and a door microswitch that can be integrated with cloud or buzzer alarms to prevent unauthorized access. Product Variants & Dimensions Specification WI-IOTBOX01 WI-IOTBOX02 WI-IOTBOX03 Overall Dimensions 300 x 400 x 206.5 mm 400 x 600 x 256.5 mm 500 x 720 x 286.5 mm Inner Dimensions 250 x 350 x 180 mm 350 x 560 x 230 mm 450 x 650 x 260 mm Net Weight 7.2 kg 12.6 kg 17.1 kg Modular Application Support This series supports a wide range of industrial equipment to decrease project deployment costs through modular installation: CCTV and NVR protection Industrial 4G LTE Routers and M2M Gateways Outdoor Wireless Transmitters and Mesh APs Solar Powered PoE Switches and Battery Controllers Package Contents 1x Smart IoT Box Enclosure 1x CHNT NXB-63 (63A) Miniature Circuit Breaker 1x 12V DC Cooling Fan 1x Door Microswitch Accessory 4x M25 Waterproof Ethernet Connectors Wall and Pole Mounting Accessory Kits

Read more less

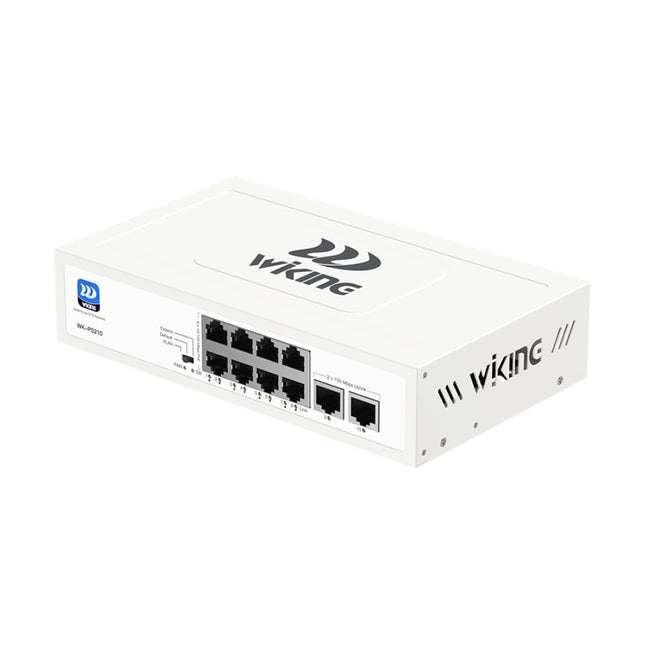

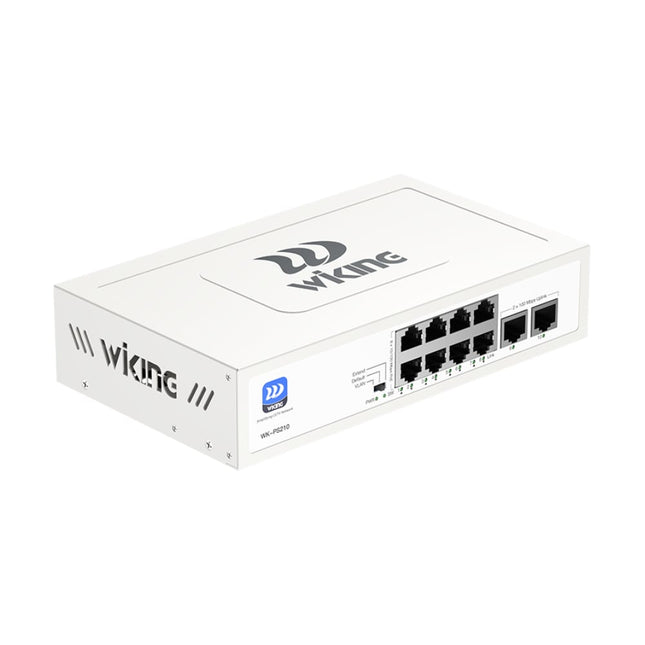

The WiTek WIKING WK-PS210 is a high-performance 8-port PoE switch with 2 uplinks, engineered for CCTV and IP networking. Delivering fast 100Mbps data, a 76W PoE power budget, and intelligent DIP switch controls, it ensures stability and efficiency for surveillance and business networks. With 250m Extend Mode, VLAN port isolation, and PD Alive auto-reboot, the WK-PS210 keeps your PoE devices online without interruption. Its fanless metal housing guarantees silent operation, while the plug-and-play setup makes installation simple for both professionals and end users. Designed for IP cameras, VoIP phones, access points, and security systems, this switch combines reliability, safety, and smart management for any PoE deployment. Key Features 8 × 10/100Mbps PoE Ports + 2 Uplinks for powering IP cameras and devices 76W Total PoE Budget (IEEE 802.3af/at, up to 30W per port) 250m Extend Mode for long-distance PoE transmission VLAN Isolation Mode to reduce broadcast storms and improve security PD Alive Function auto-detects and reboots unresponsive PoE devices Quiet Fanless Metal Housing for reliable, noise-free operation Plug-and-Play design, no configuration required Desktop or Wall-Mount Installation for flexible deployment Certified Safe with CE, FCC, RoHS, UKCA, RCM compliance Usage The WK-PS210 PoE Switch is designed for: CCTV & IP Surveillance – power and connect multiple cameras with extended reach. Small to Medium Business Networks – offices, hotels, and retail environments. VoIP Phones & Access Points – stable power and data for PoE-enabled devices. Remote Installations – PD Alive ensures cameras and devices stay online. Its smart watchdog technology and long-distance PoE capability make it an excellent choice for any professional security or networking project. Technical Specifications — WiTek WIKING WK-PS210 Brand / Model WiTek WIKING WK-PS210 SKU WK-PS210 Downlink Ports 8 × 10/100 Mbps RJ45 PoE (IEEE 802.3af/at, up to 30 W per port) Uplink Ports 2 × 10/100 Mbps RJ45 Total PoE Budget 76 W (pins 1/2 +, 3/6 –) Switching Capacity 2 Gbps Forwarding Rate 1.49 Mpps MAC Address Table 2K Buffer / Jumbo Frame 768 Kbit buffer; 15 KB jumbo frame Forwarding Mode Store-and-Forward DIP Switch Modes Default: Standard operation, up to 100 m @ 100 Mbps. VLAN: Downlink port isolation (to uplinks only) + PD Alive enabled. Extend: Up to 250 m reach @ 10 Mbps + PD Alive enabled. PD Alive: Auto-reboots unresponsive PoE devices. Power Input 100–240 V AC, 50/60 Hz Power Consumption Idle: 14 W; Full load (PoE + traffic): 90 W Housing / Cooling Metal (iron), fanless Installation Desktop / Wall-mount Dimensions 200 × 118 × 44 mm (switch); 245 × 190 × 60 mm (package) Weight 0.61 kg (net); 0.92 kg (package) LED Indicators PWR: On = power OK Link: On = link; Blinking = activity SW: On = VLAN; Blinking = Extend; Off = Default Standards IEEE 802.3, 802.3u, 802.3x; 802.3af/at compatible Operating Temp / RH 0 °C to 40 °C; 10–90% RH (non-condensing) Storage Temp / RH –40 °C to 70 °C; 5–90% RH (non-condensing) Surge / ESD IEC 61000-4-5: CM ±4 kV, DM ±2 kV; IEC 61000-4-2: Contact ±6 kV, Air ±8 kV Certifications CE, FCC, RoHS, UKCA, RCM Package Contents Switch, AC power cord, Quick Installation Guide More Information WiTek WIKING WK-PS210 DatasheetWiTek WIKING WK-PS210 Quick Installation Guide

Read more less

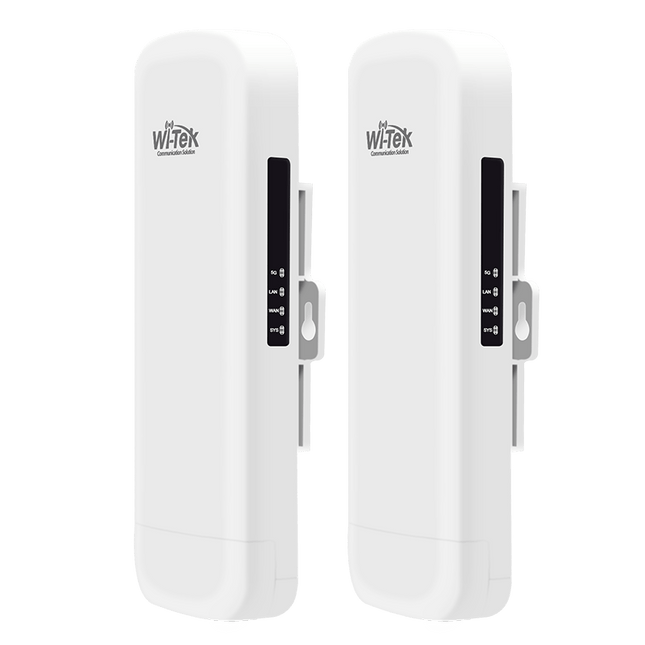

Wi-Tek 5 km Outdoor Wireless Point-to-Point For CCTV Wi-Tek 5GHz 867Mbps 5km Wireless Transmitter for CCTV, 1* 10/100/1000Mbps RJ45 ports, With double polarized 45 degrees antenna with 12dBi, 29dBm(500mW) adjustable transmission power., Durable IP65 weatherproof enclosure along with 8kV ESD, Support 802.af/at PoE Input , 5.150GHz～5.850GHz Extension Channel, Pre-configuration by the factory for PTP application, Support Cloud Managed, Discovery ONIVF IP camera and view network topology on Cloud, Included 48V PoE power adapter in the packing box Features 1*10/100/1000 Base-T LAN Ethernet port 802.3af/at PoE Input Wireless speed can be up to 867Mbps with 802.11ac Built-in 12dBi 2x2 dual-polarized directional MIMO antenna Adjustable transmission power from 0 to 29dBm Plug and Play for PTP mode Long range wireless transmission up to 5km IP65 protection level and 8kV ESD protection Centralized Cloud Management Platform Downloads WI-CPE800-KIT Datasheet V2WI-CPE800-KIT(V2) QIG
