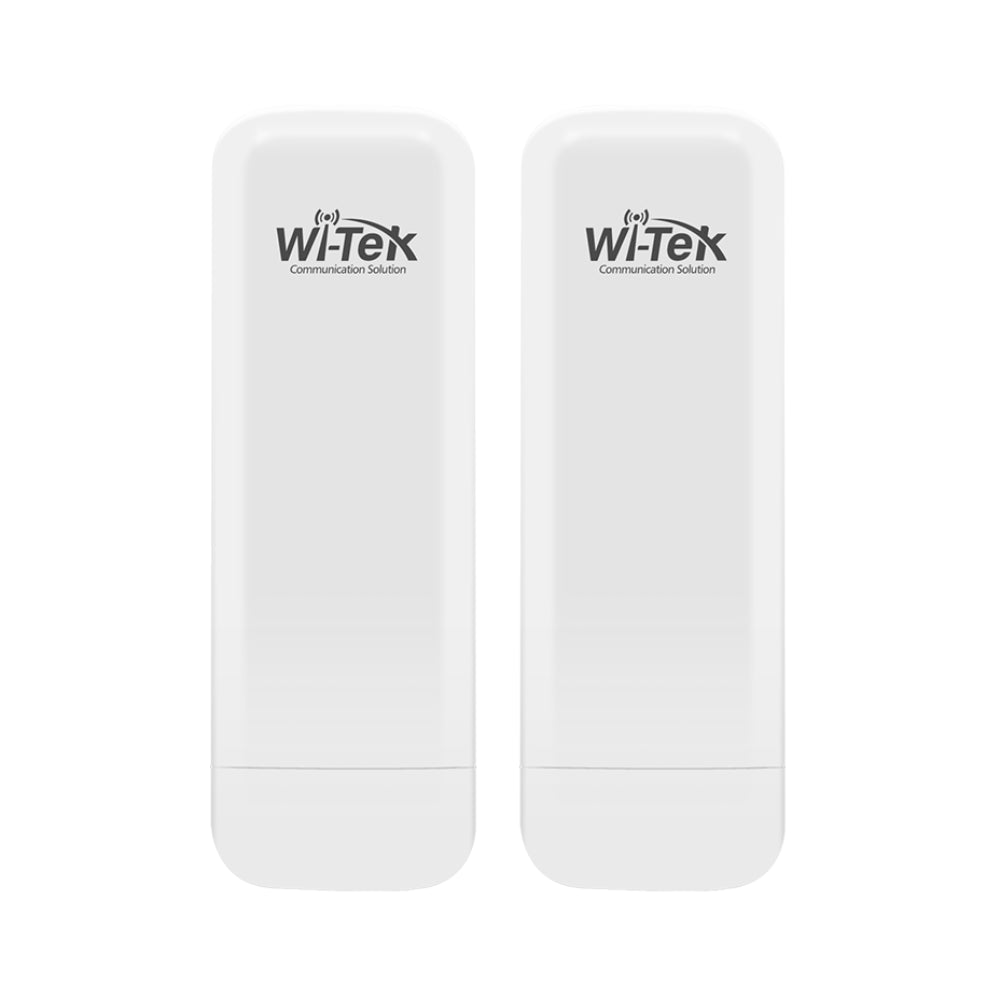

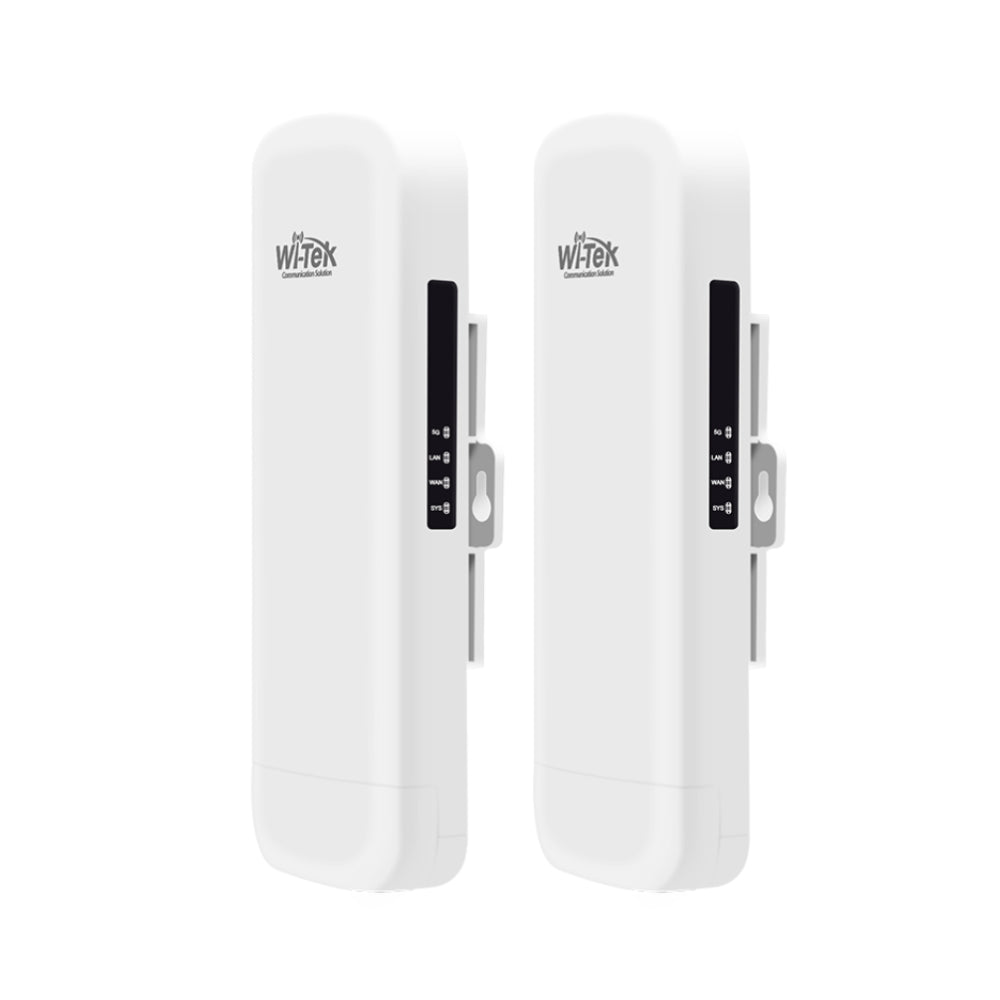

The WI-CPE513P-KIT V3 is a high-performance 5GHz 300Mbps outdoor wireless bridge kit designed for professional long-range network extensions and CCTV backhaul. With a transmission range of up to 5km and a pre-configured plug-and-play design, this kit eliminates the need for complex software setup, making it an ideal solution for remote IP camera connectivity and site-to-site networking.
Key Features
-
5km Long-Range Transmission: High-performance 15dBi dual-polarized directional antenna ensures stable connectivity over distances up to 5km.
-
300Mbps High-Speed Wireless: Utilizes the 5GHz 802.11a/n standard to provide ample bandwidth for multiple high-definition IP camera streams.
-
PoE Passthrough (PoE In & Out): Features dual Ethernet ports—one for PoE Input (802.3at) to power the bridge, and one for PoE Output (802.3af) to power an attached IP camera.
-

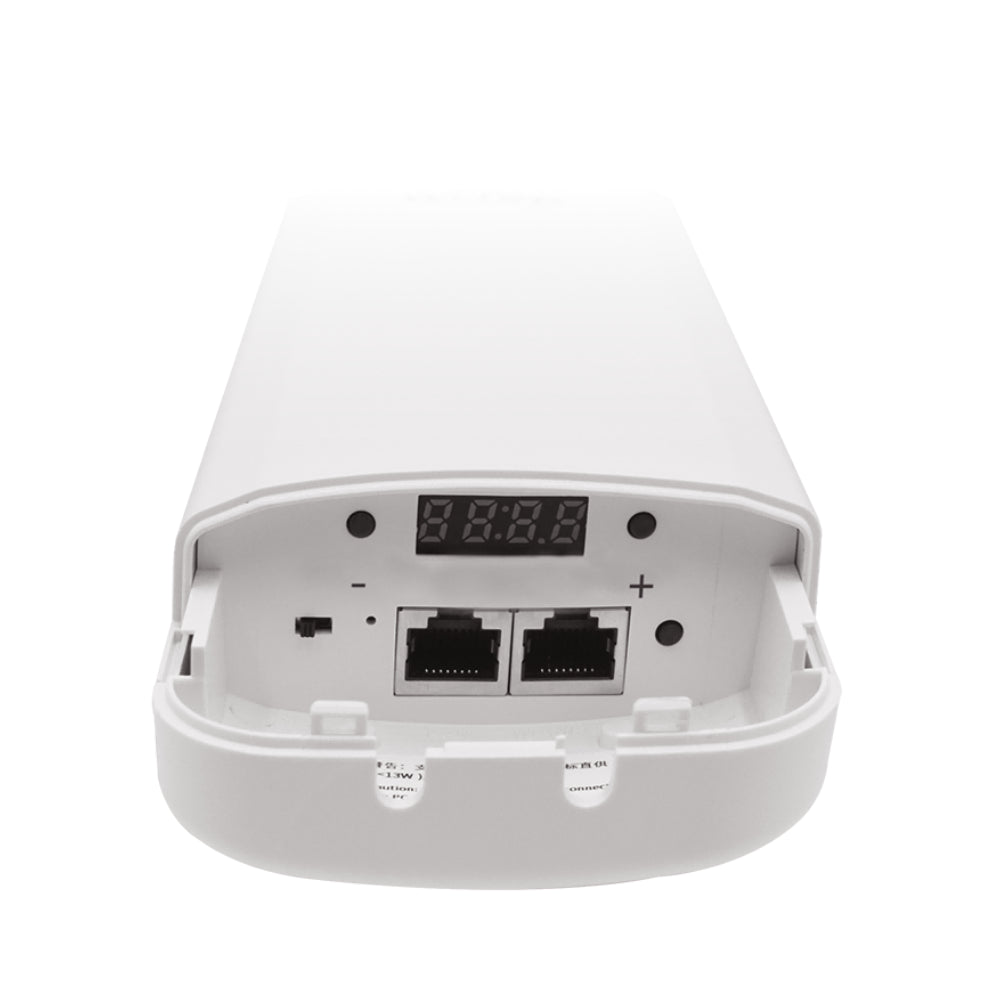

Pre-Configured Pairing: The kit comes pre-paired for instant PTP deployment. Includes a digital LED display and DIP switches for easy manual channel adjustment without a PC.
-
Wi-Tek Cloud Management: Supports centralized remote management and real-time monitoring via the Wi-Tek Cloud platform and mobile app.
-
All-Weather Reliability: IP65-rated weatherproof housing and professional 6kV ESD/10kV lightning protection for stable operation in harsh outdoor environments.
Technical Specifications
| Wireless Speed |
Up to 300Mbps (5GHz) |
| Antenna Gain |
15dBi Directional (30° Beamwidth) |
| Interfaces |
1x 10/100M PoE IN, 1x 10/100M PoE OUT |
| Power Supply |
48V 802.3at/af PoE (Adapter Included) |
| Operation Modes |
Base Station, CPE, WISP, Repeater |
| Ingress Protection |
IP65 Waterproof |
| Operating Temp |
-40°C to 70°C |

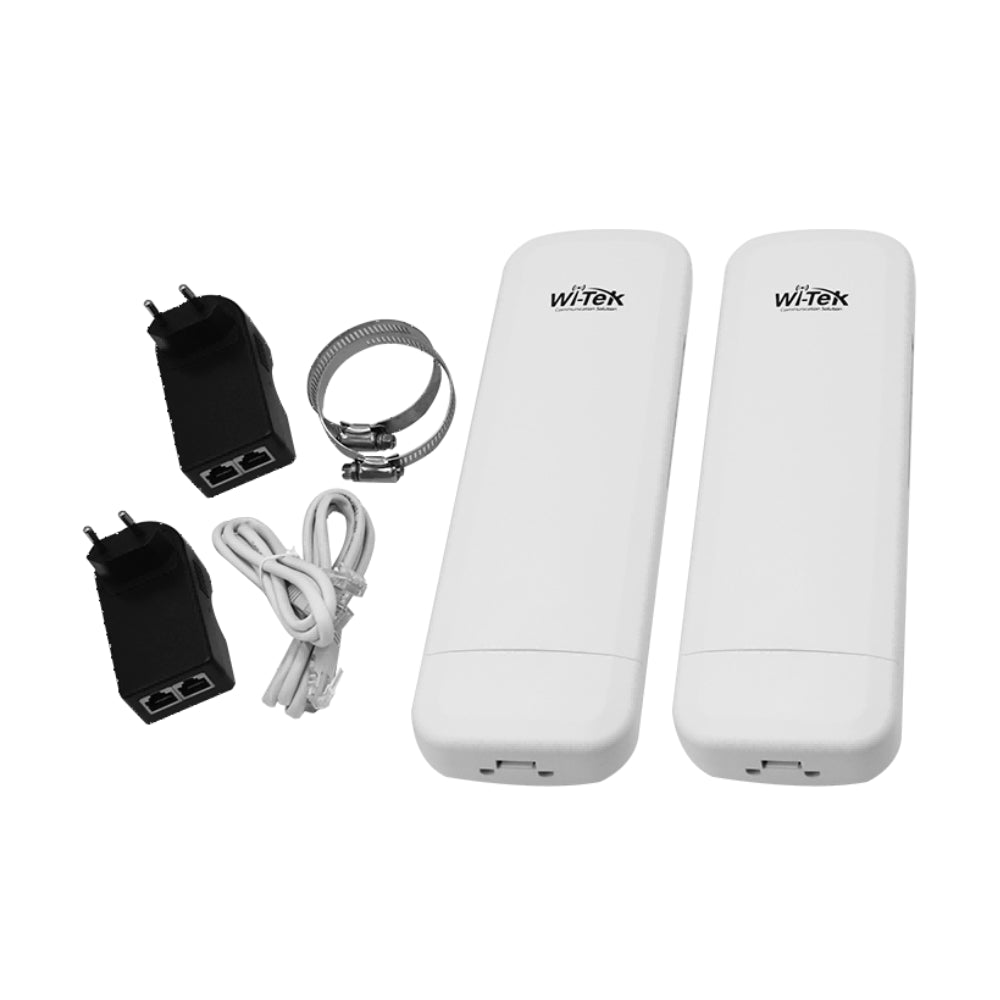

What's in the Box
- 2 x WI-CPE513P V3 Units
- 2 x 48V PoE Adapters
- 2 x Pole Mounting Straps
- 1 x Quick Installation Guide
